Vial Set

These instructions are applicable to the following products:

• MM-PULP-VIAL and link to product page

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game. Remove glass from playfield. The vial and syringe are not designed to be placed on whichever spinner gate you want. The gates have slight differences and the toys will only fit on the gates they were designed for. If you look at the underside of the mount, you will see that there are 2 clasps. One is squared off and the other has a taper. When installing these items, the tapered side will be the front. DO NOT apply torque or pressure to the syringe or vial. They will snap off. With that out of the way, let's get to the install.

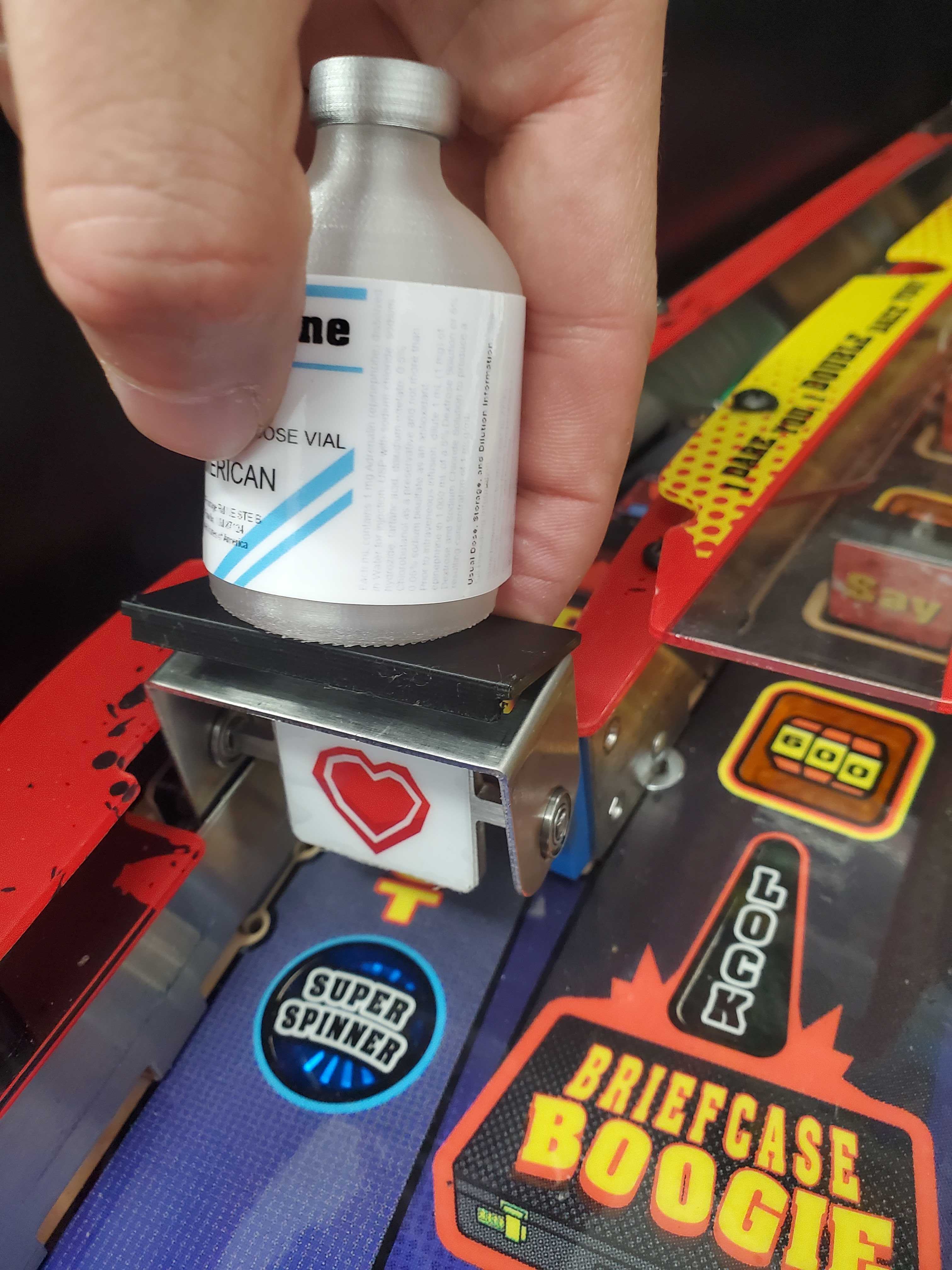

2. We will start on the left spinner gate. Hook the back side of the mount to the back of the gate.

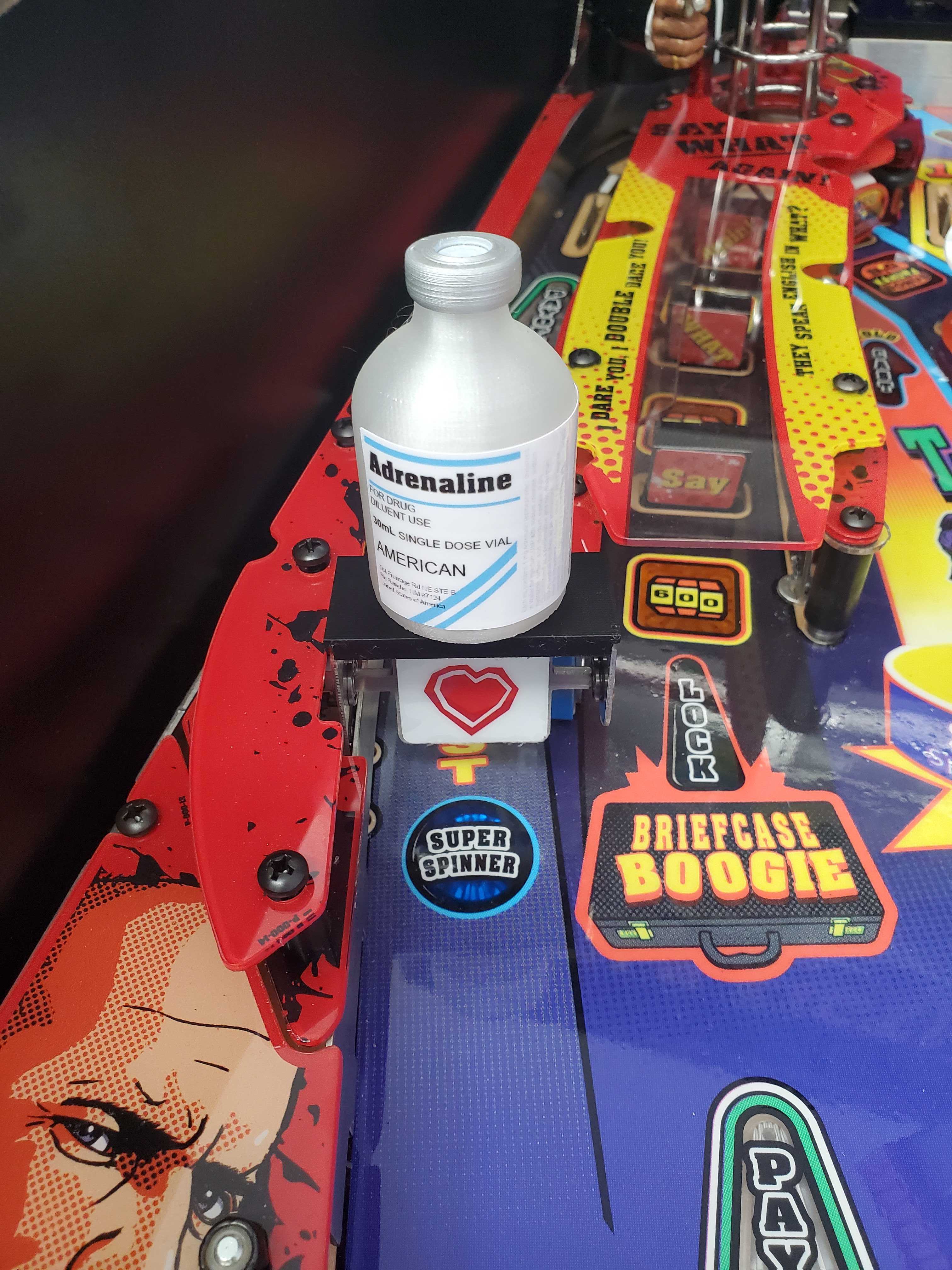

3. While pulling forward slightly, also push down. Remember: do not pull on the vial itself. The mount will snap down onto the bracket. When you are confident that both clasps have grabbed, push the mount towards the back of the playfield to lock the mount in place.

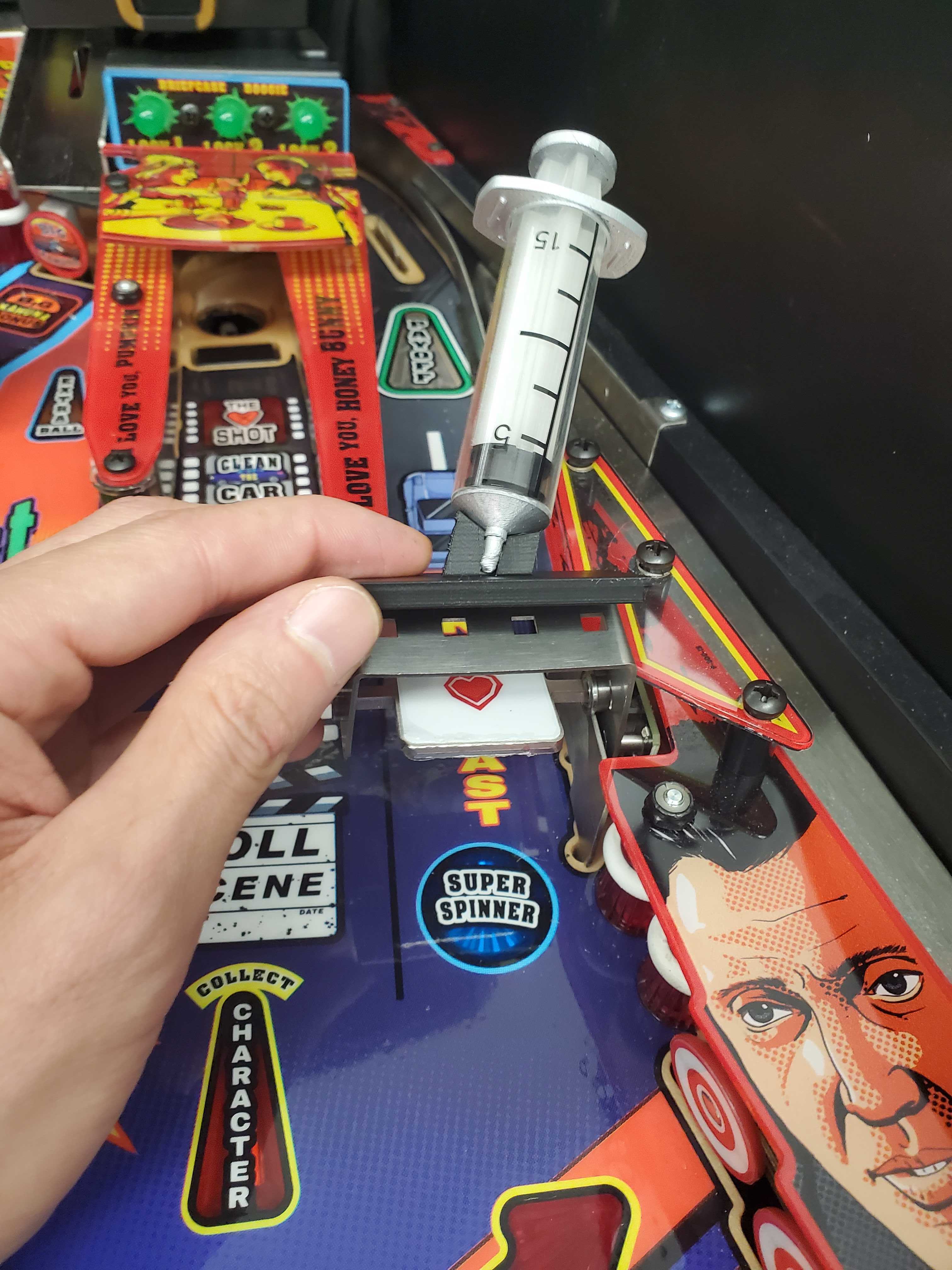

4. Mounting the syringe is the exact same process just on the other gate. We'll hook the back clasp onto the backside of the gate bracket.
5. Pull forward slightly and press down so the clasps snap onto the bracket. Once you feel like the clasps have clasped, push the mount towards the back of the playfield to lock the mount into place.
6. DONE!
