MET - Speaker Creature

These instructions are applicable to the following products:

• MM-MET-SPEAKER-BLUE
• MM-MET-SPEAKER-GREEN
• MM-MET-SPEAKER-RED

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

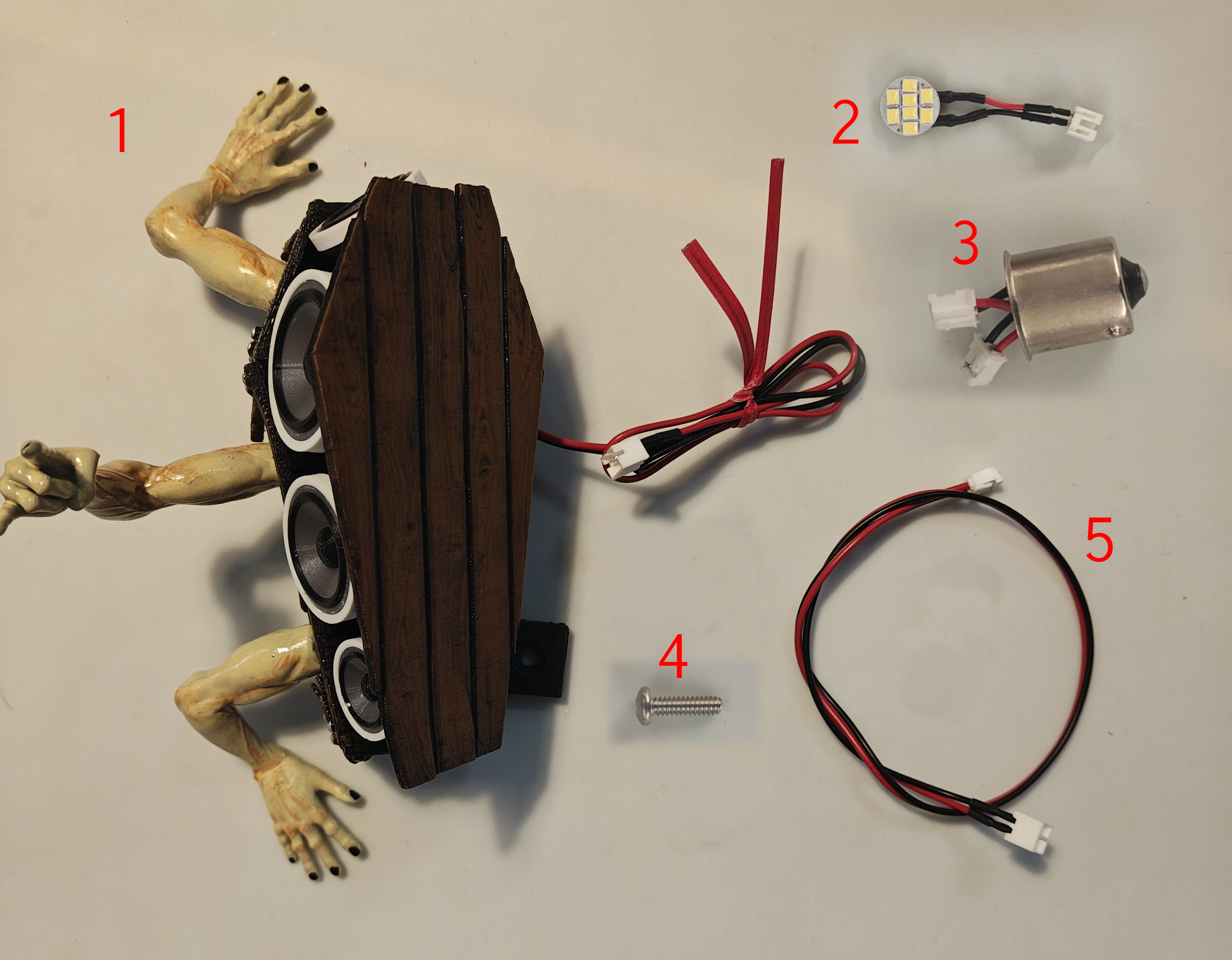

1. Speaker Creature
2. 12v White LED Matrix
3. 12v Matrix Flasher Bayonet
4. 6/32 3/4" Screw
5. 12" Matrix wire

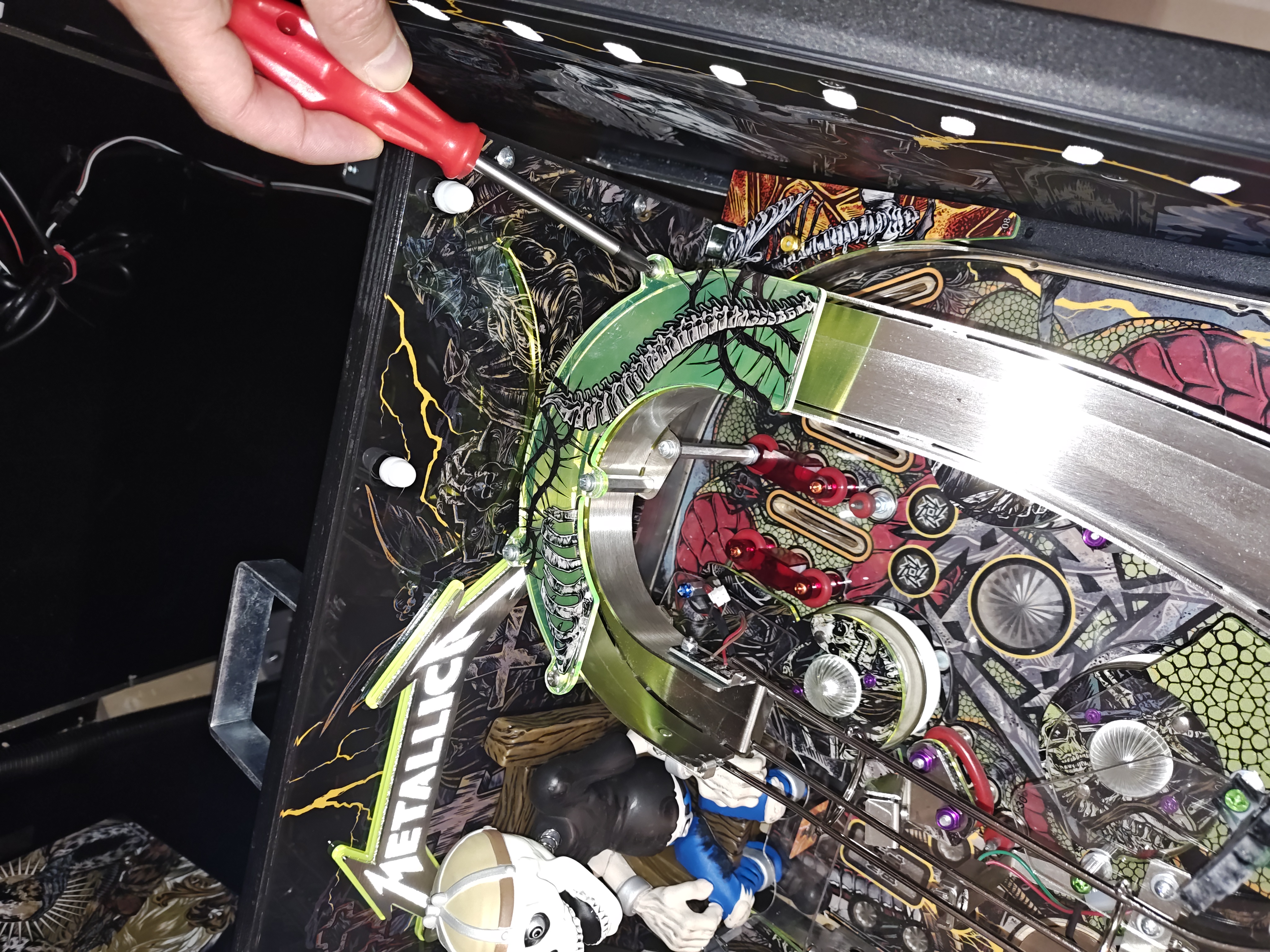

1. Start by lifting the playfield. In the following images we will be identifying the bulb and replacing with our own matrix bulb.

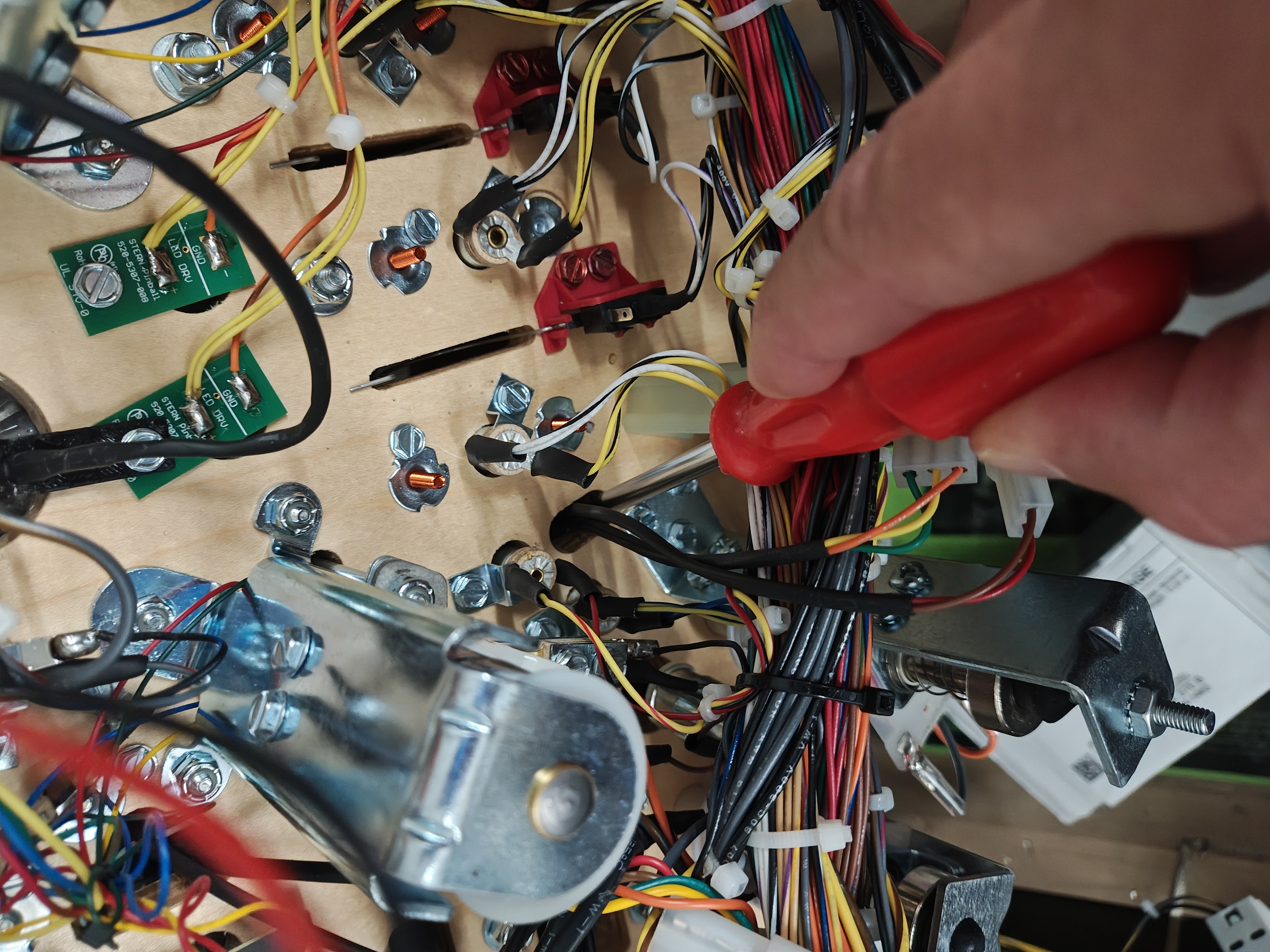

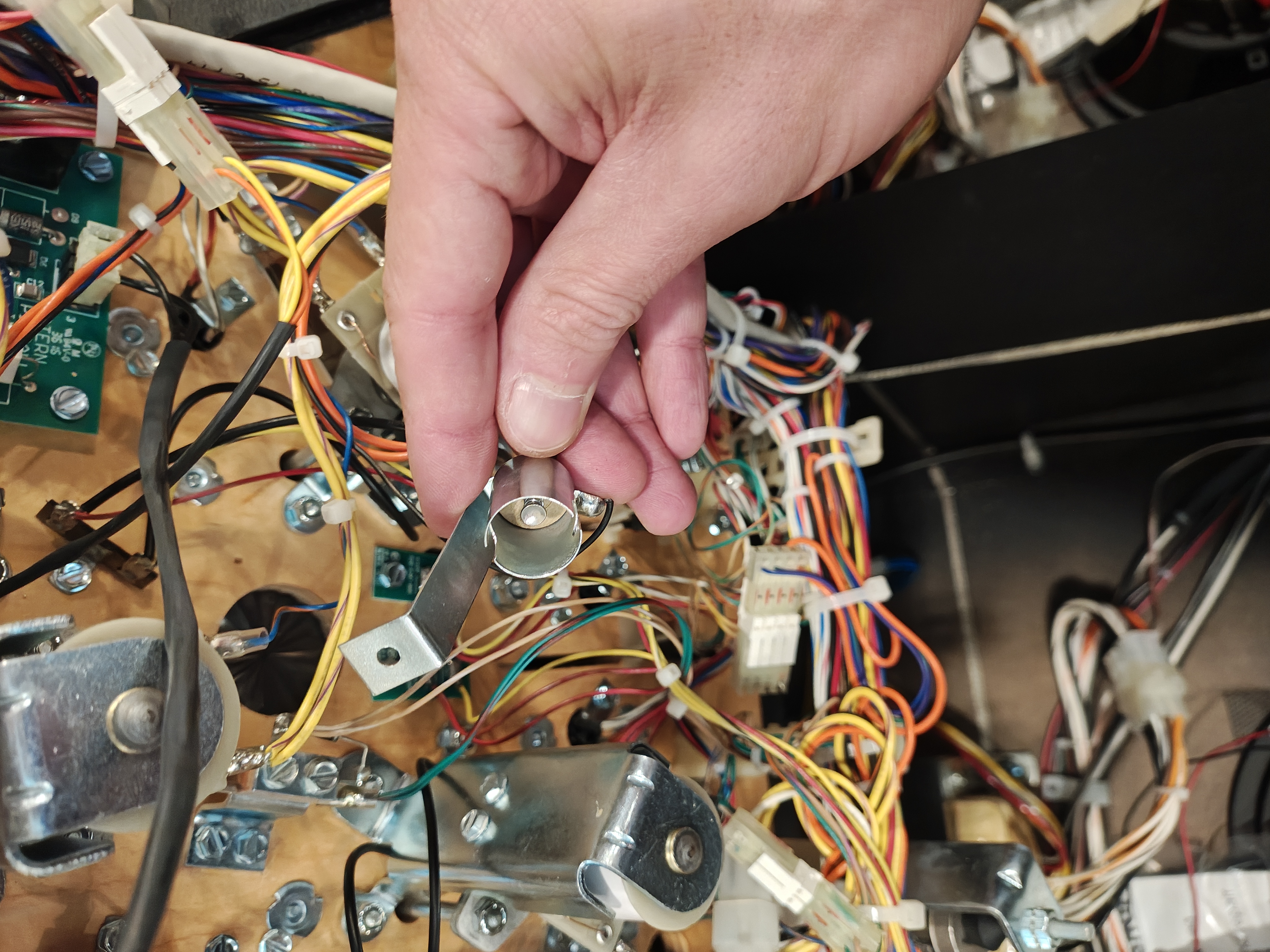

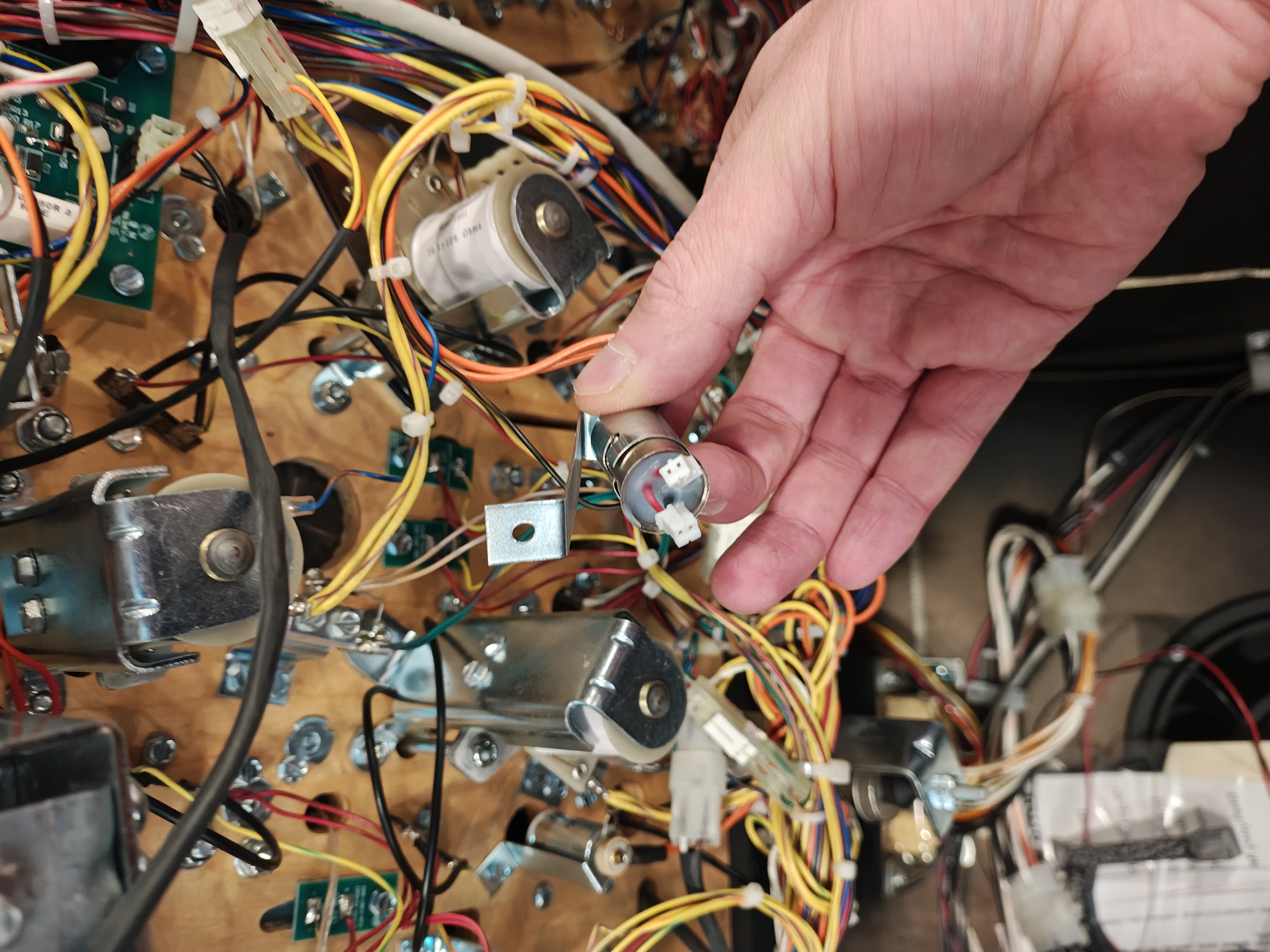

2.  Remove the screw holding the bracket. Remove the OEM bulb from the harness.



3. Insert provided 12v matrix flasher bayonet.

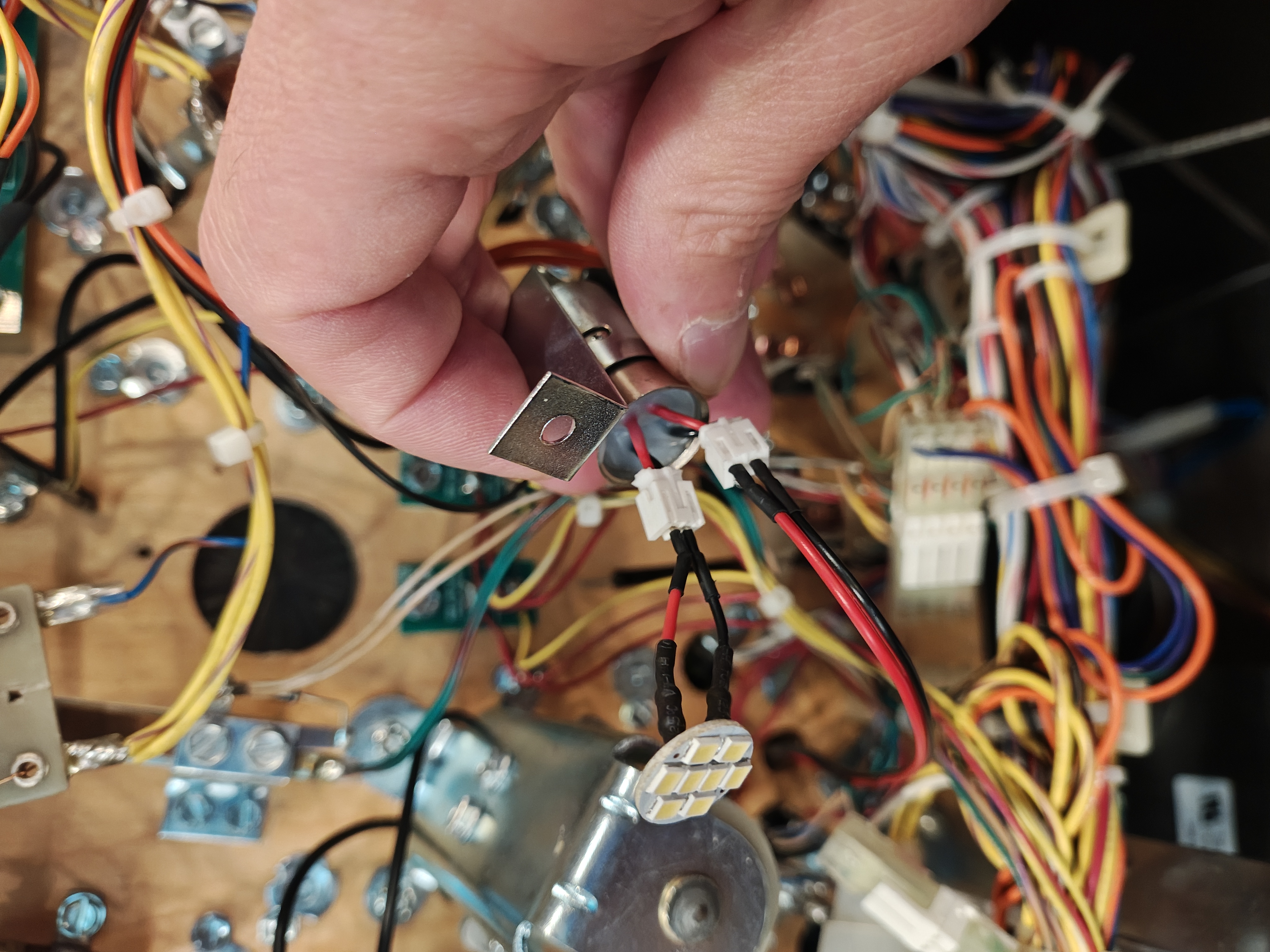

4. Attach 12v white LED matrix and the 12" matrix wire to the bayonet.

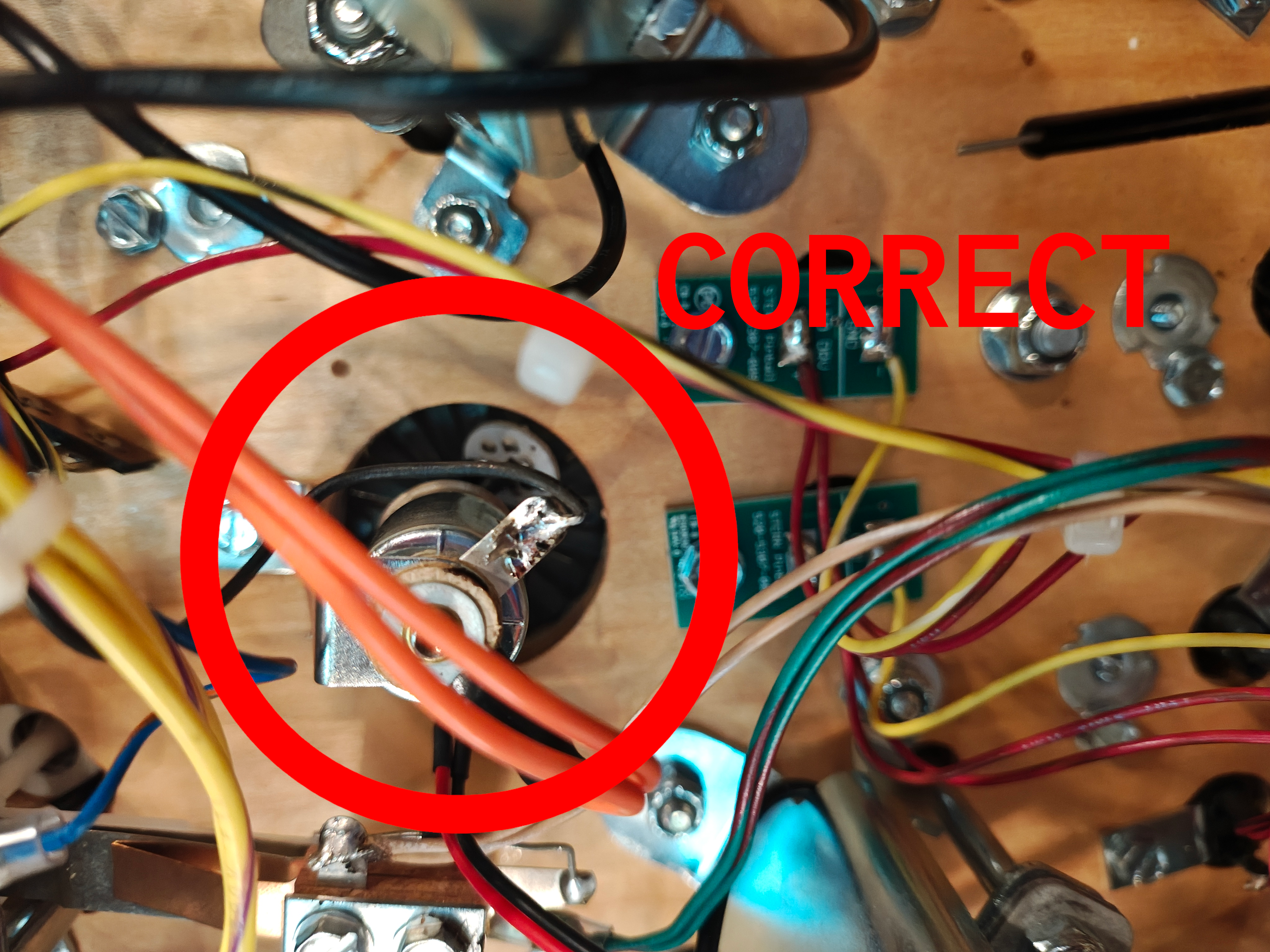

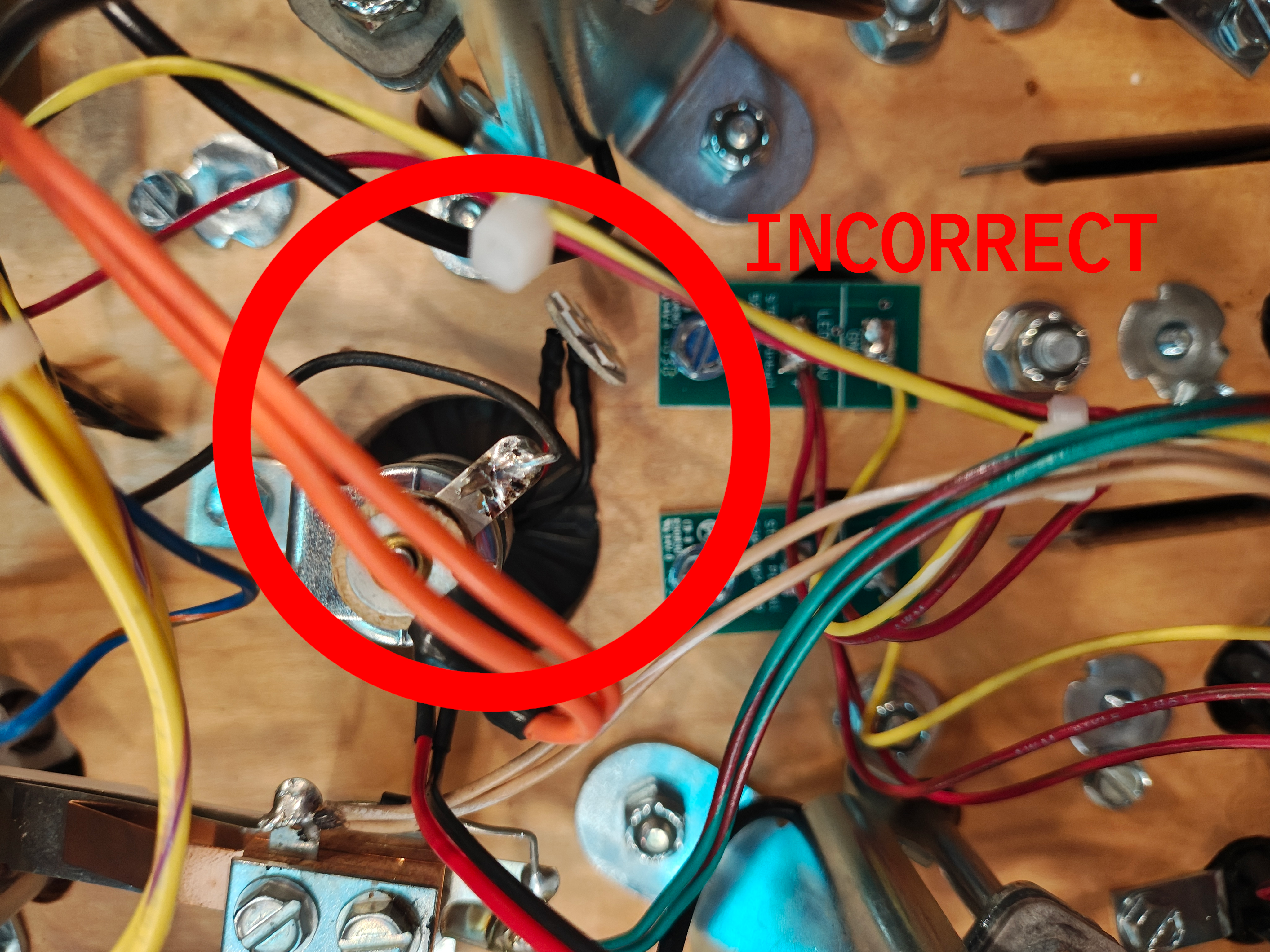

5. Replace the bulb bracket to its original location. Be sure the LED is 'captured' in the LED insert in the playfield. See the follow images for a correct and incorrect installation.

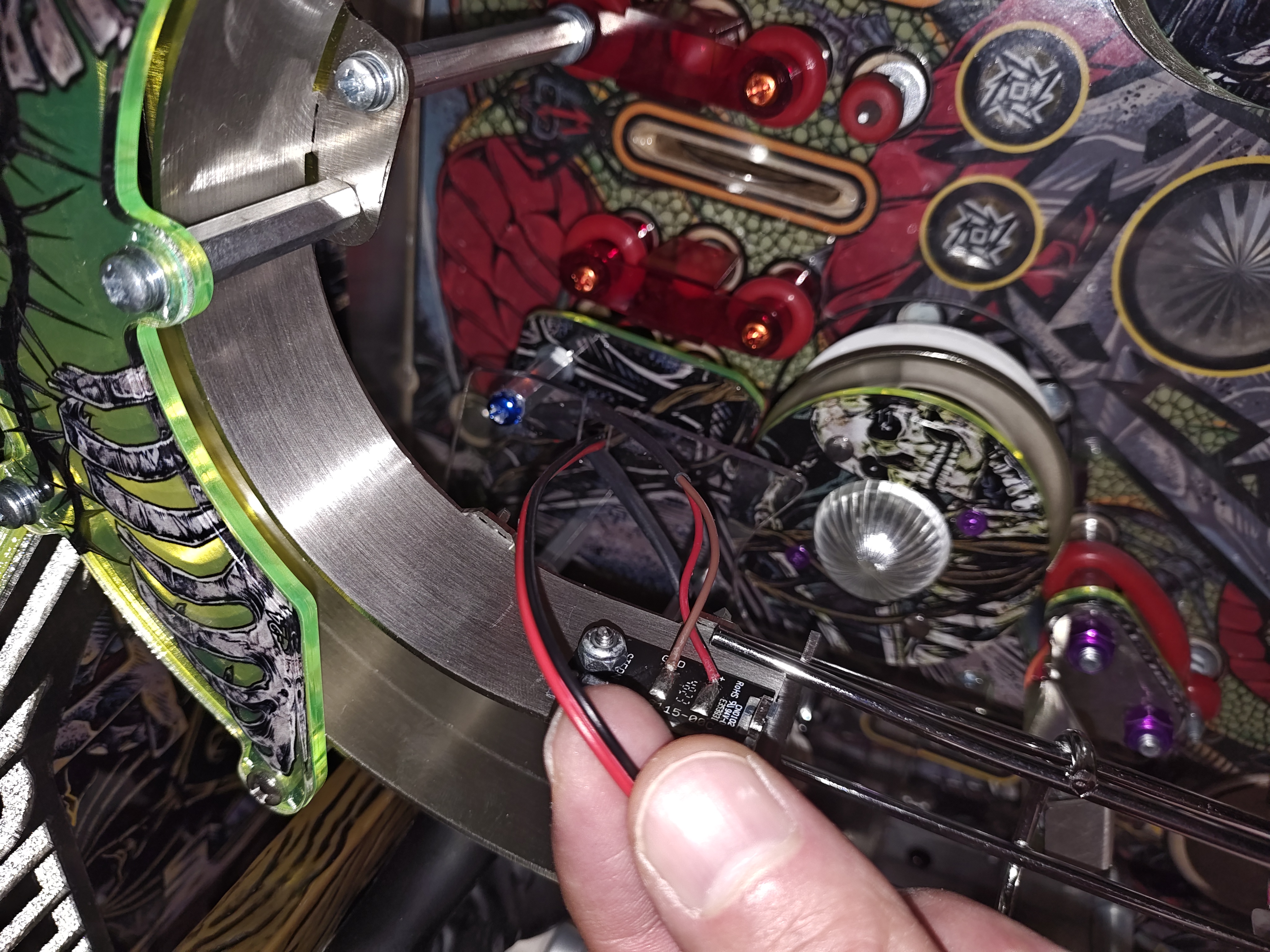

6. Fish the open end of the 12" matrix wire through the oval hole. This hole leads to the optic sensor of the right ramp.
7. Lower the playfield and we'll wrap this up on the top side. Find the wire you fished through the hole in step 6 and pull it through. Try to follow the OEM wires that are already there.

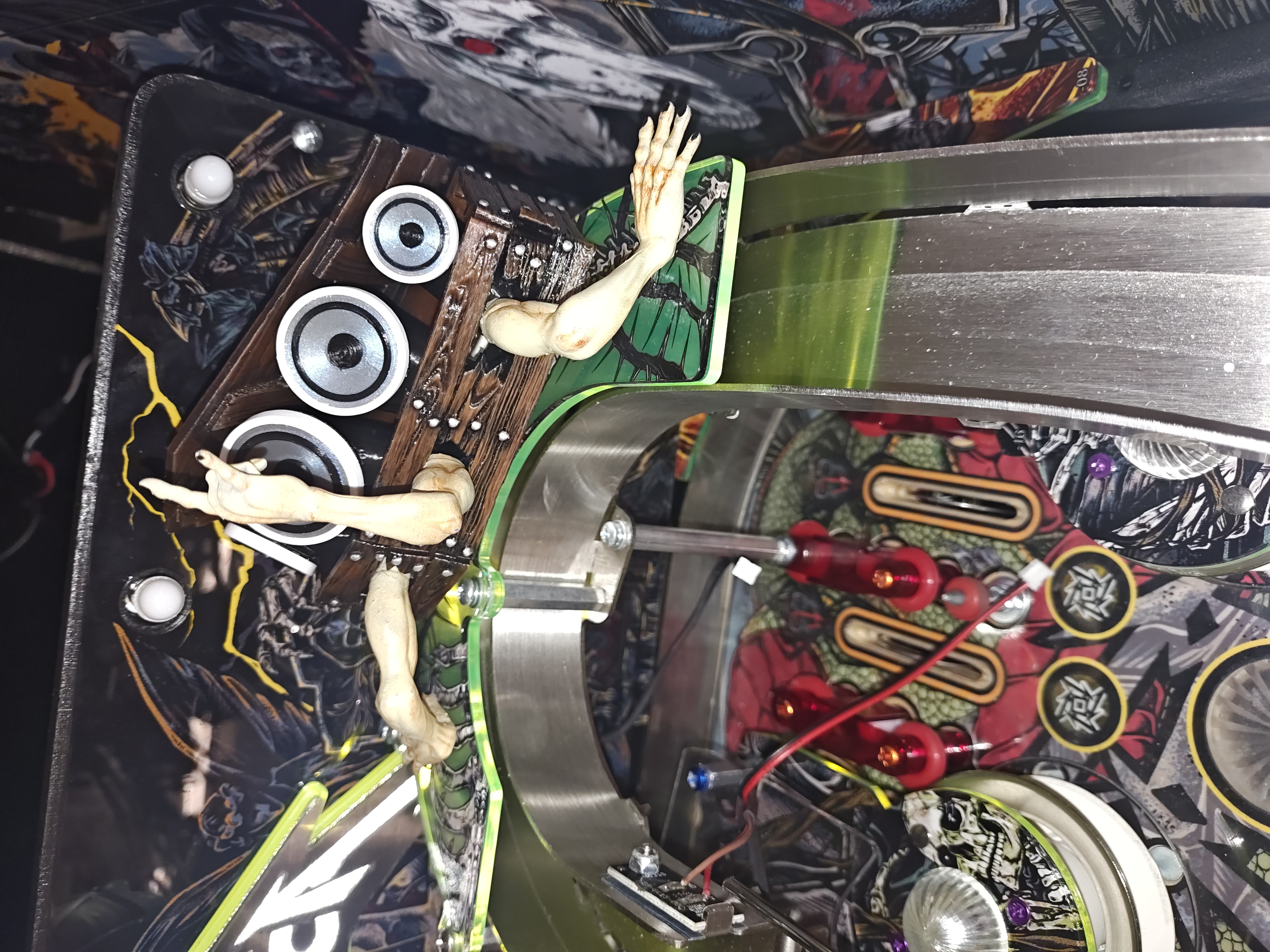

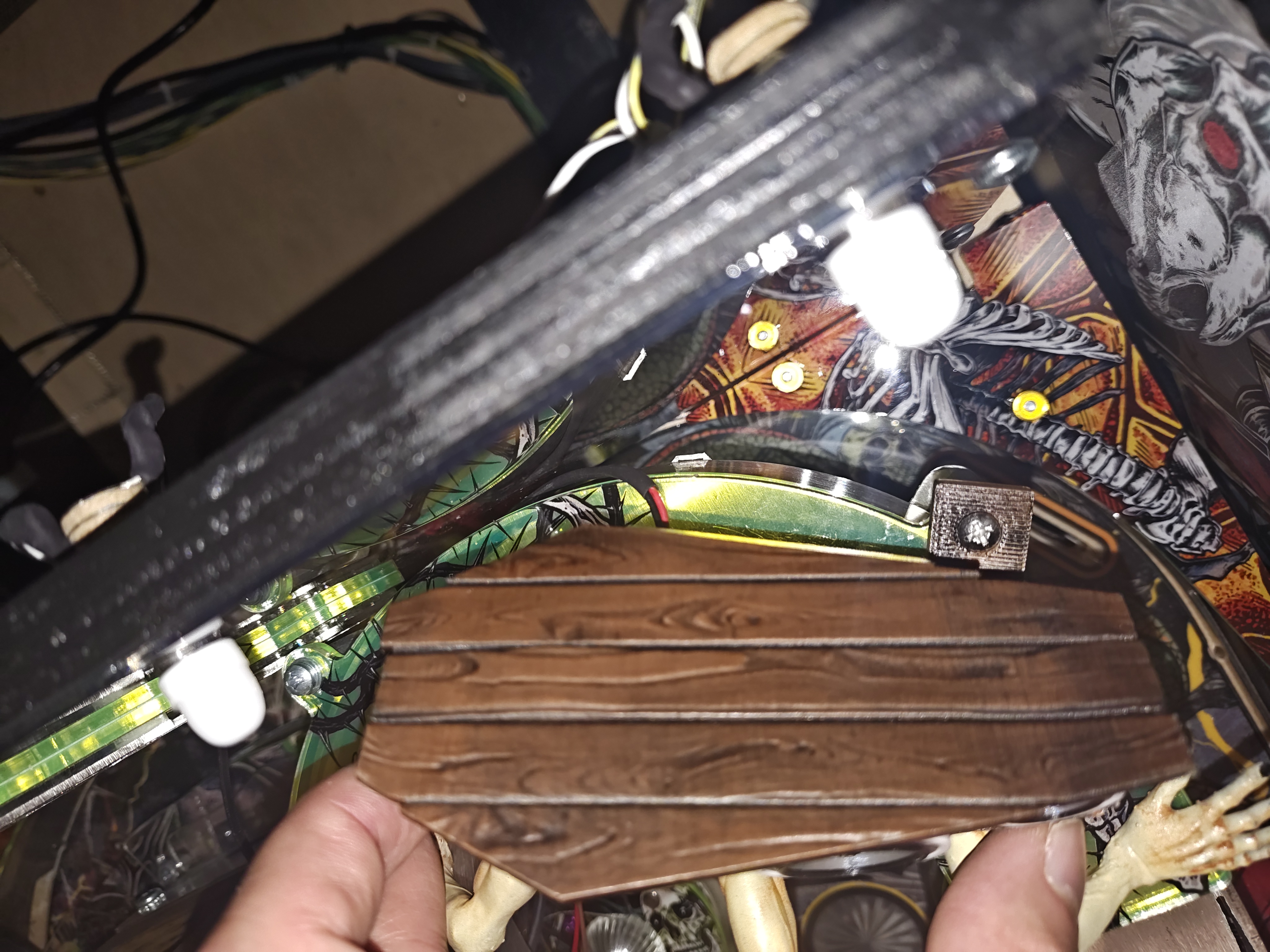

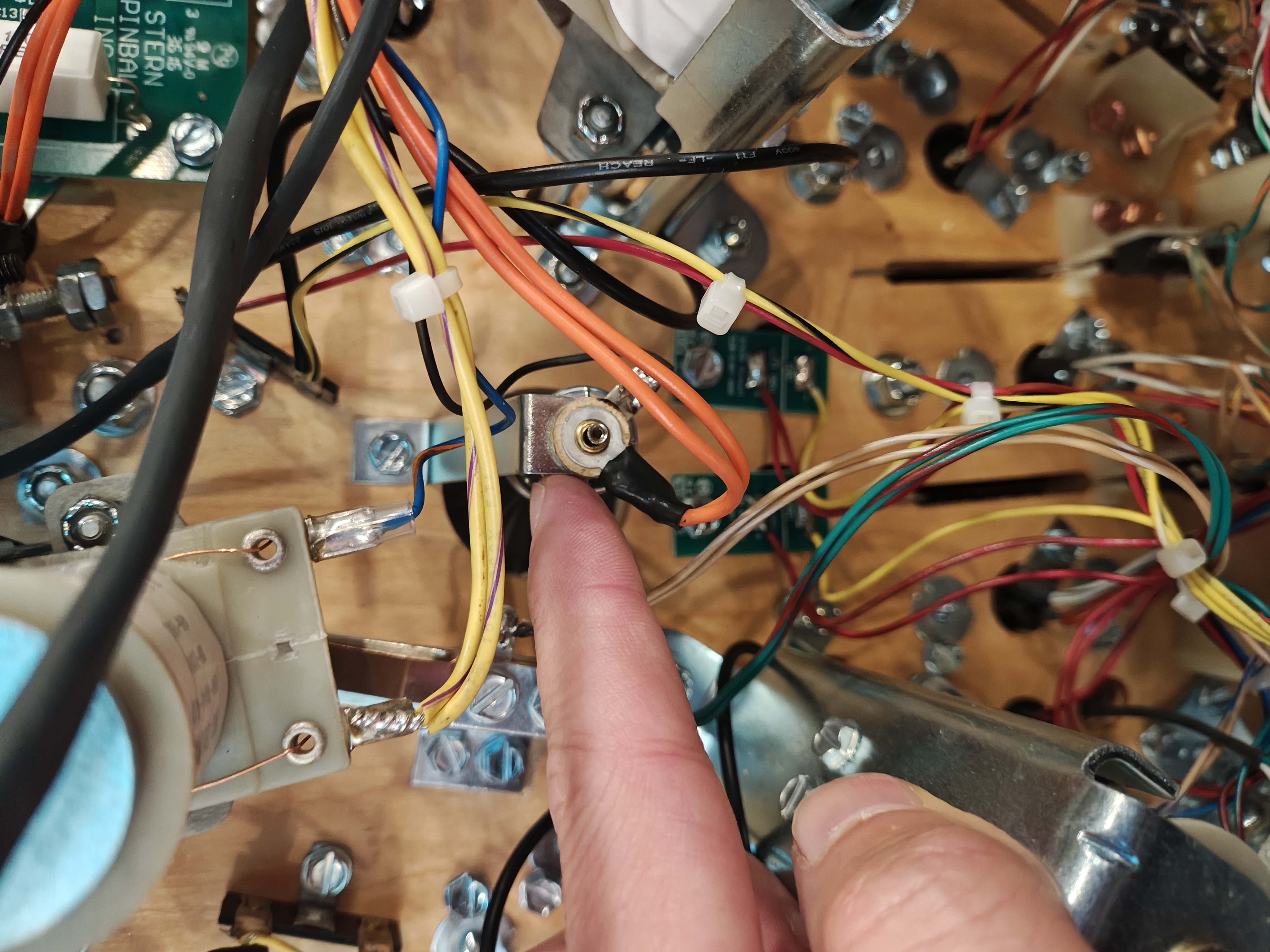

8. Identify the screw we will mount the Speaker Creature to. Remove the screw and mount the mod using the screw provided. As you tighten the screw, you will notice the hands lift up. Tighten the screw enough so that the hands remain down. Later on, when we replace the glass, if the glass hits the mod, loosen this screw.

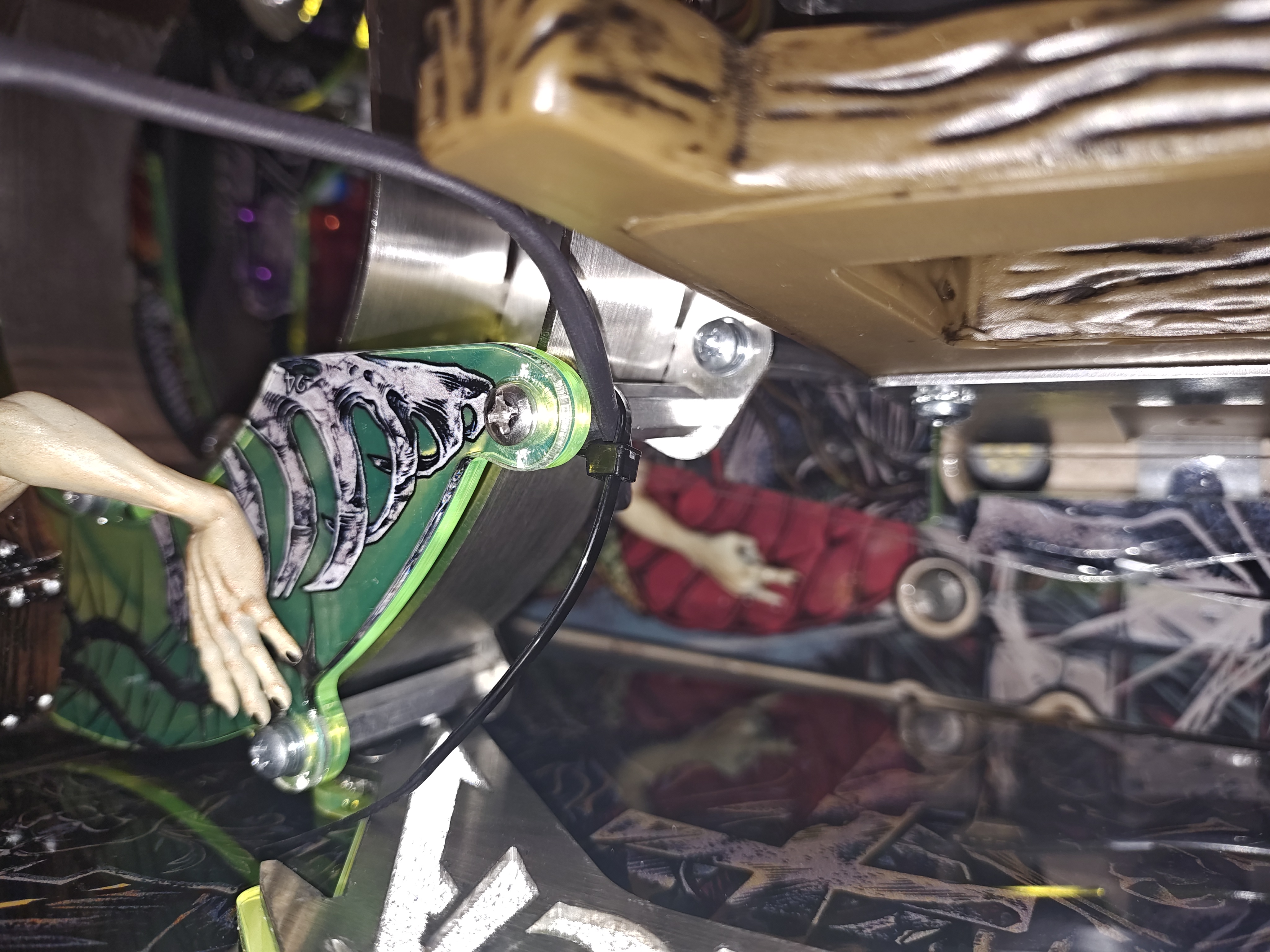

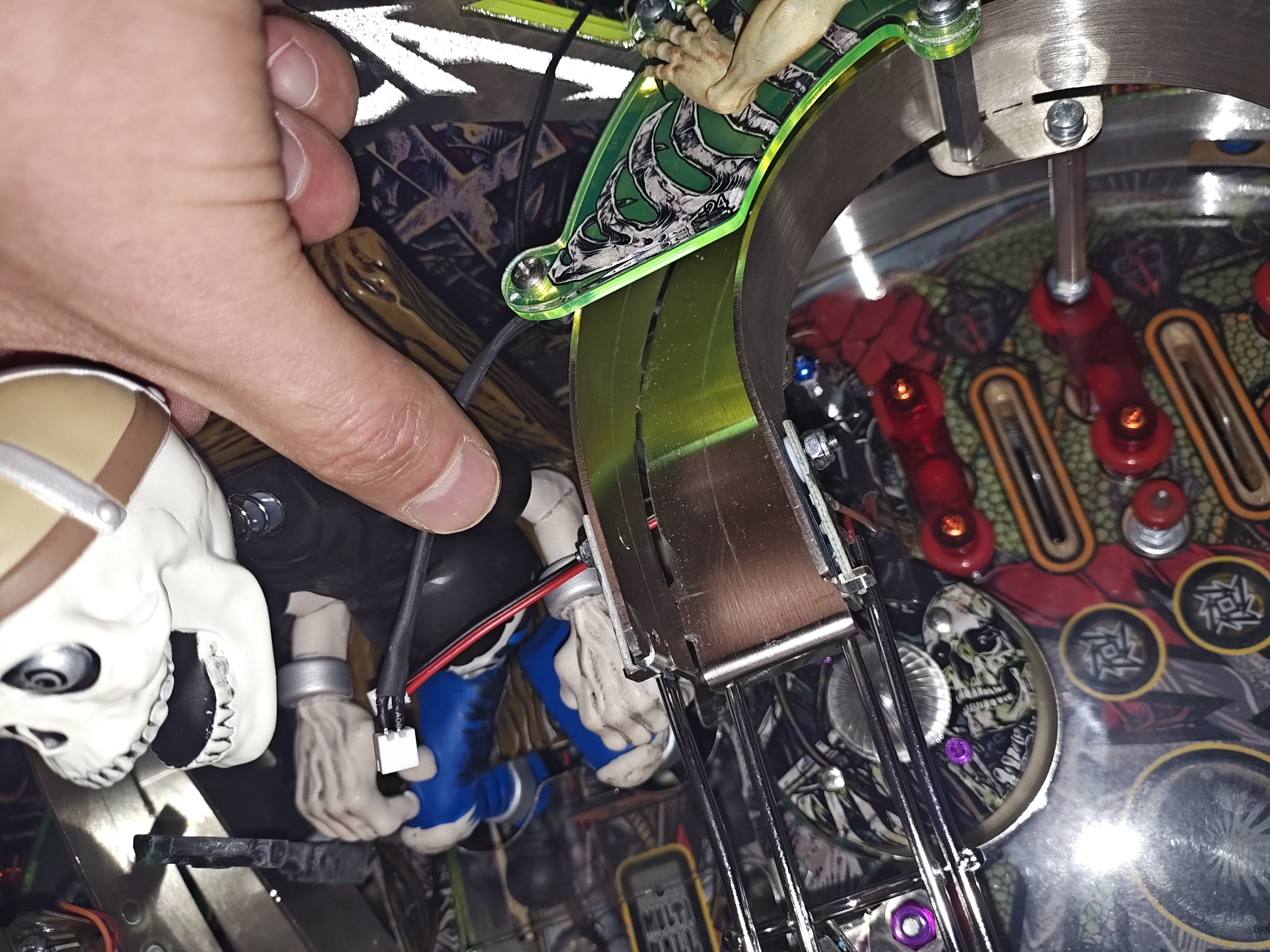

9. Fish the matrix wire from the mod behind and under the ramp. There is a post holding the ramp on near sparky. Using the provided zip tie, attach the matrix wire to the post. Be sure the wiring is tight under the ramp so it doesn't interfere with gameplay. Snip the loose material from the zip tie.
10. Attach the matrix from underneath the playfield and the mod.
