VEN - Bell Tower PREM/LE

These instructions are applicable to the following products:

• MM-[INSERT SKU(S)] and link to product page

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game and remove glass from playfield.
2. Pull out playfield on to service rails. To protect cabinet sides we recommend using our cabinet assembly protectors.
3. Lift up playfield. Unplug pictured plug from cabinet.
4. Feed factory plug back through cut out in playfield.

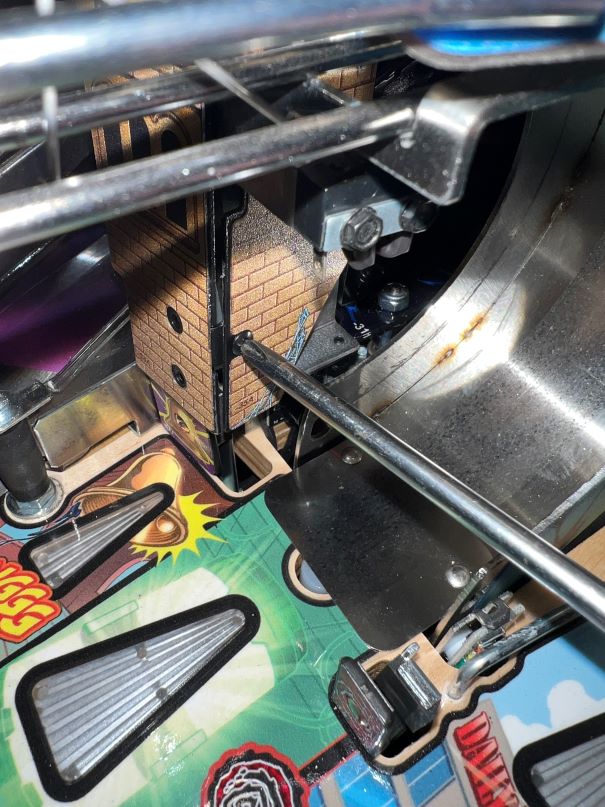

5. Unscrew bottom two screws from factory tower and place to the side for step #8.
6. Unscrew side screw on factory tower. Gently pull at sides of tower and pull wire all the way out. NOTE: Wire can be difficult to pull out, we recommend maneuvering plug through circled area.
7. Re-lift playfield. Plug mod wiring harness into playfield and feed through same path. Make sure molex plug is poking out from underneath before lowering playfield.

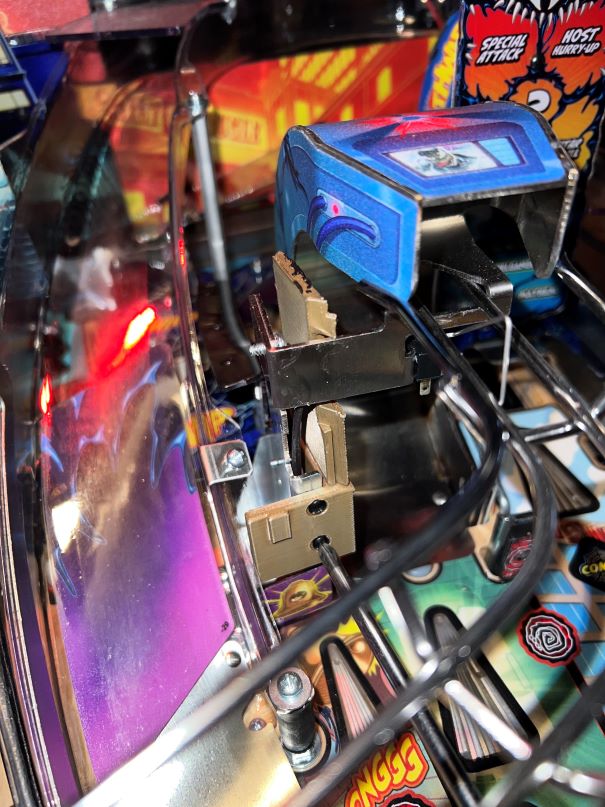

8. Screw in Right Wall with screws from step #4.

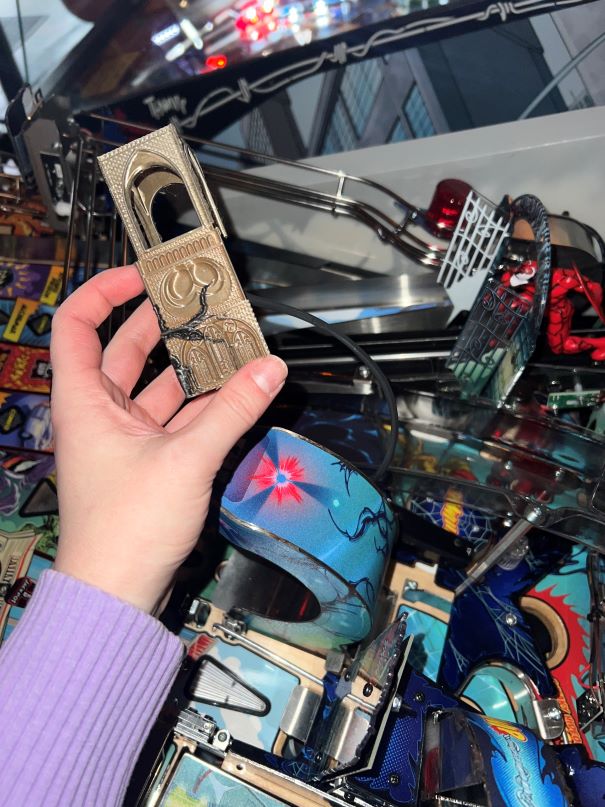

9. Cut large tape into 3/4" pieces. Place onto Left piece as shown.
10. Place Left Piece onto Front piece. Apply pressure for about 20 seconds to ensure adhesion.

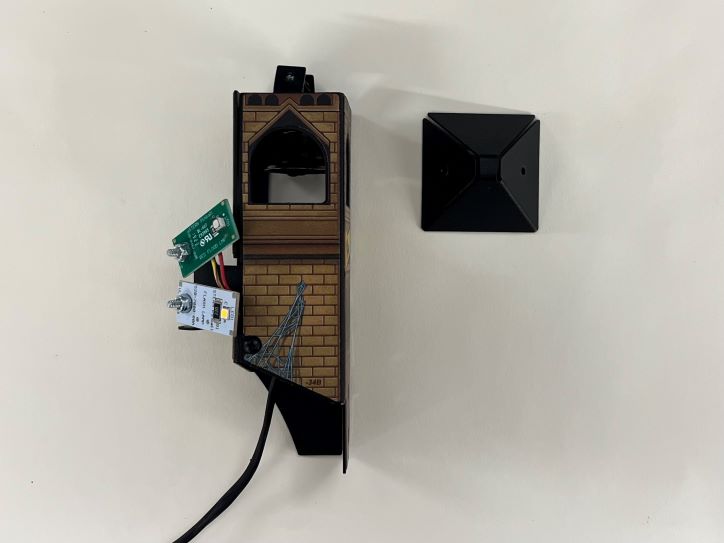

11. Unscrew roof from factory tower.

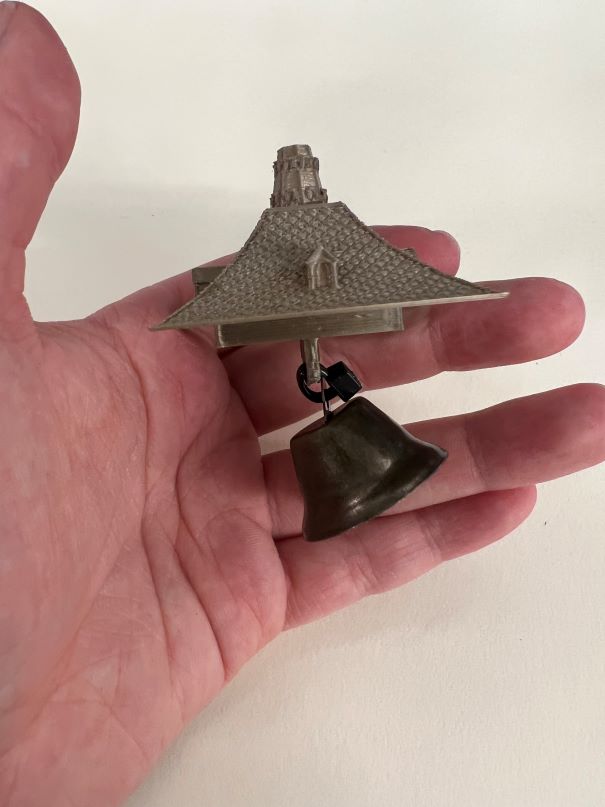

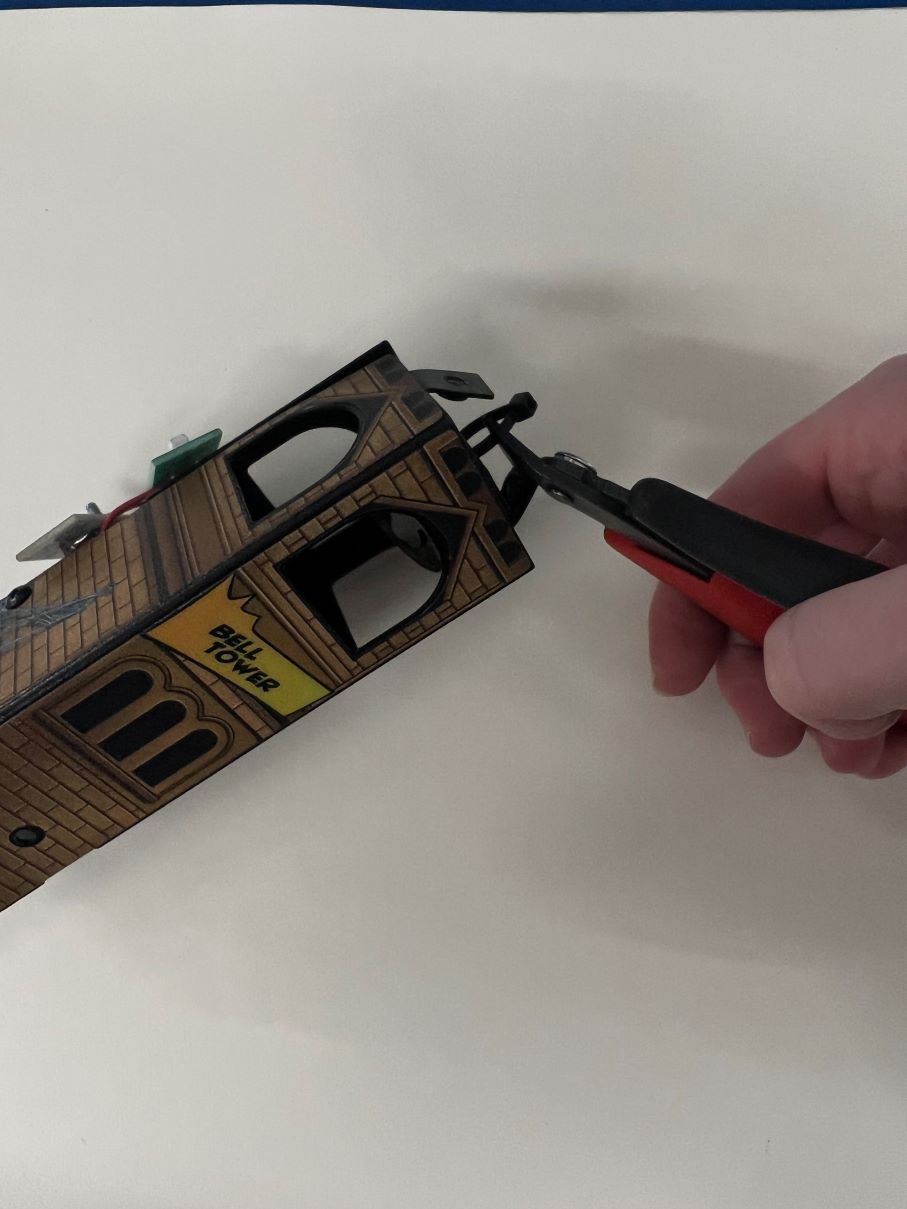

12. Cut factory bell off and secure to Mod Tower Roof using provided zip tie.
13. Remove backing from tape on top of tower and place roof into cut outs. Remove backing from tape on entrance and place over screws.
14. Finished!
