IML - Lighted Plane Mod Amendment

This is an amendment to anyone who has the IML Plane and also has the Mezel Mods Iron Maiden Archway.

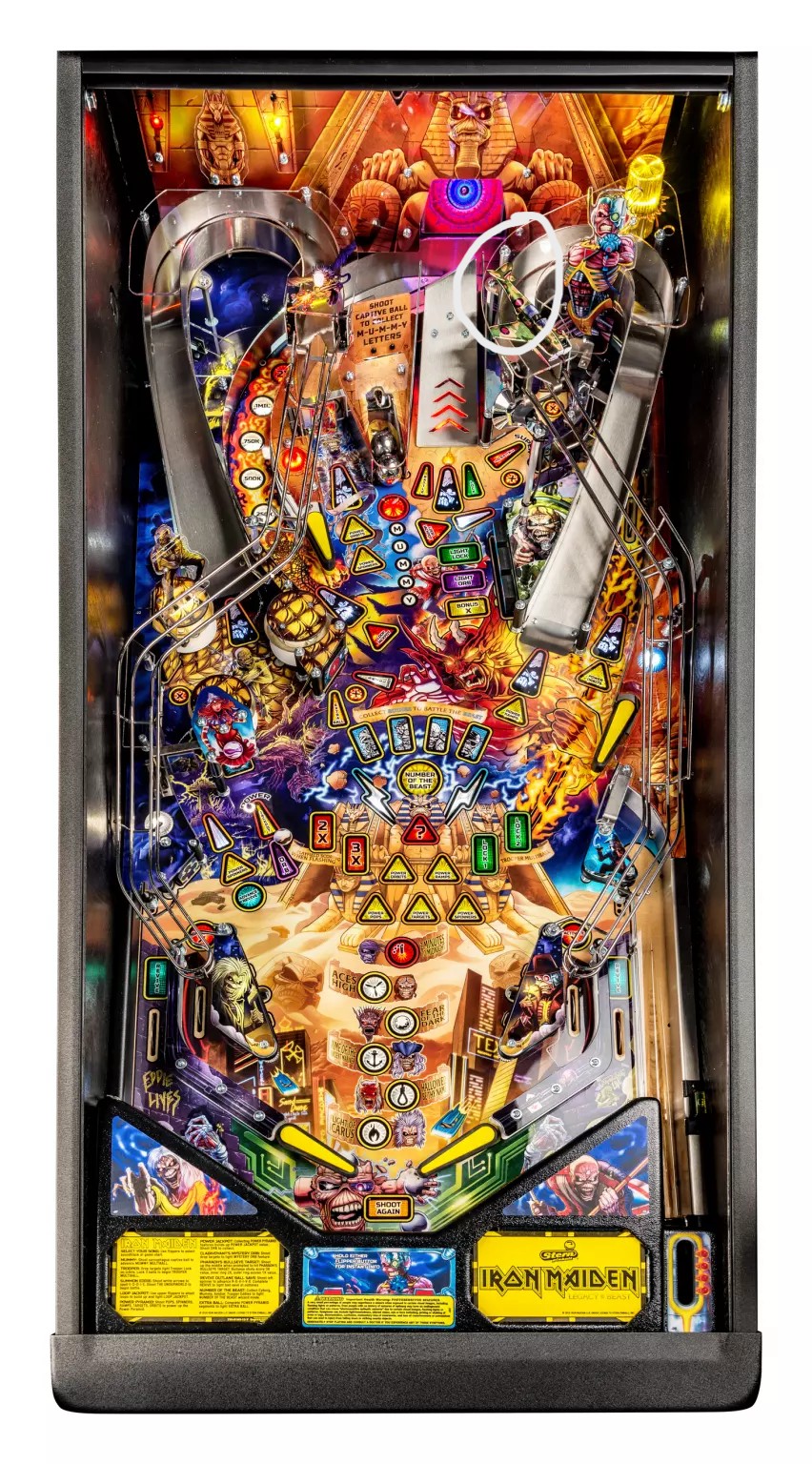

1. In order to install the plane, you will need to locate the area circled in white (the plane plastic on the Right ramp.

2. It is then recommended that you remove one of the two screws located in that area, then unscrew the one that you have picked (we recommend the screw on the front post for the ramp).

3. Then slide the mount for the spitfire under the plastic and reattach the screw removed in step two back into the post.

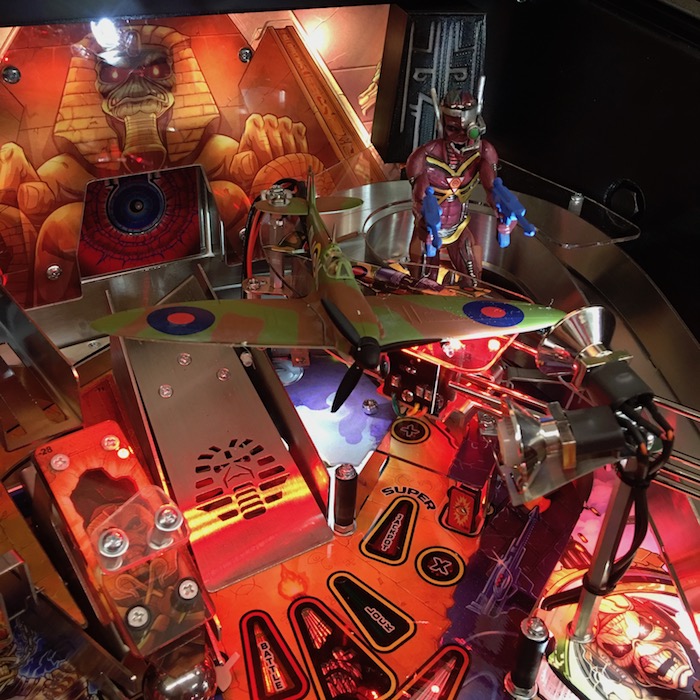

4. When done correctly, it should look close to the image below. (Please note that the plane is on top of the plastic in the photo. While this can work, it may be challenging to get everything to fit properly.

5. For the wiring, you may need to lift the plastic under the right ramp to get the wires to feed into the playfield. Use the original instructions for better clarity on this matter.
