SWFOTE- Ramp Illumination

Expected Outcome

⏱️Completion Time: 5 min⏱️

🏆Current Record: __ min (___) 🏆

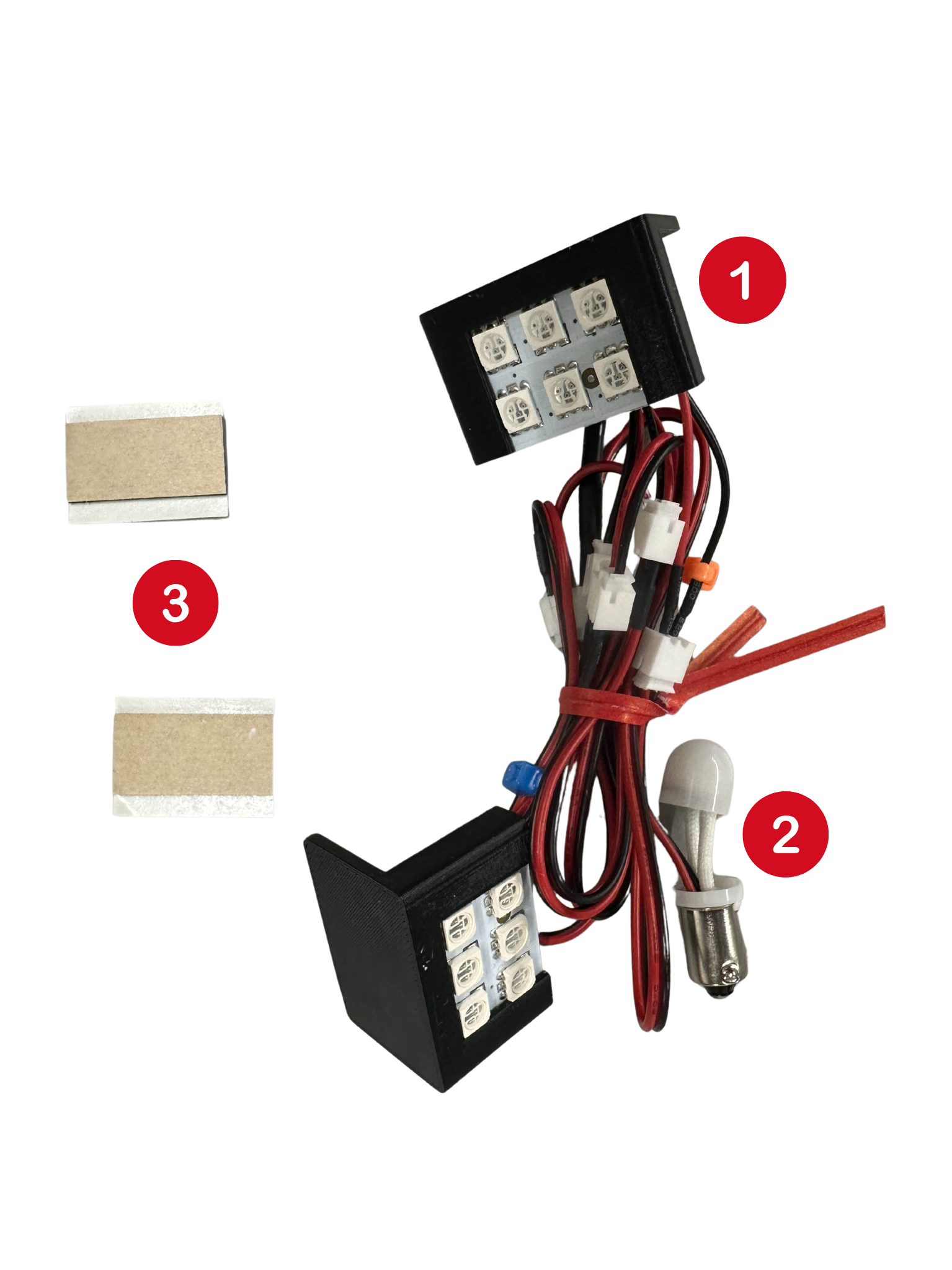

BODY  Pad lights on ramp brackets; wires in twist tie (1) WIRING 6v frosted dome; two way splitter (2) Blue pad light and orange pad light, marked with matching colored zip ties (2) OTHER CONTENTS Tape x 2 (3) TEST Blue and Orange - 6v  BAG TAG: Product

Materials

PRINTS 2, Universal ramp bracket - black (1) ELECTRICAL 2, 12" matrix wires (2) 1, 6" matrix wire (3) 2-way Matrix splitter (4) 6v PAD Light Amber (5) 6v PAD Light Blue (6) #44 Matrix Frosted bayonet (7) FINISHING Blue zip tie (8) Orange zip tie (9) 2, Medium tape (10)

Procedure

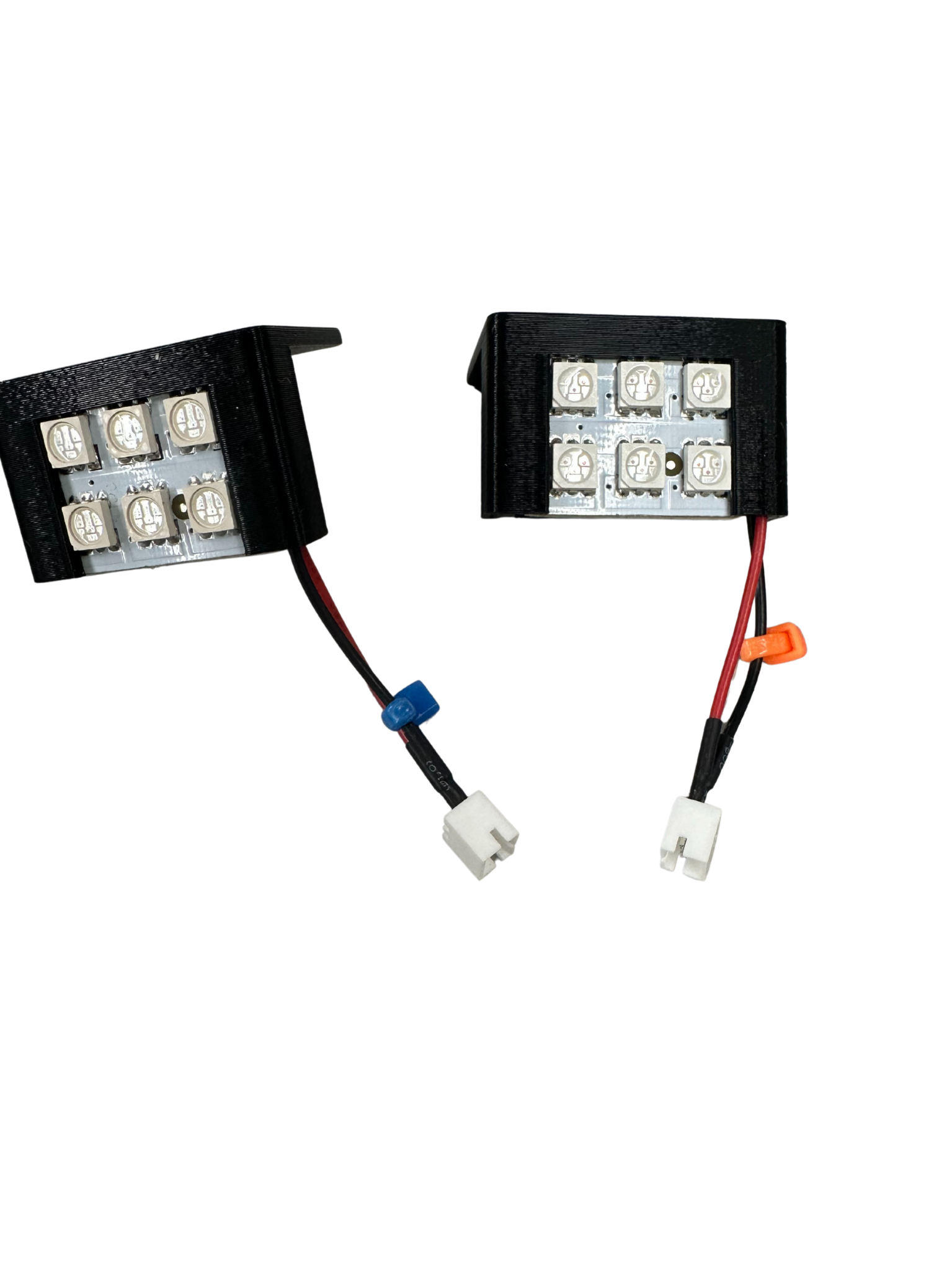

Attach 12" matrix to #44 frosted bulb and 2- way splitter	Insert pads into universal bracket and add colored zip ties to each (reflecting color of LED)

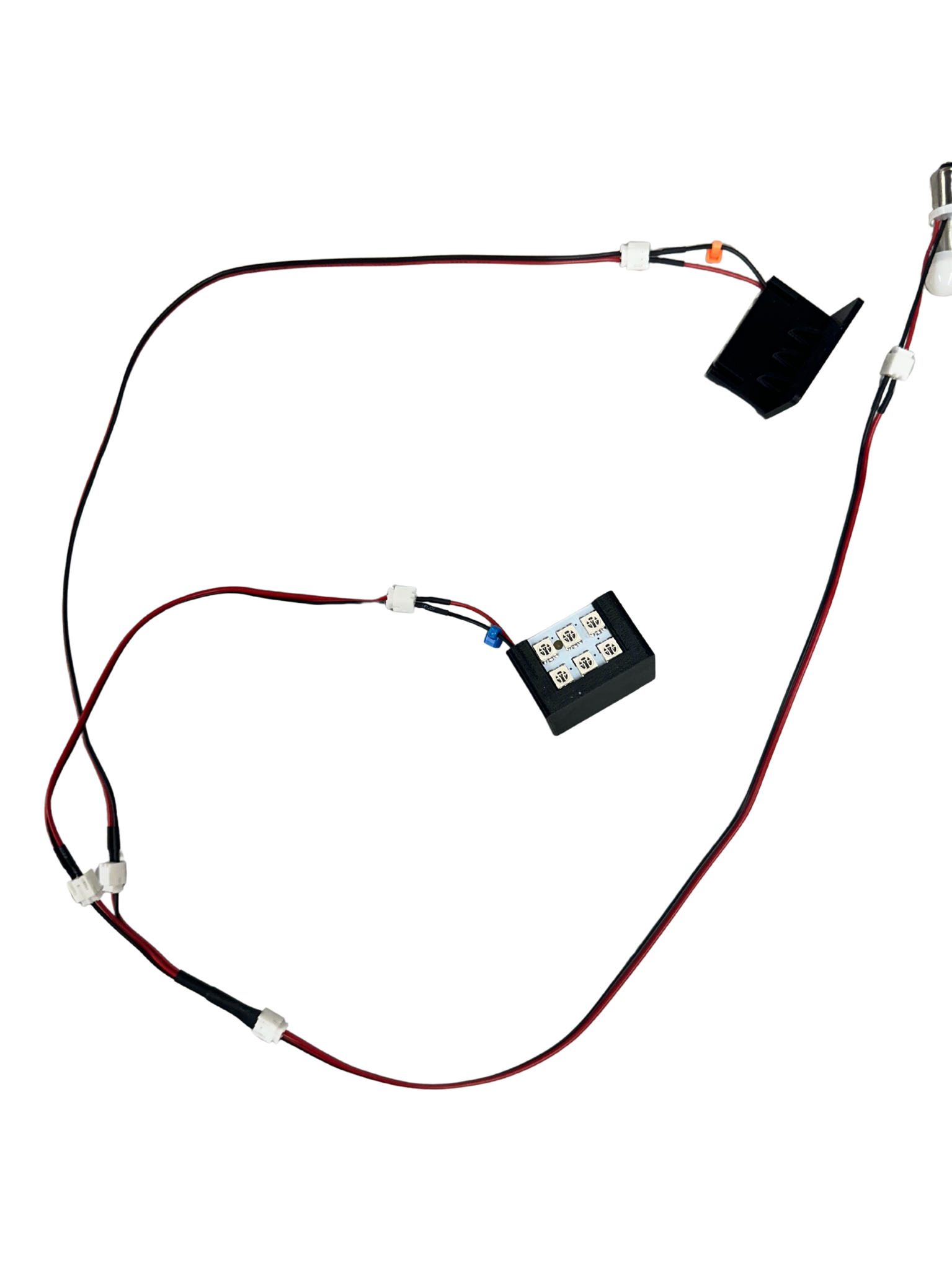

Attach Blue Pad light to 6" matrix wire then to splitter; attach Orange pad light to 12" matrix wire then to splitter	Conduct final testing to ensure LEDs are correct; wrap with a zip tie

Test

Test for correct colors Visually inspect for accuracy
