SWFOTE- Gels

These instructions are applicable to the following products:

• MM-PINBALL-GELS

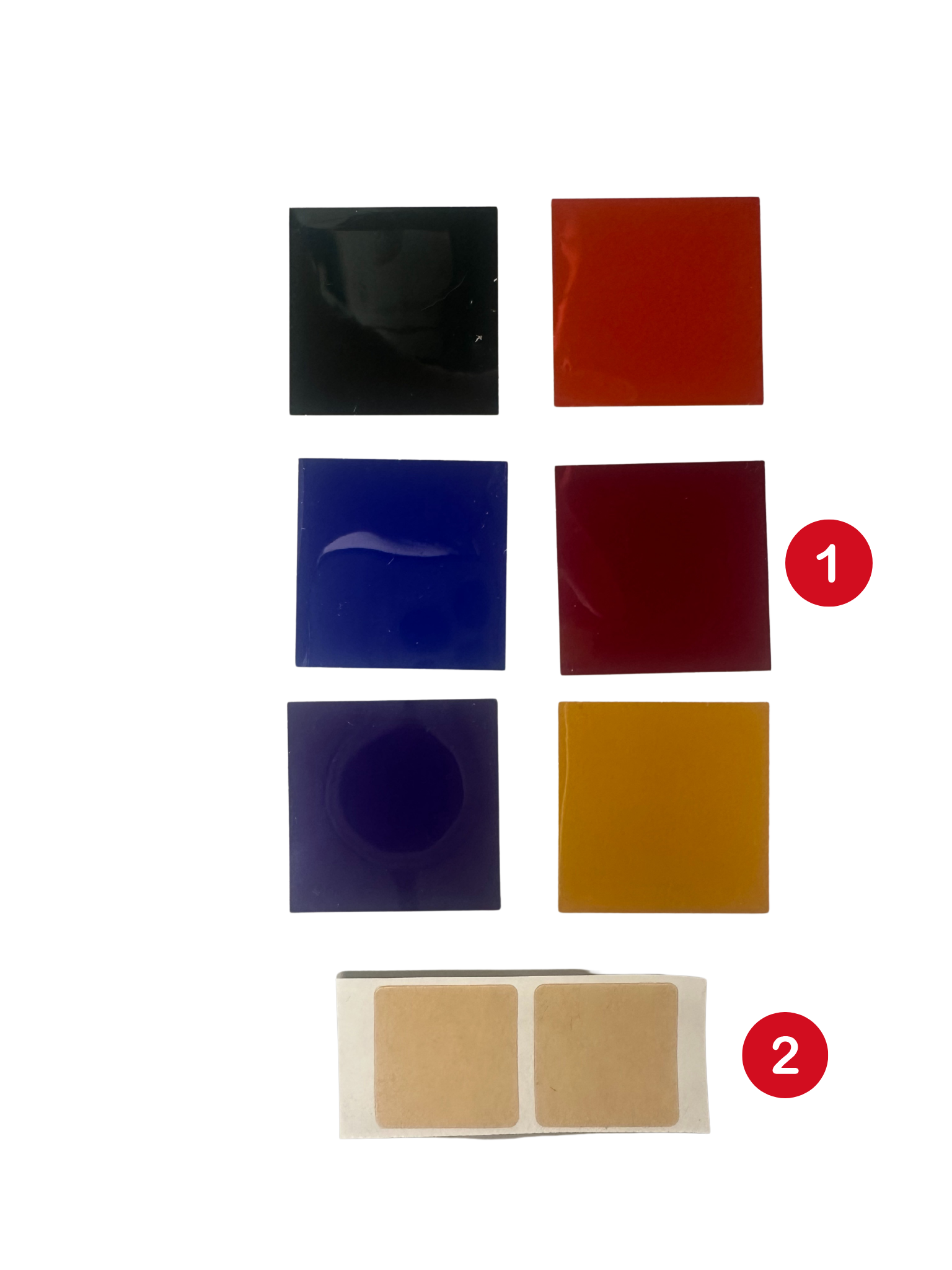

WHATS IN THE BOX

Six piece gel set Low profile adhesive

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

Installation Steps:

1. Turn off game, remove glass and game balls. Lift playfield.
2. Each gel should be installed in between the LED board and the playfield wood. This allows the gels to sufficiently color the insert from above the playfield when lit
3. Utilize the adhesive provided in the kit to install each piece. This adhesive is durable yet low profile.
4. Recommended color placement is as follows:
   • Rebel Missions = orange or yellow
   • Jabba Events = blue or purple
   • Vader Modes = red
   • Falcon Features = green
