Uncanny X-Men Plastic Protectors

These instructions are applicable to the following products:

• MM-UXM-PLASTIC-SET-[COLOR]

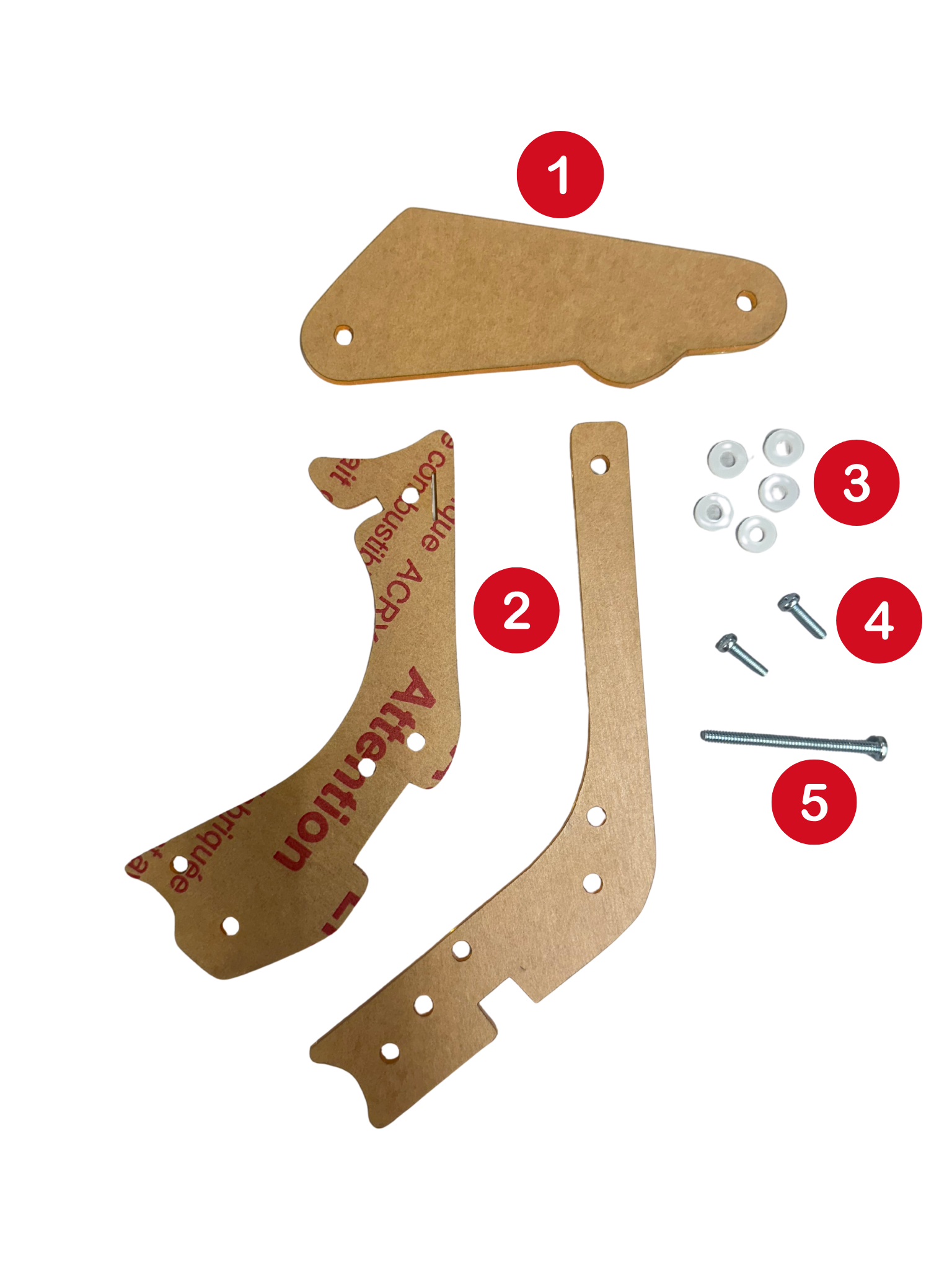

WHATS IN THE BOX

Slingshot plastic Return lane plastics Nylon Washers x 5 M3 Pan head screw (12mm) x 2 6-32 1 3/4" Phillips screw

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Remove factory plastics.
2. For the left return lane, remove protective paper from protector and place below factory plastic. Reinstall using factory hardware.
3. For right slingshot,  remove protective paper from protector and place below factory plastic. Reinstall using factory hardware.

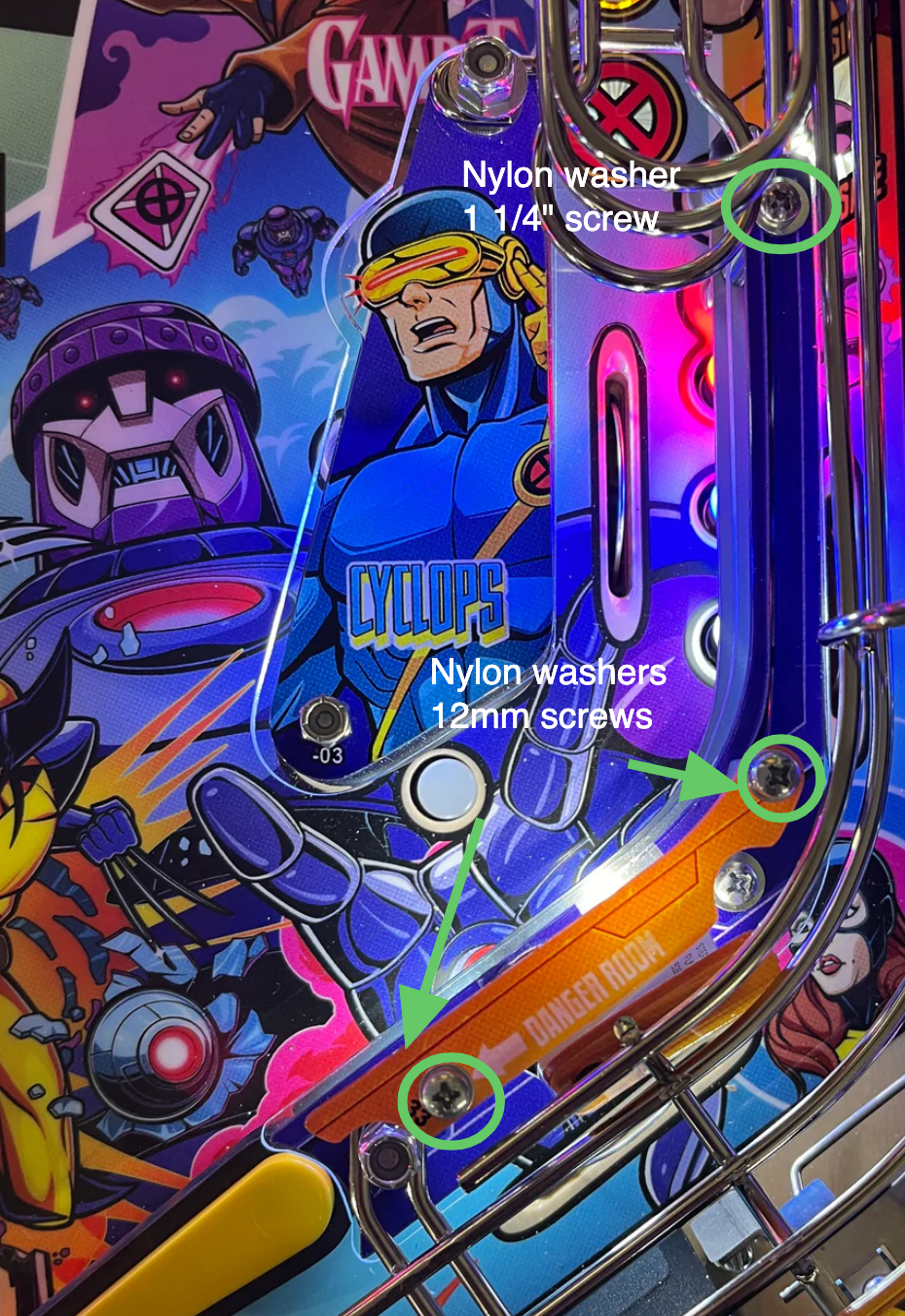

4. For the right return lane, remove protective paper from protector and install. Follow with 1x nylon washers. Next, install factory return lane. Complete installation using replacement hardware (see photo for details):

   NOTE: if more height is needed, utilize the extra nylon washers provided in the kit.
