TWDR- Ramp Illumination

These instructions are applicable to the following products:

• MM-TWDR-RAMP

WHATS IN THE BOX

Ramp Illumination bracket & LED light General Illumination Replacement Bulb & wiring Medium adhesive

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

Installation Steps:

1. Turn off pinball machine. Remove balls and lift playfield on to service rails.
2. Remove adhesive backing and attach to the bottom of each bracket. Press firmly.

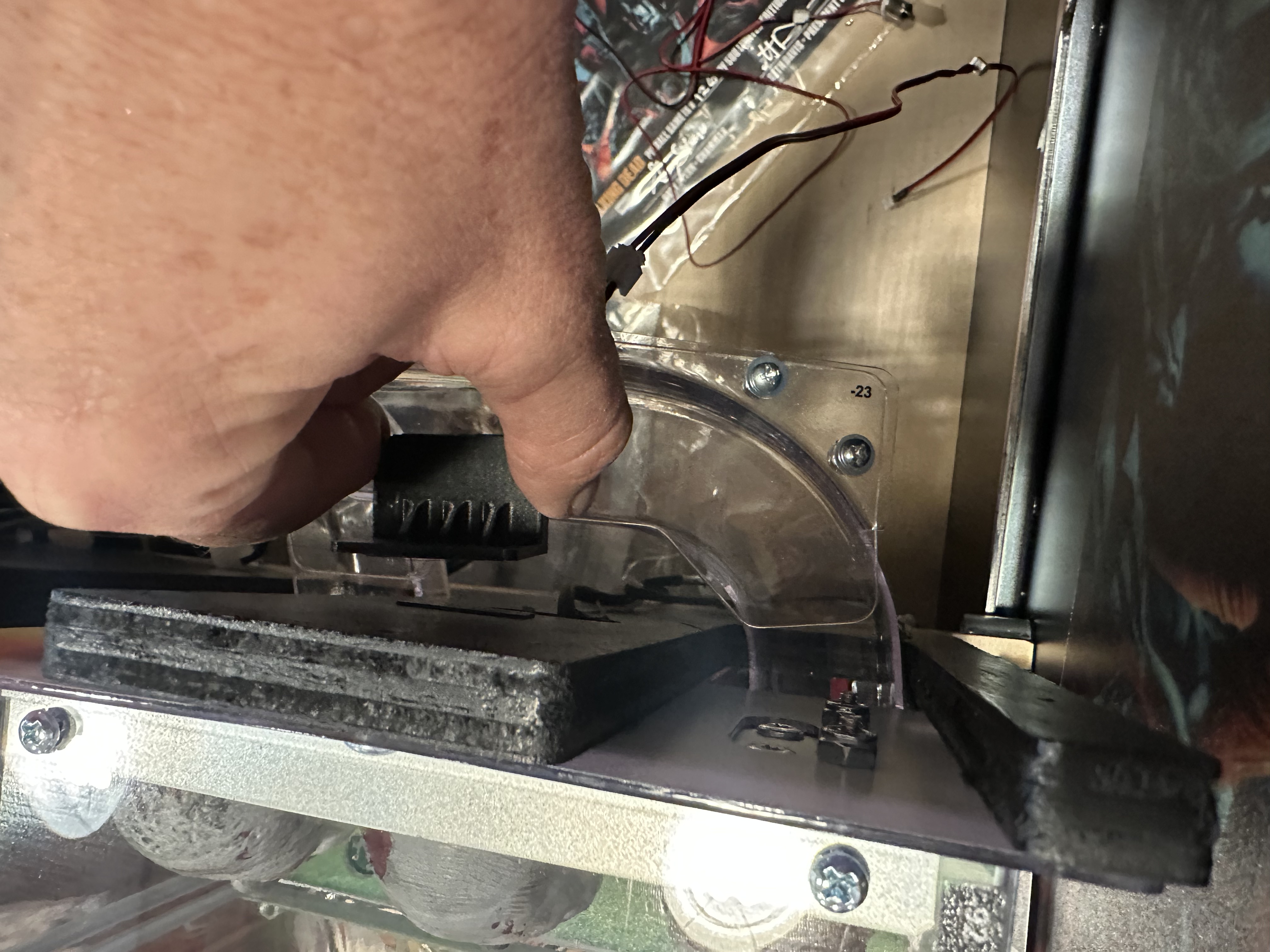

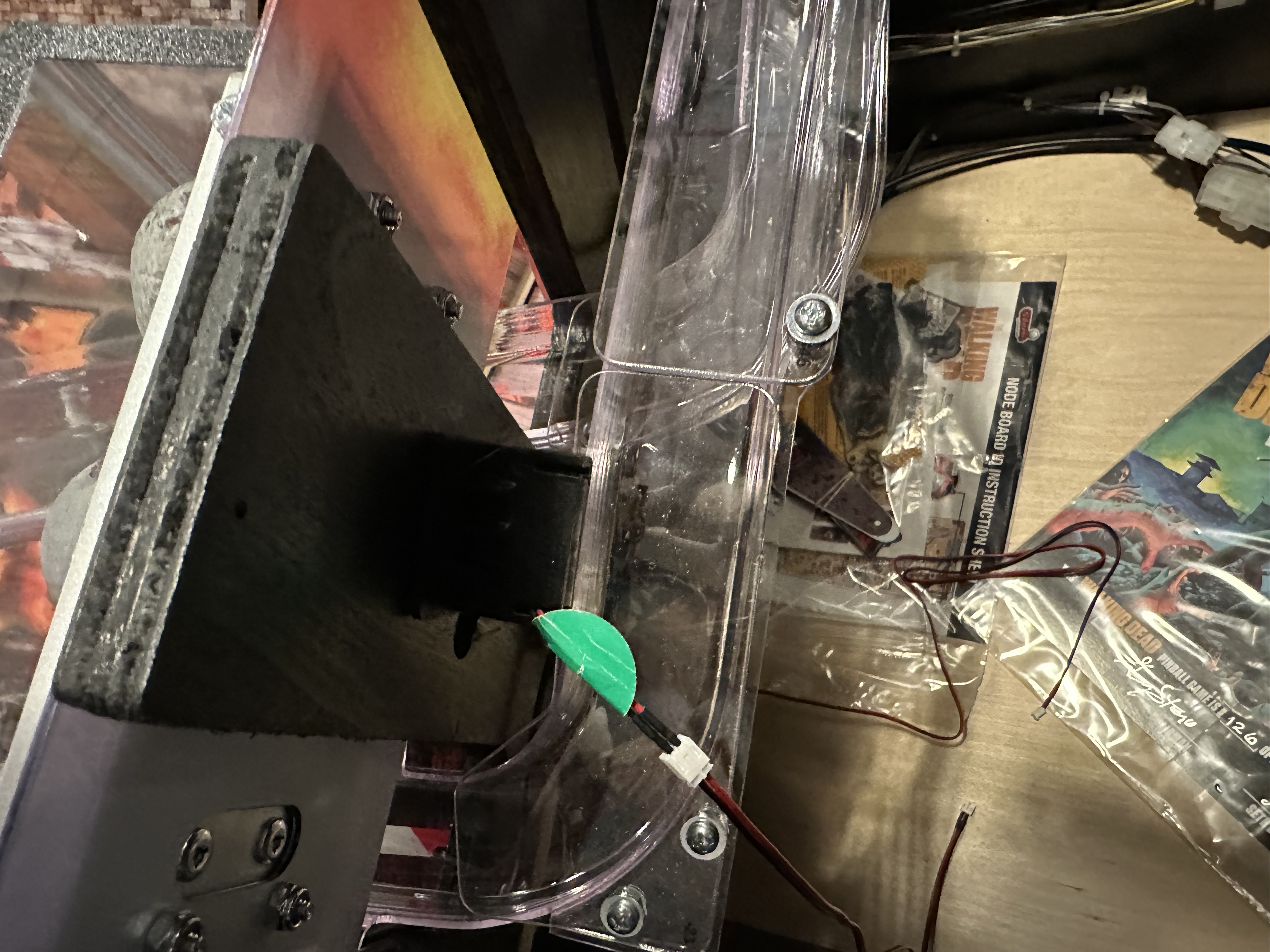

3. Behind the backboard, mount the bracket so the LED is facing down toward the ramp and the bottom of the cabinet as shown. Press firmly for 10 seconds to ensure proper adhesion. Ensure placement on the backboard wood to minimize light bleed.

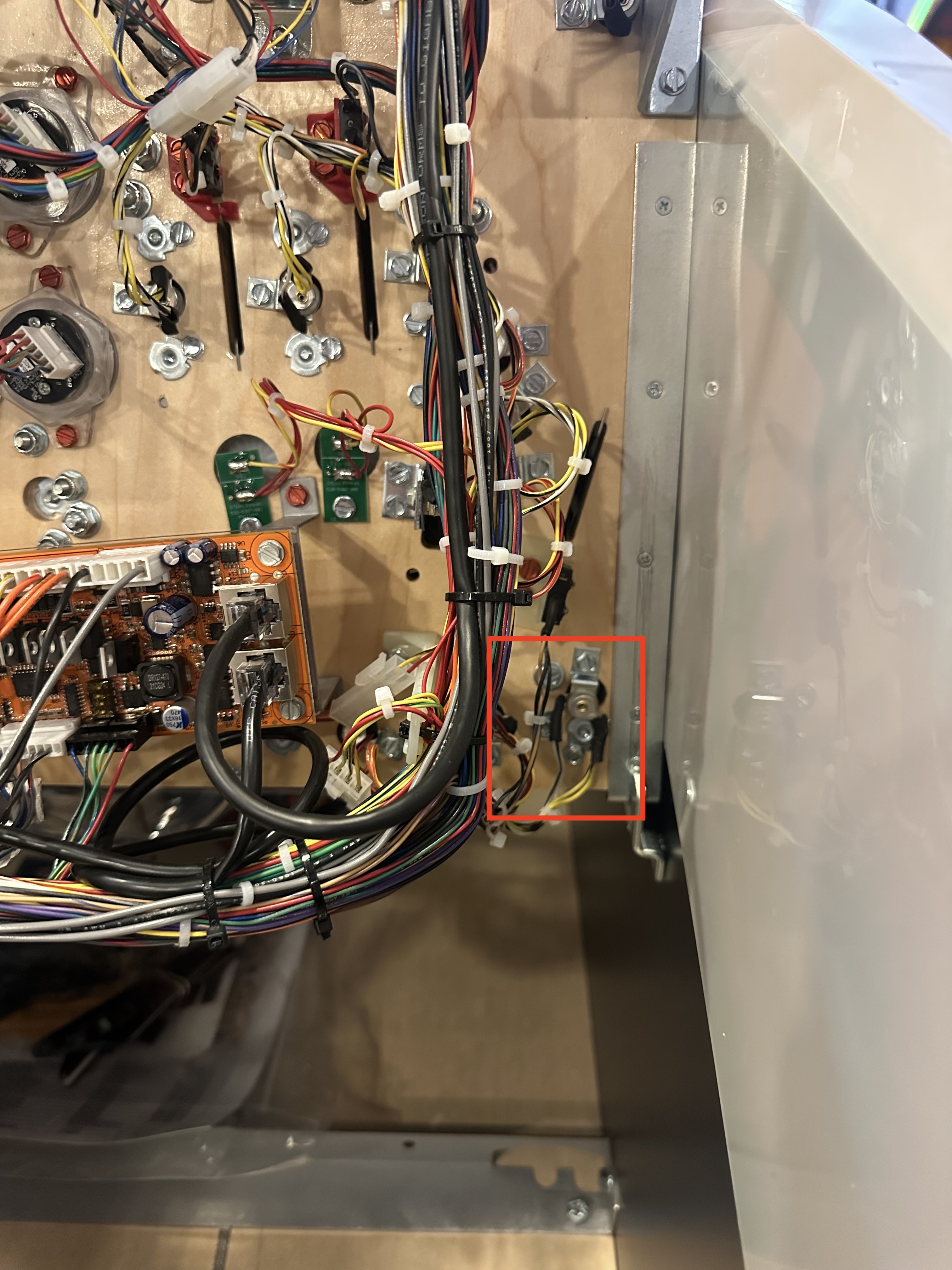

4. Next, left the playfield into the upright position and locate the General Illumination (GI) found on the bottom left of the playfield.

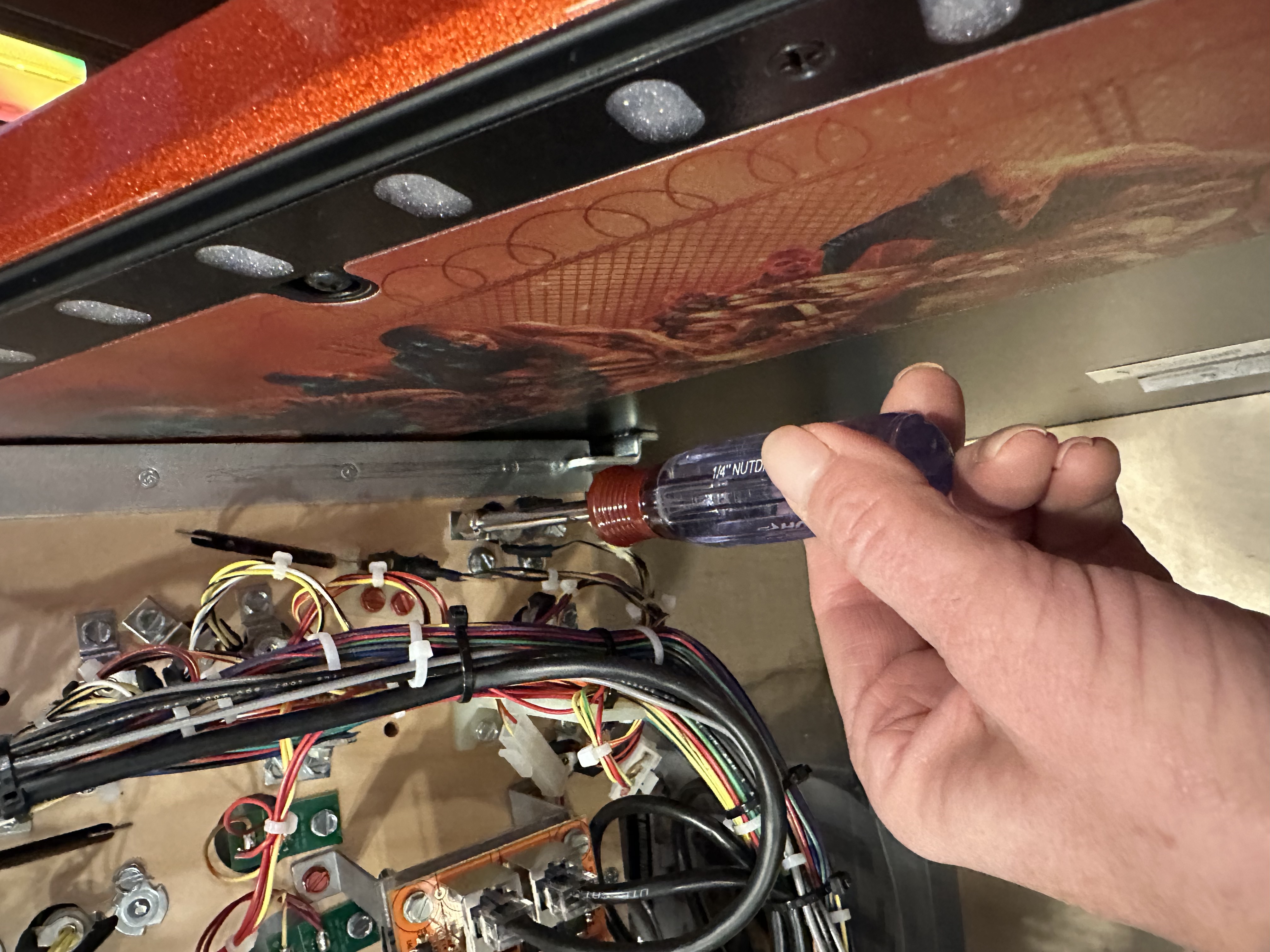

5. Remove the GI socket using screw driver or socket wrench.

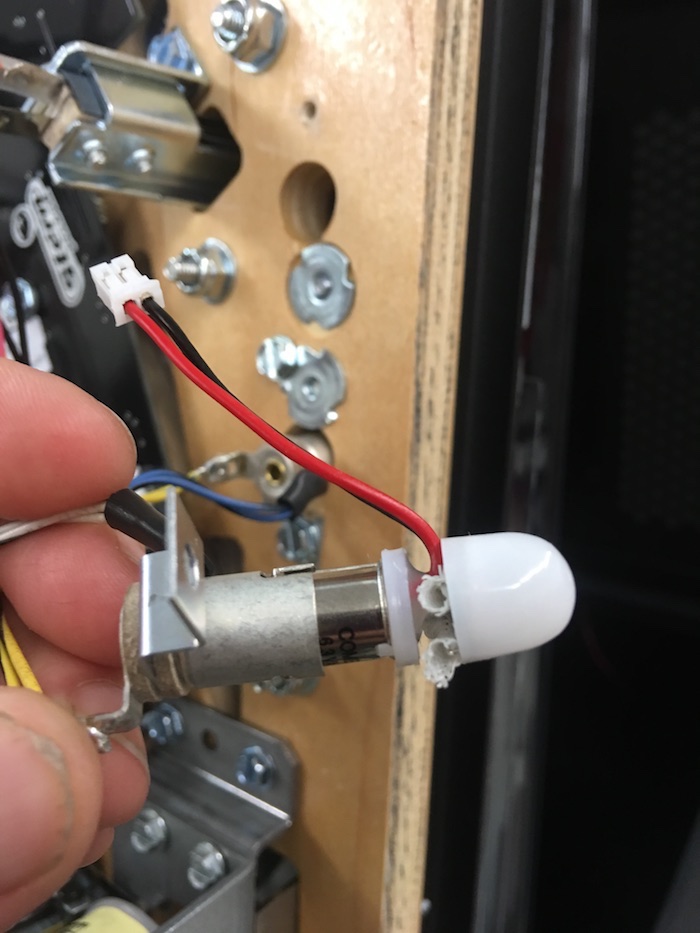

6. Remove the factory bulb by pushing down and twisting (set bulb aside as it is not used in final installation). Install the replacement bulb, adjusting dome so that it is close to bayonet.

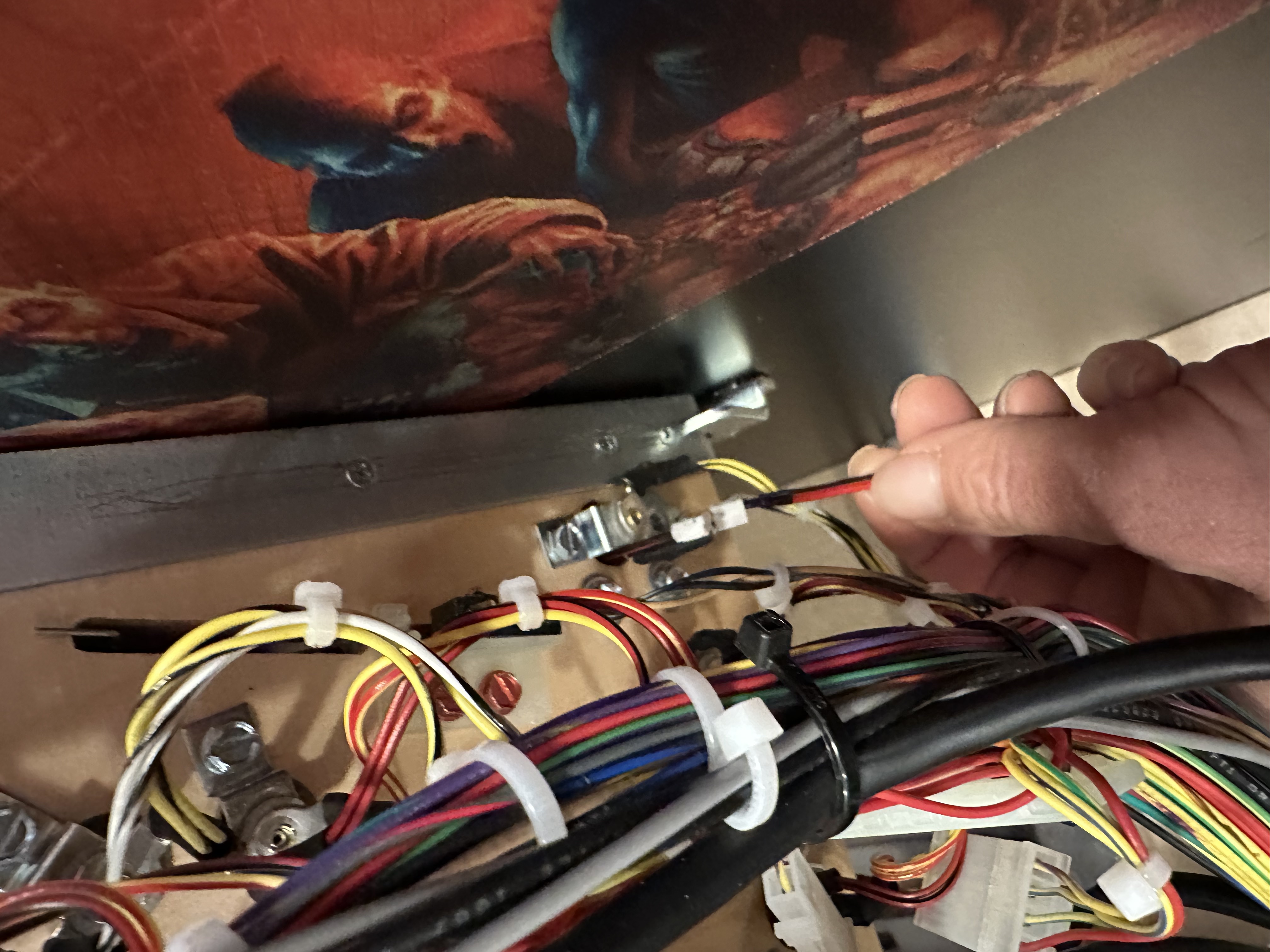

7. Re-install the GI bulb socket and attach the wiring from the ramp illumination to the small wire attached to the replacement GI bulb.

8. Lower playfield and installation is complete!
