These instructions are applicable to the following products:

MM-RUSH-GEAR-DOME

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

PRELIMINARY STEP

Turn off your game's power, remove the glass, and place it in a safe location.

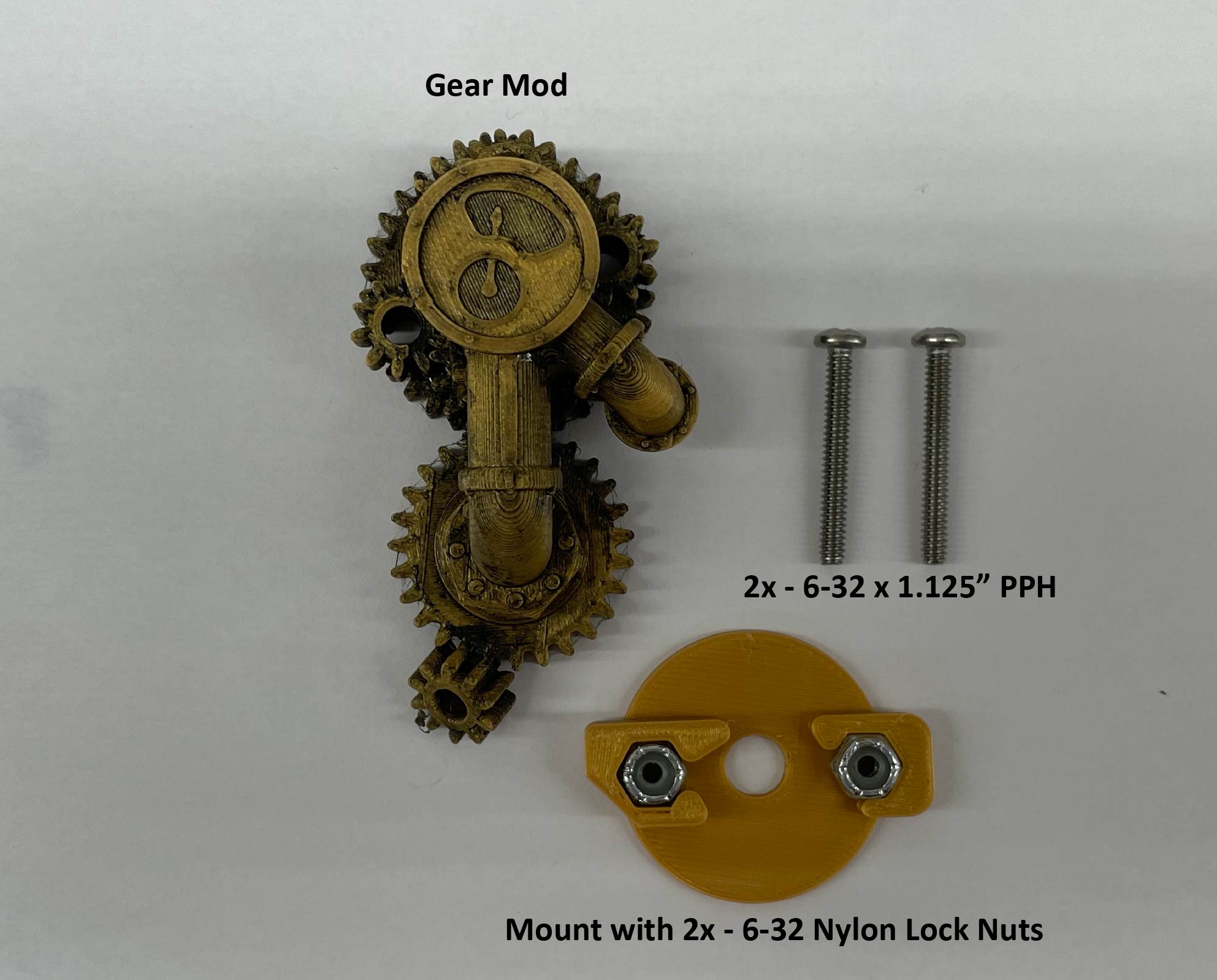

Hardware Needed:

Phillips Screwdriver

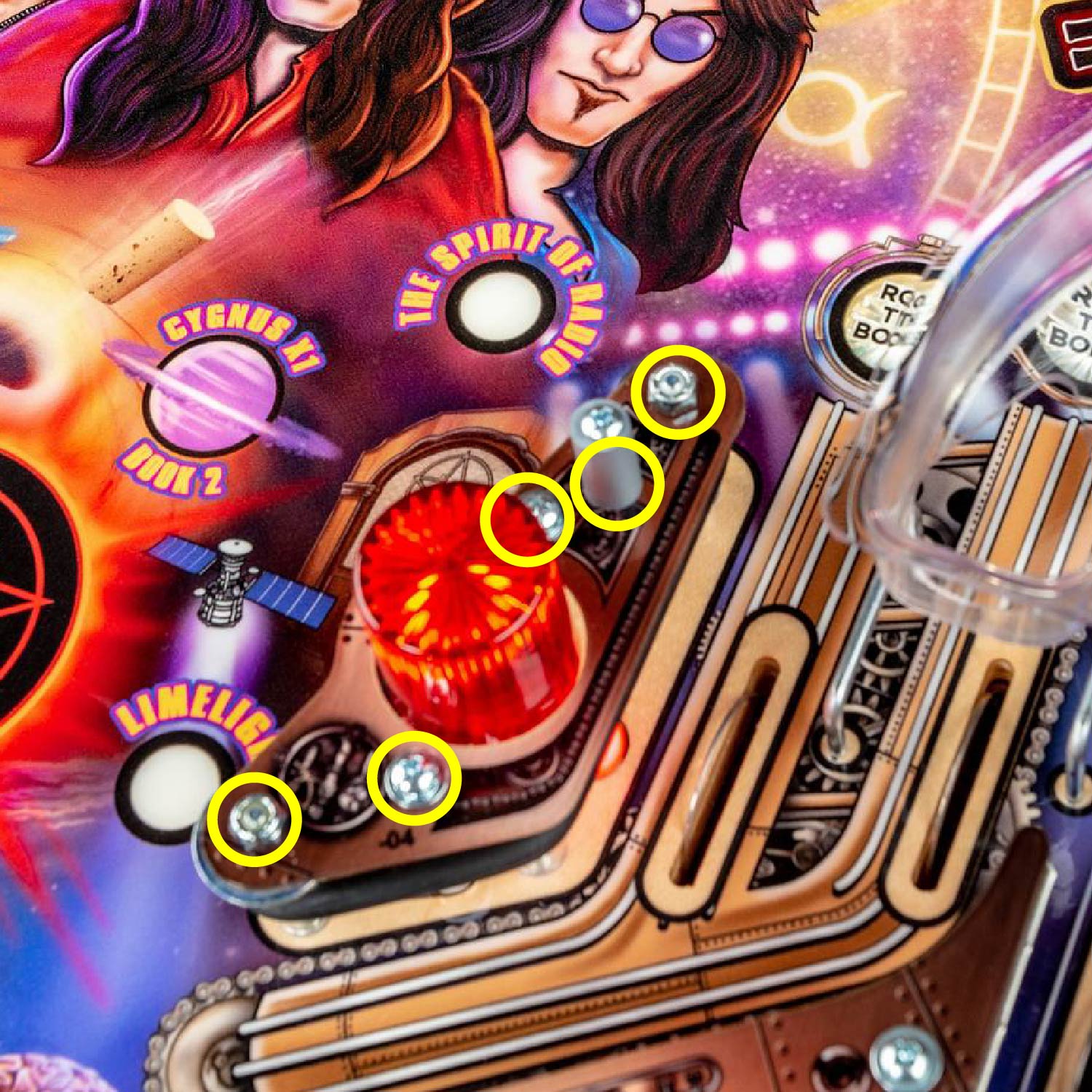

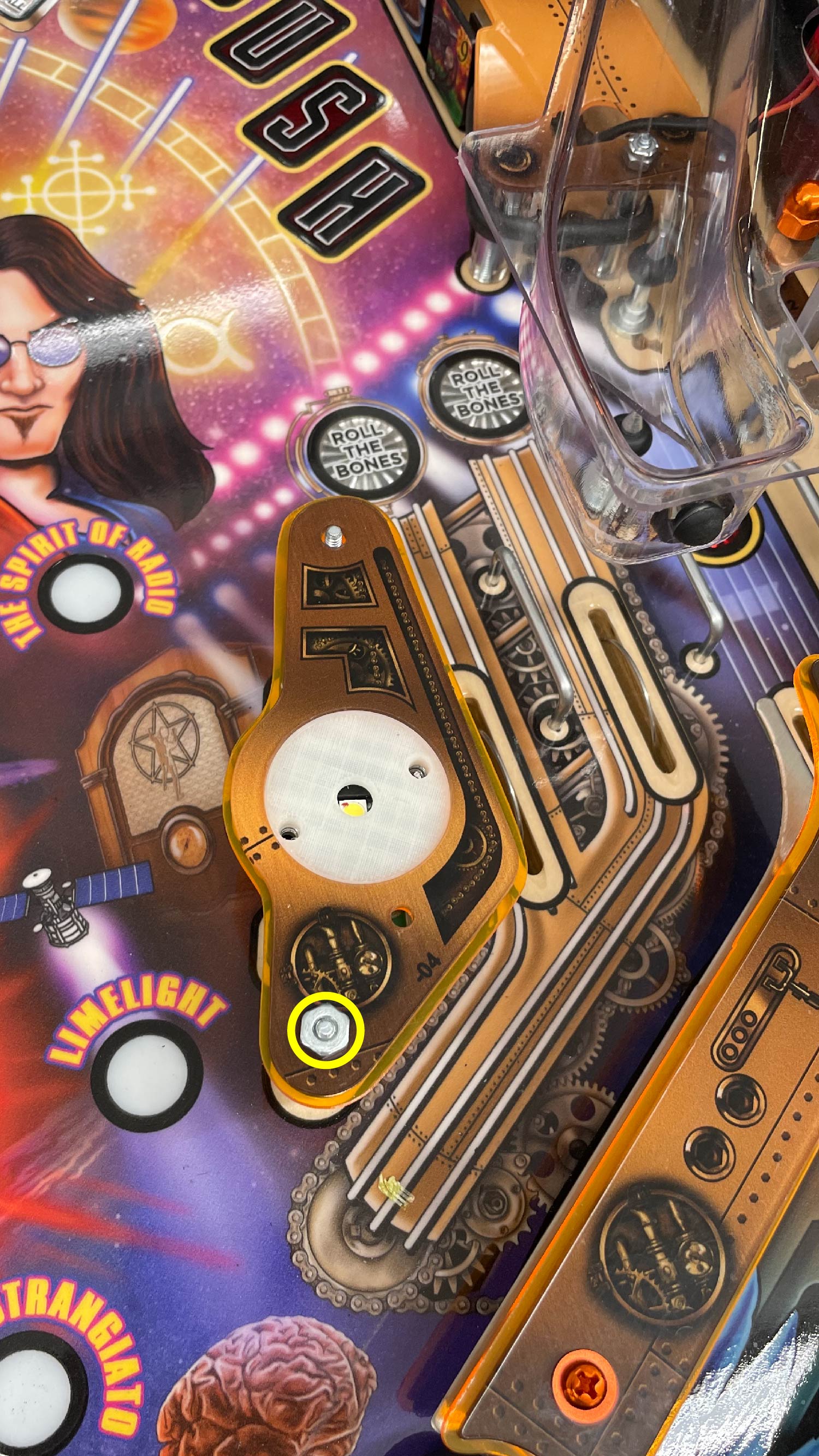

1. Please locate indicated acrylic piece and remove the circled screws (Some screw-hole locations may not be present). Remove the existing flasher dome and set it aside.

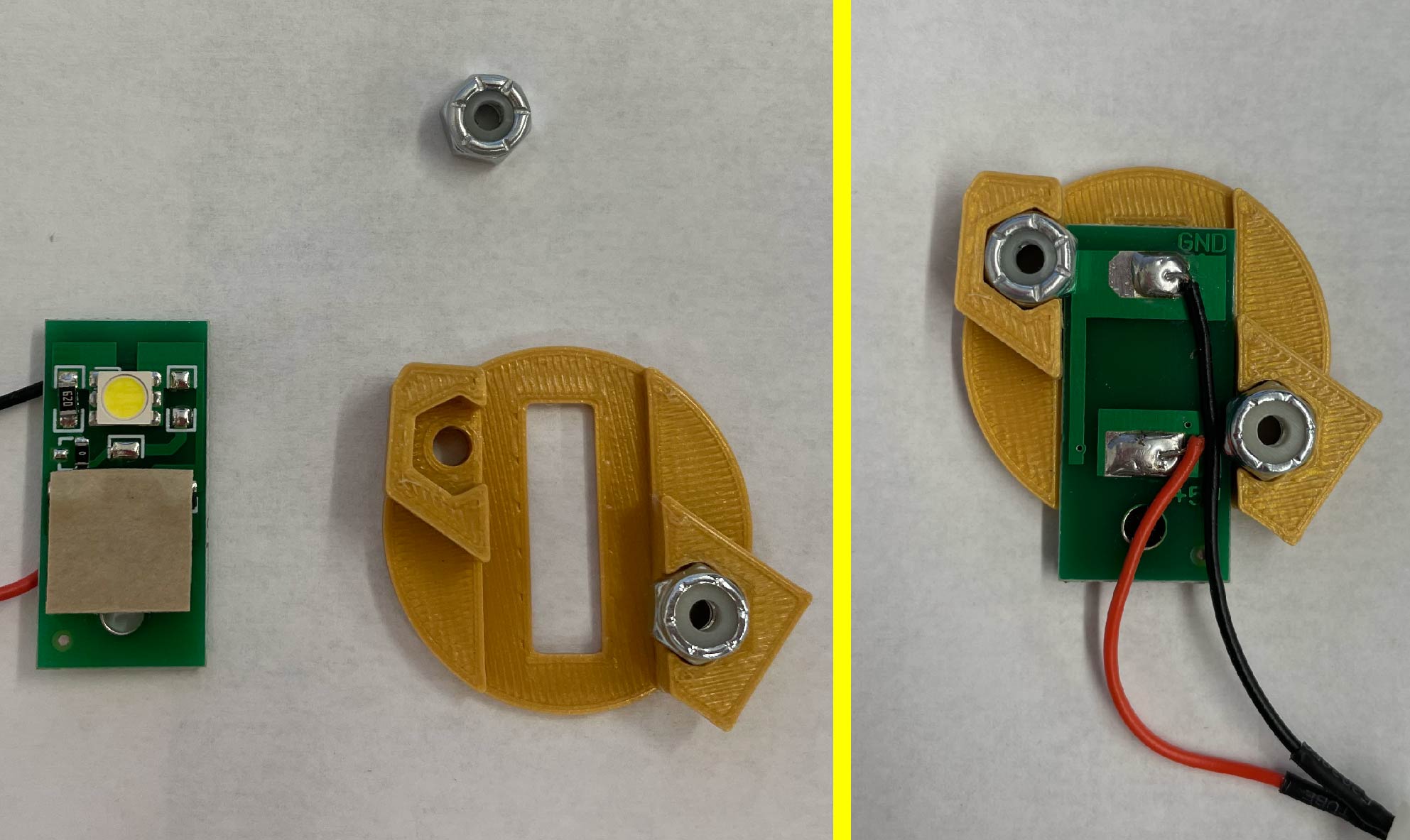

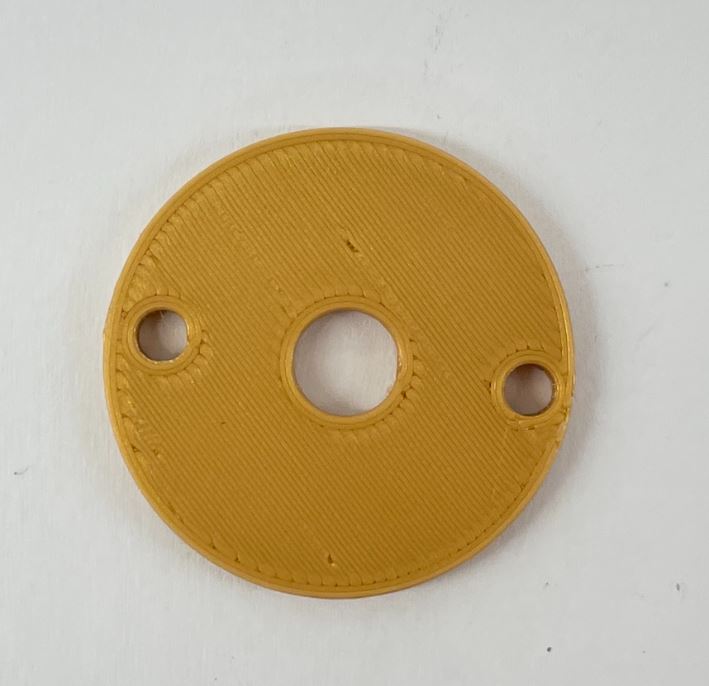

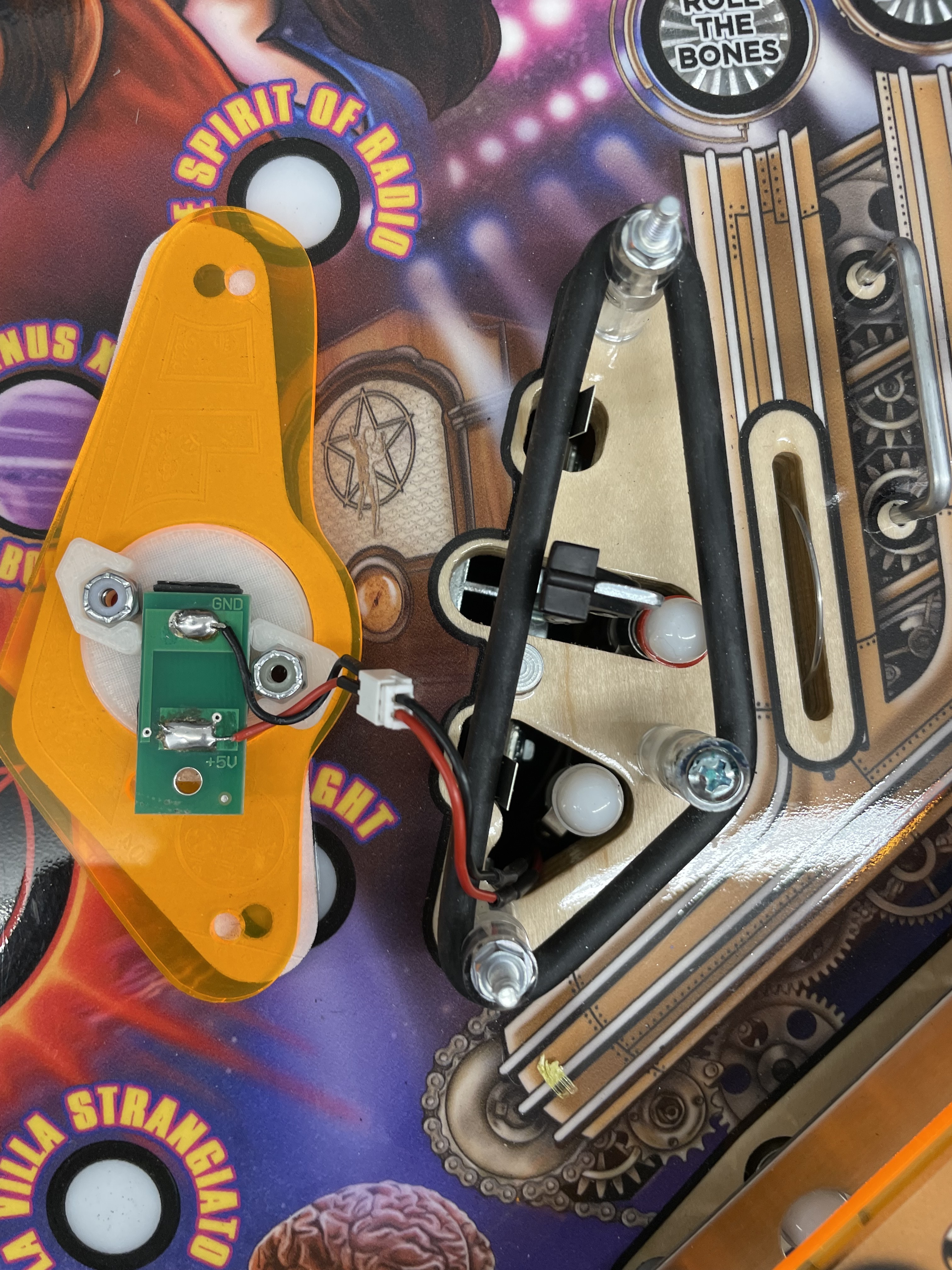

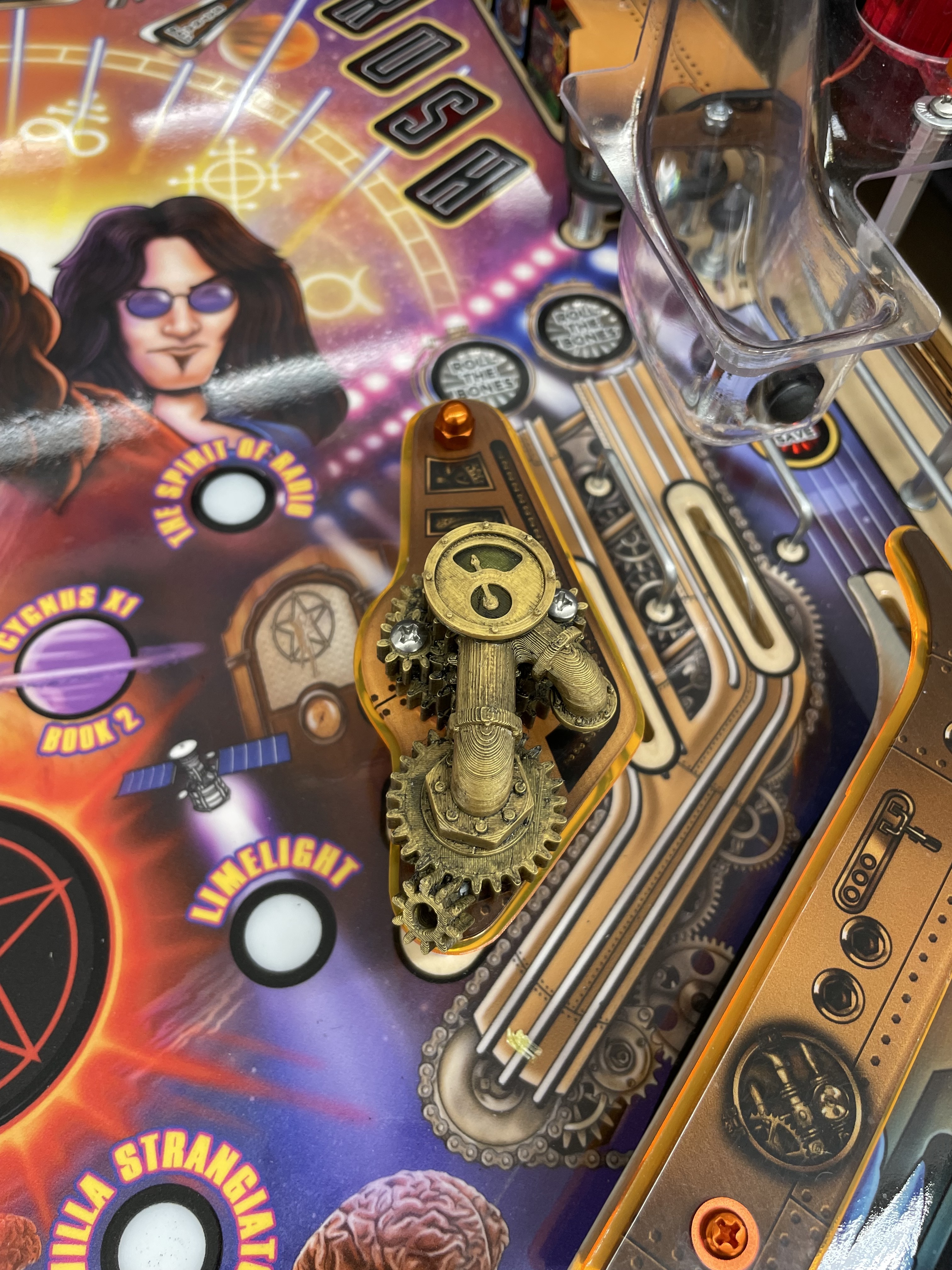

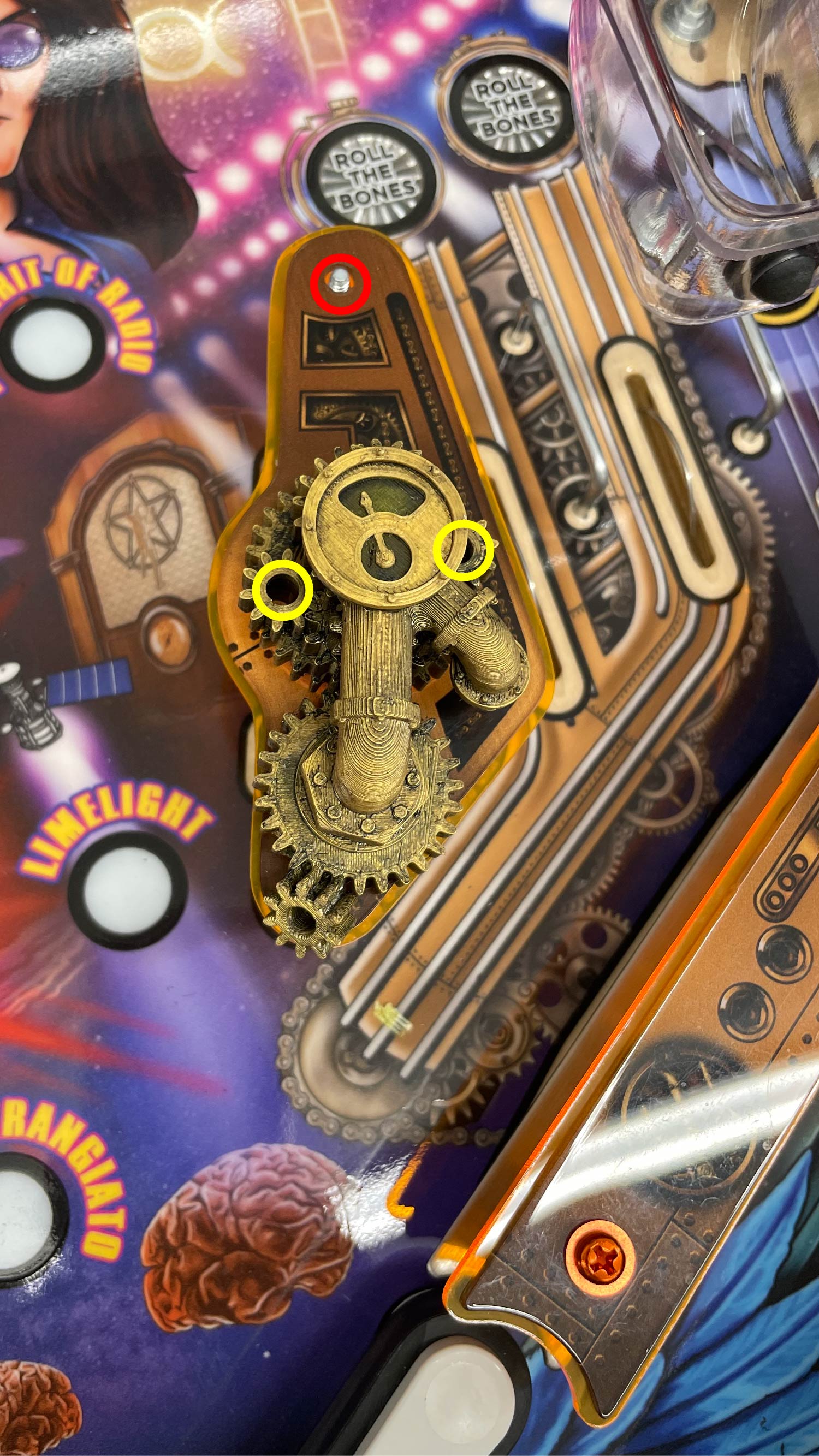

2. Grab the mount and insert the existing light board using the included photo as a reference. Please use included 3M strip to adhere light to the mount. NOTE: IF THE PLASTIC PROTECTOR IS PURCHASED SEPARATELY PLEASE USE INCLUDED SPACER TO COMPENSATE FOR ADDED MATERIAL

NOTE: SHOWN PLASTIC PROTECTOR IS NOT INCLUDED
