WPC95 Power Adapter

These instructions are applicable to the following products:

• MM-POWER-ADAPTER-WPC

WHATS IN THE BOX

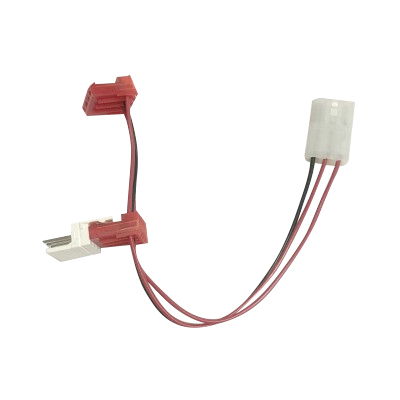

Power adapter with 4 pin .156 ID jumper and z connector to 3 pin .093 molex receptacle

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

WPC95 unplug the 4pin connector on J140 on the board in the backbox.  Attach the 4 pin connector on the Mezel Mods power adaptor to J140 and attach the original J140 to the Mezel Mods 4pin connector (with the white z-connector).
