Spike 1 Power Adapter (Ticket/Cabinet connection)

These instructions are applicable to the following products:

• MM-12V-SPIKE1-CABINET

WHATS IN THE BOX

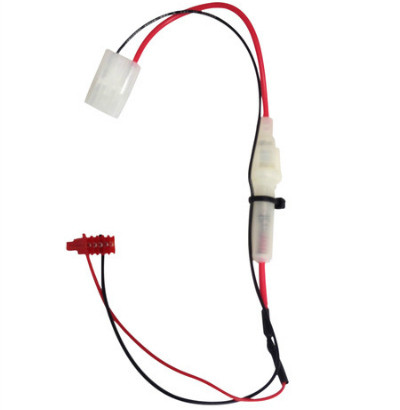

Fused power adapter with 5pin .100 IDC connector (fuse holder color may vary)

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

NOTE: WE RECOMMEND ATTACHING THE POWER SOURCE AND TESTING MODS YOU ARE INSTALLING PRIOR TO ATTACHING TO YOUR GAME.

SPIKE 1- Ticket/Cabinet (can be used on Spike 2 versions as well)

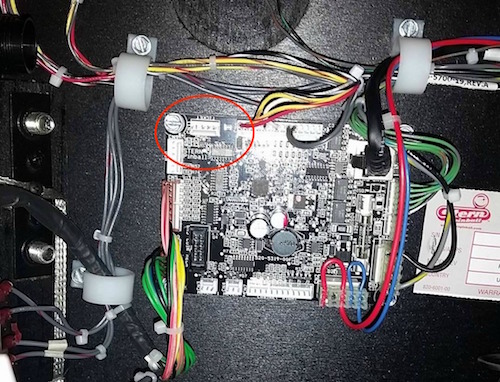

1.  Locate the cabinet node board on the inside left of your game. Find the Ticket connector (CN11) on the top left of the board and attach. Attach the product you are installing to the molex end of the power adapter. Your Ticket connector will look like either of these two boards.

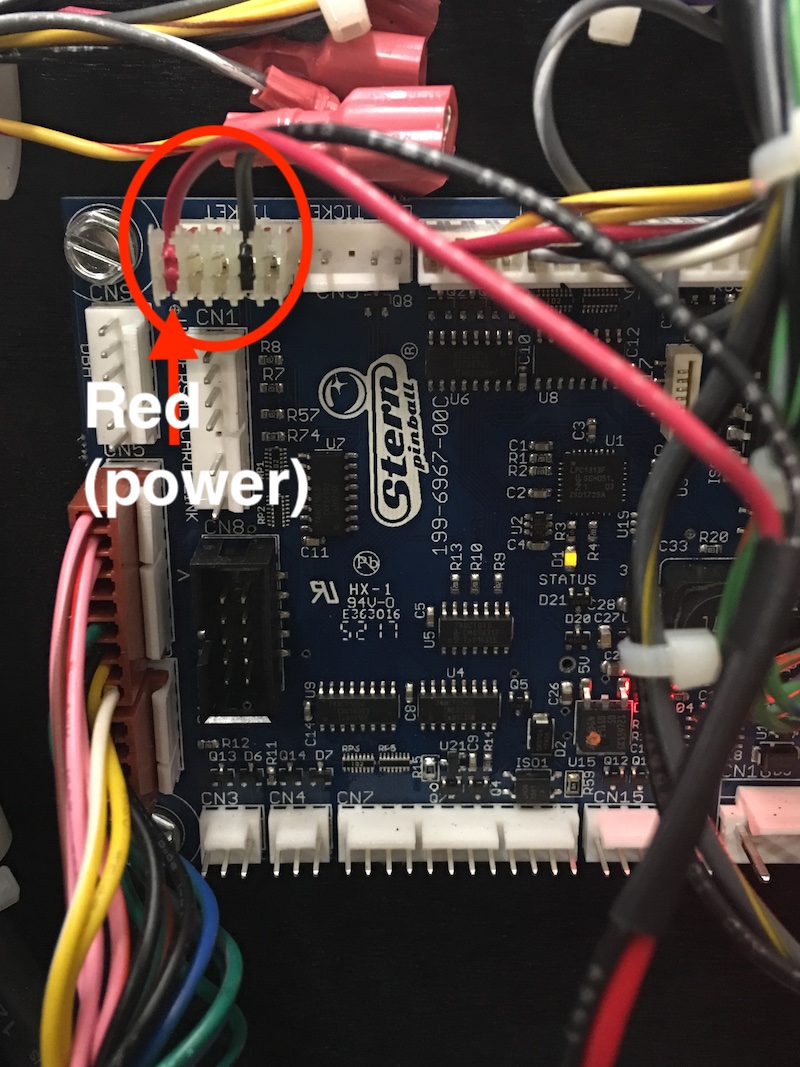

2. For either board, make sure that the red wire (power) is connected on the far left, in position one.
