Chicago Coin Power Adapter

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

NOTE: PHOTOS FOR THESE INSTALLATION INSTRUCTIONS WERE TAKEN ON ATTACK FROM MARS REMAKE. GAME TO GAME DIFFERENCES WILL OCCUR.

1. Turn off the power, remove the translite.

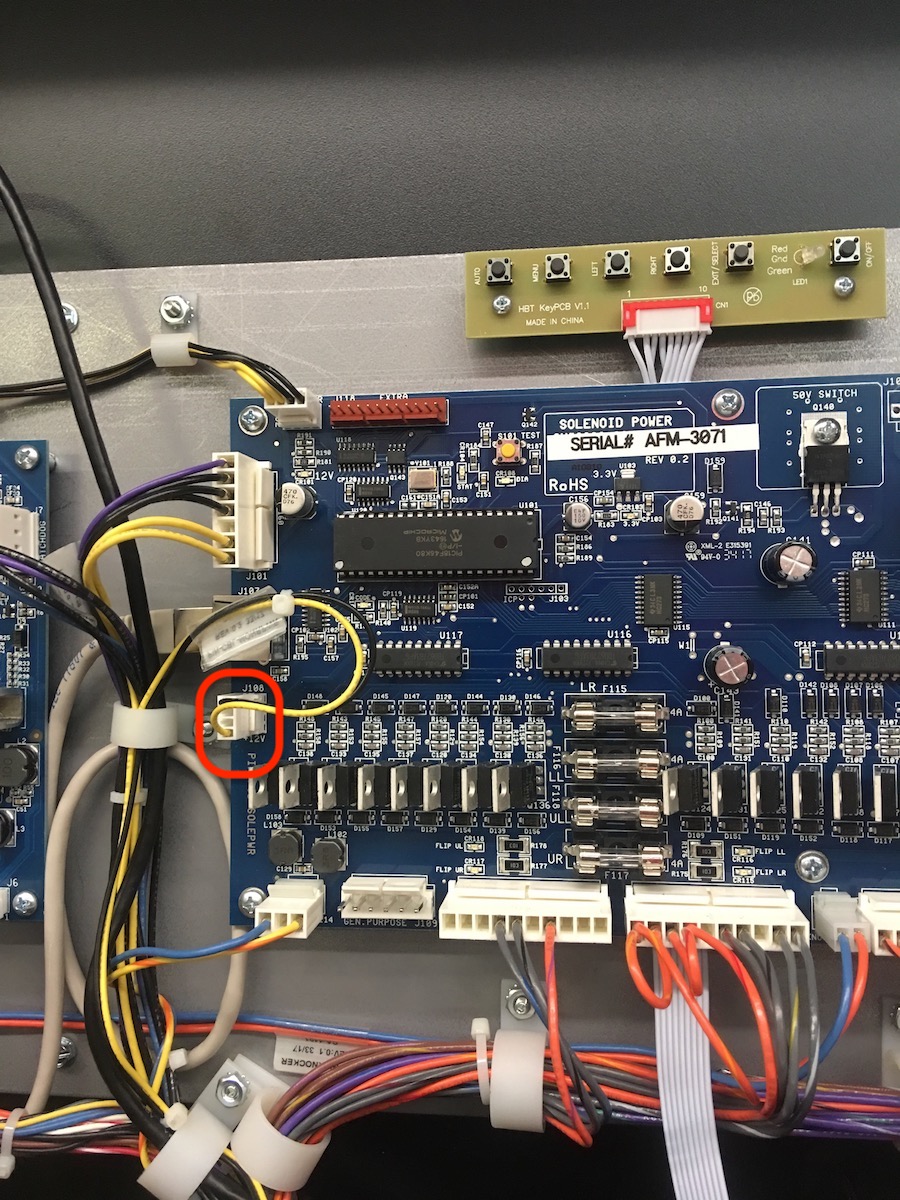

2. Locate the Solenoid Driver board. Look for the J108 connector.

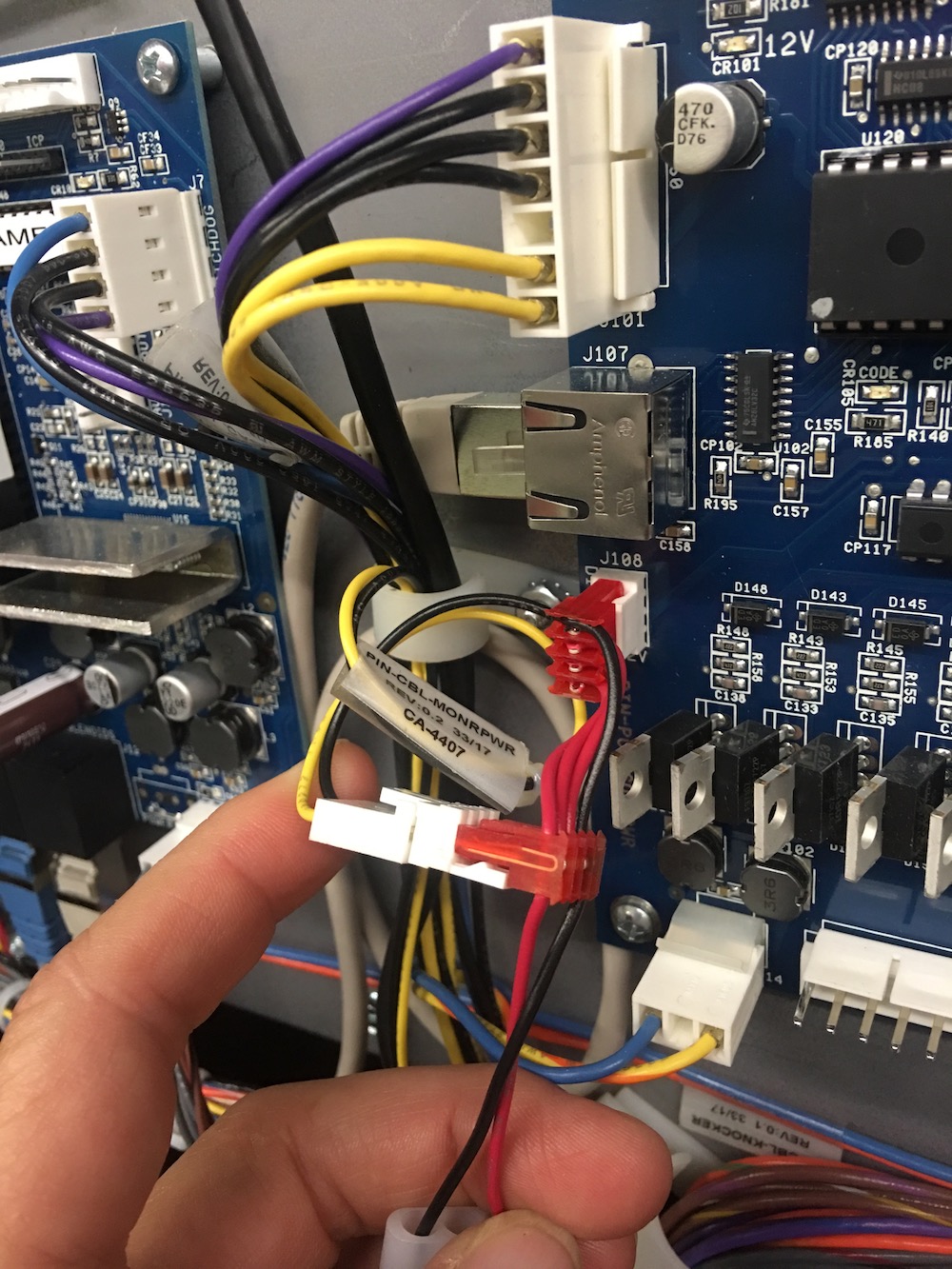

3. Disconnect the game connector and utilize the Chicago Coin Power Adapter to tap into the power- connect the end connector on the power adapter to the J108 connection and attach the games connector to the second connector.

4. Utilize the open connector to power your 12v mod!
