SAM/Stern Power Adapter

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

NOTE: WE RECOMMEND ATTACHING THE POWER SOURCE AND TESTING your product PRIOR TO ATTACHMENT TO YOUR GAME.

 PLEASE BE ABSOLUTELY CERTAIN THAT THE WIRING IS EXACTLY MATCHED DURING STEP 1 OF THE INSTALLATION. FAILURE TO PROPERLY ALIGN THE GROUND (BLACK) AND THE POWER (RED) CAN CAUSE BOARD ISSUES.

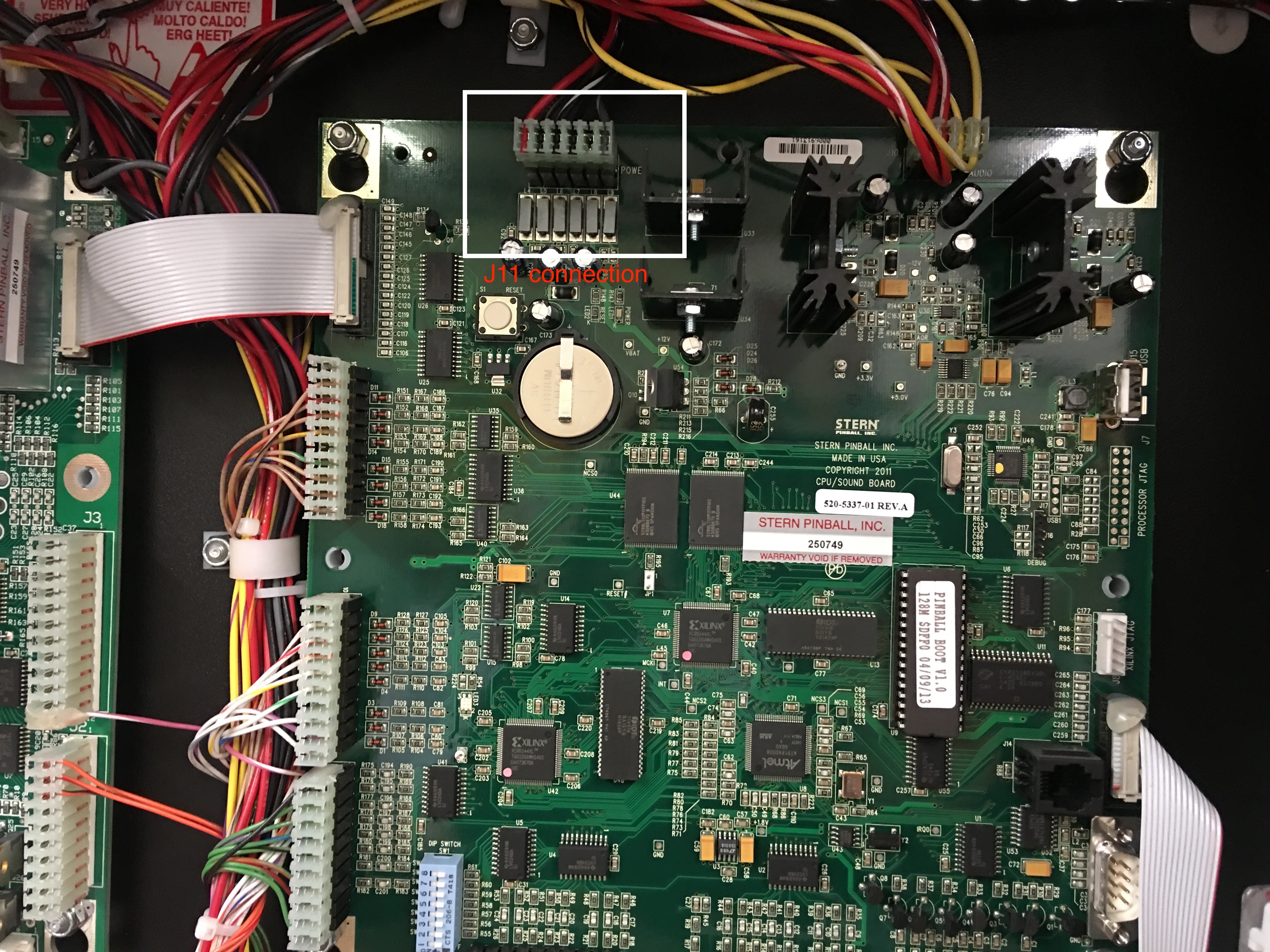

1. Open the backbox and locate the J11 connector. The location of this connection will vary by game so utilize your games manual to ensure you have the correct connector. Please note: in some games, this connection is called CN2. Unplug the J11 connector and attach to the Power adapter. The plug the second connection on the power adapter into J11 on the game.

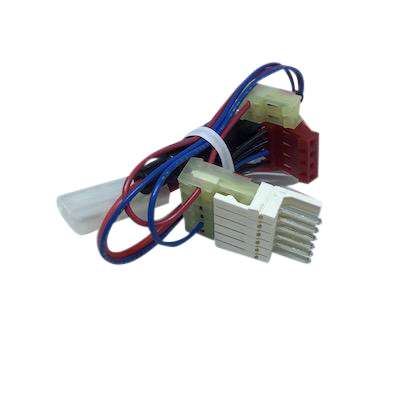

2. Attach your product to the Power Adapter using the standard size 3-pin molex plug. Prior to attaching product to your game, turn on the game power to ensure it is working appropriately.
