JAWS - Harpoon Shooter Lane Mod

These instructions are applicable to the following products:

• MM-JAWS-HARPOONLANE

WHATS IN THE BOX

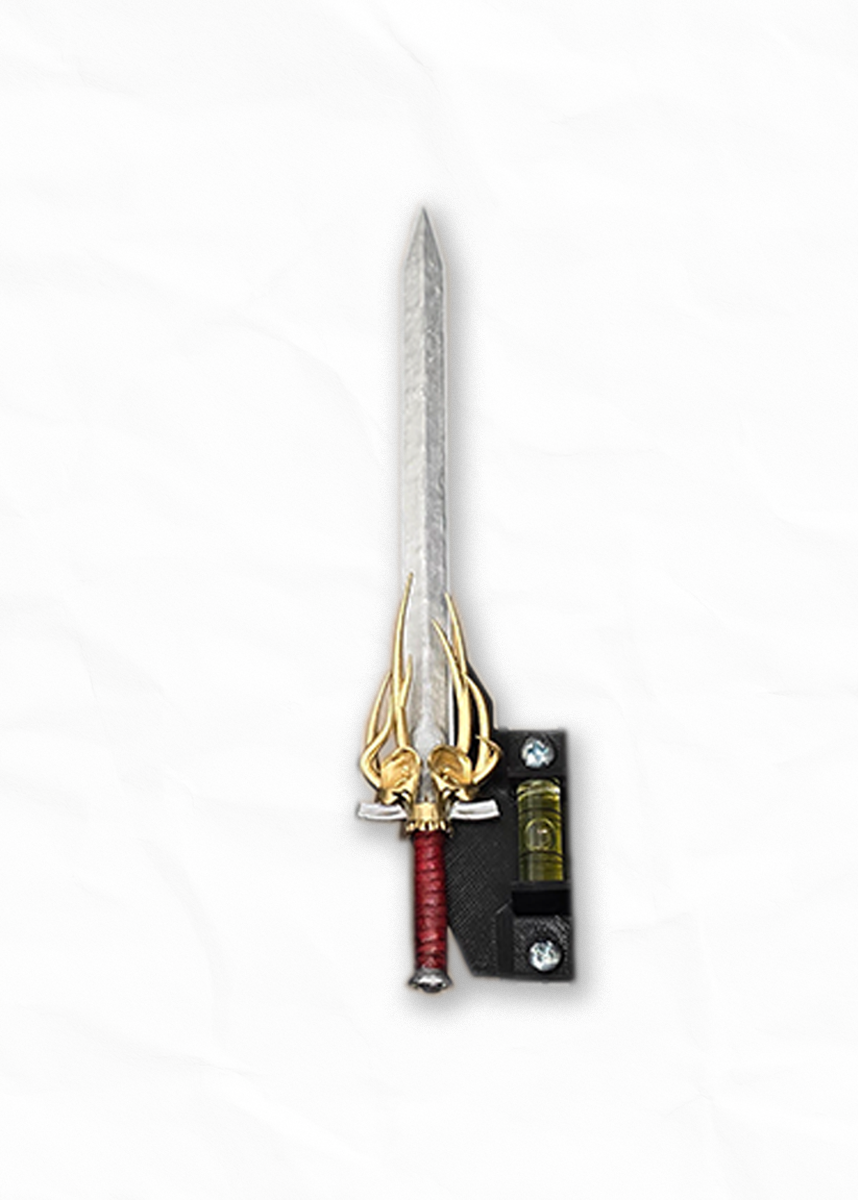

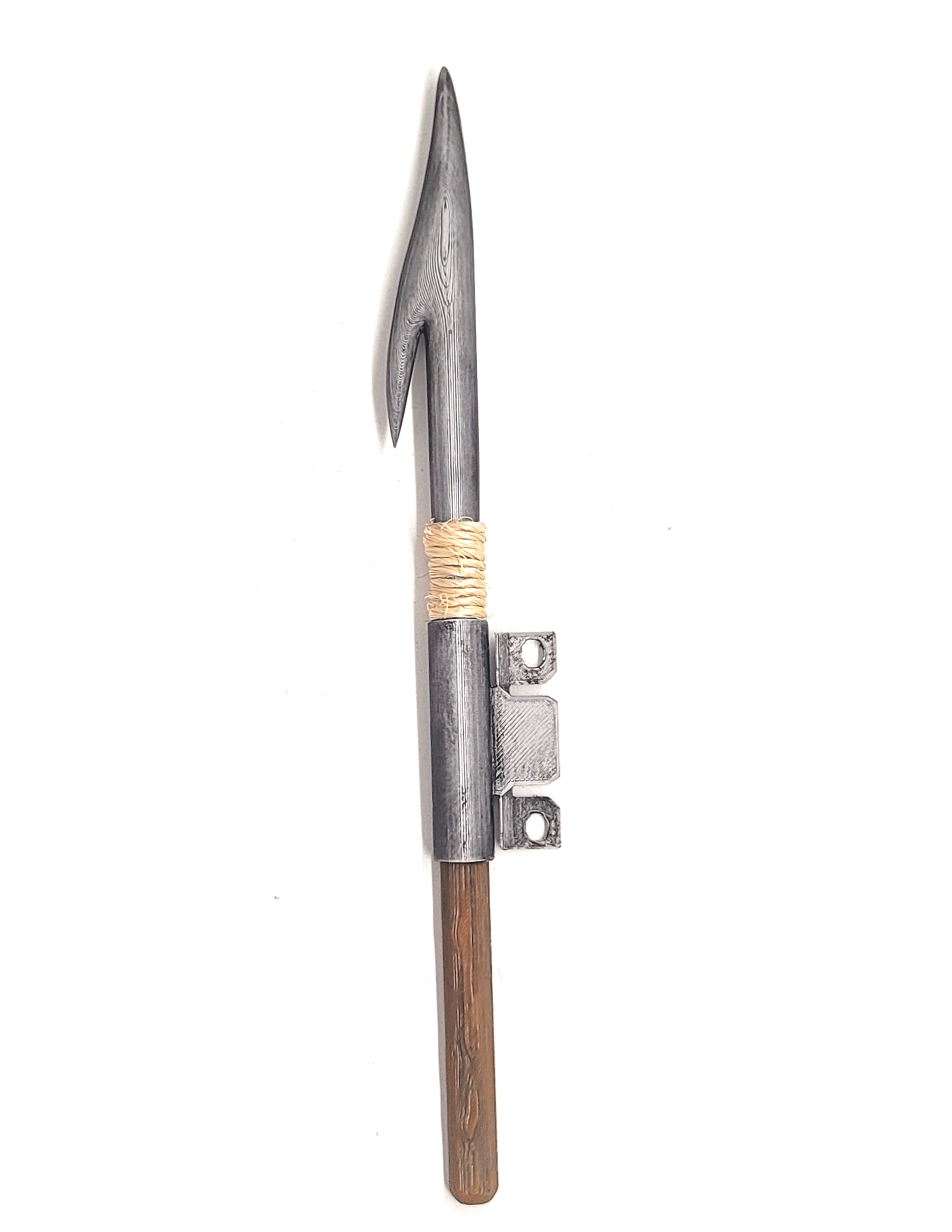

3D Harpoon with bracket

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Tools Needed:

Phillips screwdriver

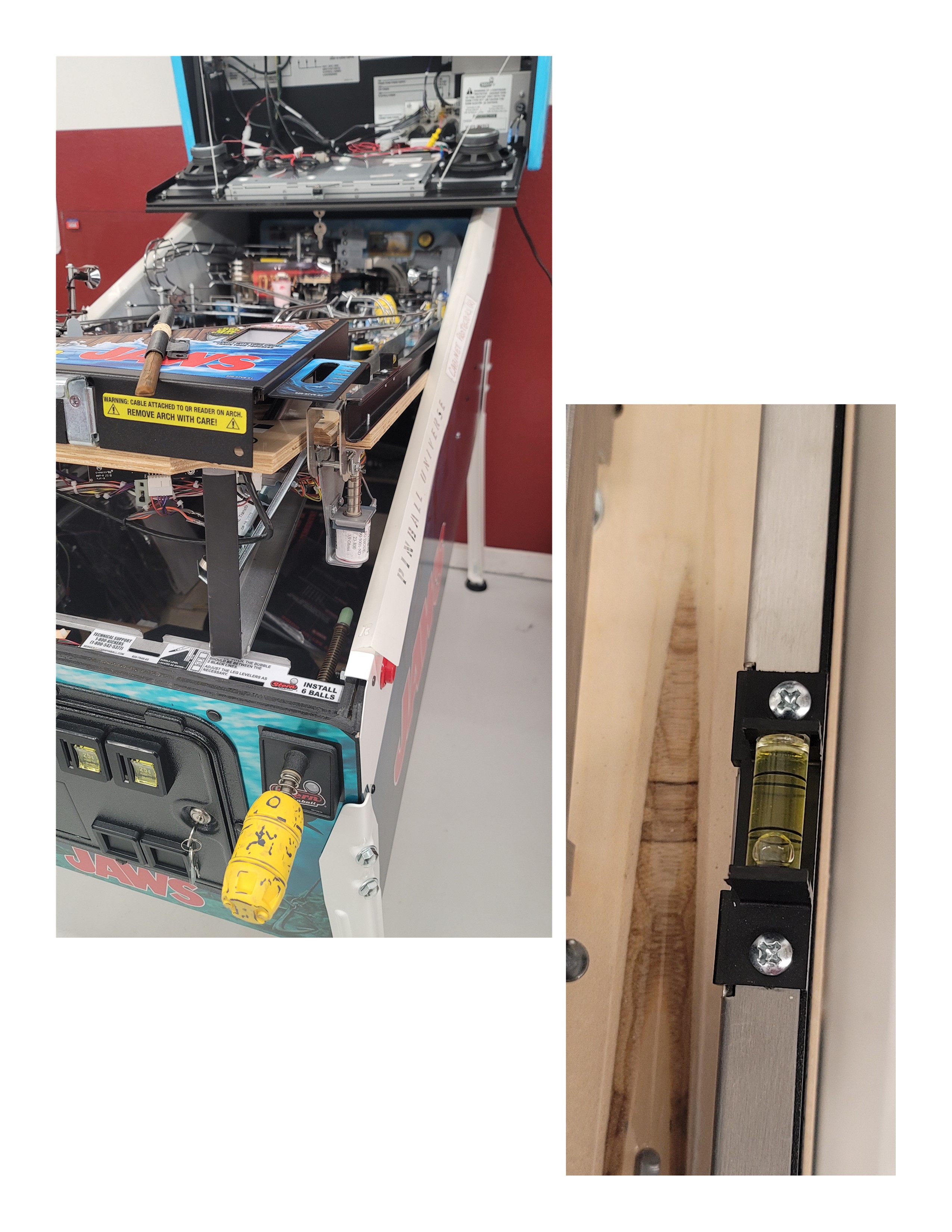

We recommend lifting the playfield up and out to make the installation easier (cabinet protectors sold separately), regardless please locate the bubble level by the shooter lane and remove both screws

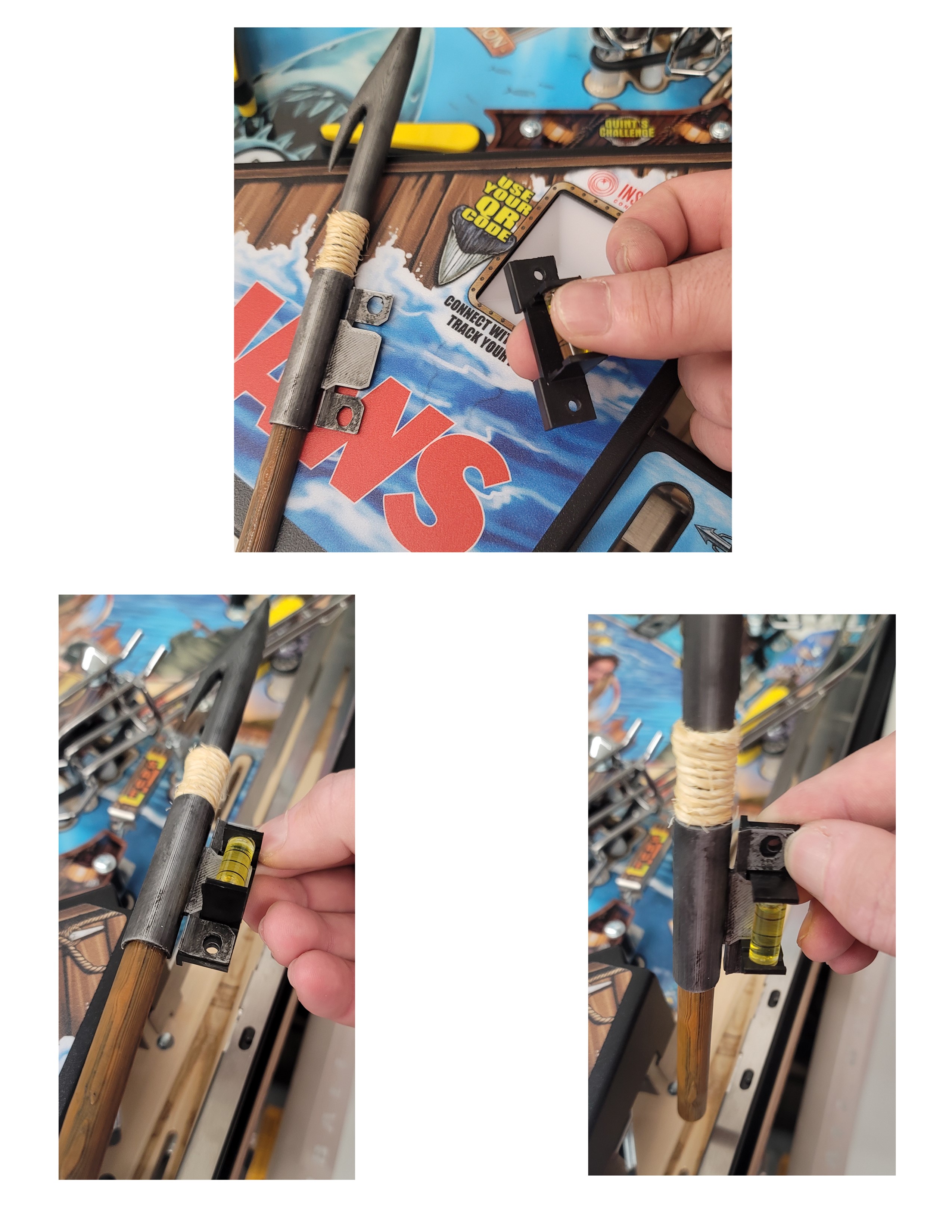

Insert the Harpoon's mount into the bubble level

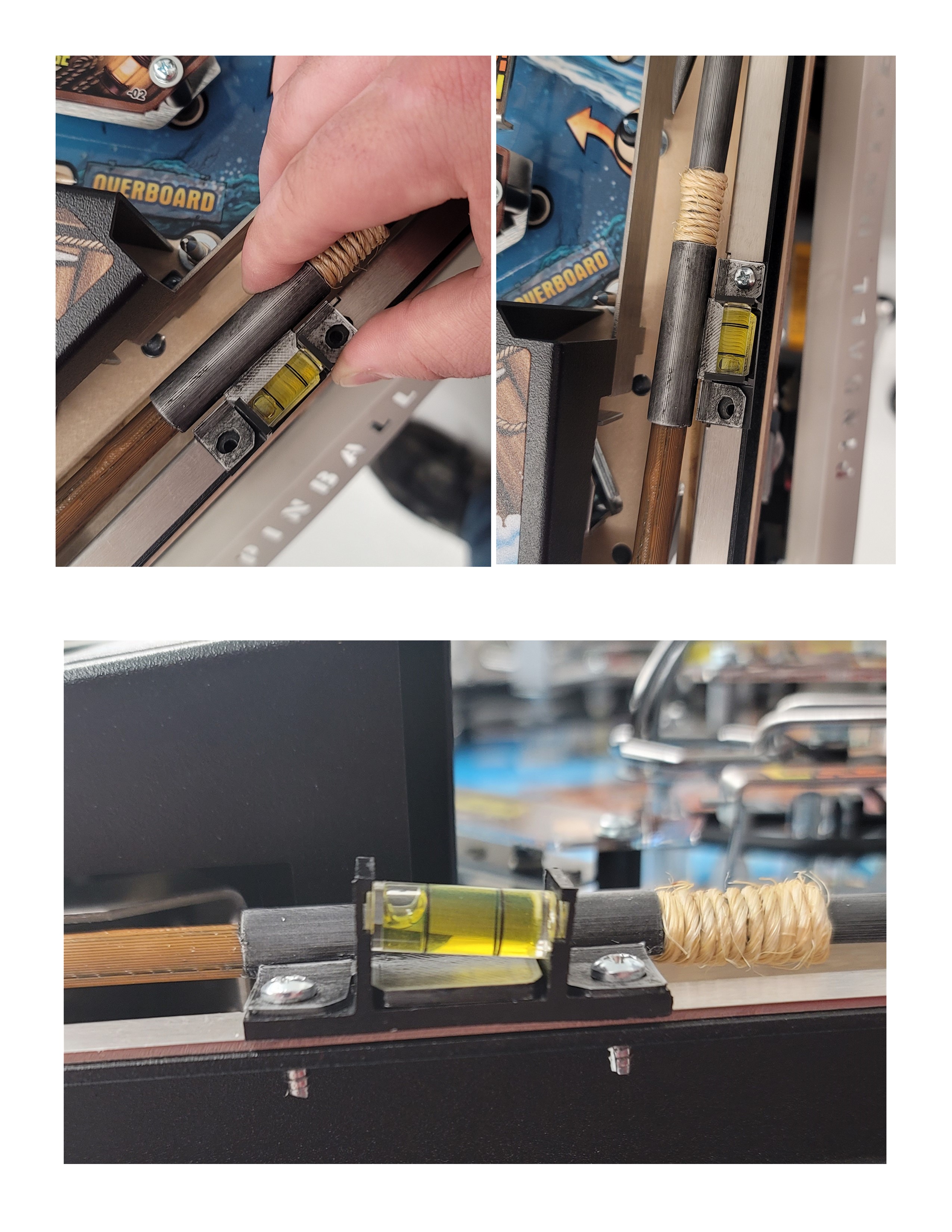

Screw the Harpoon and bubble level back on, please ensure the Harpoon is on top of the bubble level mount (black) but below the bubble level (clear/yellow)

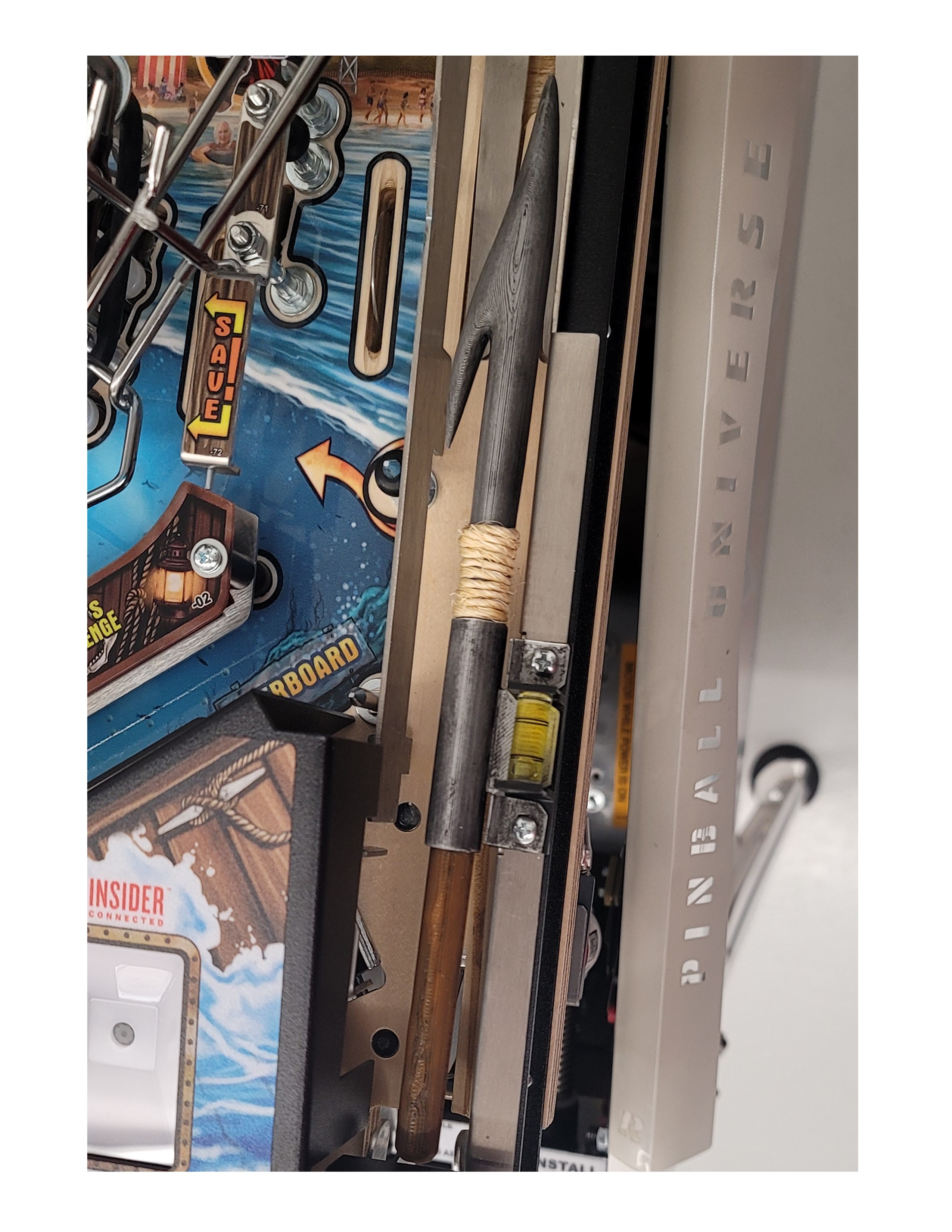

Enjoy
