JAWS - Shark Cage

These instructions are applicable to the following products:

• MM-JAWS-SHARKCAGE-KIT and MM-JAWS-SHARKCAGE

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory, or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Remove the factory cage

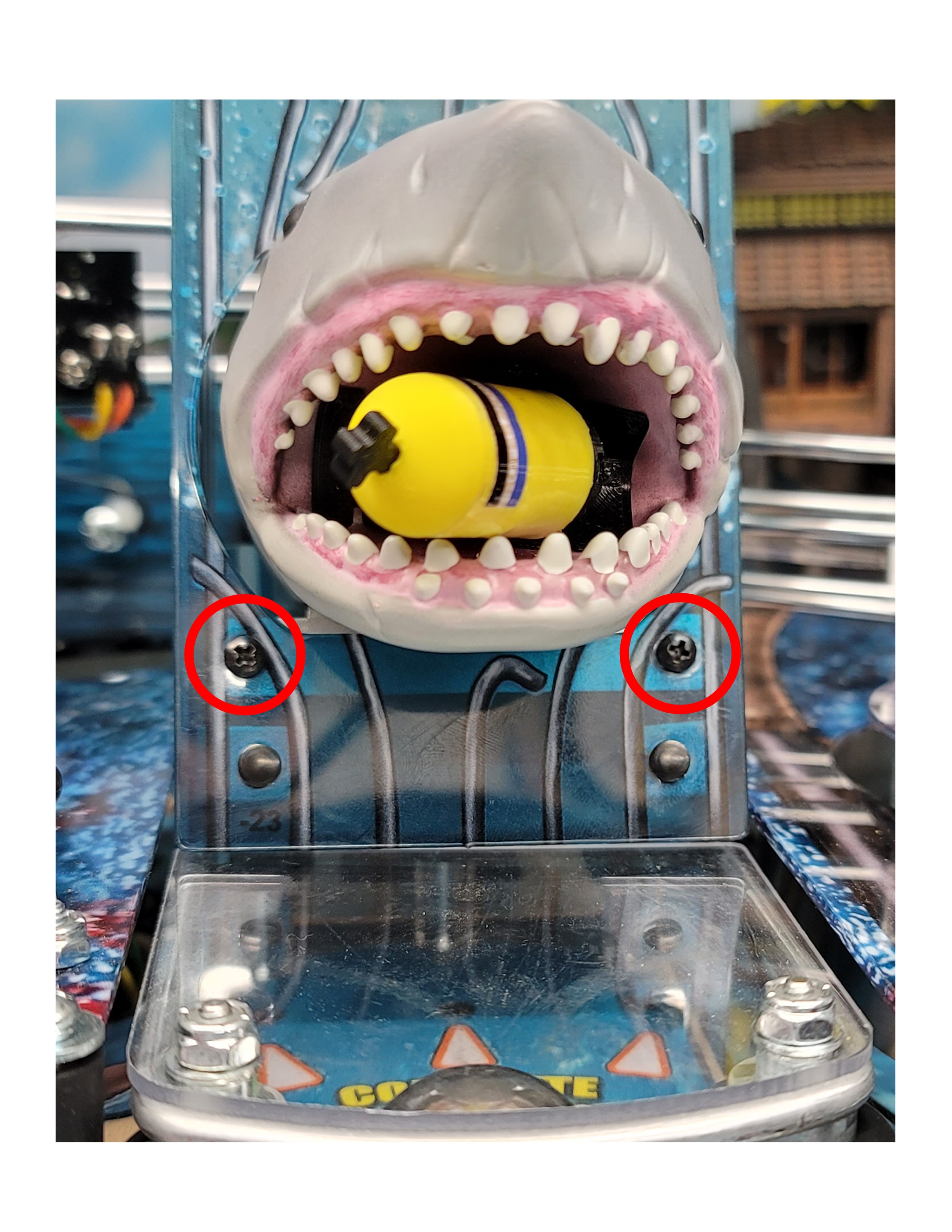

There are two screws in the bottom front

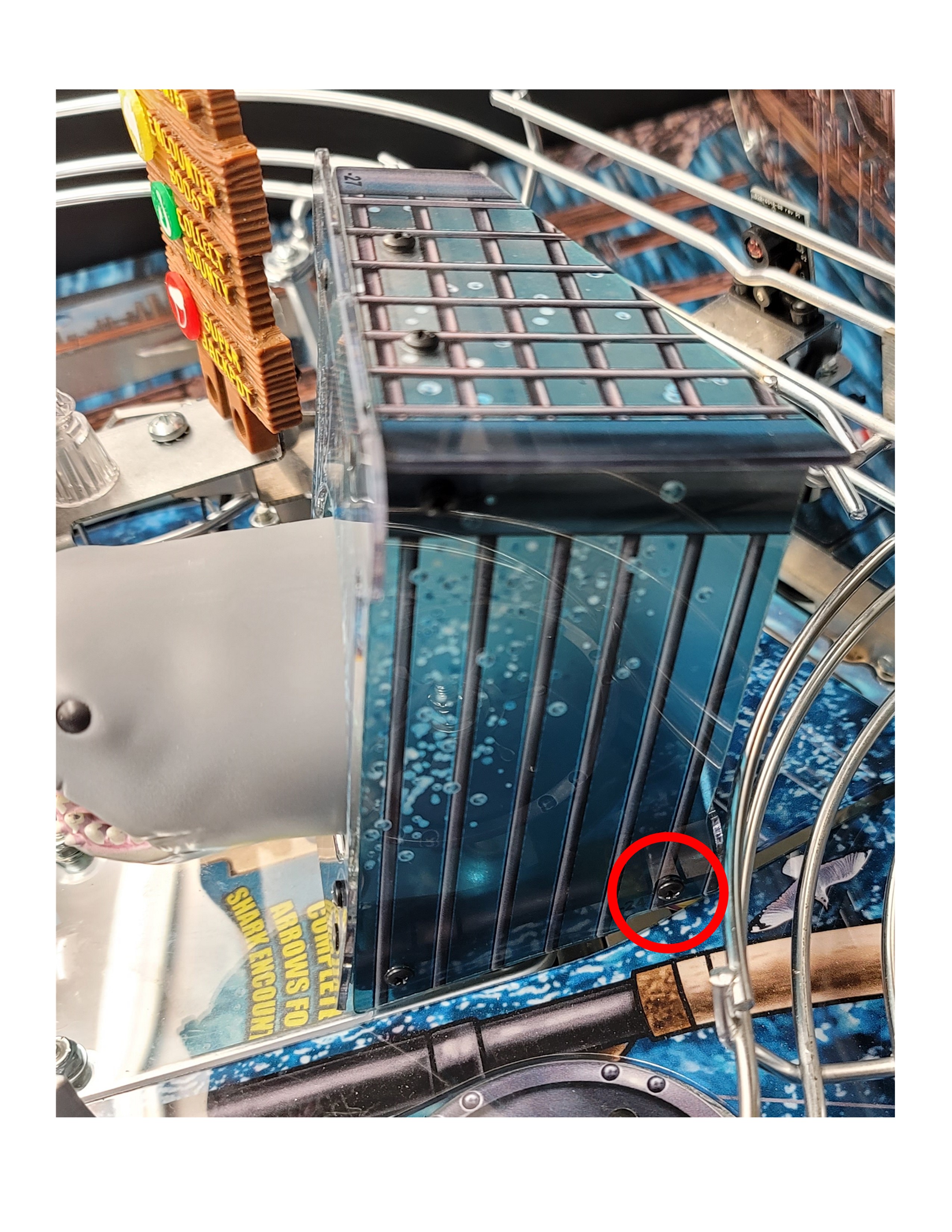

There is a screw in the back right

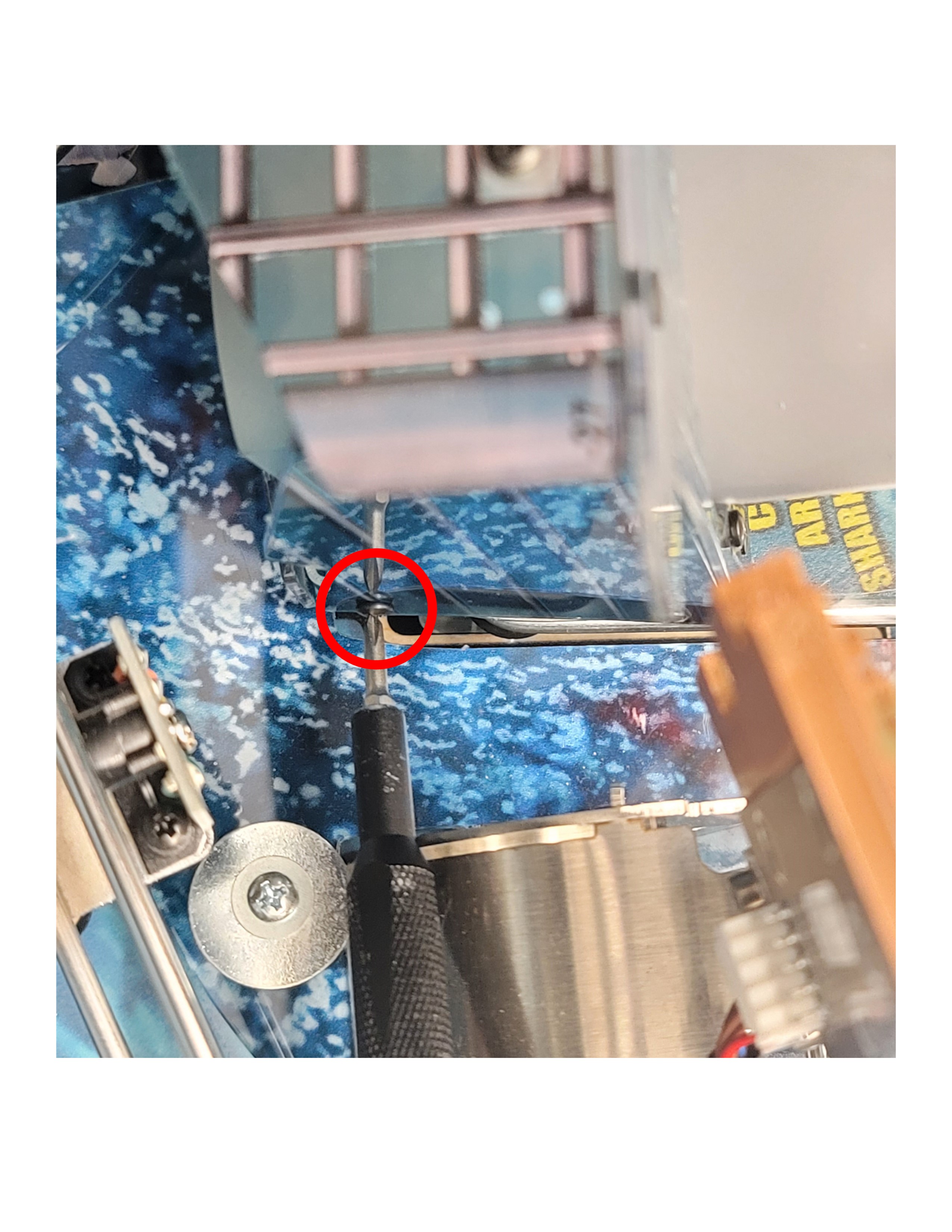

and the left

Store the factory cage and the two back screws, they are no longer needed

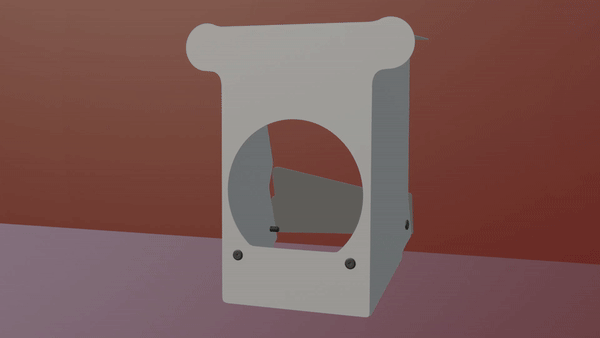

Place the new cage in its place and use the two front screws to attach the new cage

If you bought the kit that comes with the O2 Tank the installation instructions are here
