JAWS - Wooden Sign Set PREM/LE

These instructions are applicable to the following products:

• MM-JAWS-WOODSIGN-PREM/LE

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game and remove glass from cabinet.

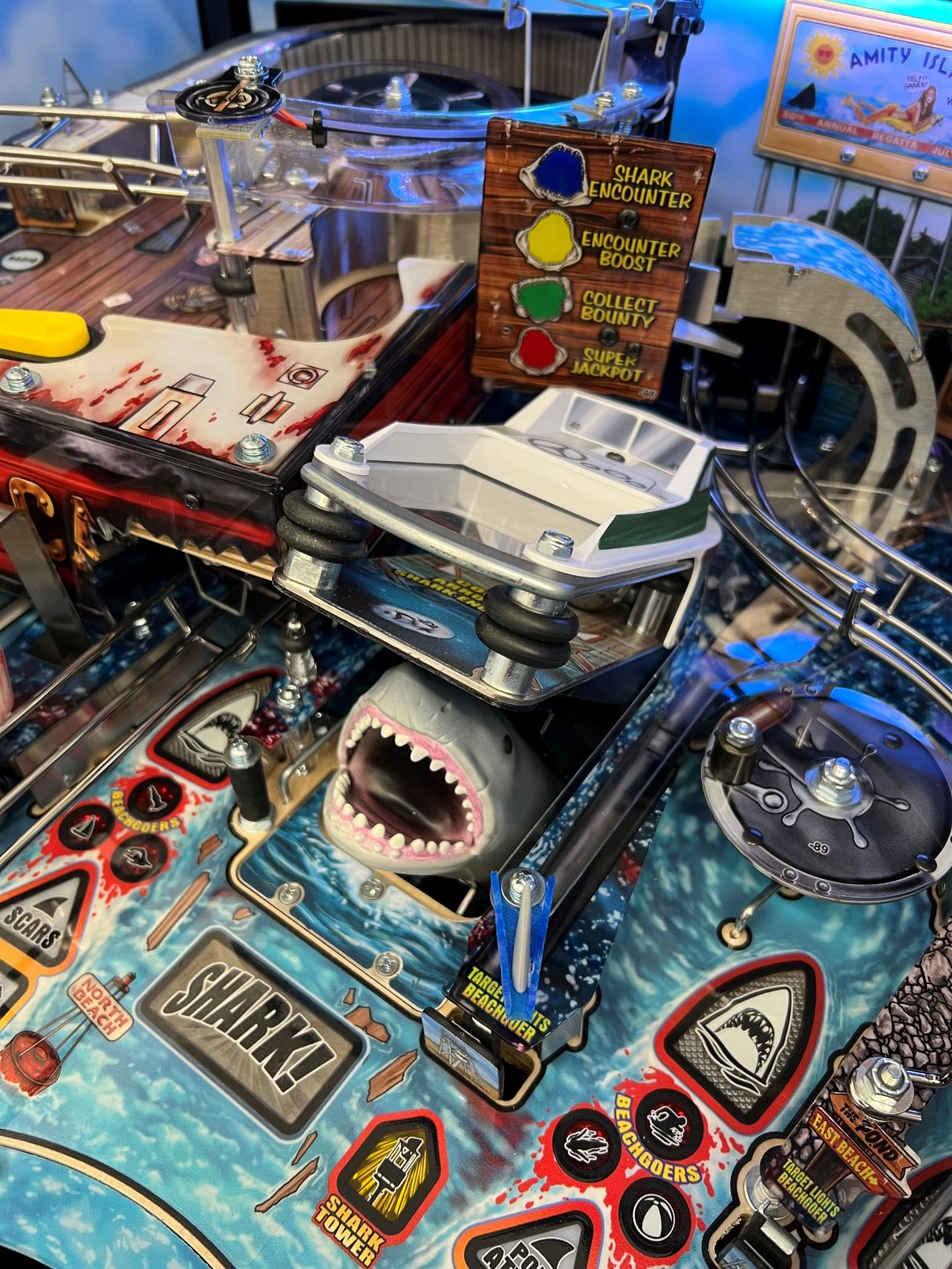

2. Lower shark into down position.

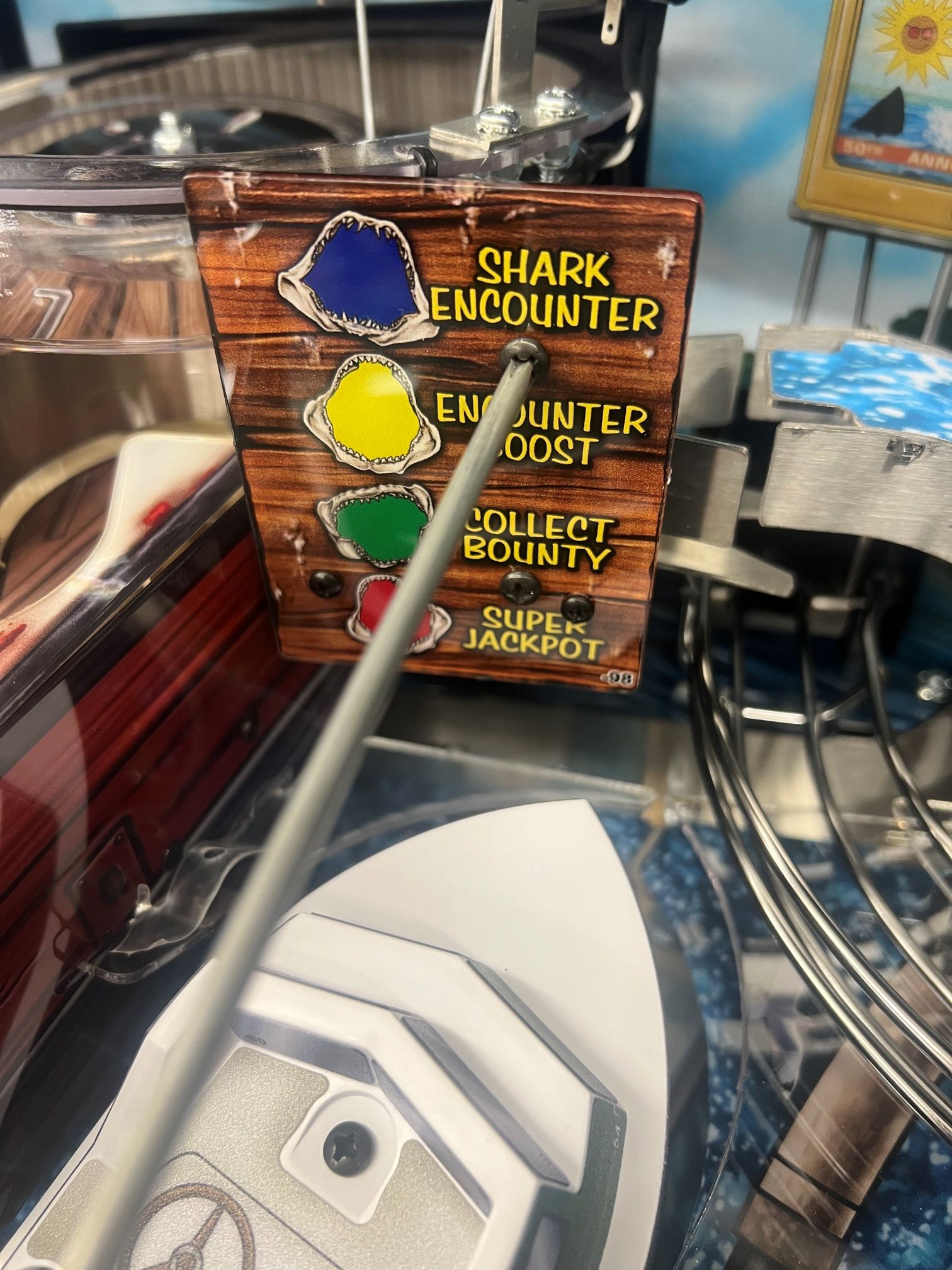

3. Unscrew LED Board from acrylic sign. Store nuts and screws in a safe place.

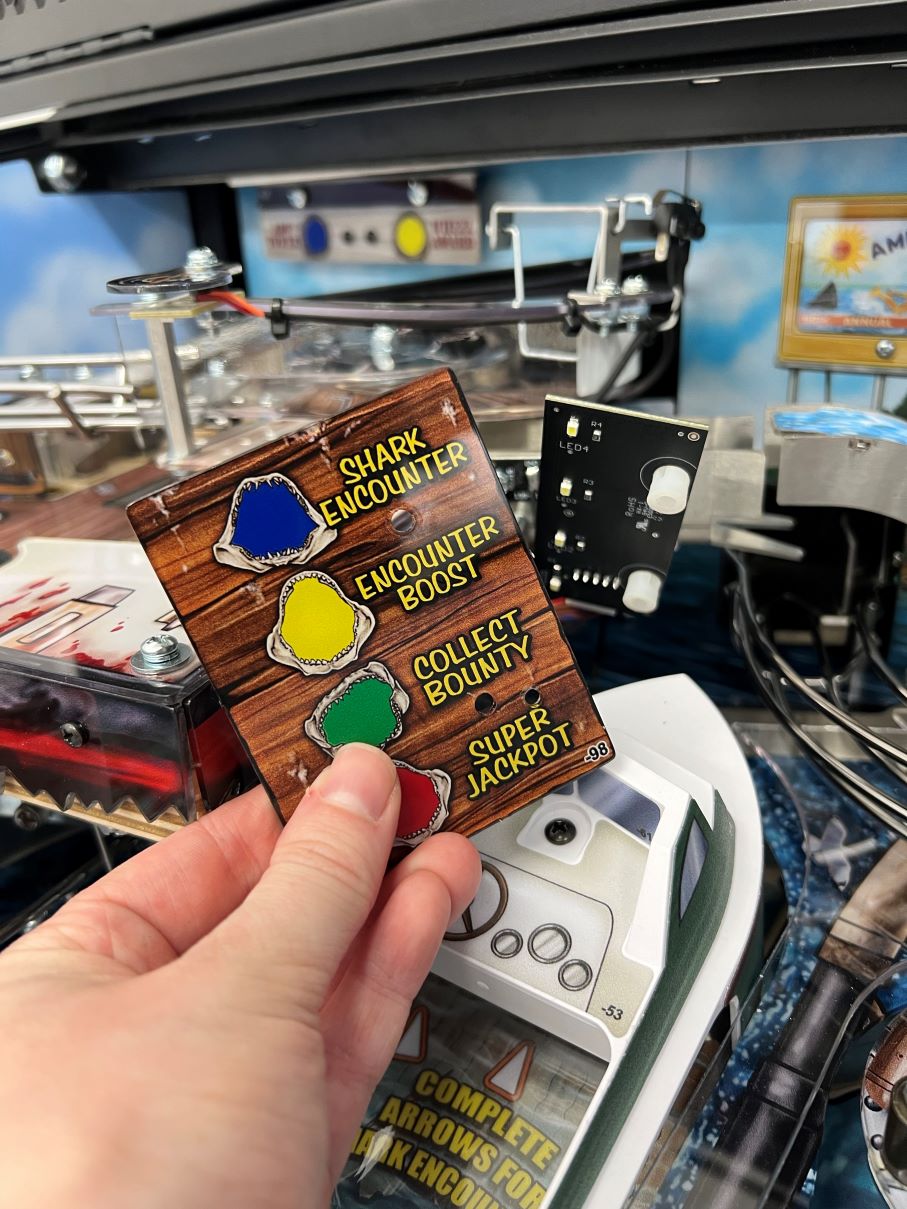

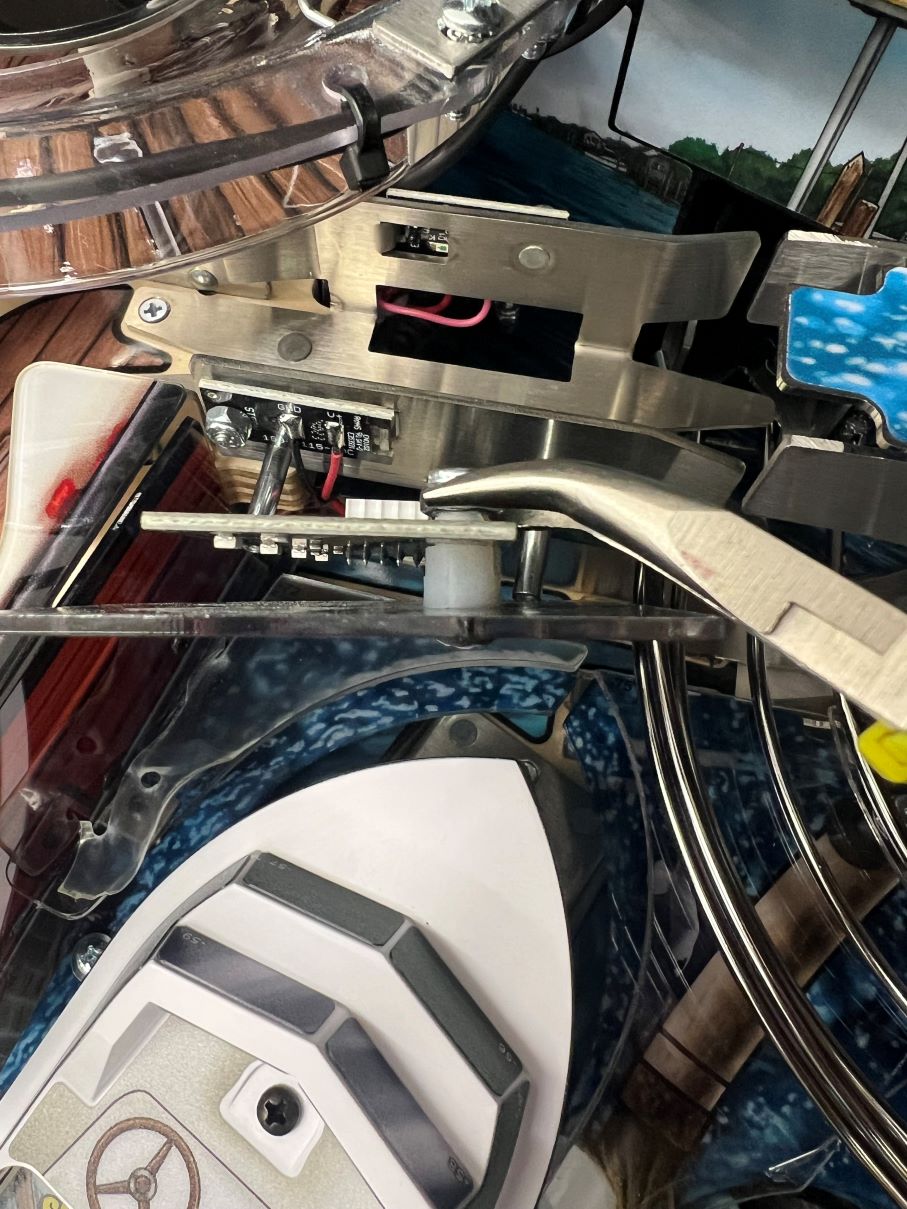

4. Unscrew bottom screws from sign. Store screws and factory acrylic in a safe place.

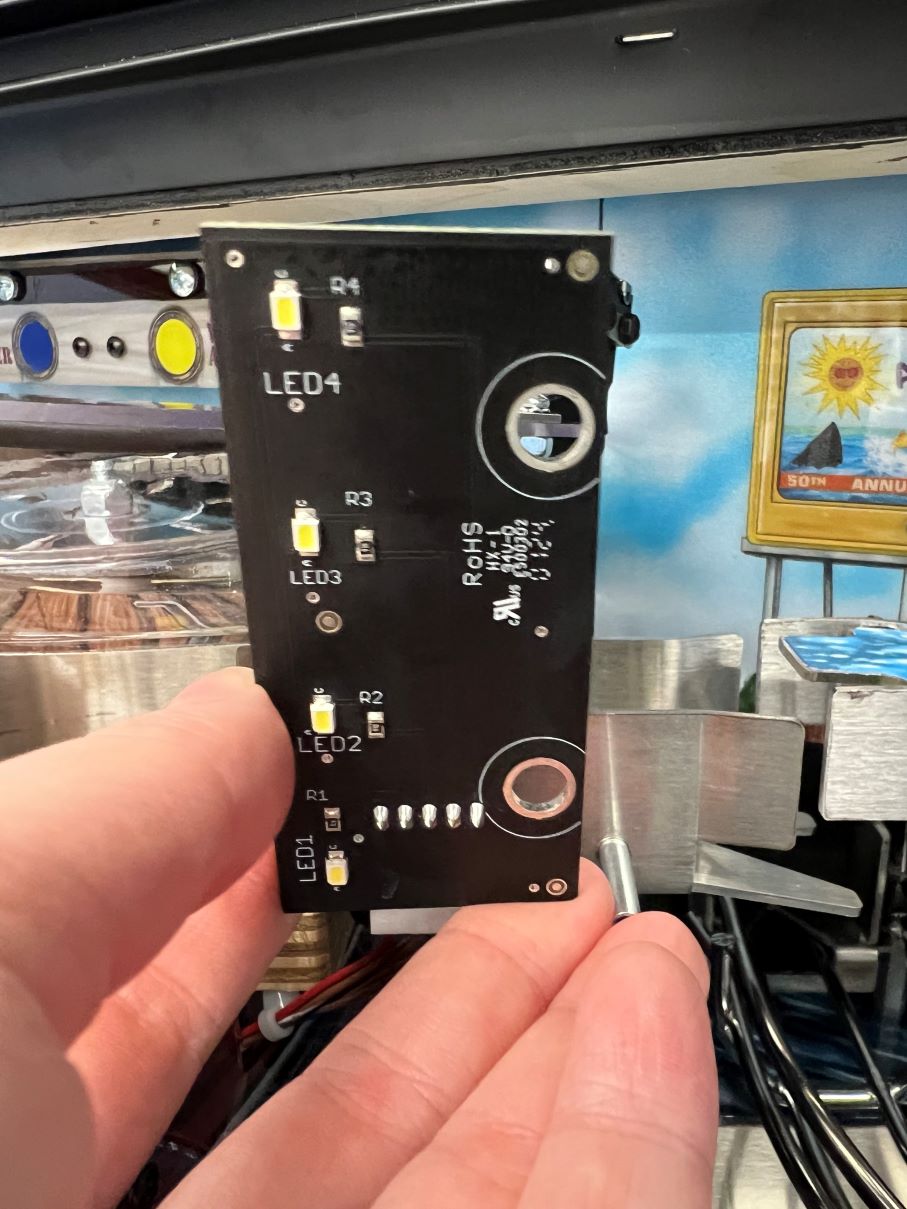

5. Remove spacers from LED Board. Store in a safe place.

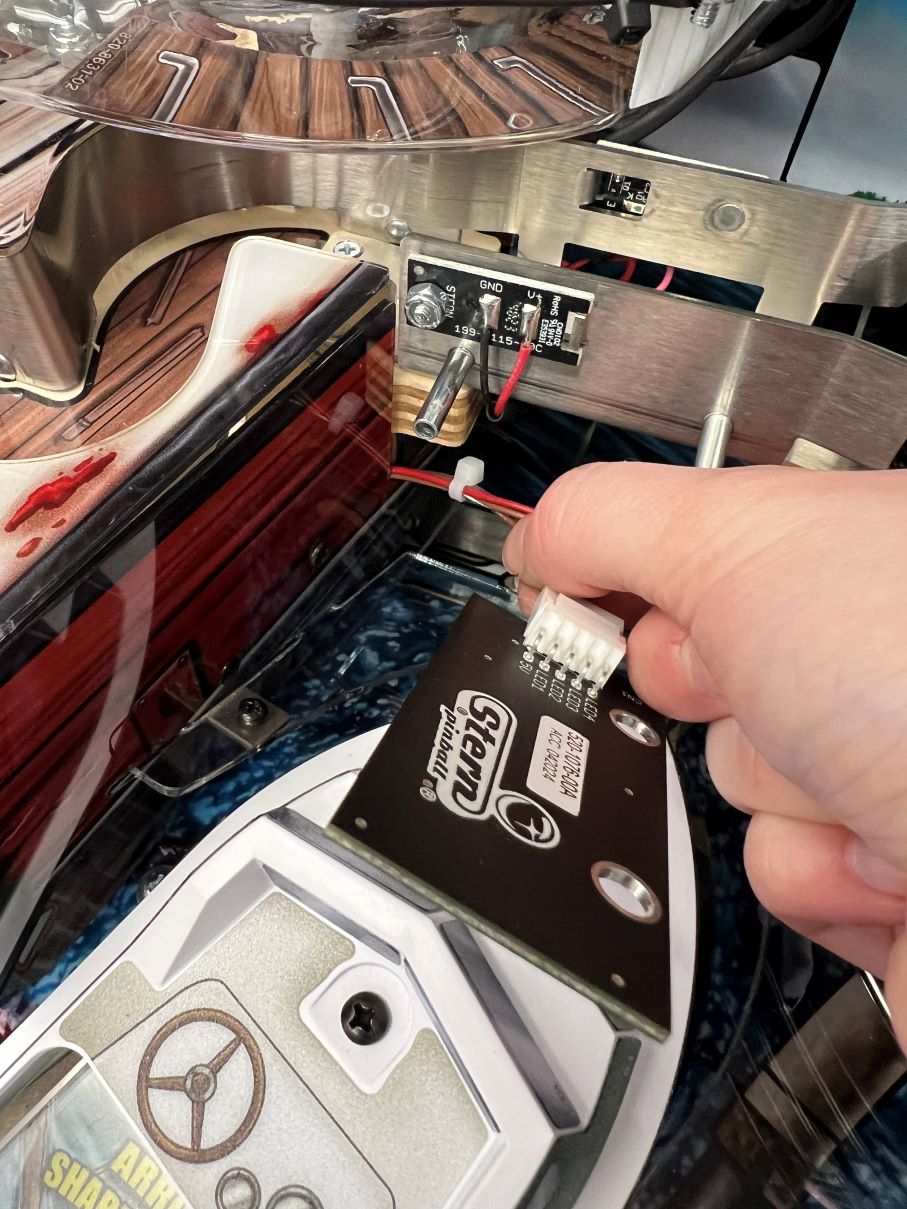

6. Gently pull wire to give more wiggle room.

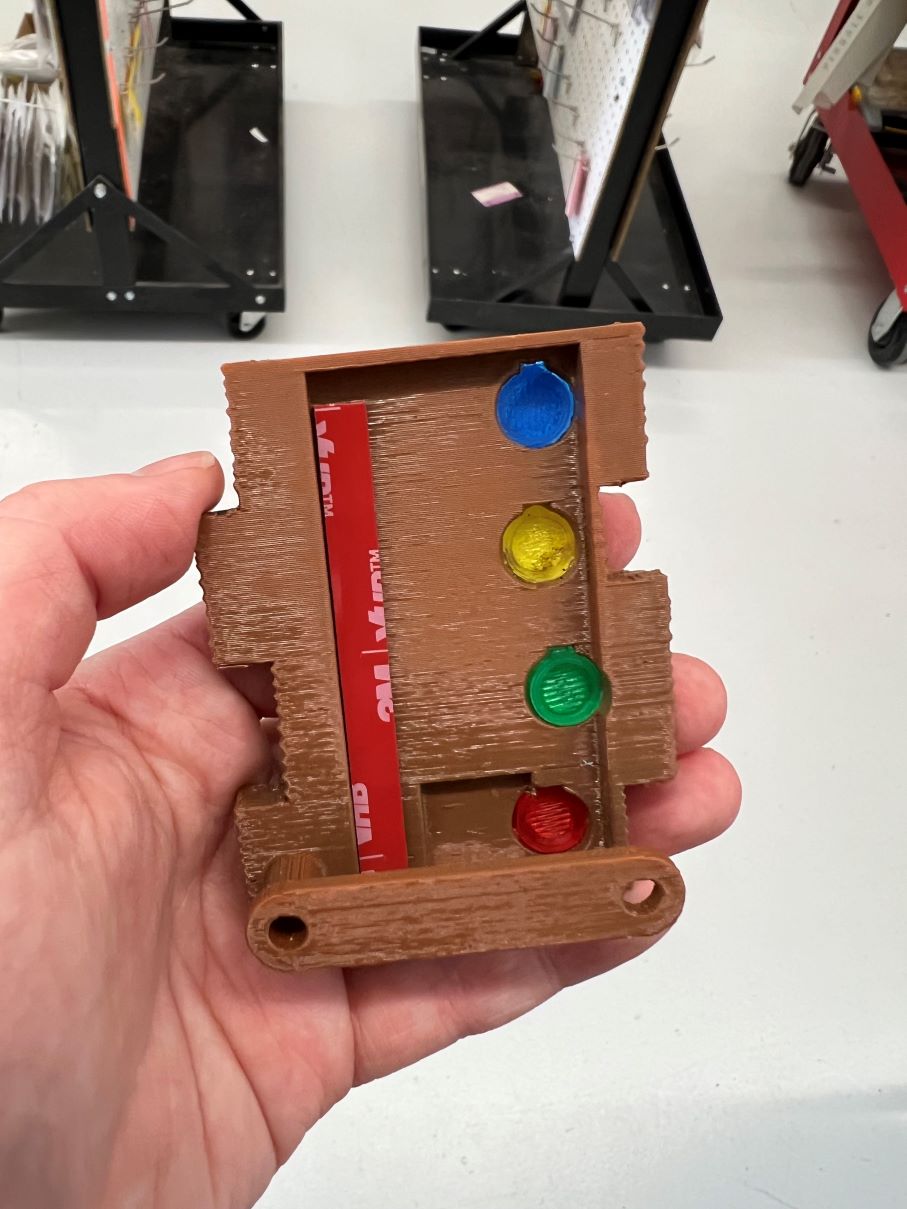

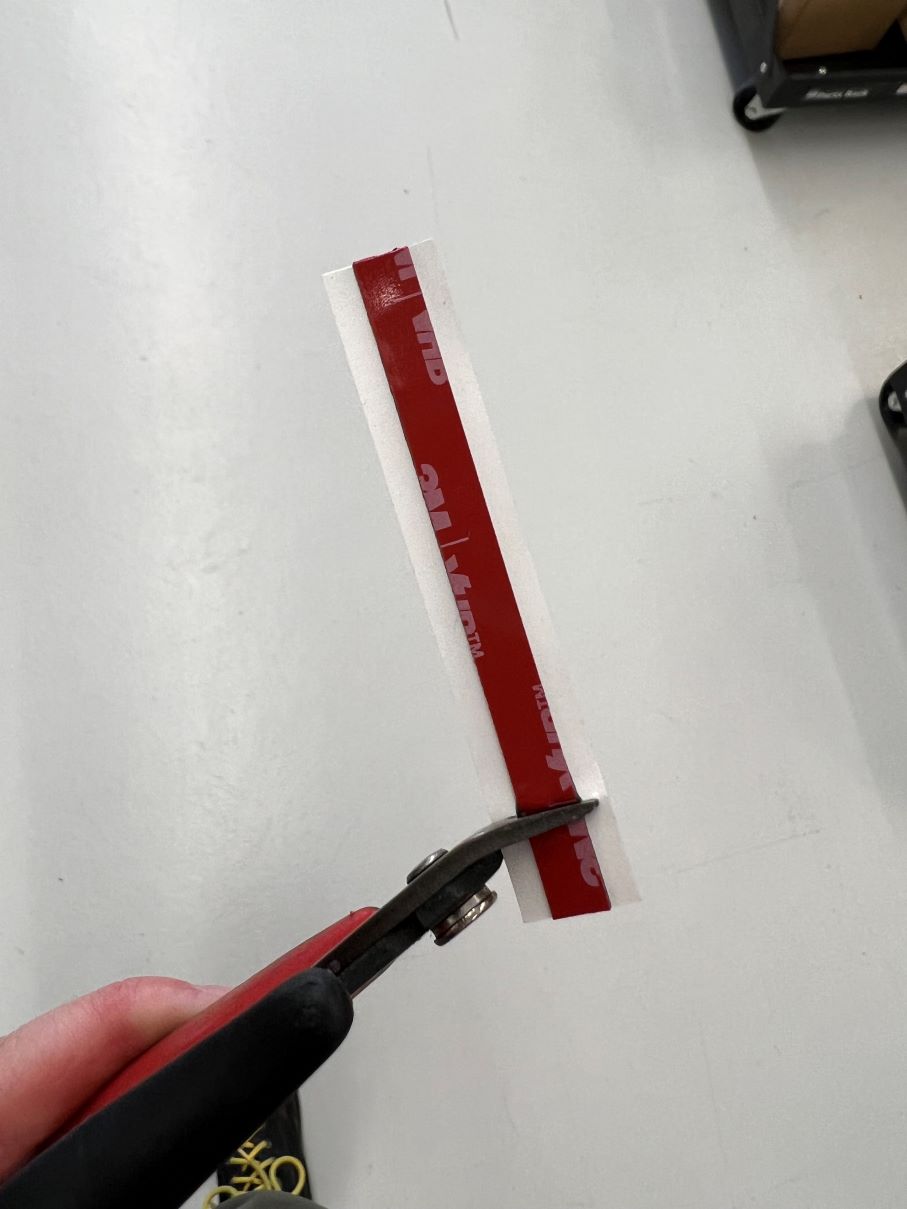

7. Cut 1/4" off tape and place onto back of mod as shown.

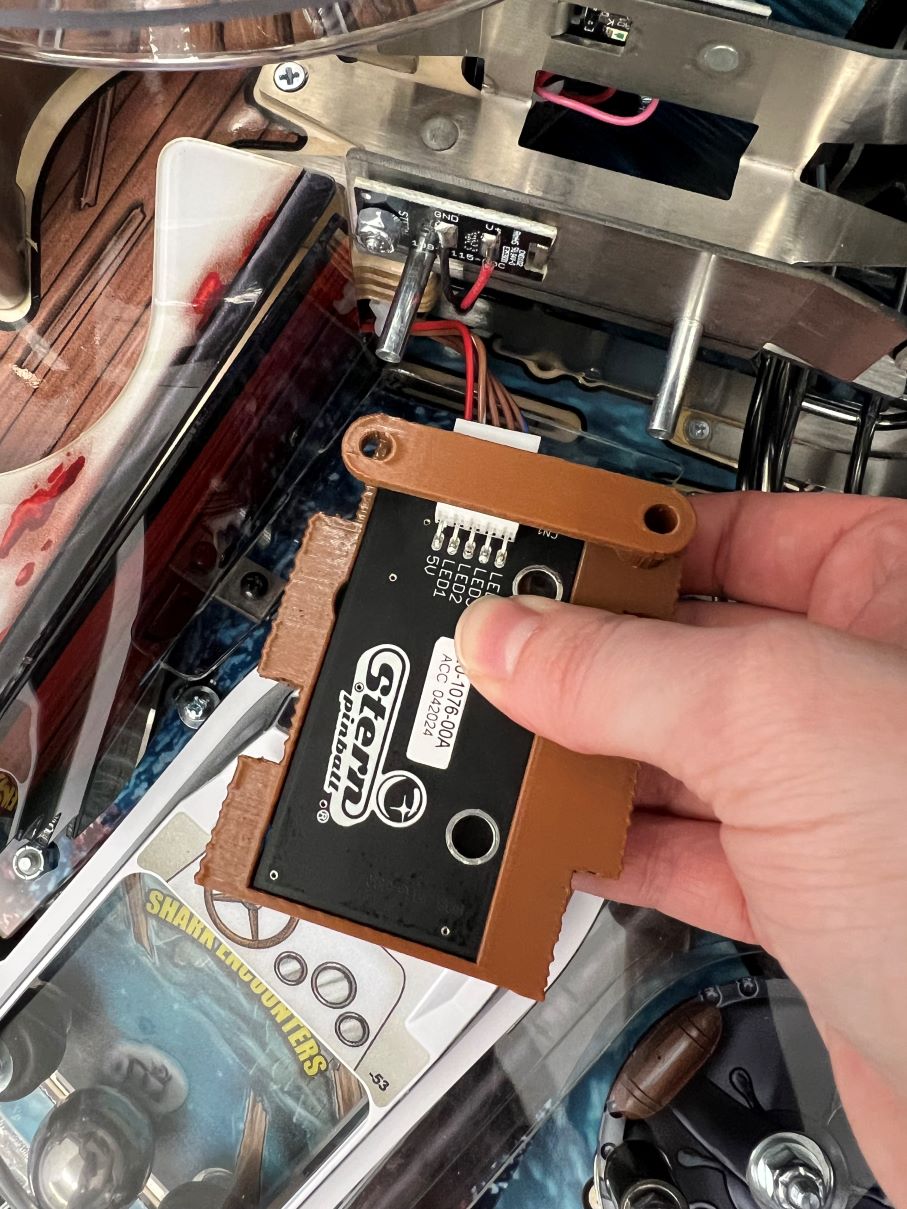

8. Remove tape backing and place LED board into cut out. Hold for 30 seconds to ensure adhesion.

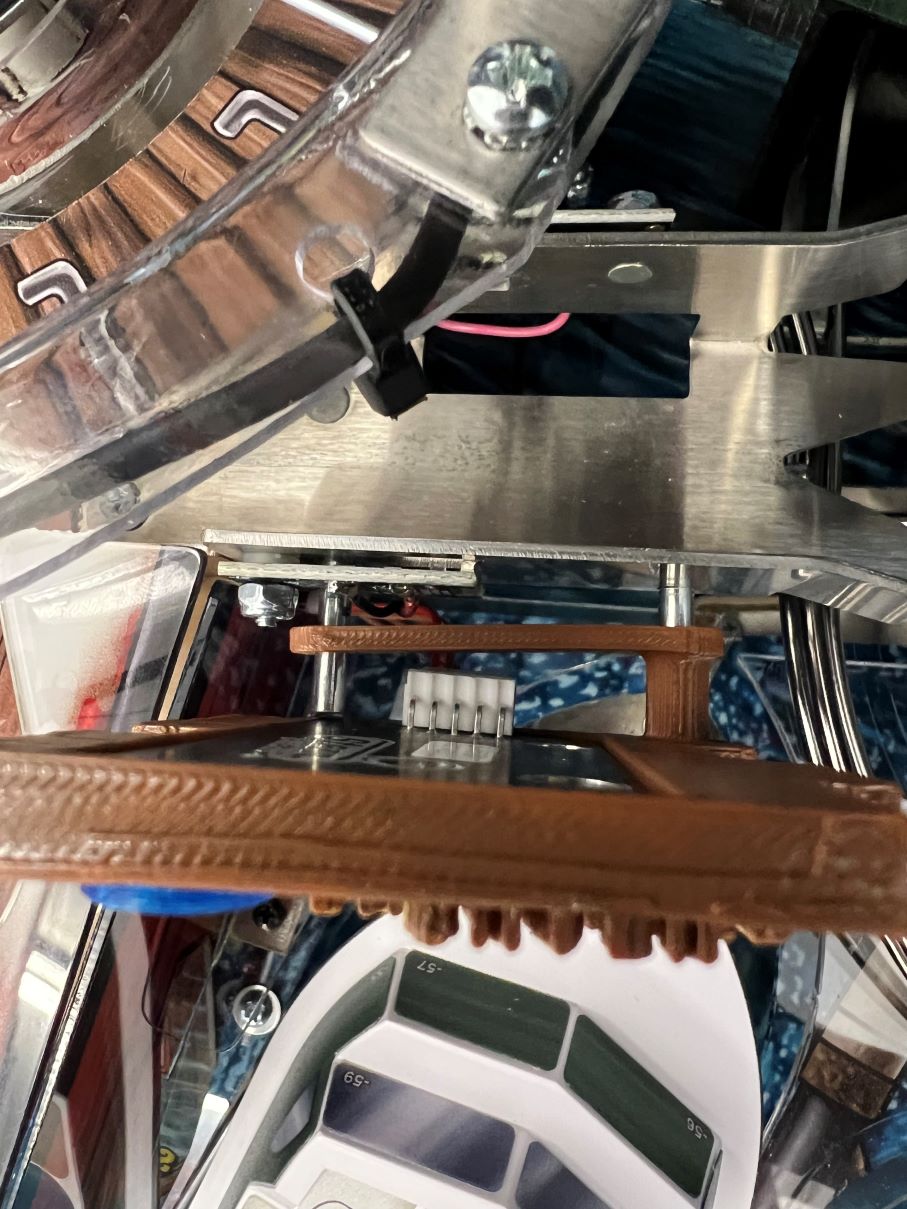

9. Slide mod onto pegs.

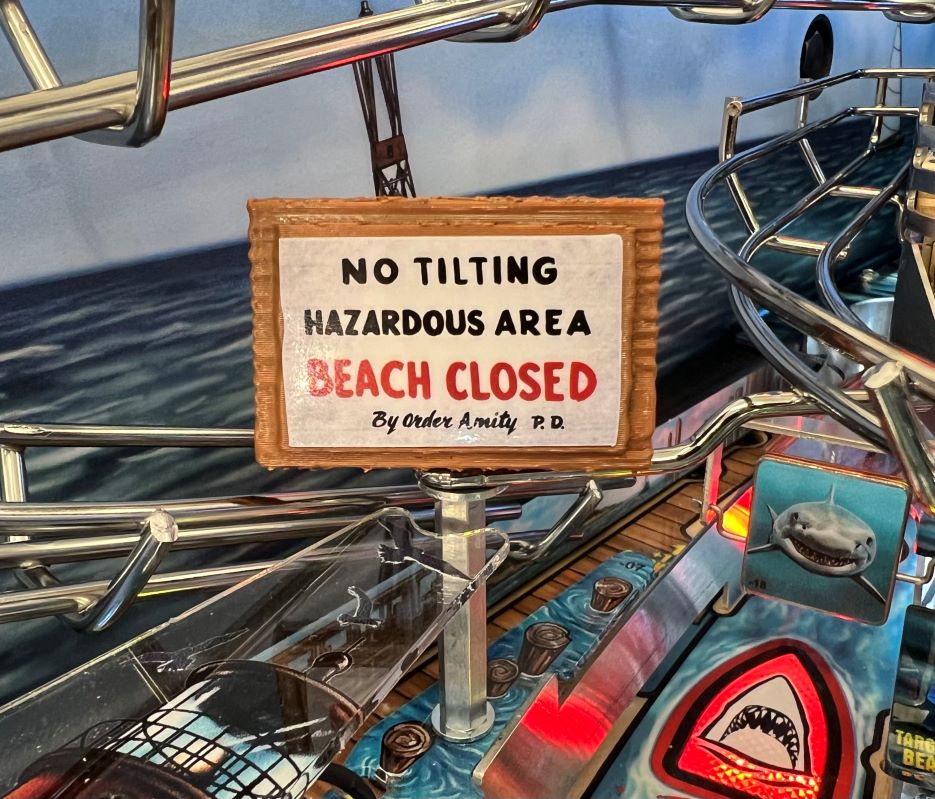

10. Unscrew screw from left post. Place 'No Tilting' sign on post and re-screw.

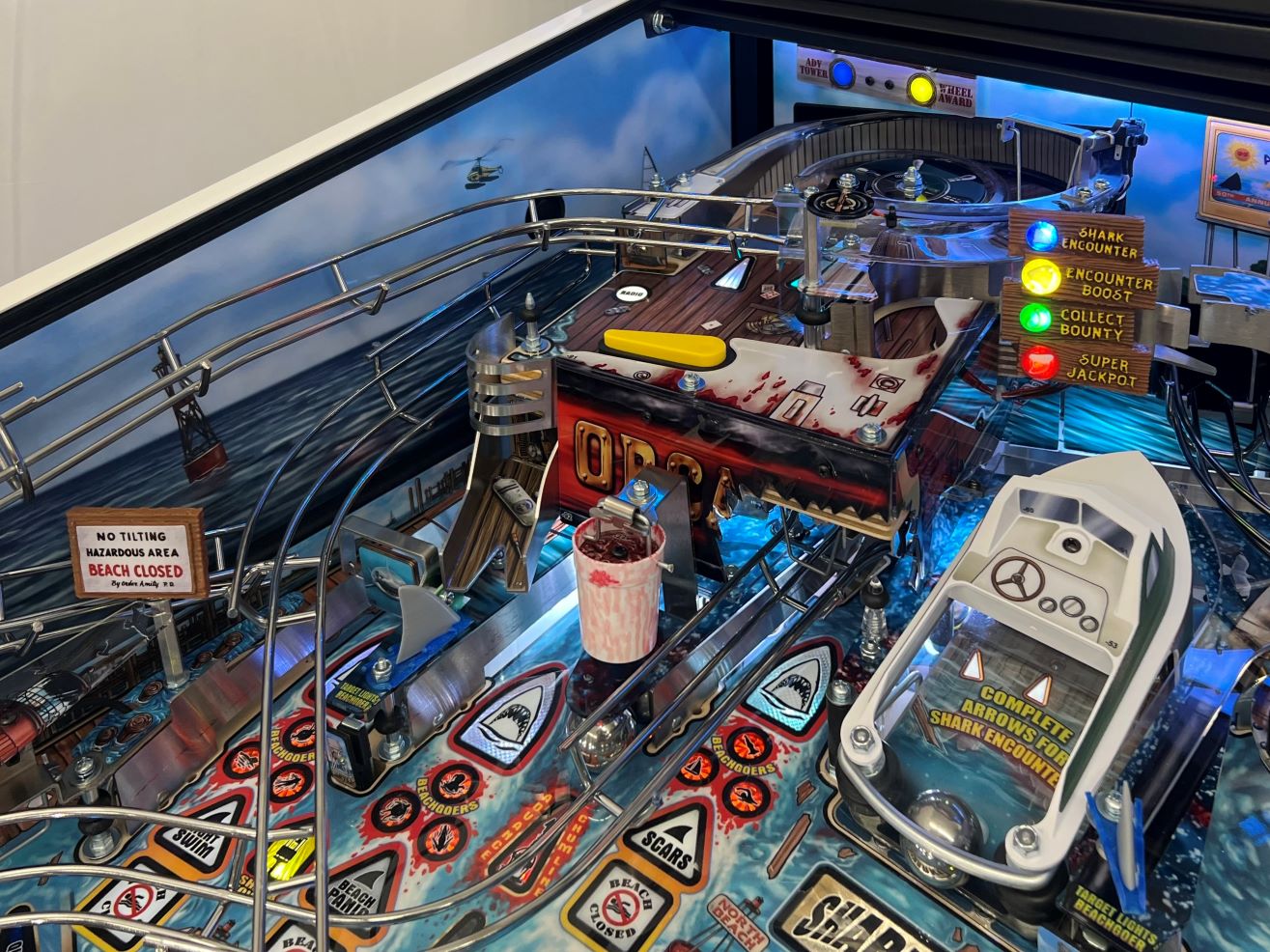

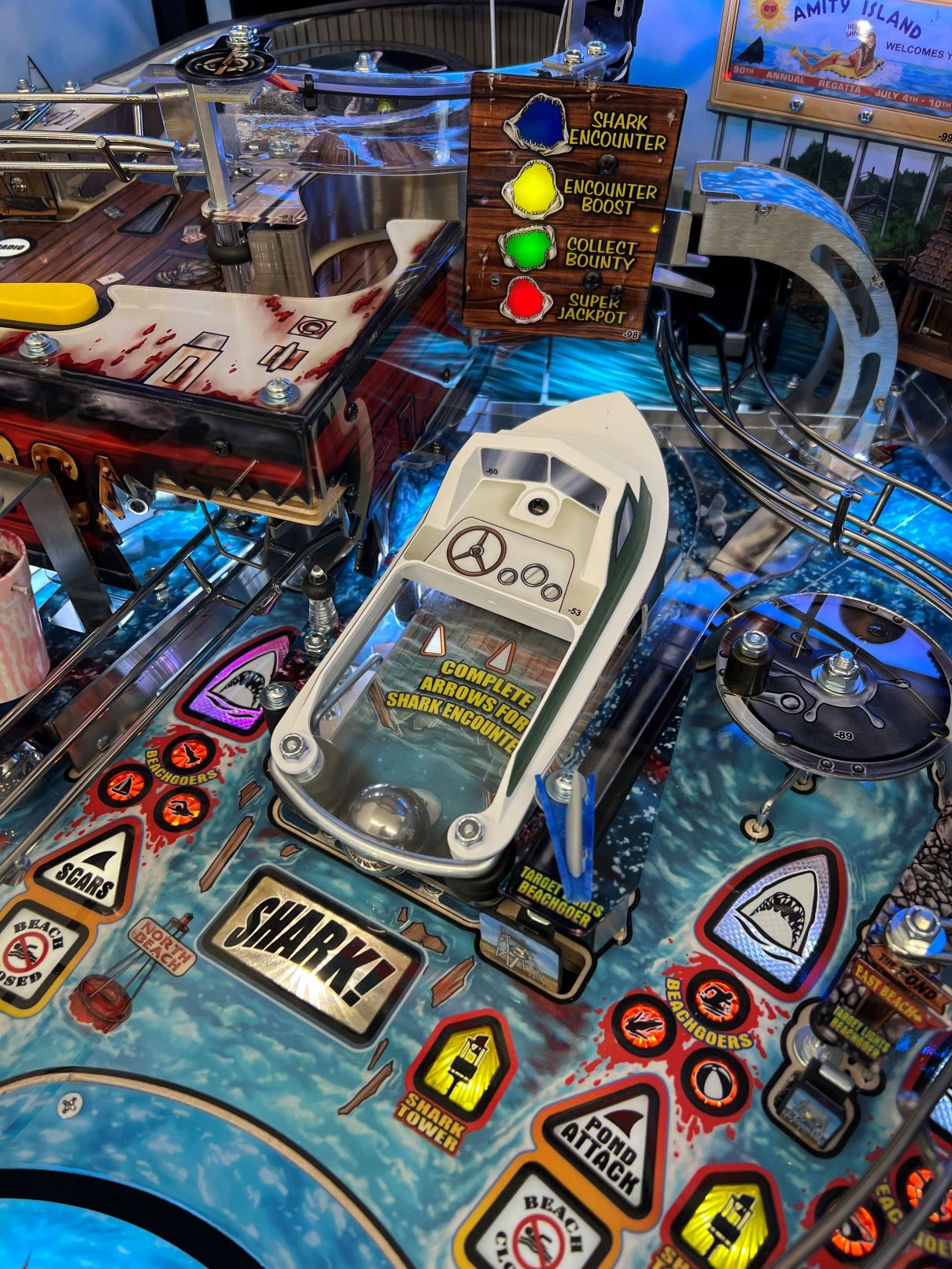

11. Finished!
