JAWS - Target Illumination - PRO

These instructions are applicable to the following products:

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off the game and remove the playfield glass. Raise playfield.

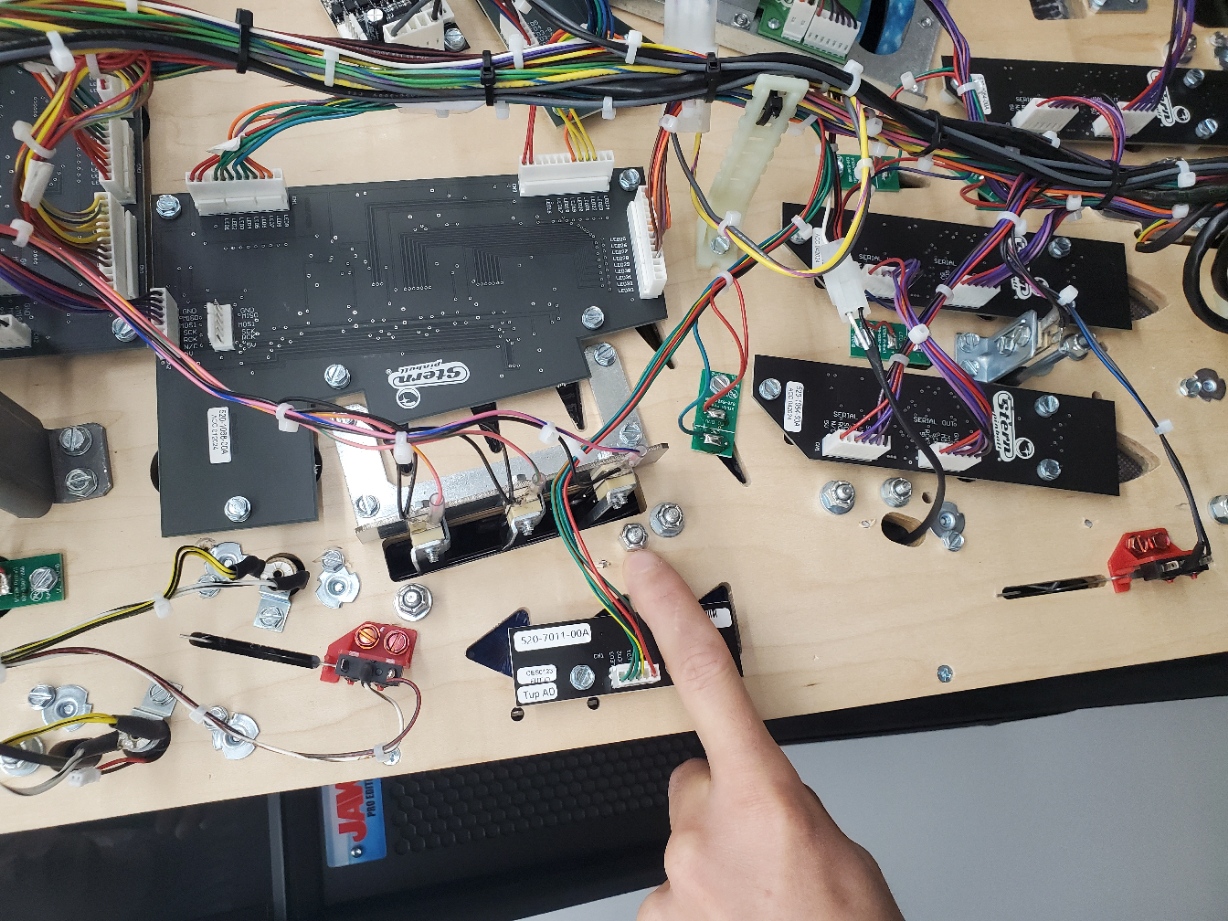

2. Identify a nut near the static target bank. (as shown below)

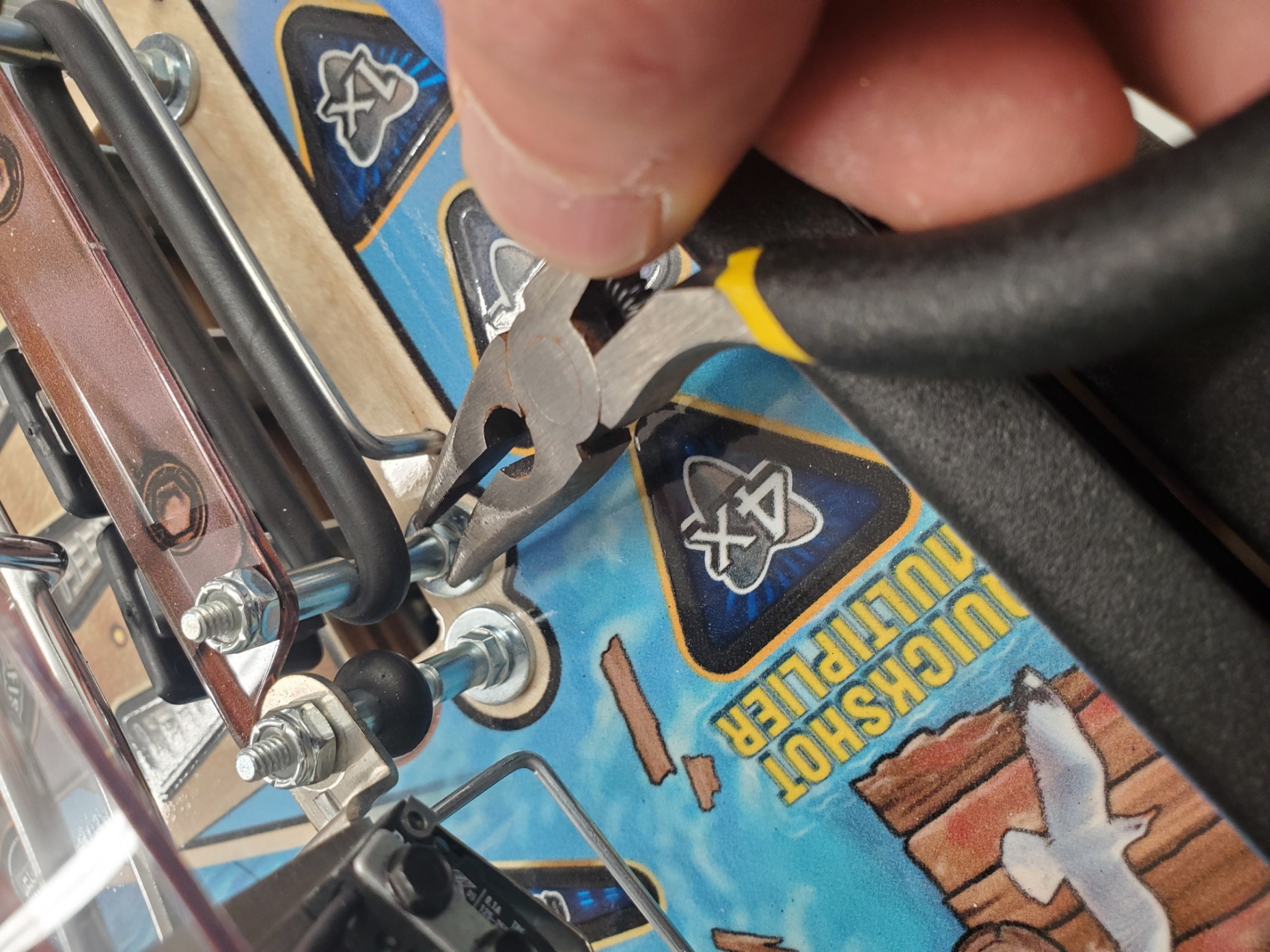

3. Identify the post on the playfield to keep the bolt from rotating.

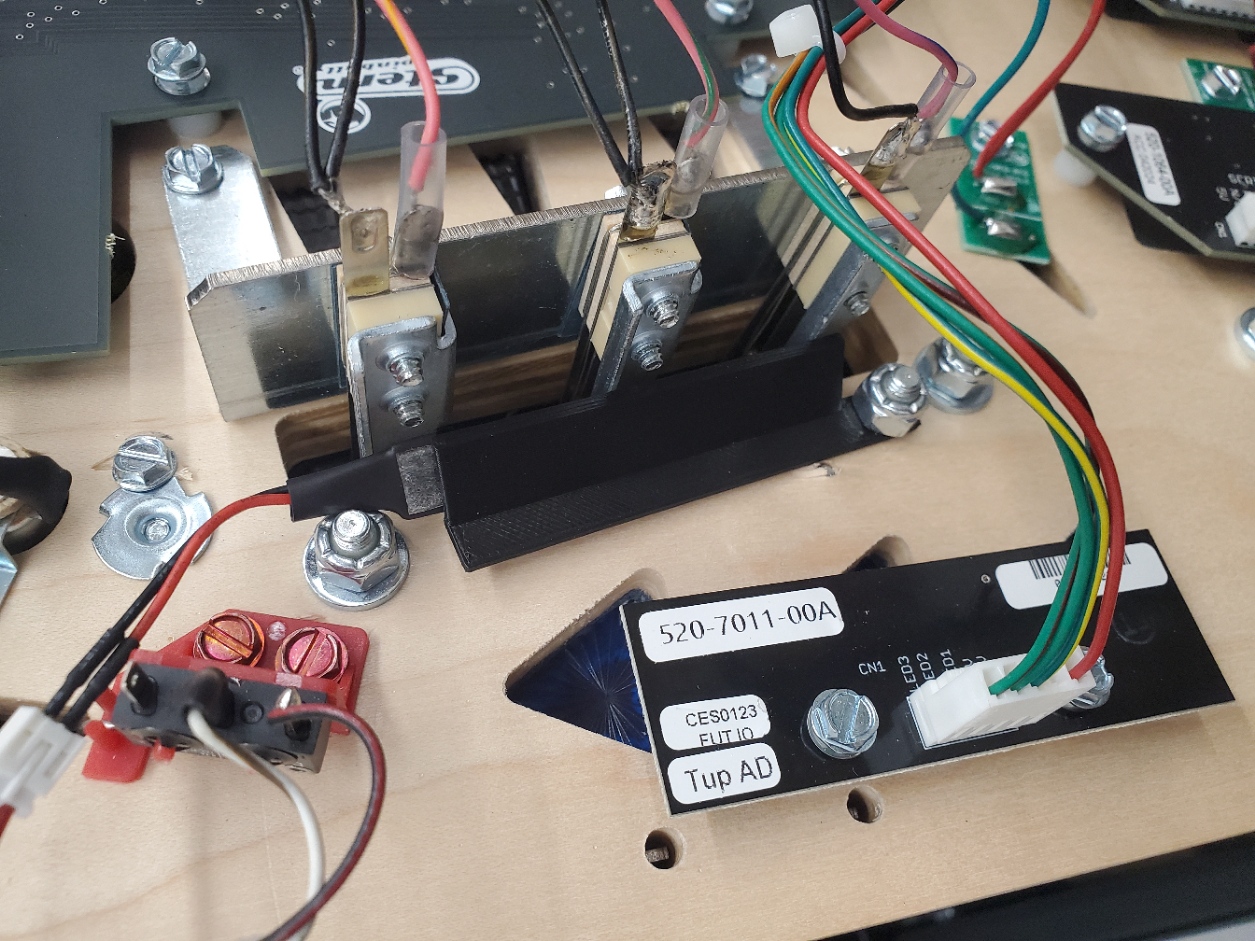

4. Remove the nut under the playfield and mount the LED bracket. Replace nut.

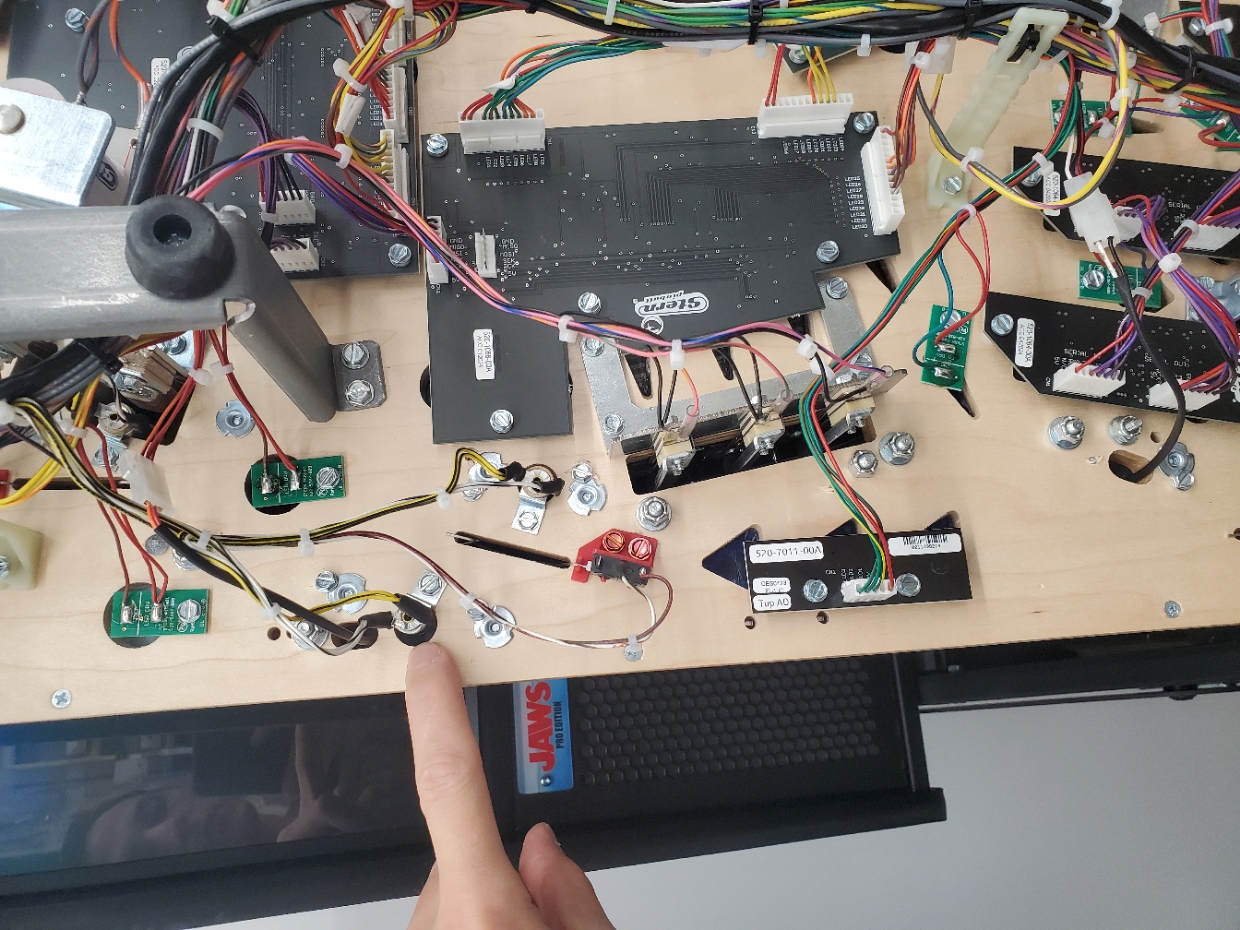

5. Identify Global Illumination bulb. (as shown below)

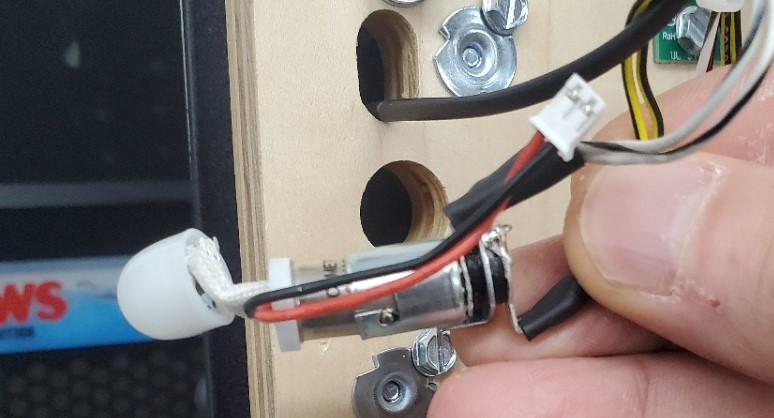

6. Using a screw driver, remove the screw holding the bulb in. Replace with the provided bulb. Be sure the connection is facing under the playfield.

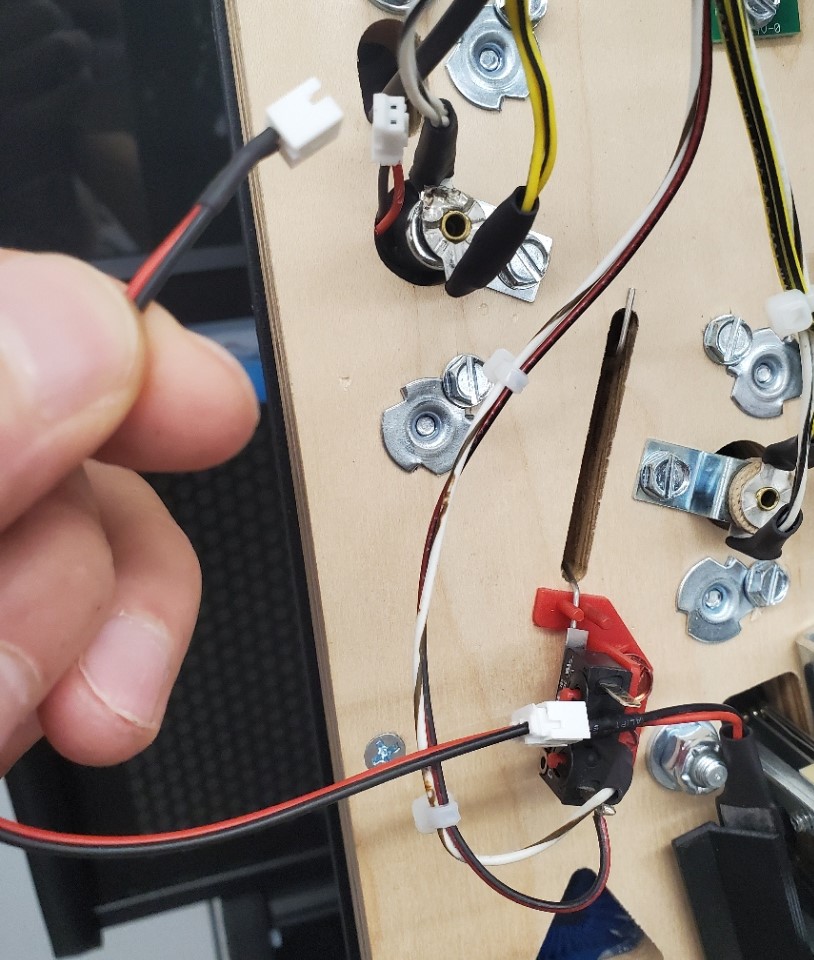

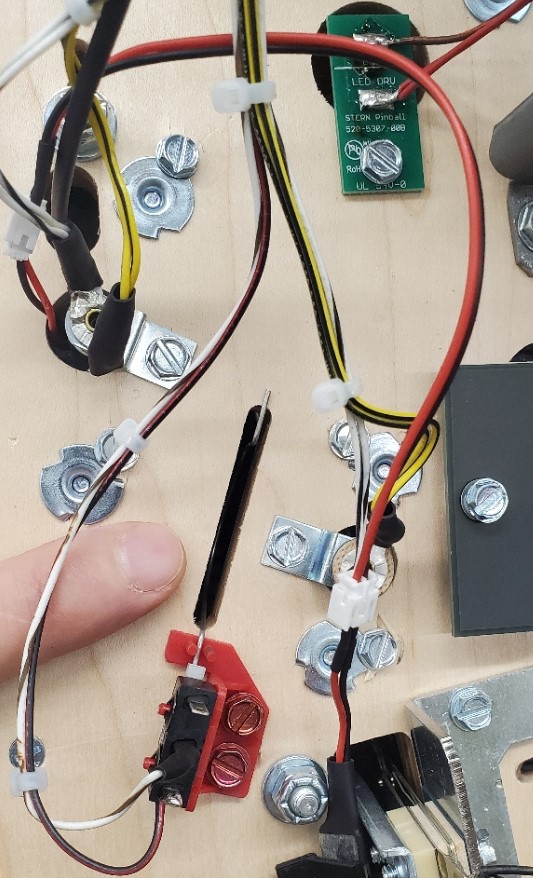

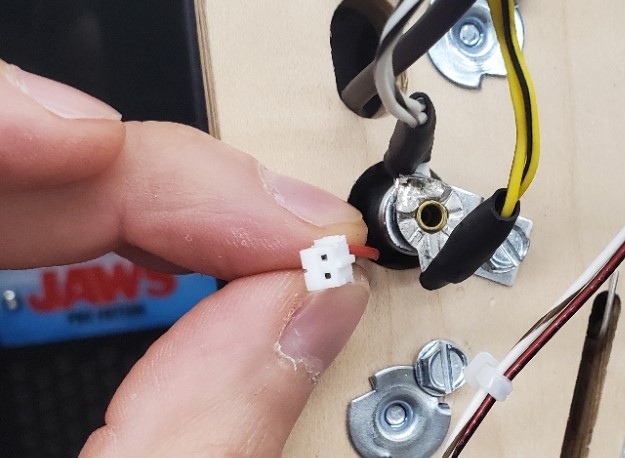

7. Using the 6 inch matrix wire, connect the bulb with the LED and bracket. Be sure the matrix wire does not interfere with the rollover switch.
