Jaws - Quint's Shack PREM/LE

These instructions are applicable to the following products:

• MM-JAWS-SHACK-PREMLE

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game. Remove glass from playfield.
2. We recommend using our Cabinet Protectors to protect your game.

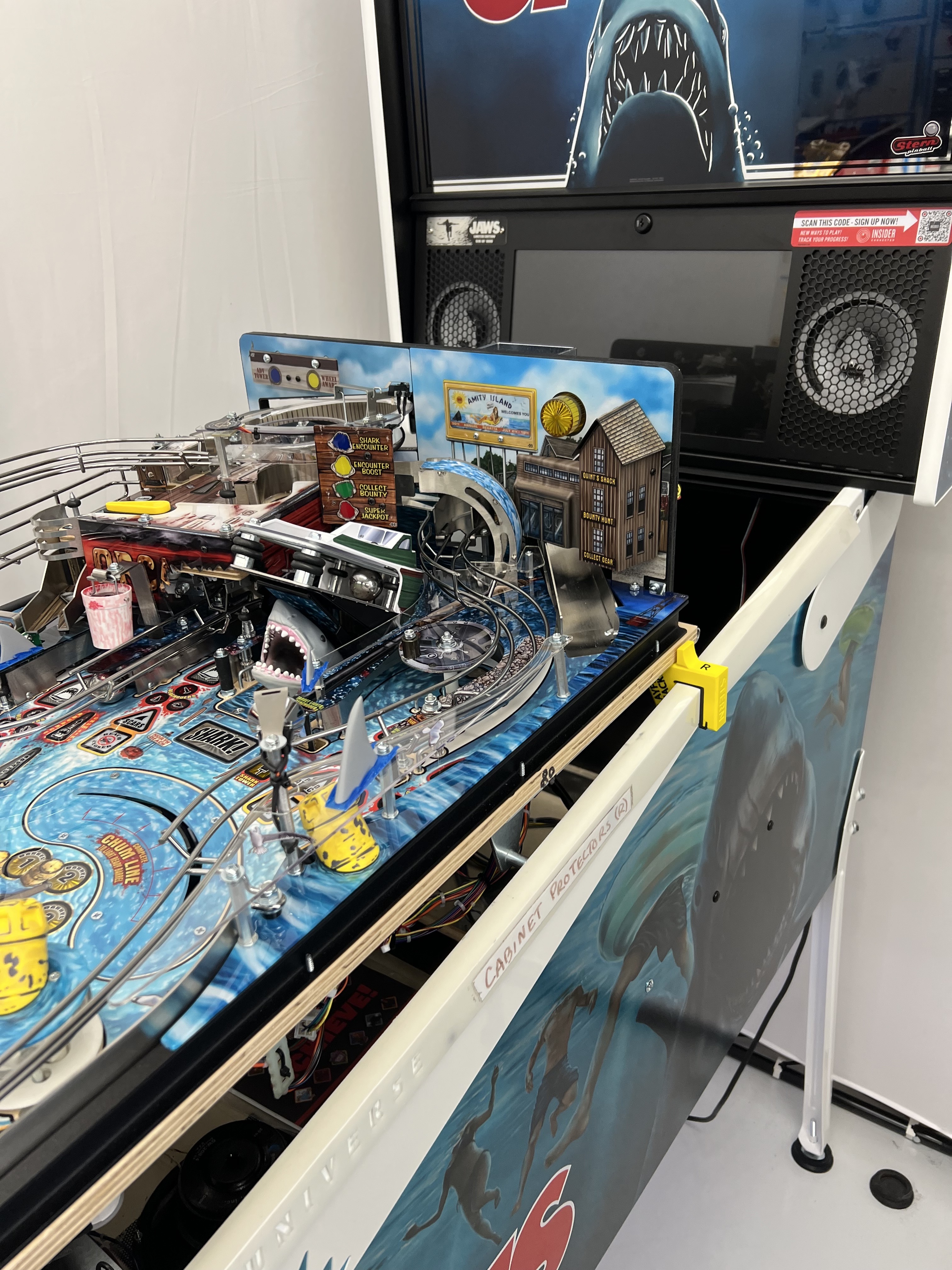

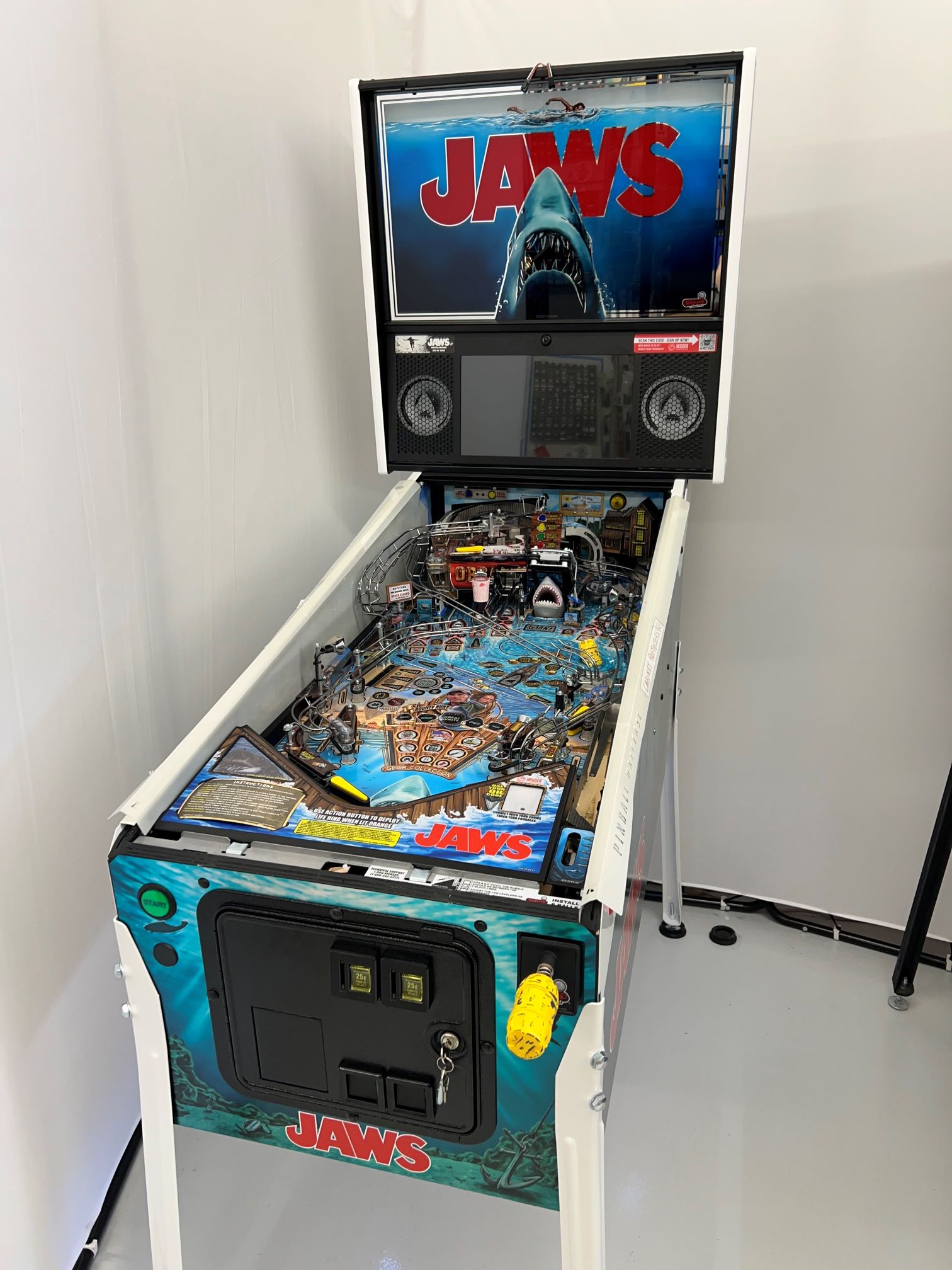

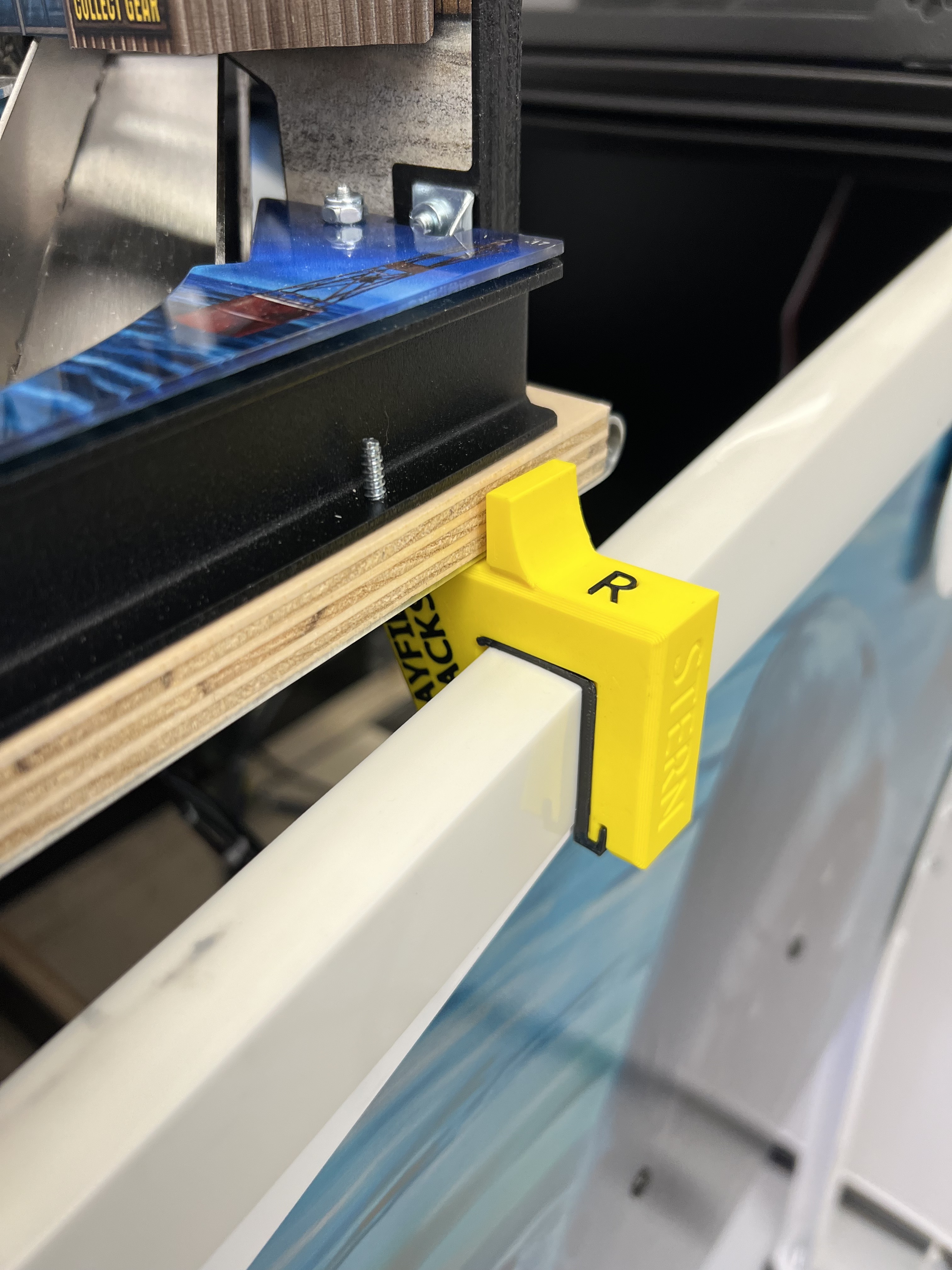

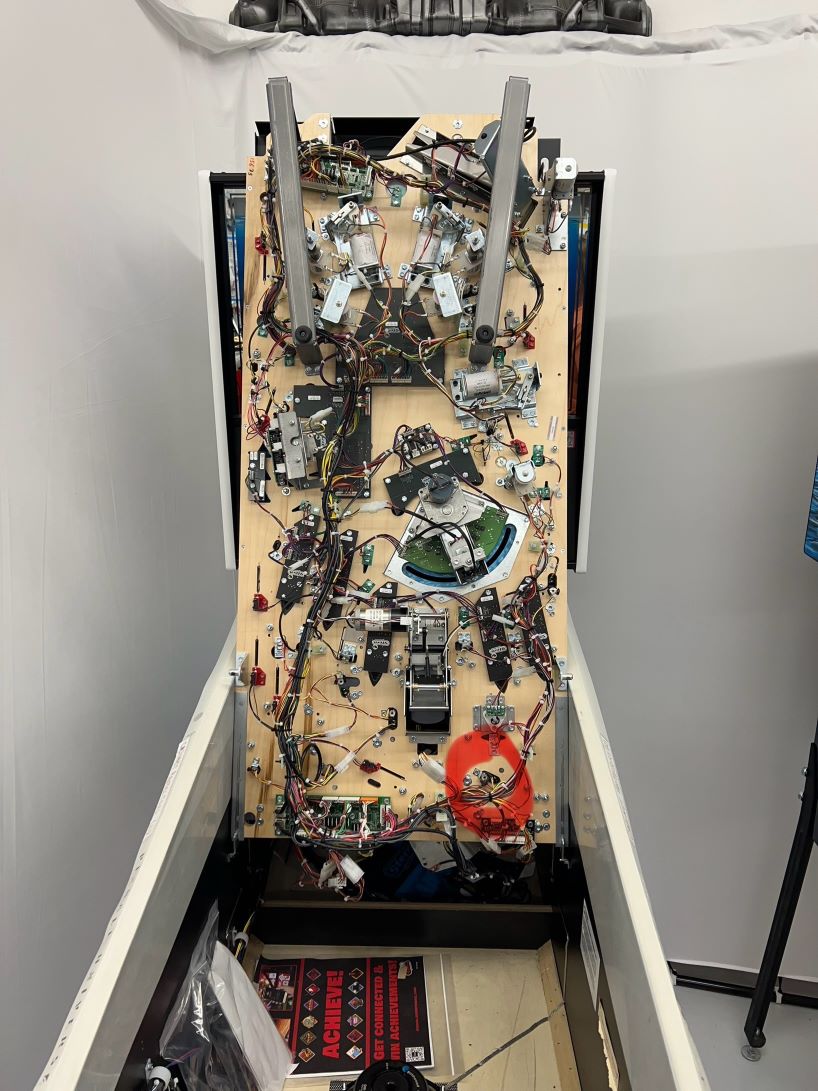

3. Pull playfield onto service rails. Prop up playfield using Performance Pinball's Playfield Jacks.

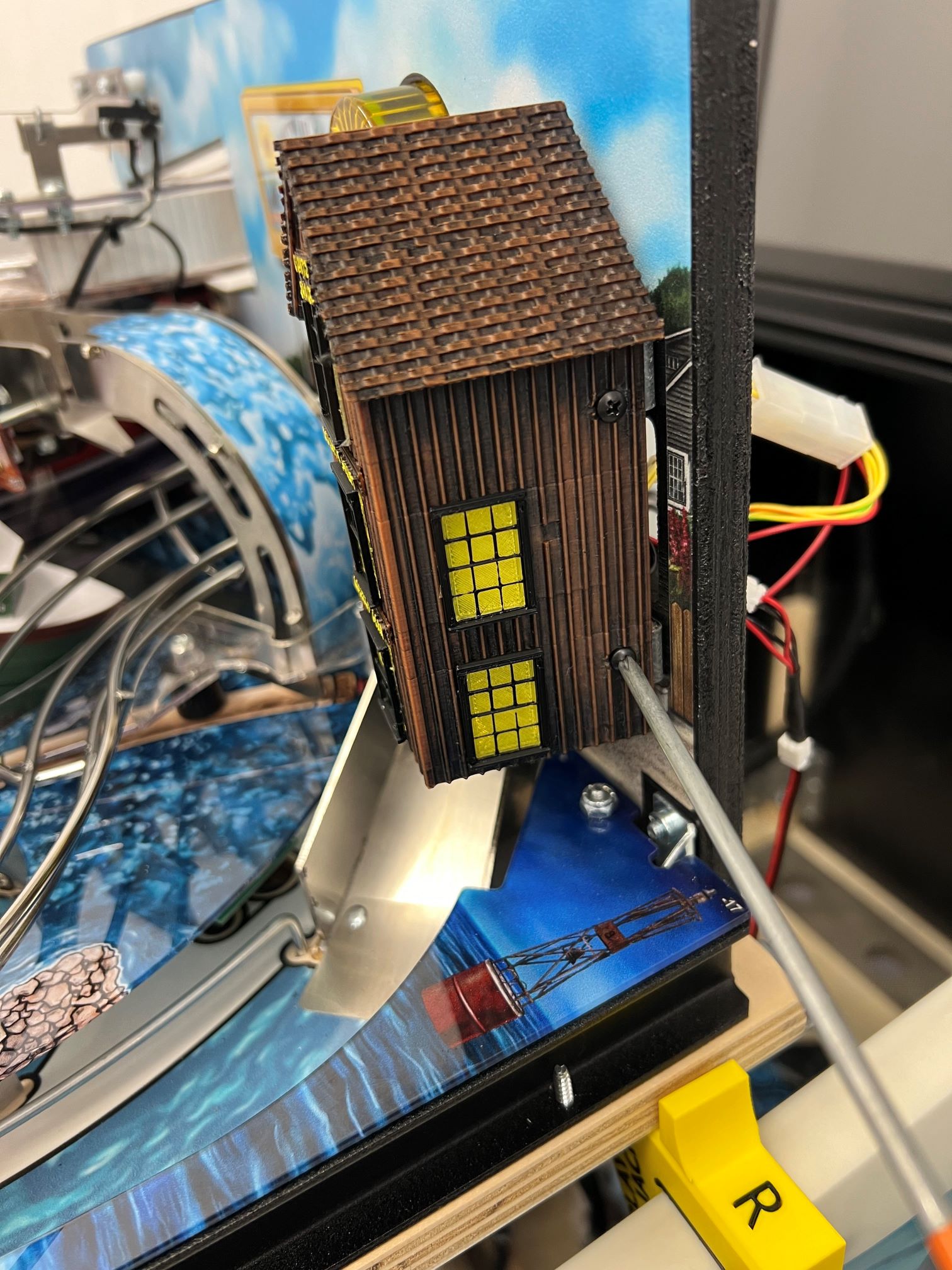

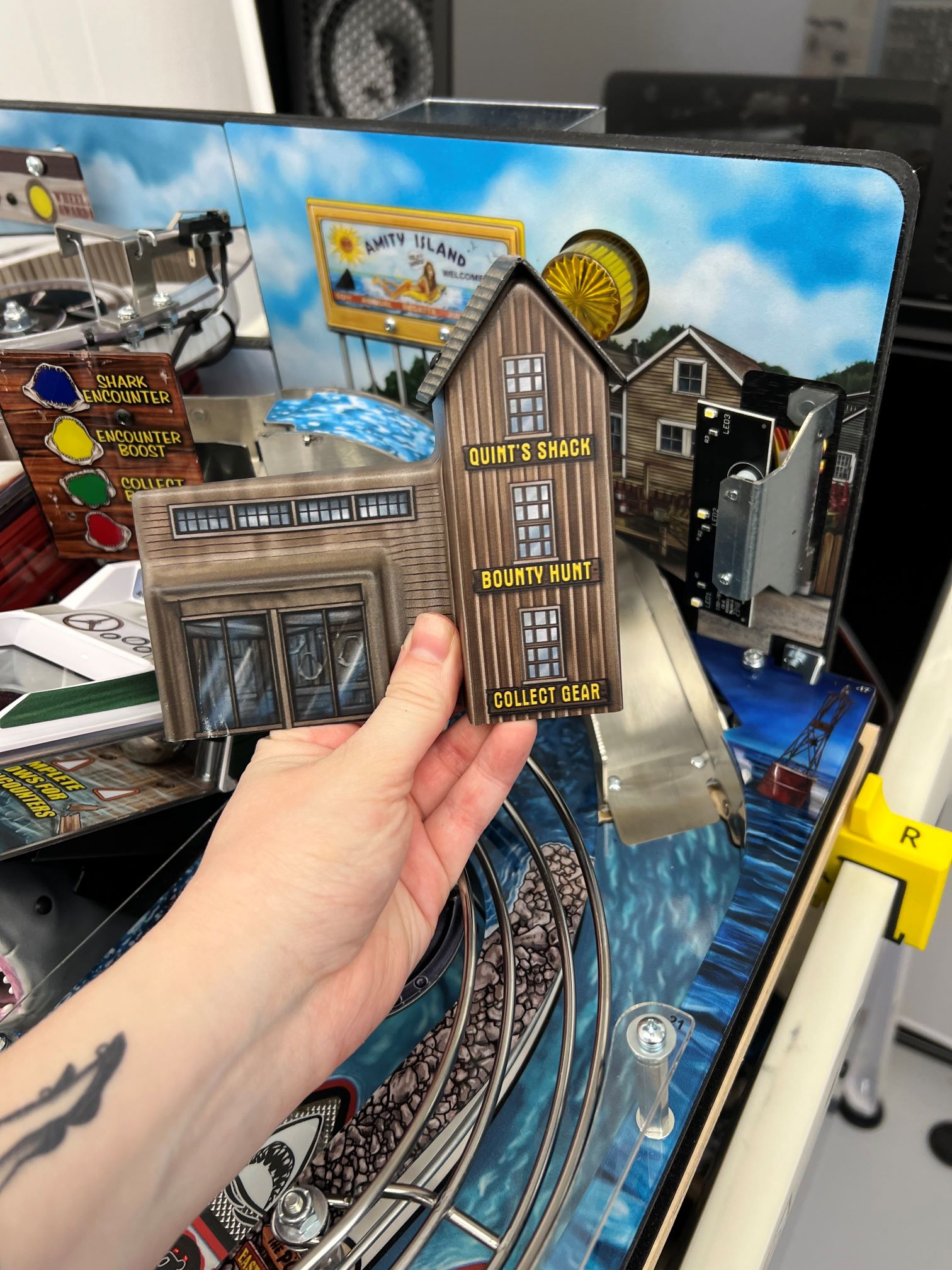

4. Unscrew screws on right side of factory building. Keep in a safe place for step #6. Remove factory building and keep in a safe place for future reinstallation.

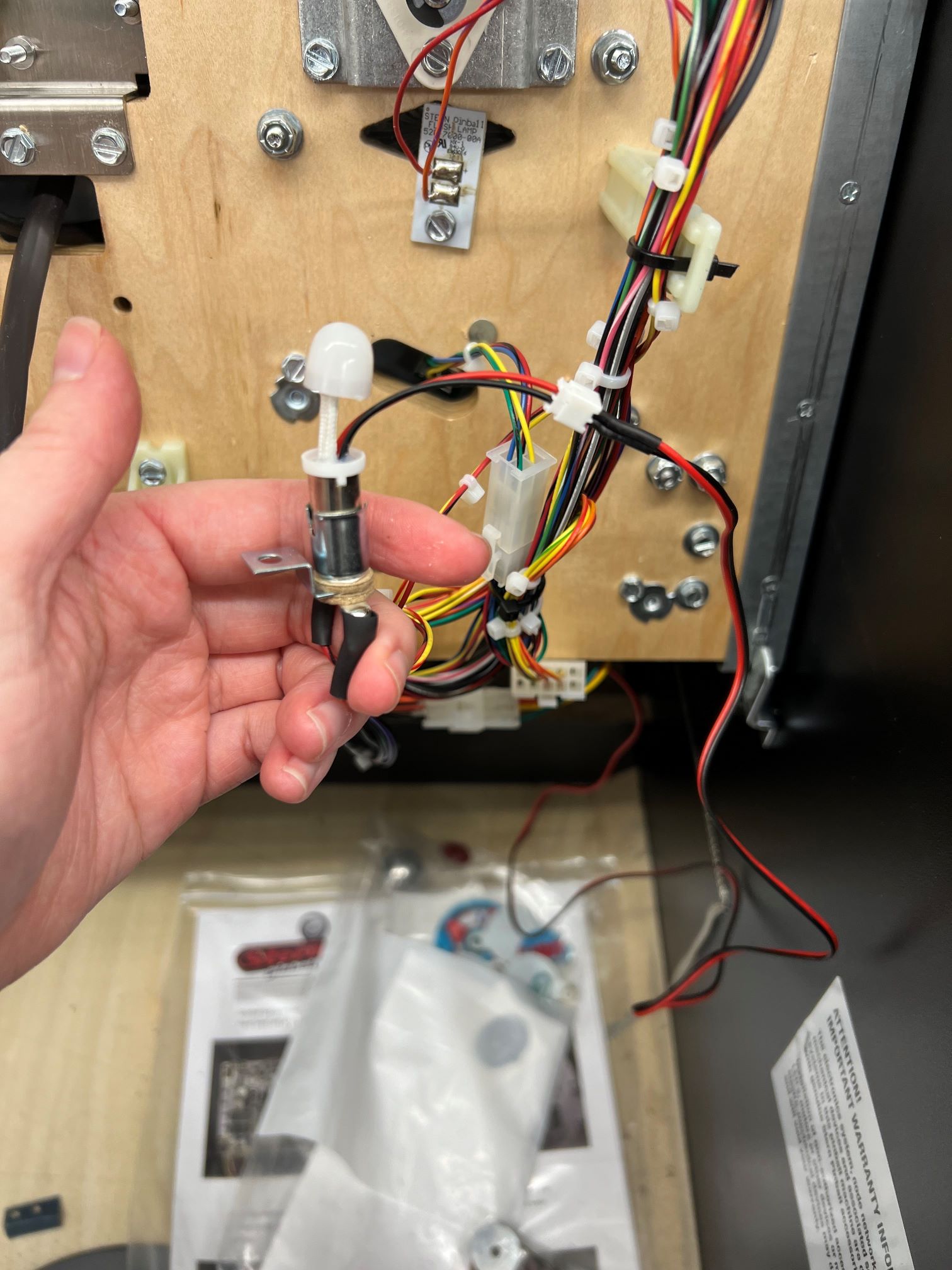

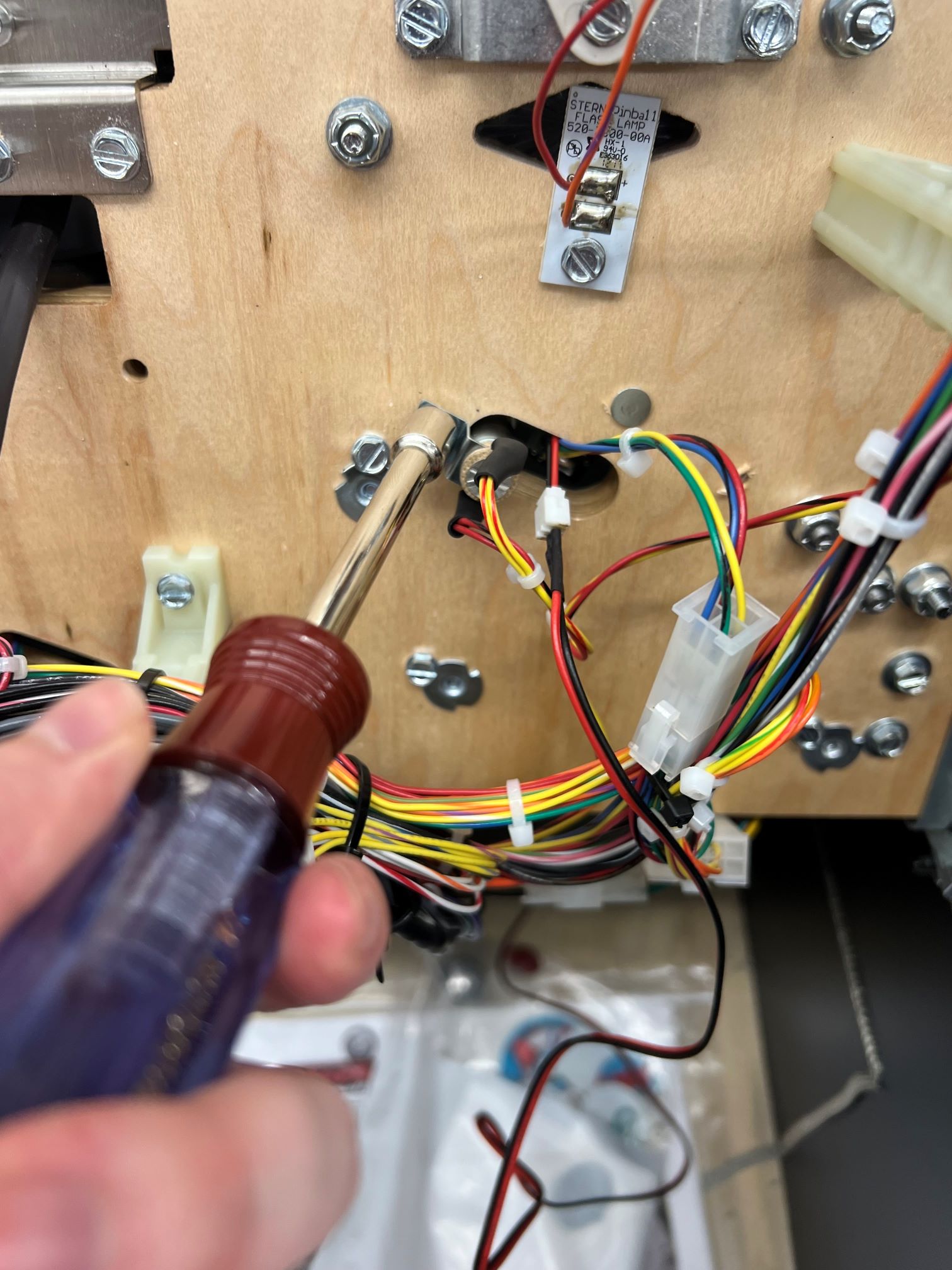

5. Feed mod wire through cutout on backboard. Pull entire length of wire through.

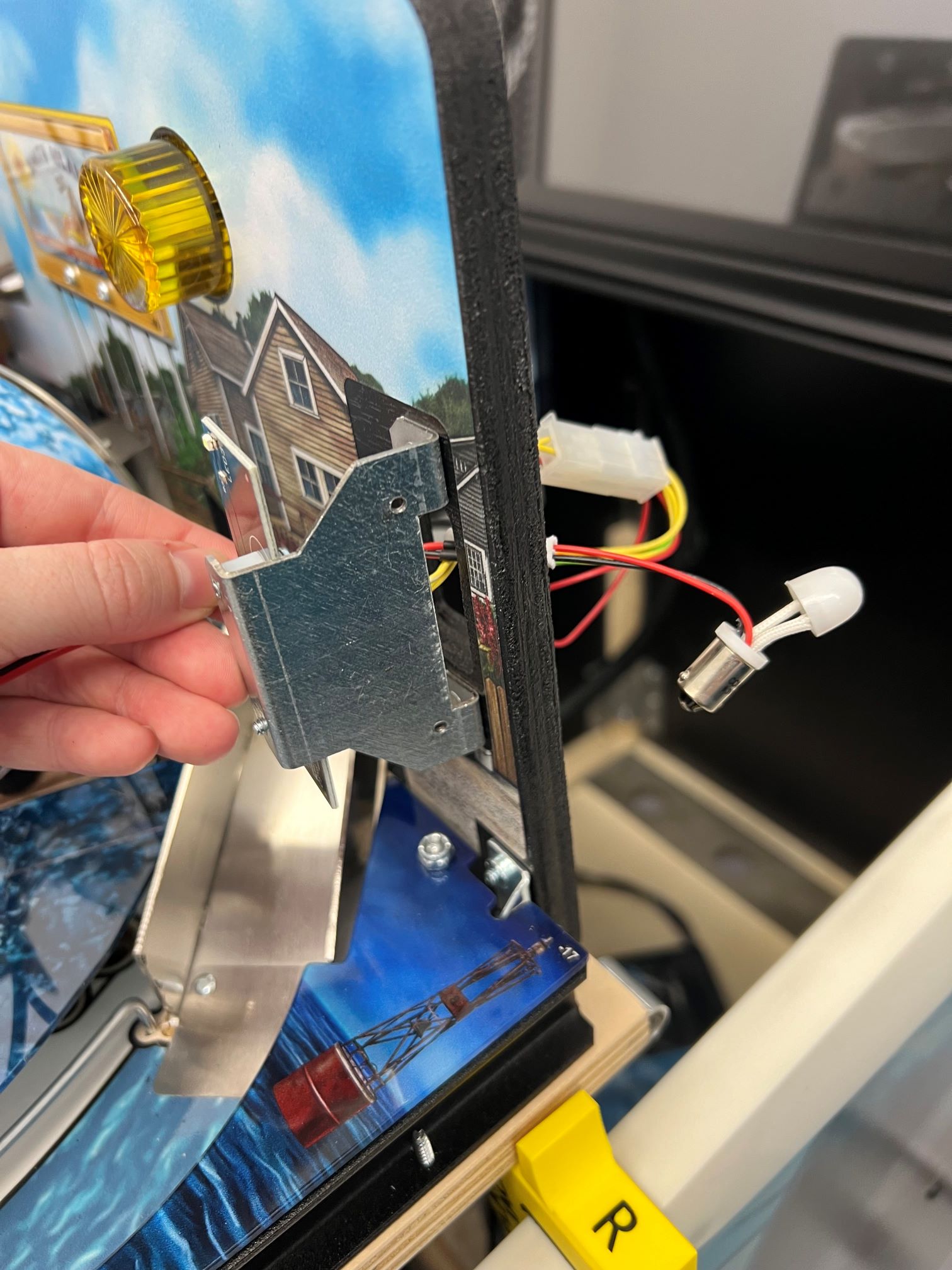

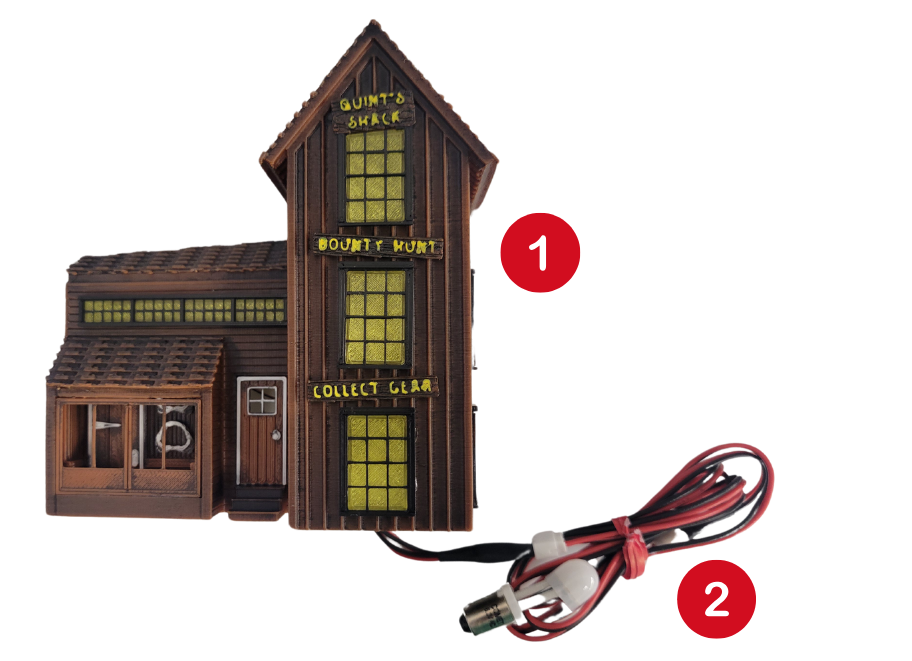

6. Using screws from step #4, screw Mod onto bracket.
7. Lift up playfield and locate circled GI Bulb.
8. Unscrew socket from playfield and remove factory bulb. Keep in a safe place for future reinstallation.

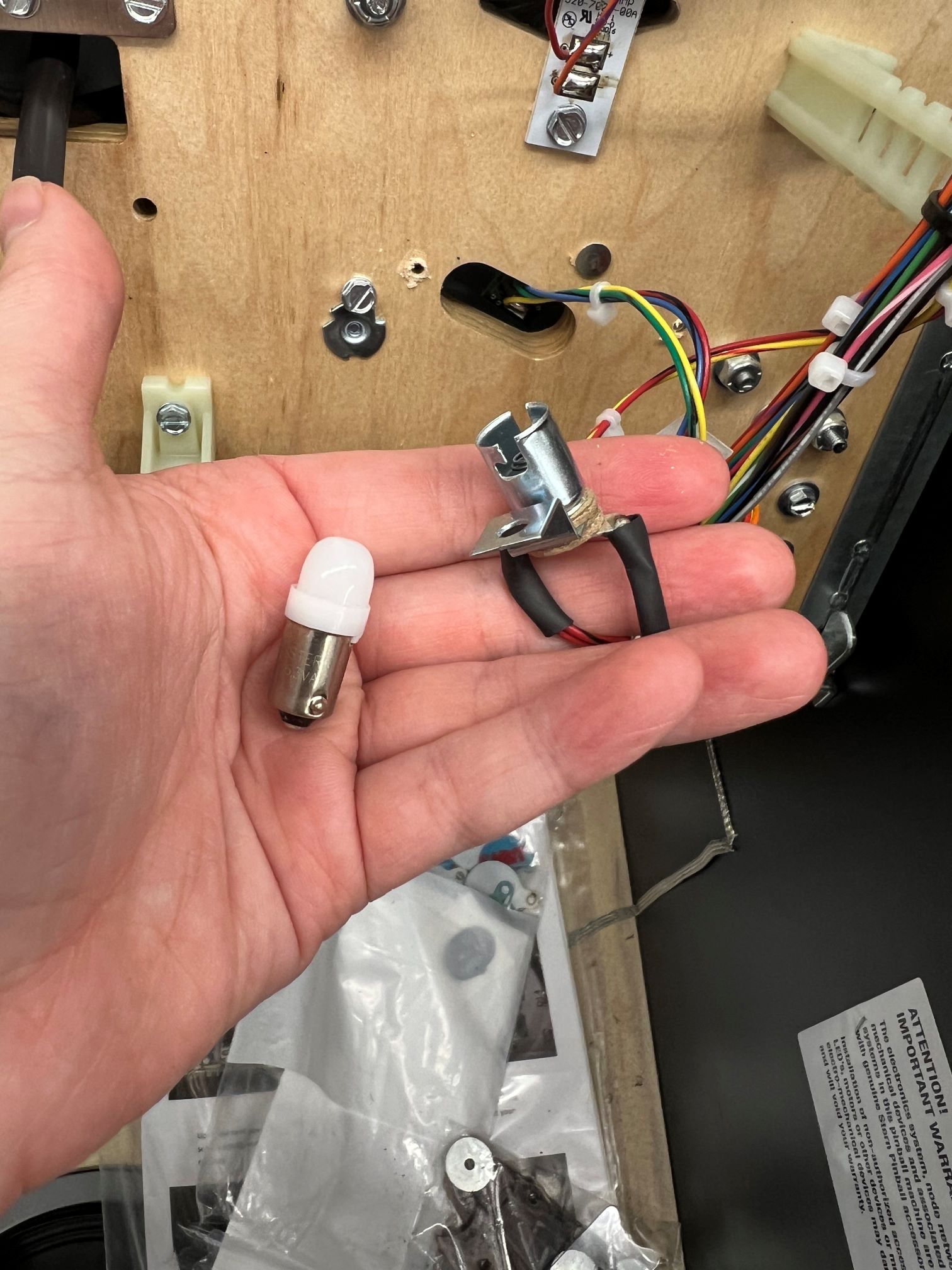

9. Place Mod bulb into socket and screw back into playfield.
10. Lower playfield. Finished!
