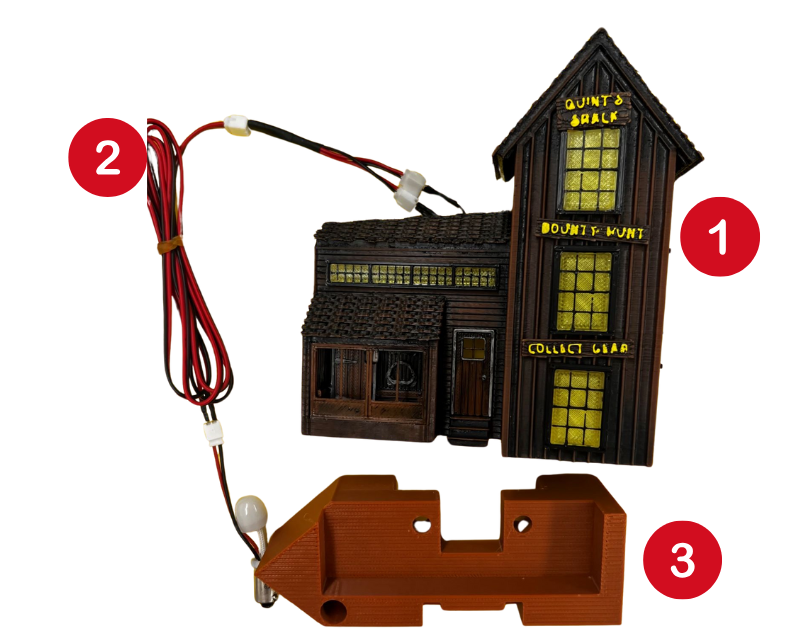

Jaws - Quint's Shack PRO

These instructions are applicable to the following products:

• MM-JAWS-SHACK-PRO

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game. Remove glass from playfield.
2. Pull playfield onto service rails. We recommend using our Cabinet Protectors to protect your game.
3. Unplug factory shack from game.
4. Unscrew factory shack from backboard. Put one (1) screw aside for step #7.
5. Unscrew LED board from factory shack. Put screws and nuts aside for step #4. Keep factory pieces in a safe space for future reinstallation.
6. Remove spacers from board. Keep in safe place.
7. Place LED board into cut out on bracket. Screw into place using screws and nuts from step #5.
8. (If applicable) Unplug Matrix wire from Shack. Feed Matrix wire through hole on bracket as picture.
9. Feed mod wiring through cutout on backboard.
10. Feed LED assembly back through cutout. Align bracket hole with top hole on backboard. Screw into place using screw from step #4. Please remember to plug the wiring harness back into it's original position.
11. Plug matrix into splitter on Shack.
12. Remove backing from sookwang on interior of Mod building.
13. Slide Mod building onto bracket. Hold for 30 seconds to ensure adhesion.
14. Lift up playfield and locate circled GI Bulb.
15. Unscrew socket from playfield and remove factory bulb. Keep in a safe place for future reinstallation.
16. Place Mod bulb into socket and screw back into playfield.
17. Lower playfield. Finished!
