Integrating Mezel Mods Cabinet Lighting with Existing Rectangular Speaker Light Kits

If you have previously installed digital speaker lights in your game (addressable LEDs) and are adding our Mezel Mods Pinball Cabinet Lighting Kit, please complete the following preparation steps prior to starting the cabinet lighting installation.

Our cabinet lighting system replaces both the power adapter and controller from your existing system.

Our integration kit includes the necessary wire extension and connectors to attach your existing lighting kit with our cabinet lighting kit. The parts include Our Integration Kit includes a JST wire extension that is attached to the end of the Speaker Light splitter (if needed to reach our PixlWav hub); and a Stub to Hub connector to attach the speaker light wiring to the PixlWav hub.

This Hub is installed in the first step of the Cabinet Lighting Installation.

Prep Instructions:

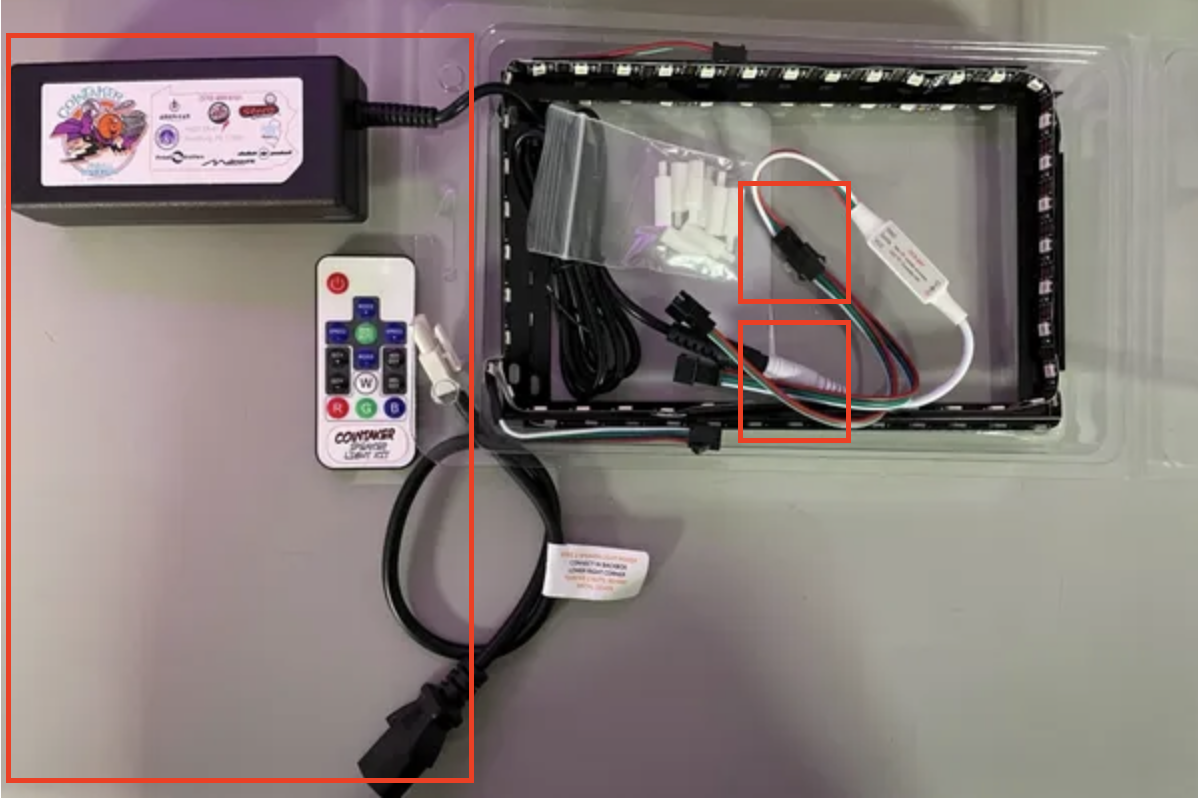

1. Remove the power supply and LED controller from the Speaker Light Kit build. These parts are not used and can be set aside. The parts identified in the photo below are a sample of what your parts might look like.

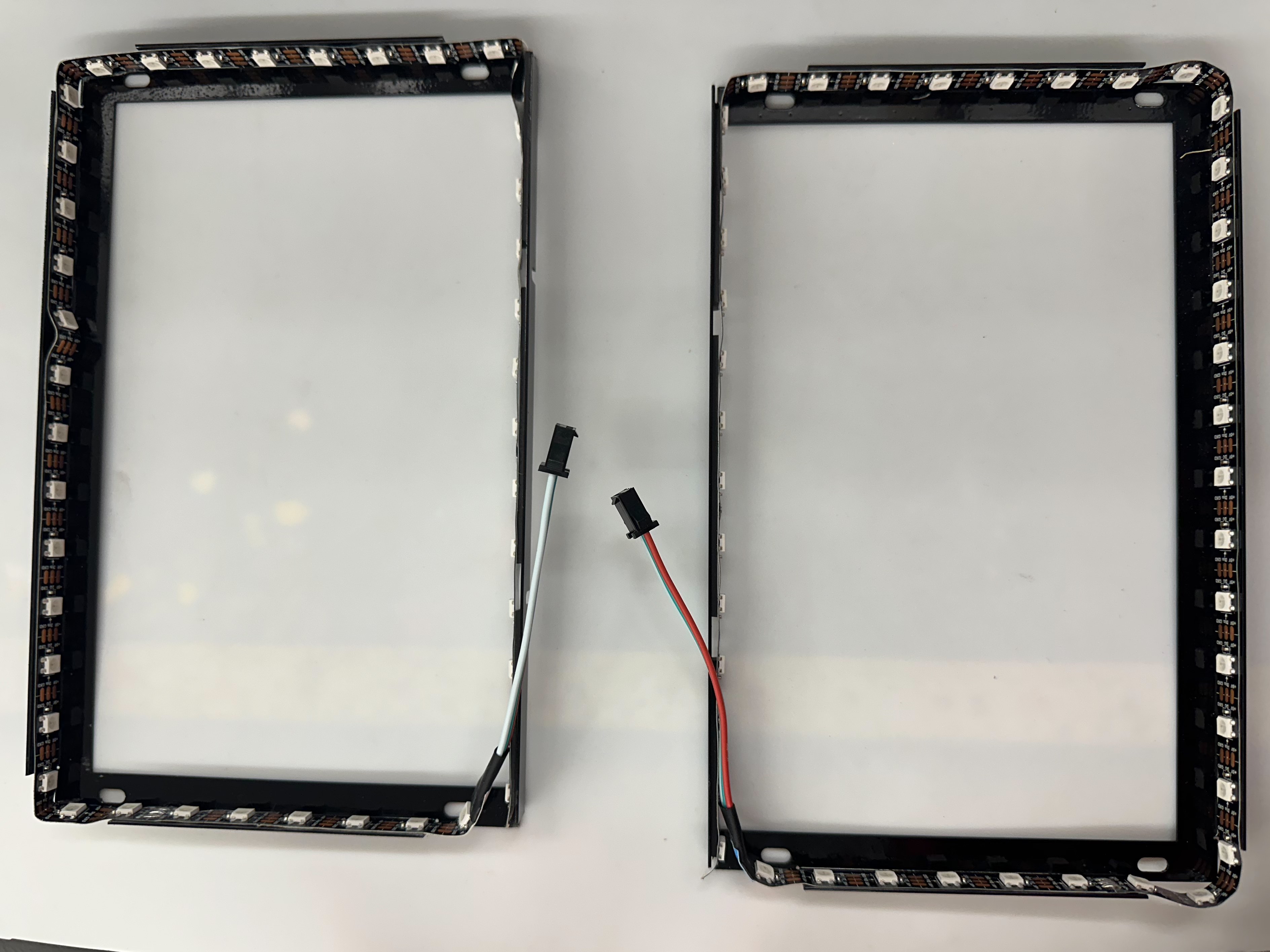

2. After removal of these parts, you'll be left with the speaker light frames installed.

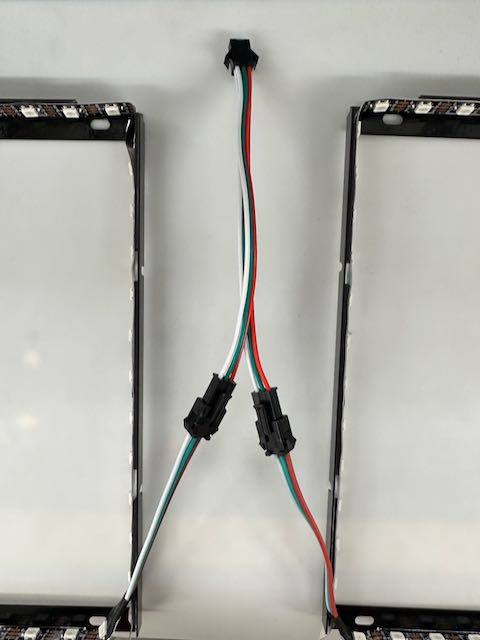

3. Attach the splitter provided in our Integration parts (BLACK) to connect the two units together.

4. Proceed to the first step in our Dynamic Cabinet Lighting Installation
