LumiPin EXPRESSION-STYLE for Stern SPEAKER Lighting

DYNAMIC+ AND EXPRESSION LIGHTING KITS RENAMED- this kit is the LumiPin lighting that is compatible with Stern's Expression Speaker Lights

These instructions are applicable to the following products:

• MM-EXPR-SPEAKER-KIT

Article Sections

What's In the Box (parts by product type)

Install PixlWav Power & Control

Install Backbox Lighting

Install Under Cabinet Lighting

Hub Board Connector Key

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

The PixlWav system is designed to operate at 5V DC only. Never attempt to connect a different voltage; doing so is considered misuse and will result in damage to every system component. We are not responsible for misuse.

What's in the Box: LumiPin for Stern Expression SpeakerLighting

LumiPin Expression (Speaker) Pinball Cabinet Lighting Parts -- Click to Expand

Part Color	Item
	PixlWav 100AC Power Adapter PixlWav Hub Board PixlWav JawsLE Pick Up board 6 pin rainbow jumper Ethernet cable- 2' VHB 3M tape 3M medium tape
	4x LED Channel with clear diffuser 4x Mounting bracket and screw 4 x 3" VHB tape (under cabinet alternative mounting option) 4x Addressable LED strip w/data wire jumper 2x JST Wire Extension (3.2') cable 2x JST Splitter 2x Stub Adapter (strip to hub connection) 4x wire zip tie
	4x Magnetic Magnet mounts w/ adhesive 2x Wire clips

Install the PixlWav Power System (RED)

PixlWav Power & Control Installation & Video-- Click to Expand

1. Gather RED labeled parts and 11/32 nut driver.
2. Open backbox, locate Power Distribution board cover and remove.
3. Locate Dollar Bill validator connection (note your game may include an orange 'dummy' plug; remove this plug). Attach the PixlWav Power to the dollar bill validator connection.
4. Attach adhesive to the HUB board and mount on the back wall of the cabinet just under the opening into the bottom of the backbox. Press firmly to activate adhesive.
5. Feed the 5v DC power cable from the PixlWav Power to the PixlWav Hub Input jack (labeled 3 on Hub Connector Key).
6. Ensure that the Hub is set to ETH by using the switch (labeled 2 on Hub Connector Key).
7. Attach the Pickup board below the backbox Expression Lighting board in the backbox.
8. Remove the connector on CN1 from Node board 7 in the backbox. Connect the removed connector to the OUTPUT side of the Pickup board
9. Install the 6-pin Rainbow cable on CN1 on Node board 7 and on the INPUT side of the Pickup board.
10. Attach the Ethernet cable to the Pickup board and feed through to the cabinet and attach to the PixlWav Hub Input ethernet jack (labeled 5 on the Hub Connector Key).

Install Backbox Lighting (WHITE/PURPLE)

LED Channel Preparation & Backbox Channel Installation Steps & Video-- Click to Expand

1. Gather WHITE and PURPLE labeled parts.
2. Mount LED strip in channel; place diffuser on top of channel, snapping into place. Add end cap to channel end.

Backbox Cabinet Lighting Installation Steps & Video

NOTE: MOUNTING PLACEMENT IS CRITICAL TO ENSURE ATTACHMENT TO METAL BACKBOX. CHANNEL EXTENDS ON TO WOOD CABINET AND IMPROPER MAGNET PLACEMENT WILL RENDER MOUNT USELESS.

PLEASE VIEW VIDEO AND READ INSTRUCTIONS ENTIRELY PRIOR TO INSTALLATION OF MAGNET MOUNTS.

1. Mount first channel magnet bracket at the top end of the channel (wire end).
2. Mount second magnet bracket at least 6" from end of channel to ensure attachment to metal backbox.
3. Attach splitter to ends of each channel LED; attach JST wire extension.
4. Run wire extension through top of backbox (use topper wiring hole). Utilize wire clips as desired to keep wiring on backbox in place.
5. Attach JST stub connector to end JST wire extension and plug into an open channel on first PixlWav Hub (mounted inside backbox) in the area labeled 7.

Install Undercabinet lighting (WHITE)

Under Cabinet Lighting Installation & Video-- Click to Expand

1. Gather remaining WHITE labeled parts along with flathead and Philips screwdrivers.
2. Repeat LED strip mounting steps for under cabinet channels outlined in previous step.
3. Utilize Flathead screwdriver to open up one of the wire covered vents in the back base of the cabinet.
4. Determine mounting preference for under the cabinet; 3M adhesive or screw mounted brackets are provided.
5. Mount LED channel brackets or adhesive at outside cabinet edge and ~10" and 33" from back cabinet edge (see video in DYNAMIC chapter for visual details).
6. Attach channel to cabinet ensuring wire ends are no greater than 6" from end of cabinet.
7. Attach splitter to ends of each channel LED; attach JST wire extension.
8. Feed JST wire extension into cabinet.
9. Attach JST stub connector to JST wire extension and plug into an open channel on second PixlWav Hub (mounted inside cabinet) in the area labeled 7.

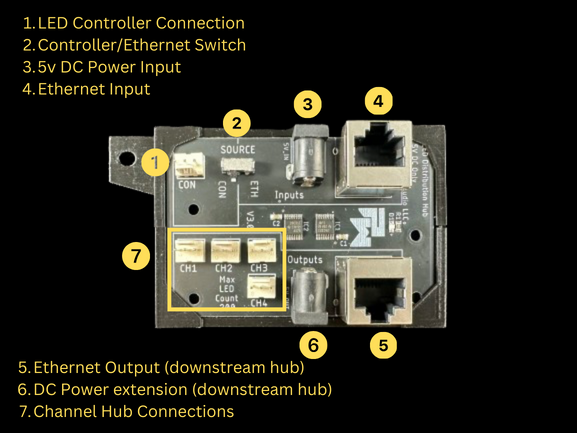

Hub Board Connector Identification Key

Please note 5 and 6 are only utilized when a second hub board is being installed.
