WICK - Red Circle Club Premium

These instructions are applicable to the following products:

MM-WICK-RCCPREM

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

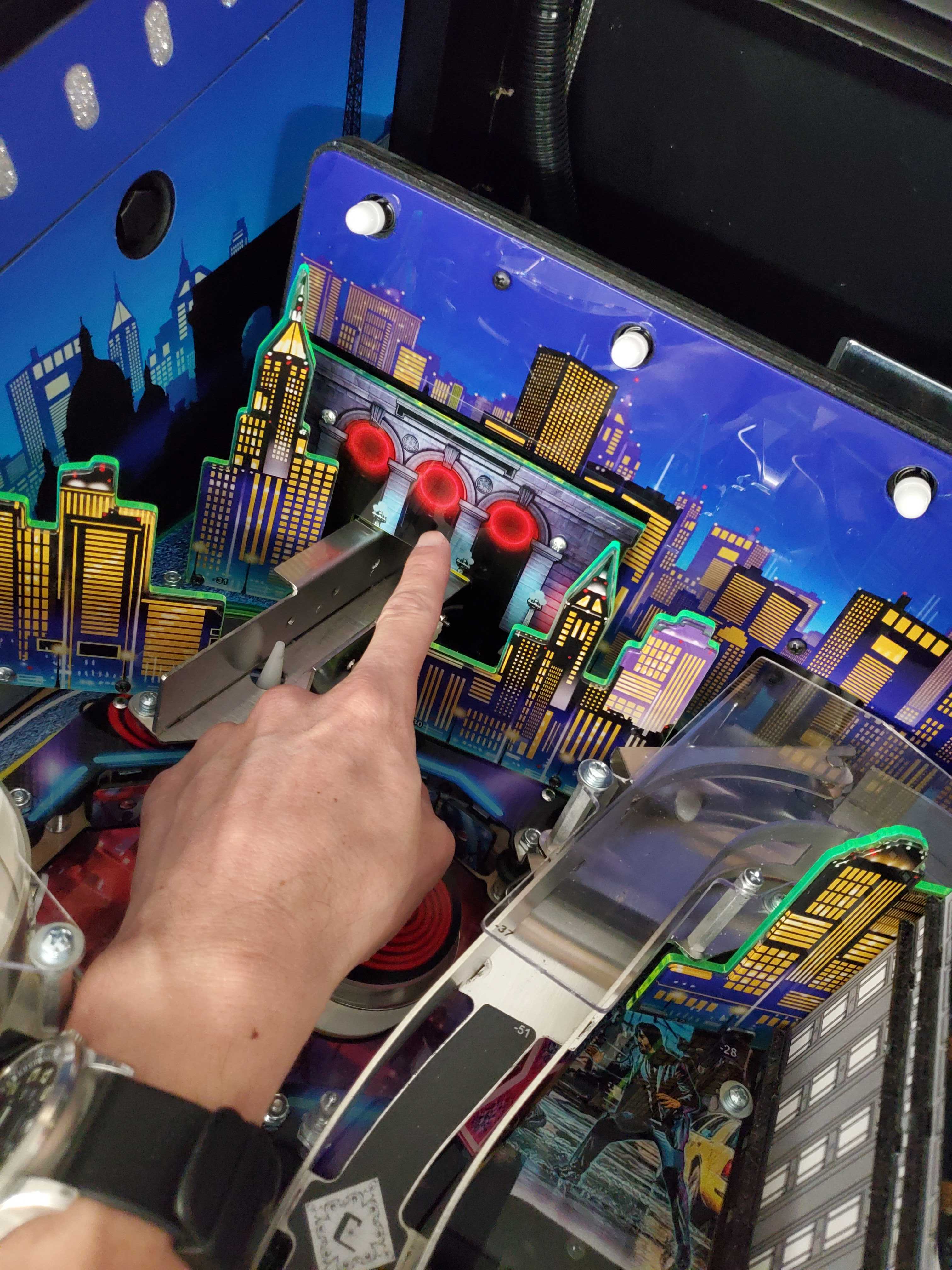

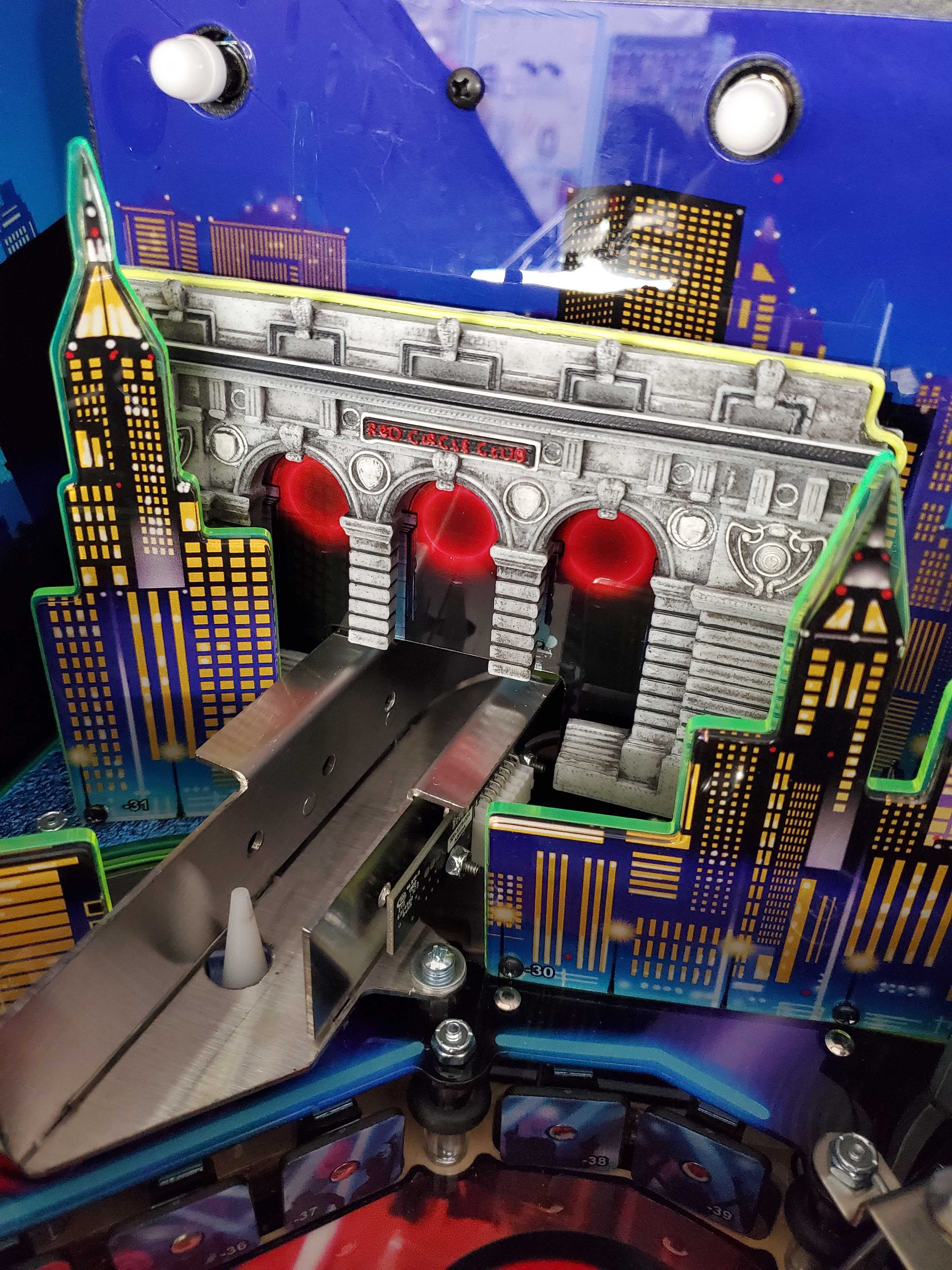

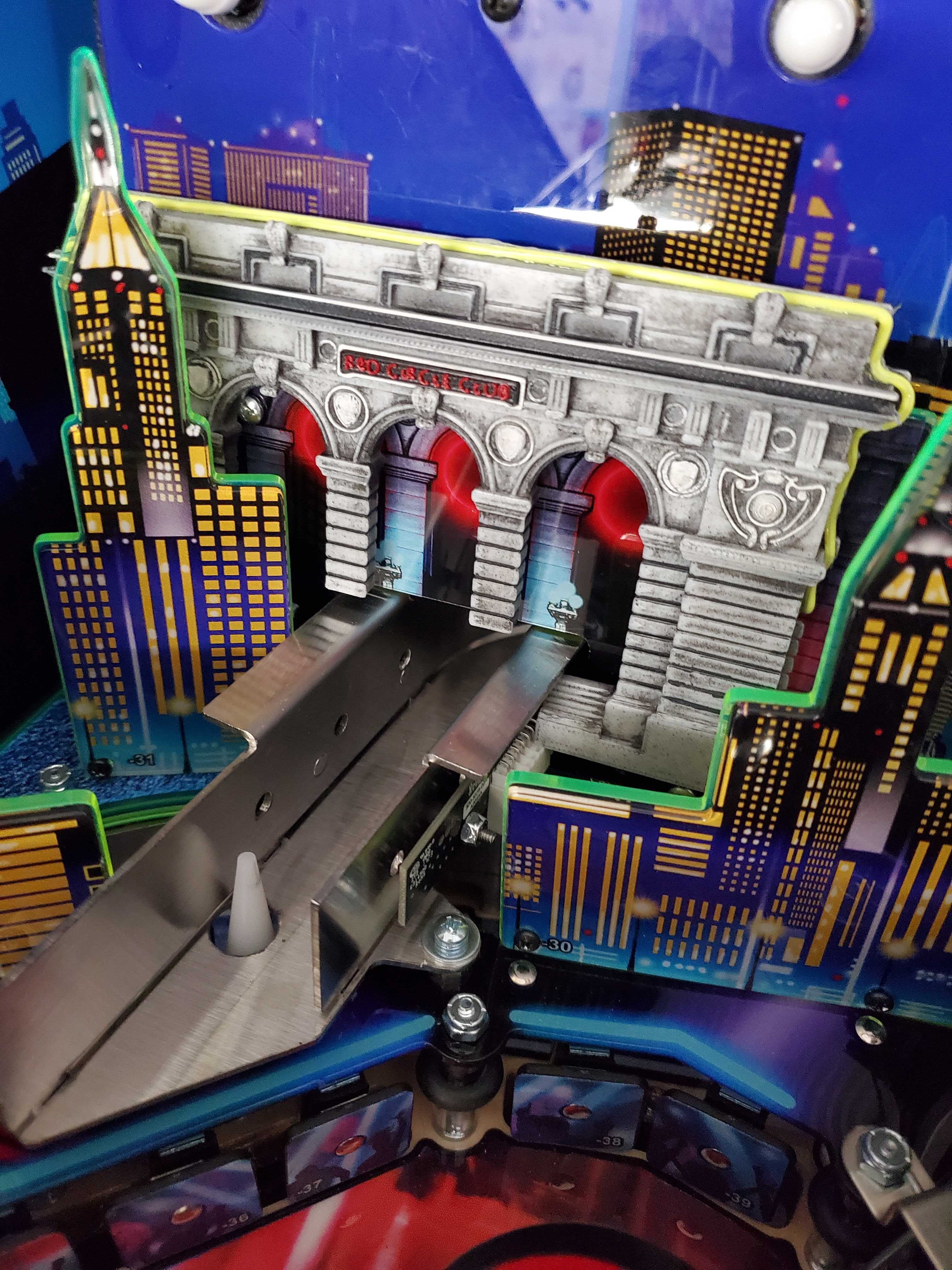

1. Slide the mod over existing plastic #44 (The Red Circle Club in the back left above the ball lock). Slide the building left or right to be sure that it matches the art on acrylic. Compare image 1 and 2. You are aiming for image 1.

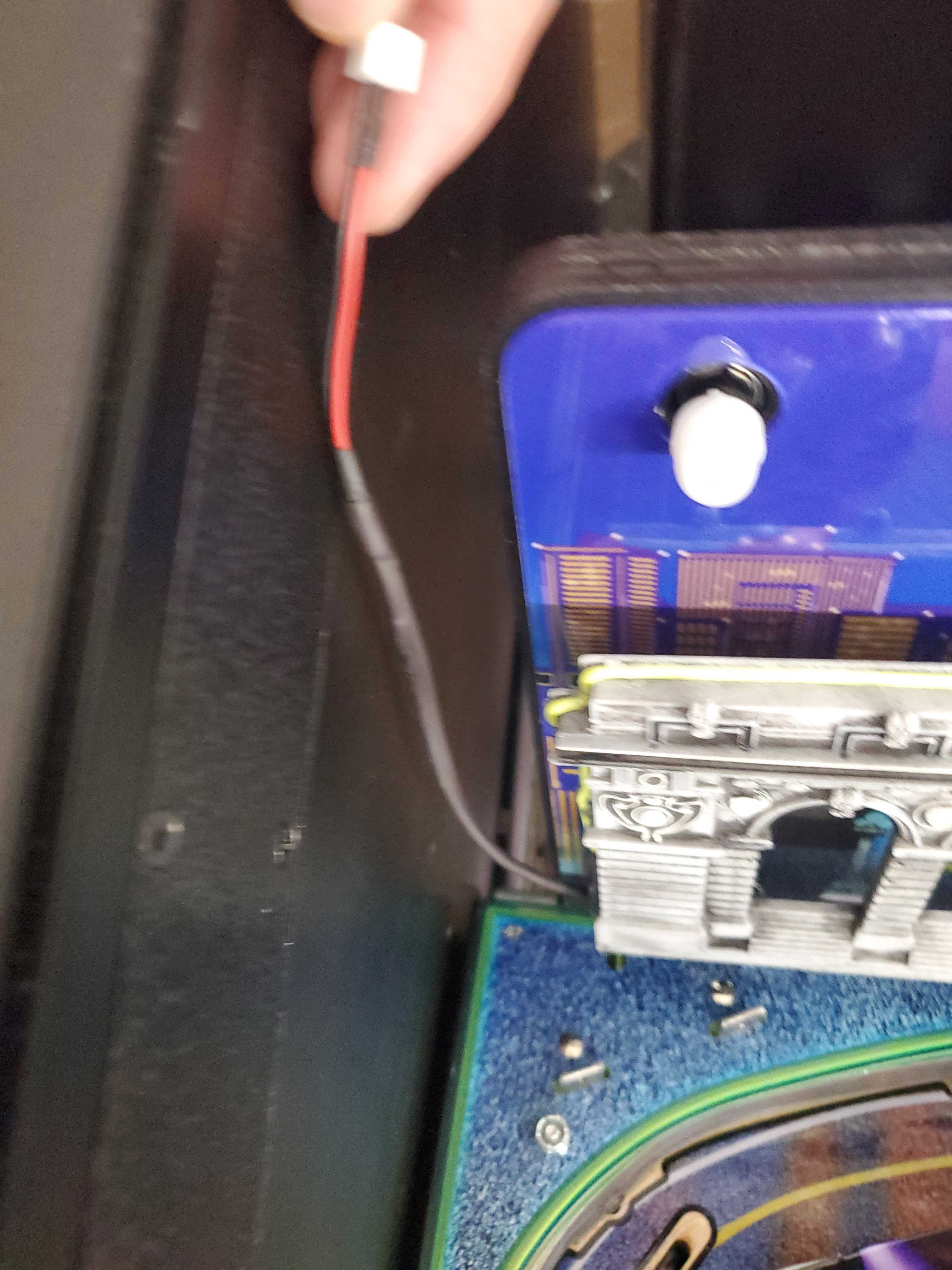

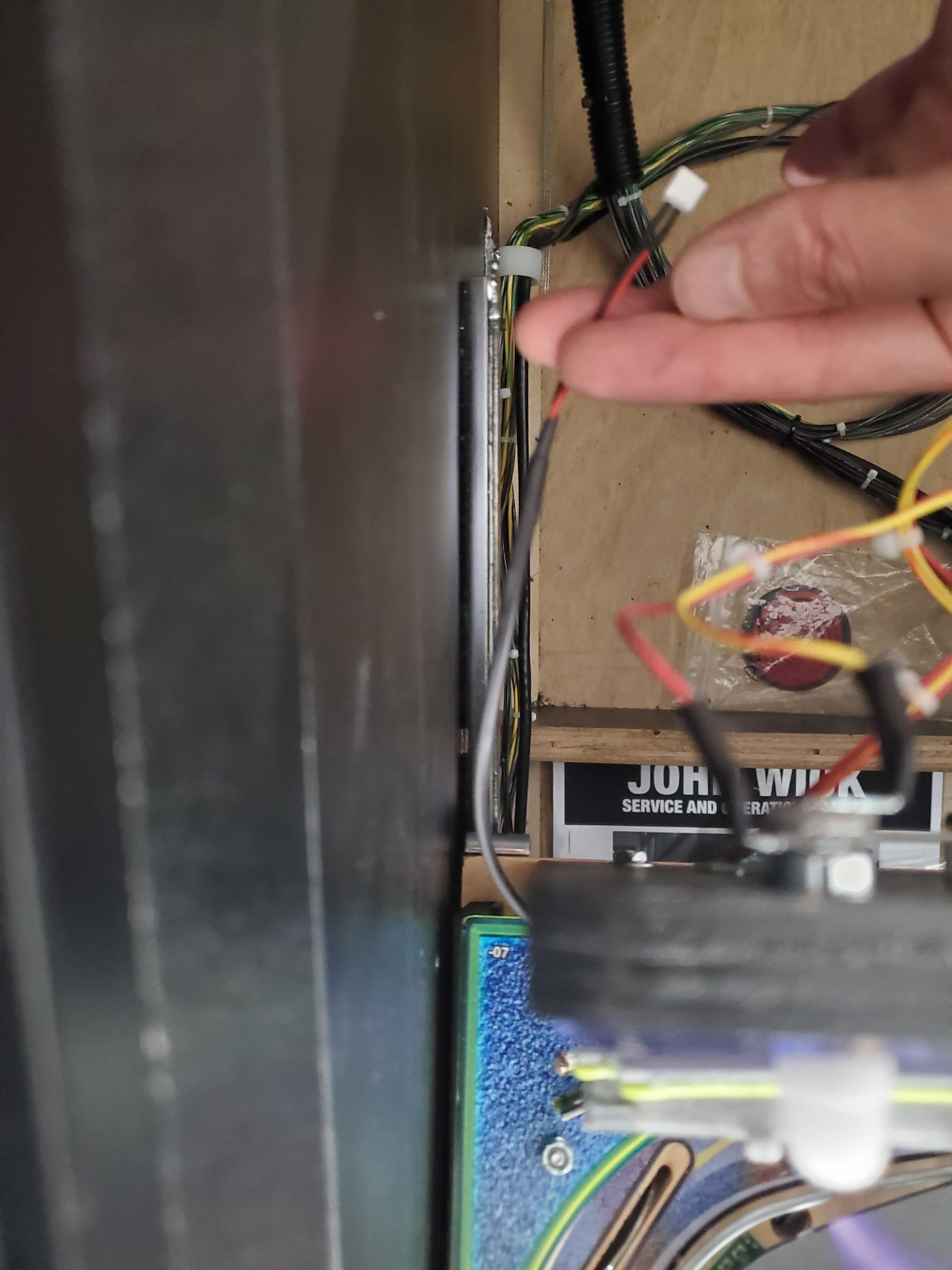

2. Feed the wiring between the backboard/playfield and the cabinet. There is a gap about an inch wide.

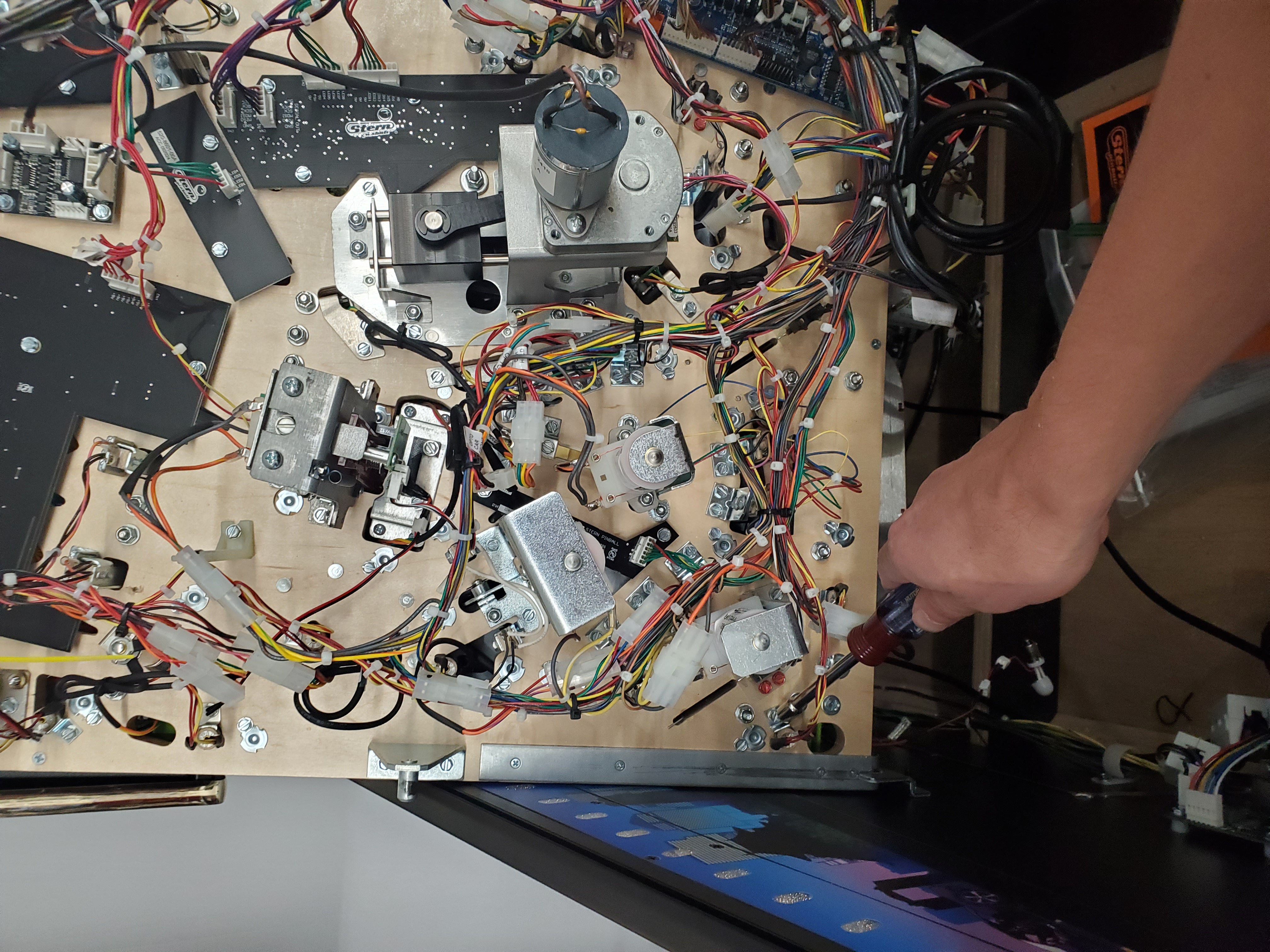

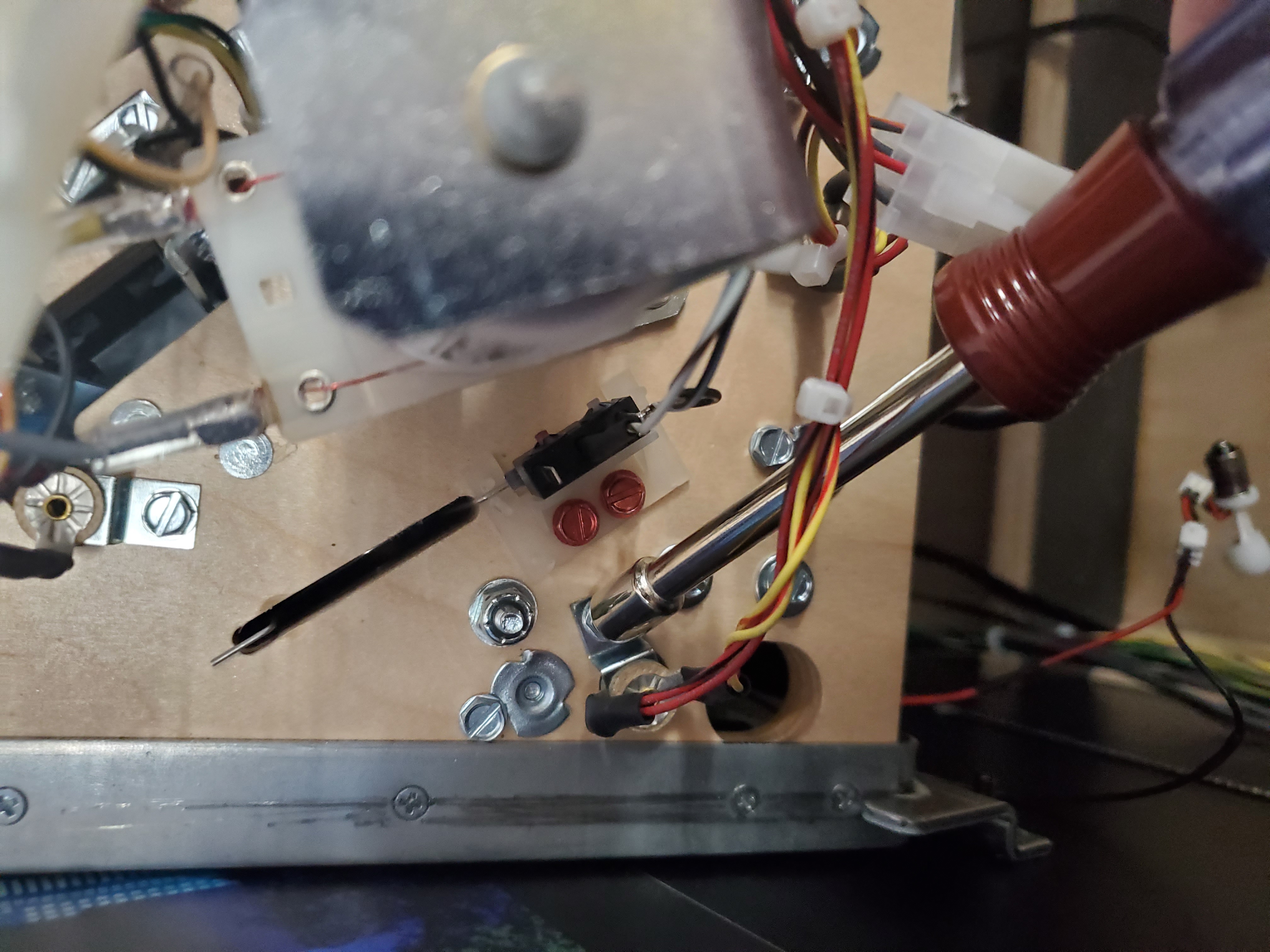

3. Raise the playfield into it's full upright position. We are looking for the Global Illumination in the bottom left. Remove the screw holding the mount for the bulb.

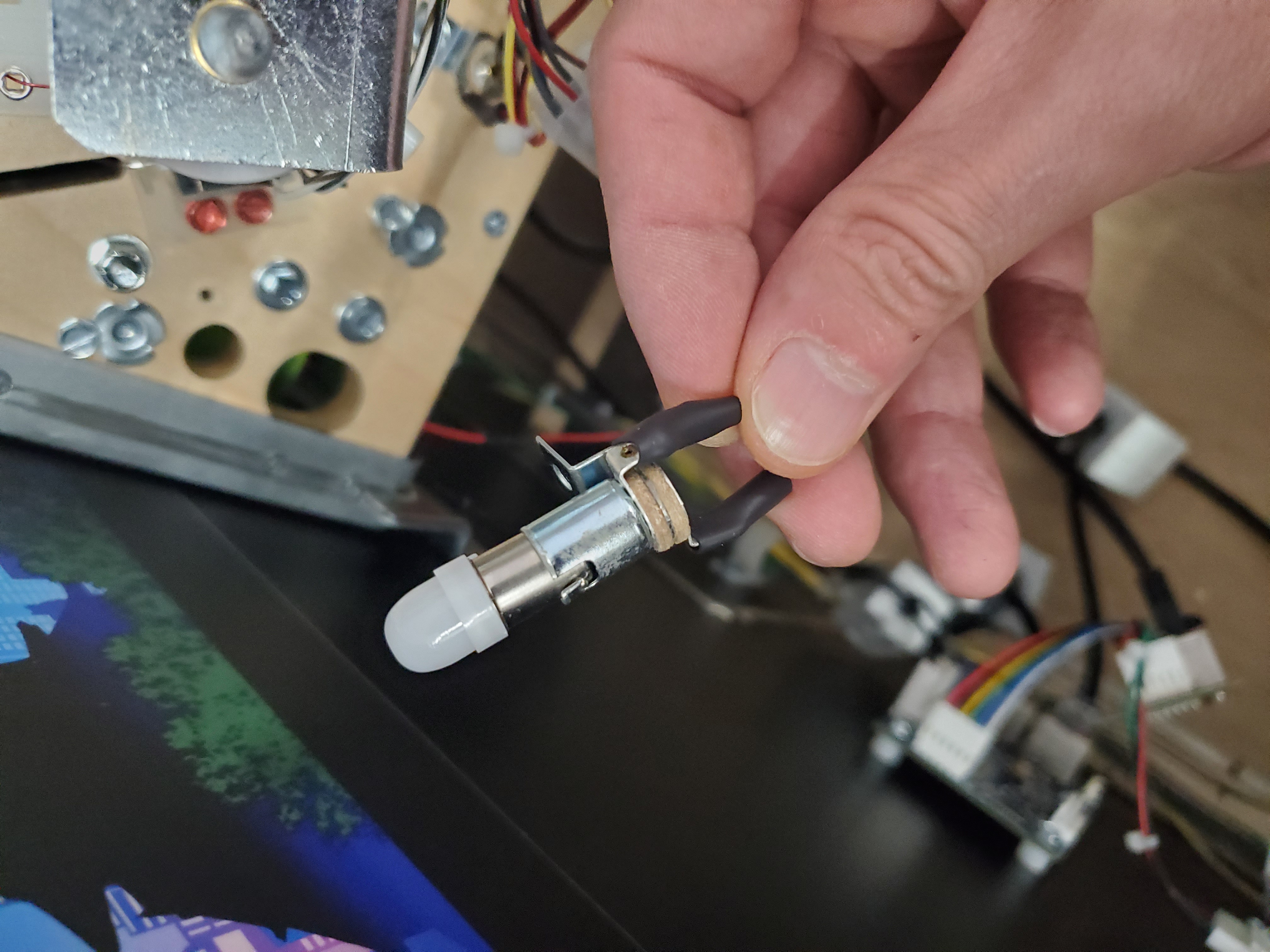

4. Remove the stock bulb and replace with provided bulb.

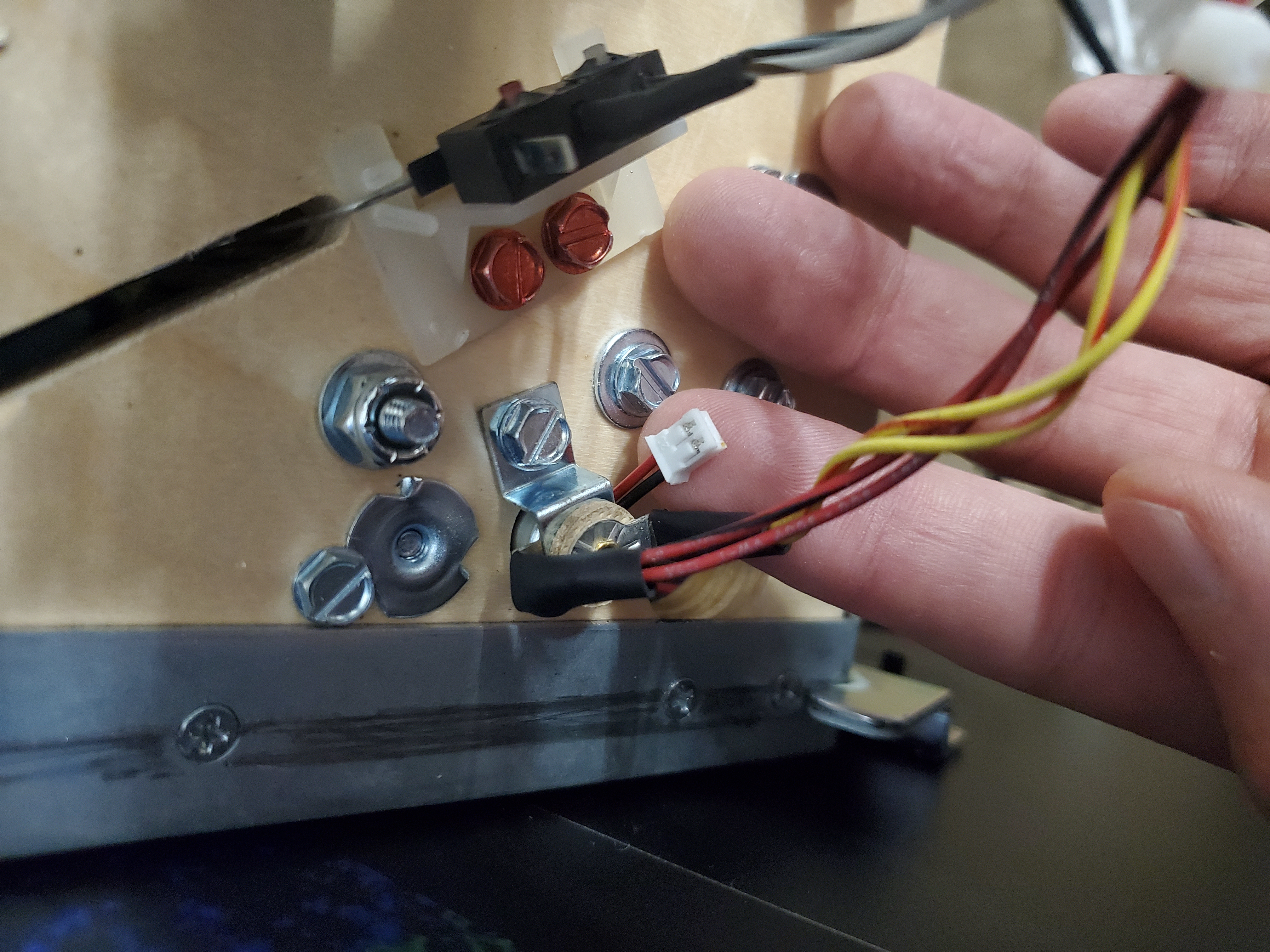

5. Replace bulb mount. Be sure the matrix connector is exposed to the underside of the playfield.

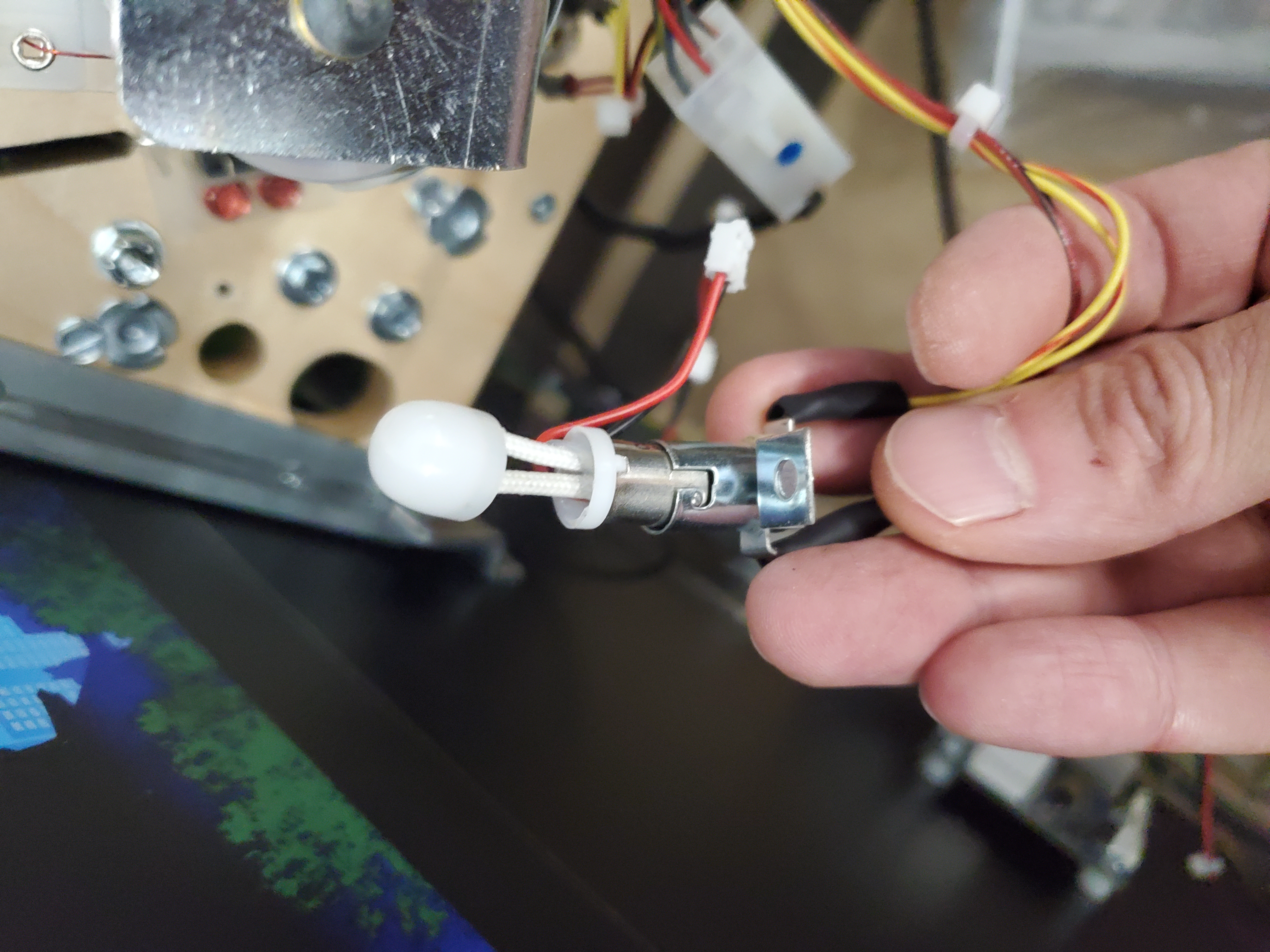

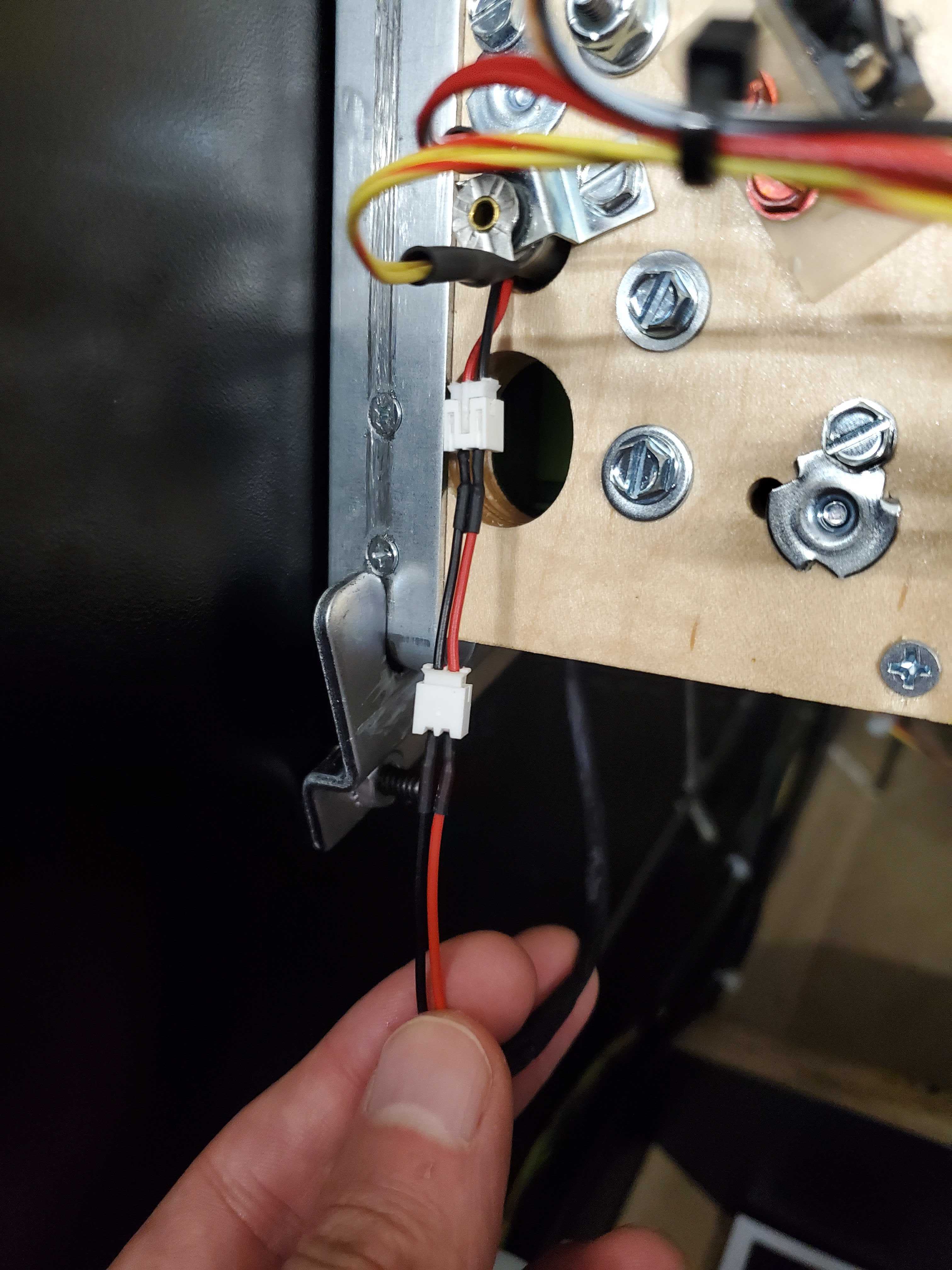

6. Connect the mod wiring to the bulb connector. Make sure the matrix reverser (the short wires between matrix connectors) is attached to the bulb and the mod wiring.

7. You're done! YAY!
