WICK - Optic Cover

These instructions are applicable to the following products:

• MM-WICK-OPTIC

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

1. Turn off game. Remove glass from playfield. Please disregard the light gray platform in front of the cache. That's a hint of the next mod coming down the pipe.

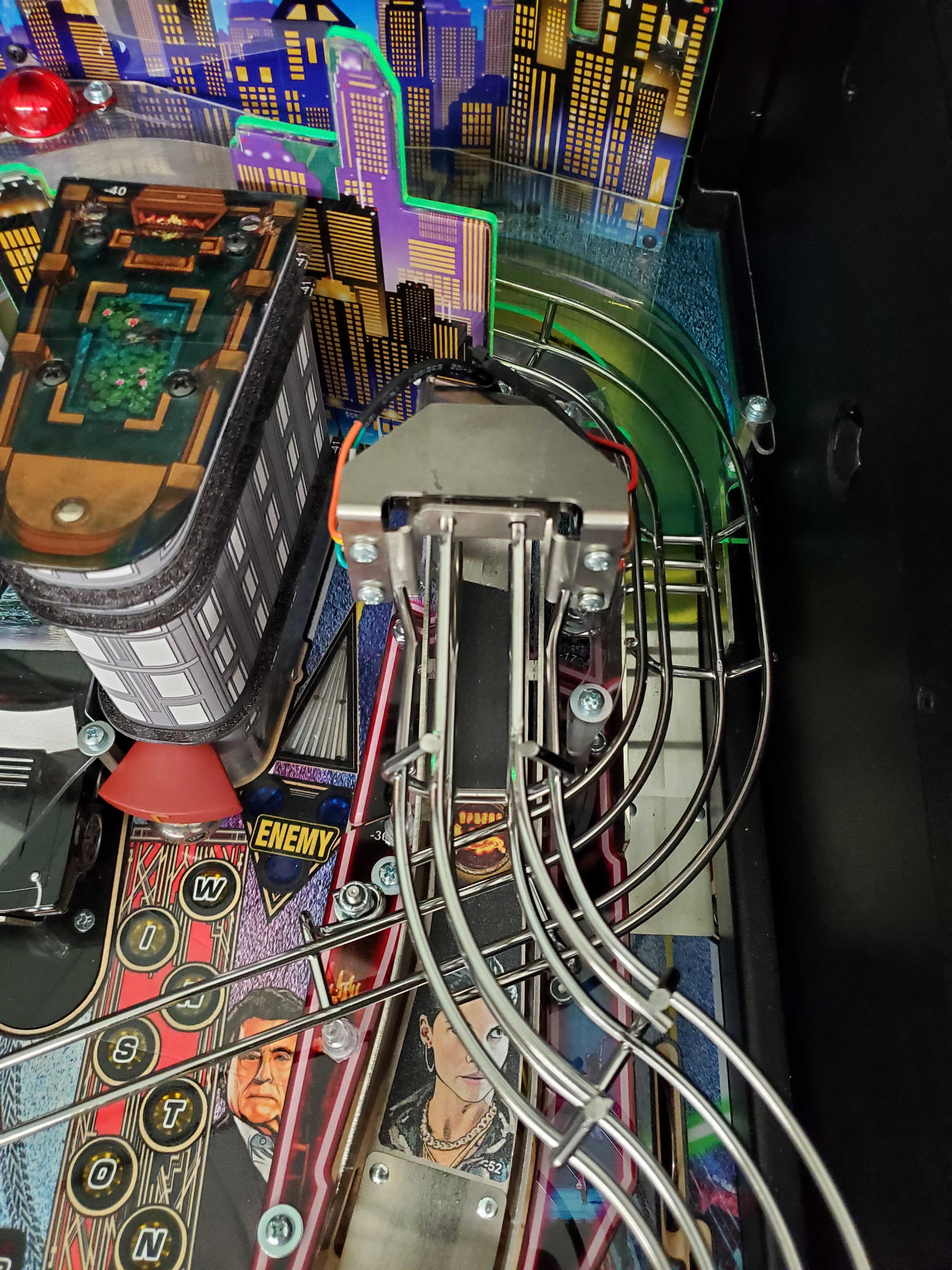

2. Identify the ramp on the right side of the machine.
3. Using the tape provided, peel off the backing on one side and apply to trapezoidal shape on top of the ramp. Remove the backing on the top facing side.

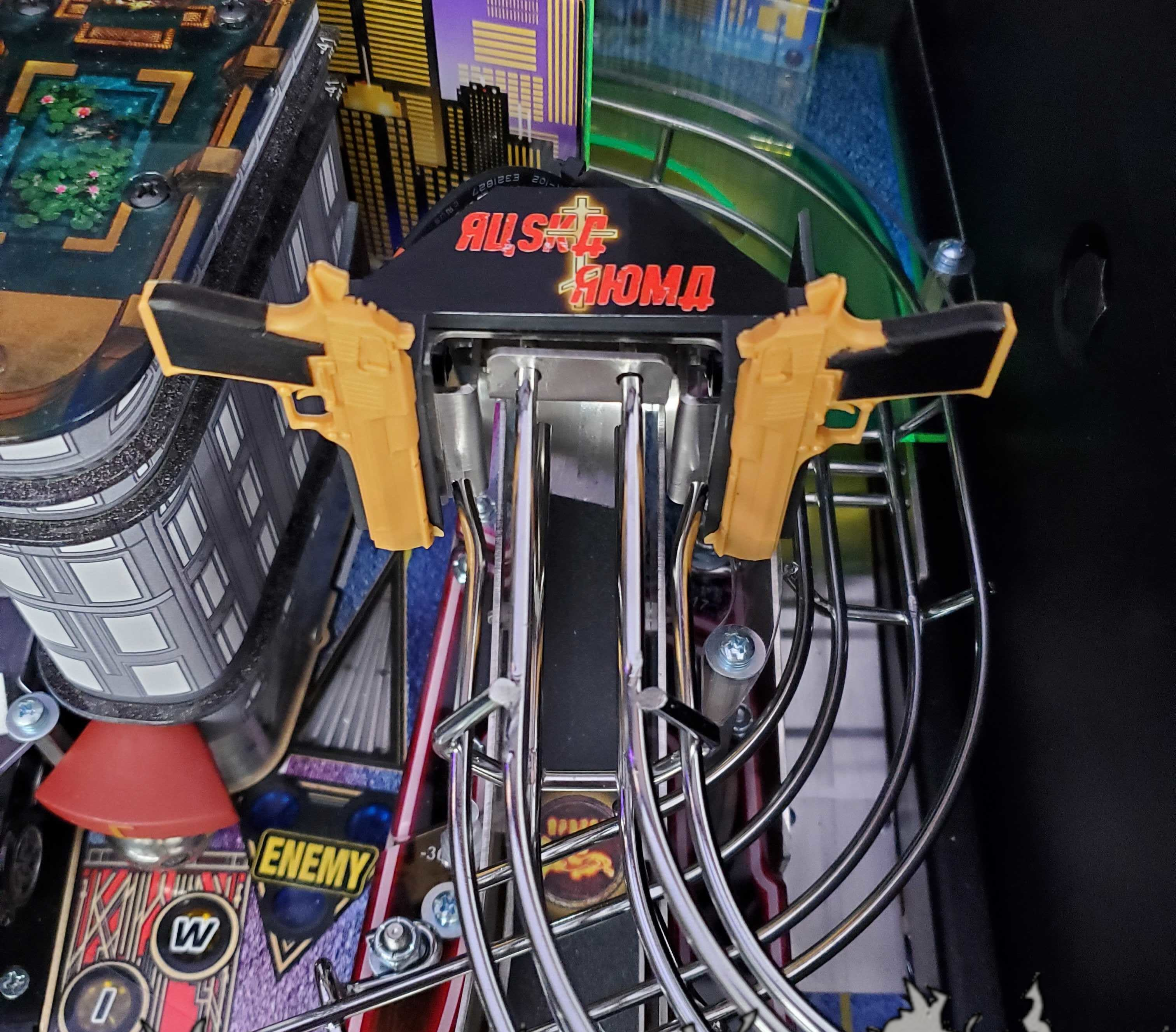

4. Press the mod down onto the tape.
5. Done!
