WICK - Weapons Cache Insert

These instructions are applicable to the following products:

• MM-WICK-CACHEINSERT

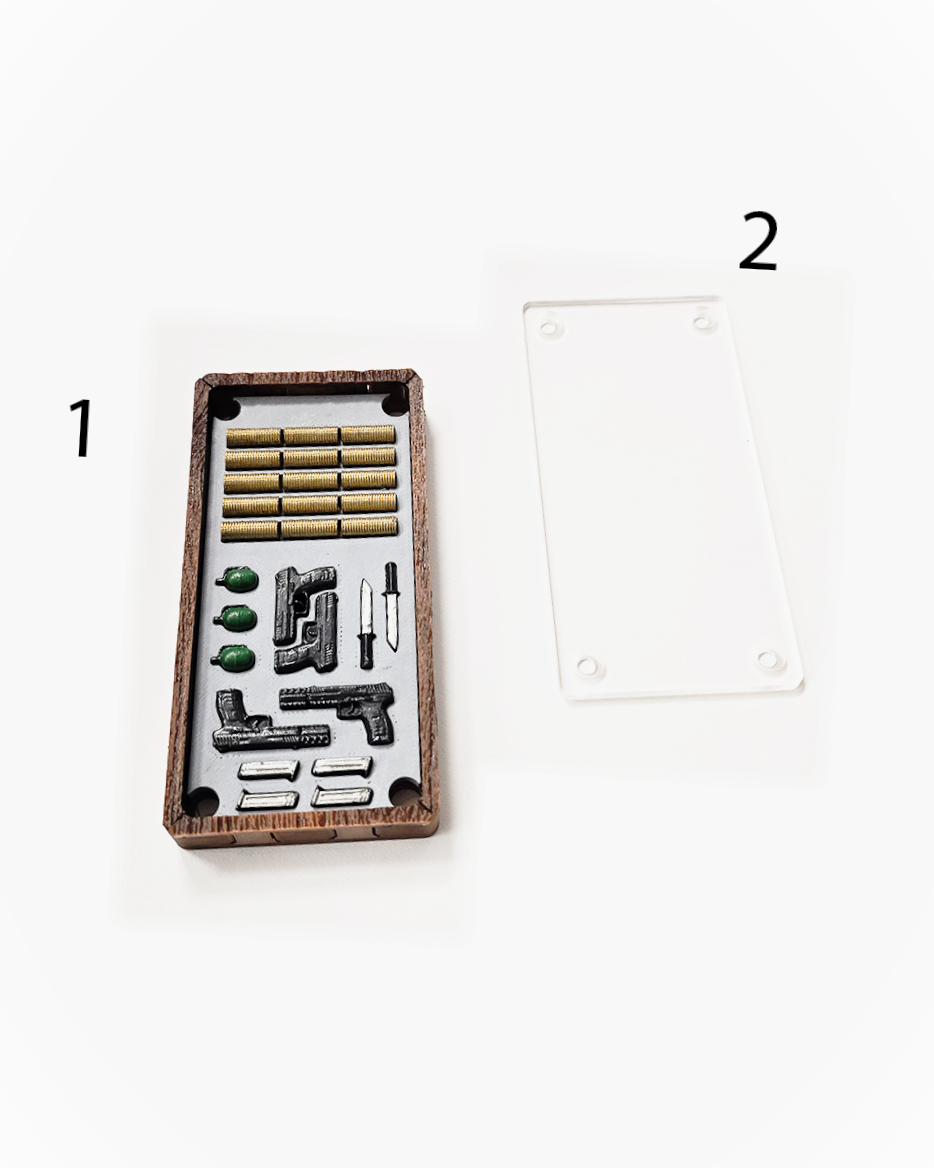

WHATS IN THE BOX

Insert Acrylic

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

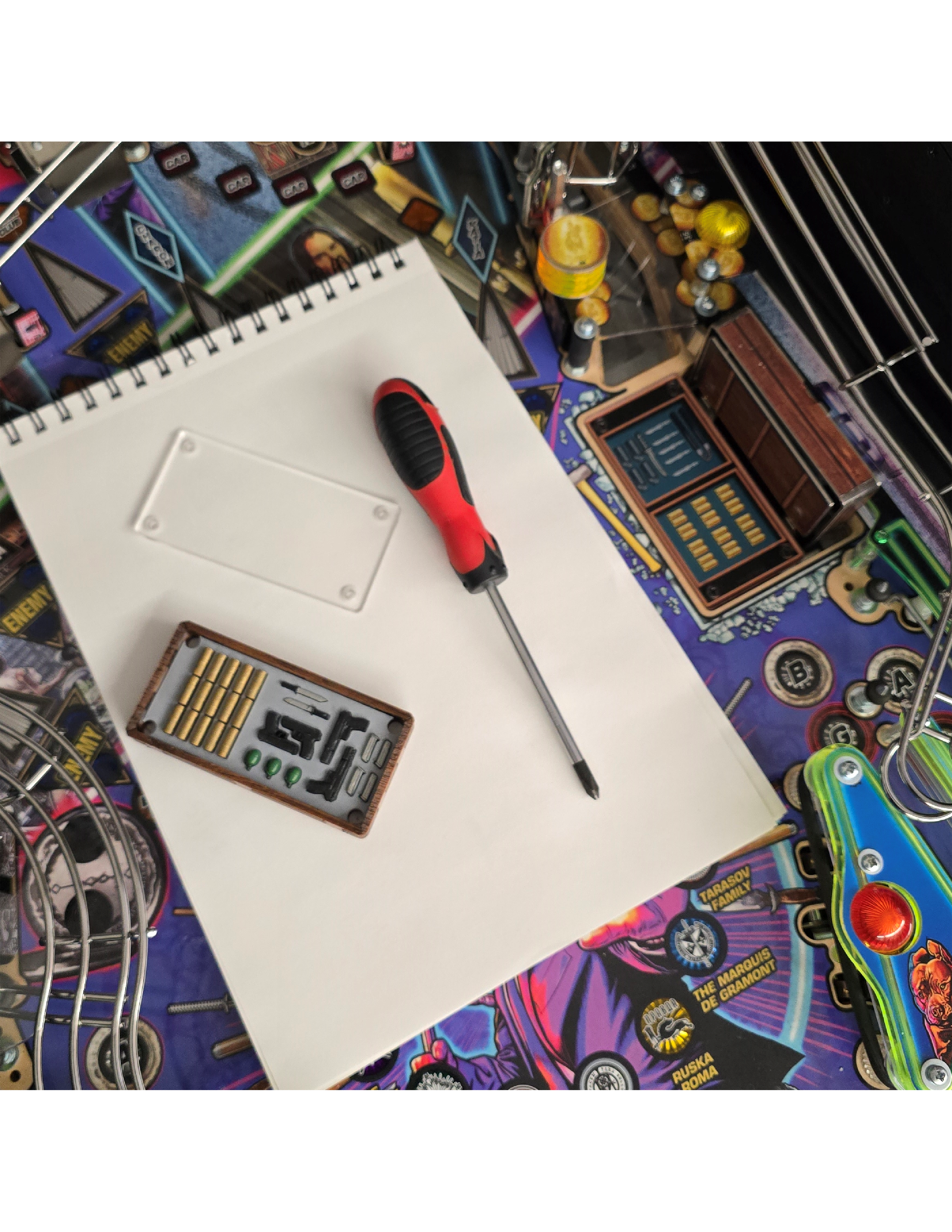

You'll need a screwdriver

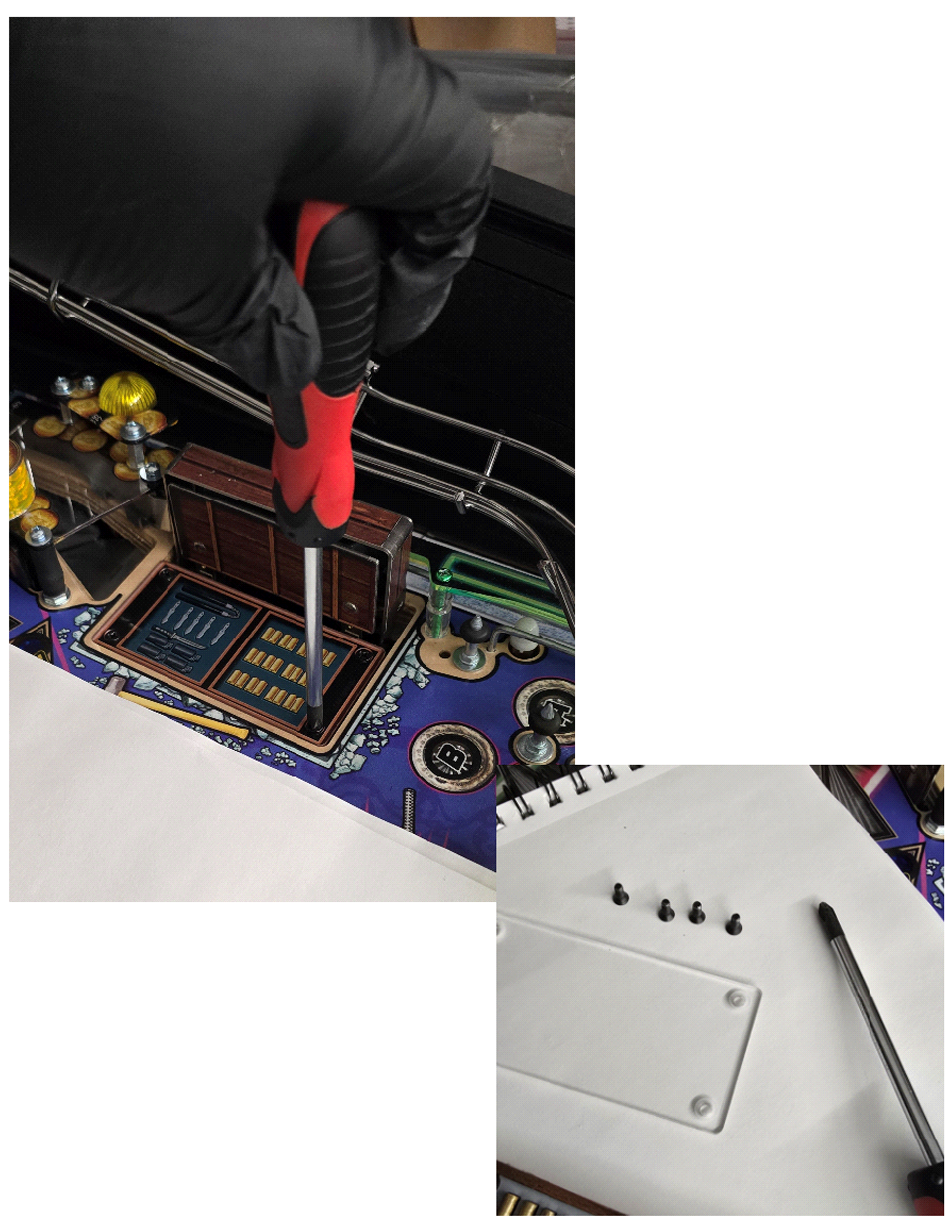

1. Unscrew the factory acrylic, and save the screws

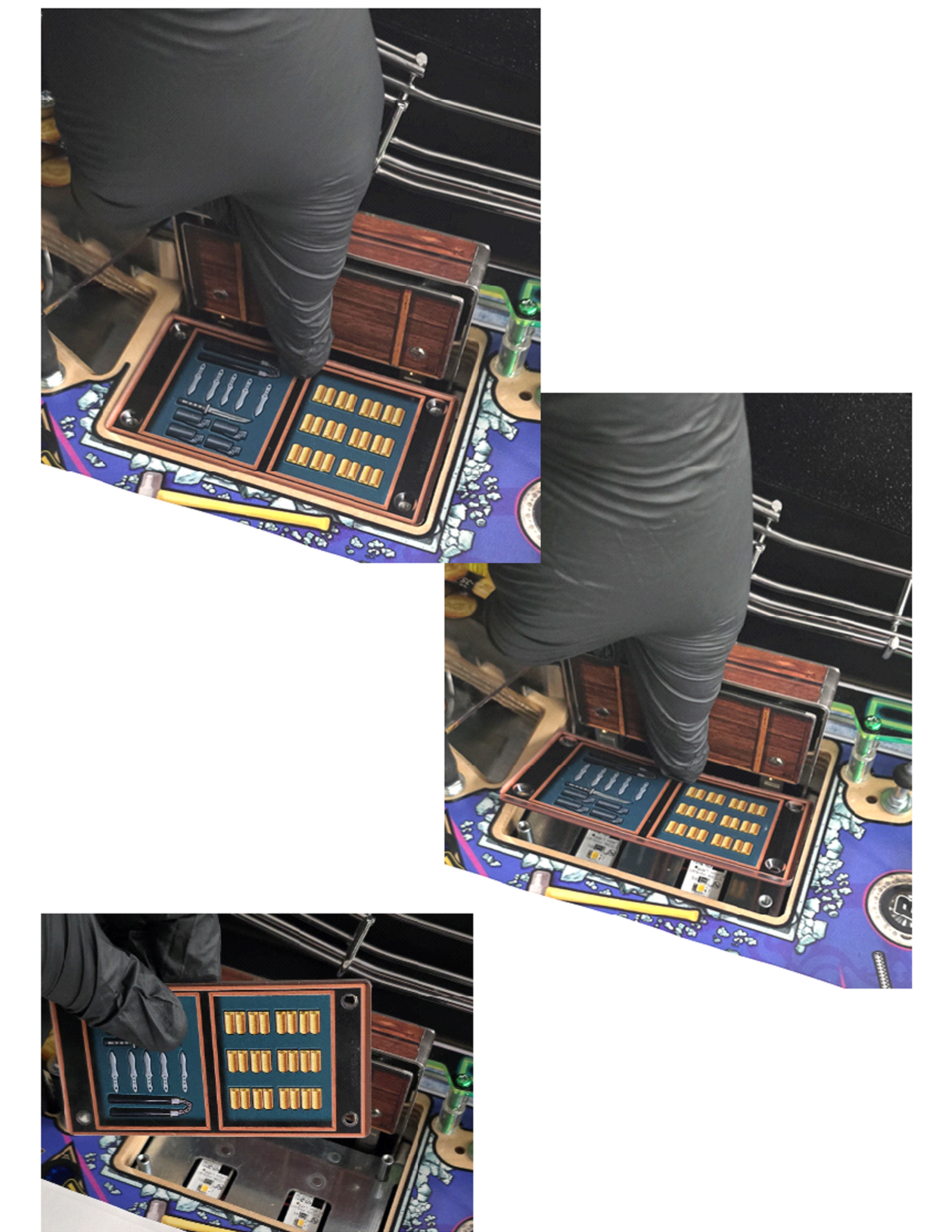

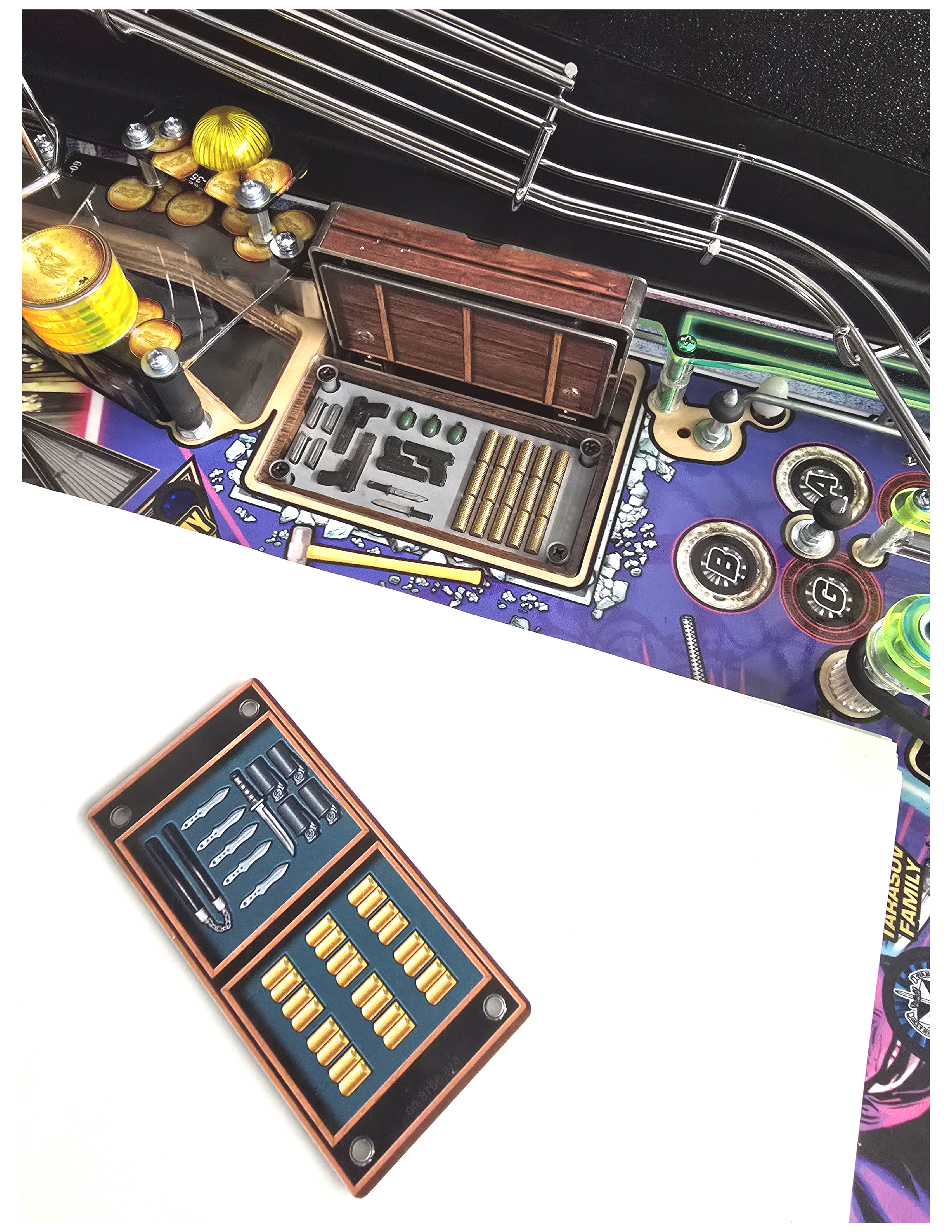

2. Push down on the acrylic to remove it

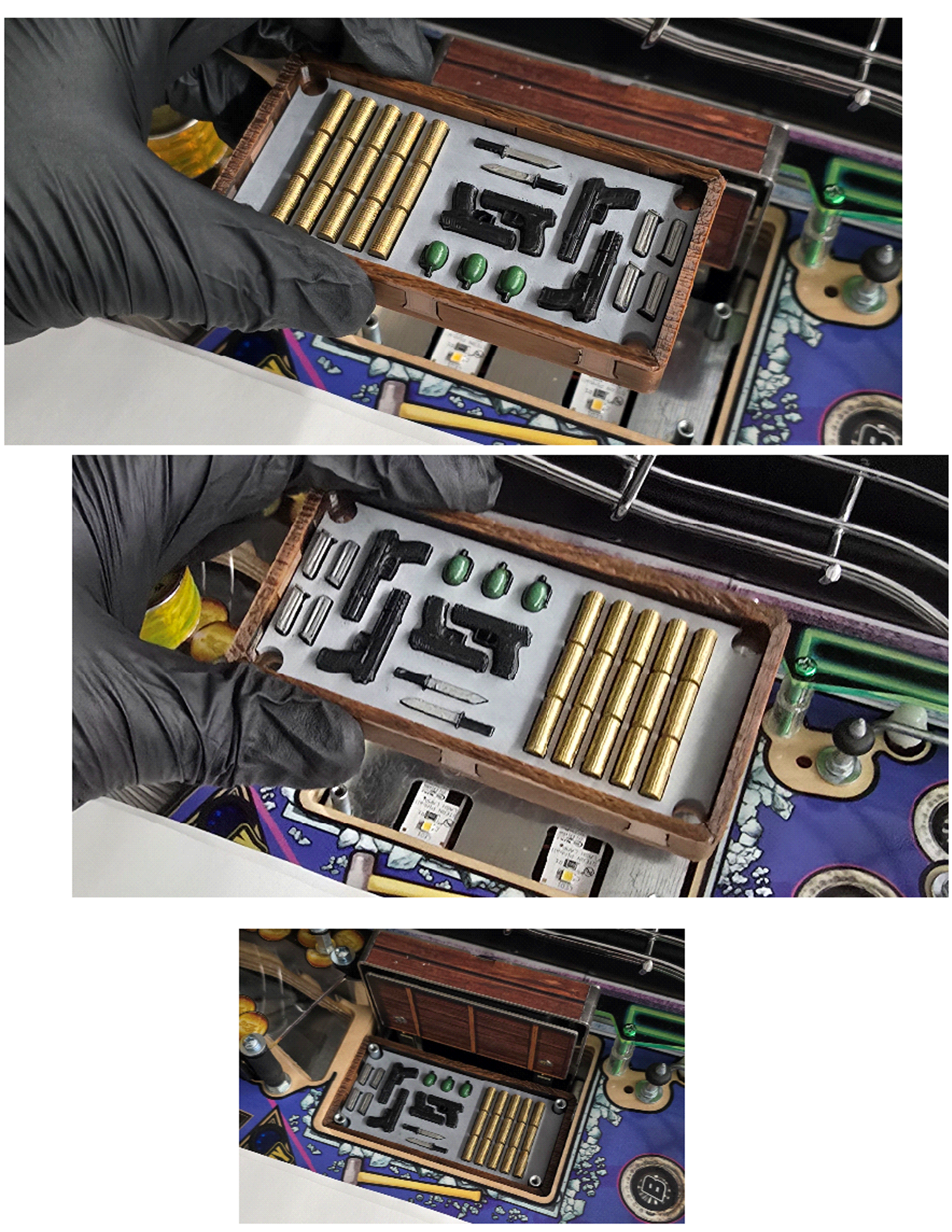

3. The insert should fit both ways in most games, but it is not guaranteed due to different tolerances that games have.

Note, once the insert is in the cutout, it's very tricky to get out. Place a thin strip of fabric or string under the insert or in the cutout before placing the insert to help pull it out if you want to test/preview it in different orientations. Remove the fabric/string before turning the game on.

When removing the insert, we recommend lifting the playfield up to help prevent damaging the insert. You can also move one of the lights from underneath and push from the bottom of the insert if needed.

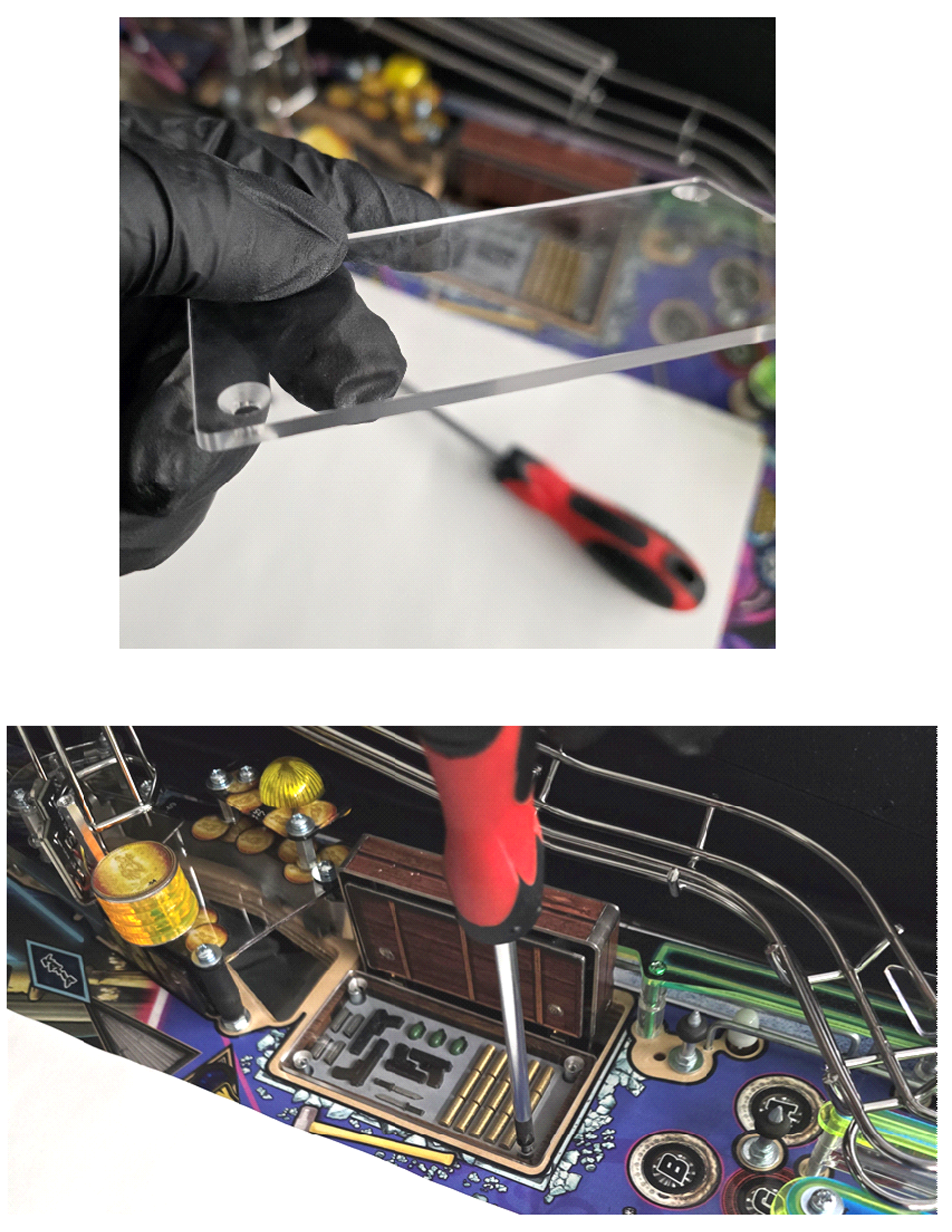

4. Place the new clear acrylic over top and screw it back on with the factory screws from step one. Note that there is a countersunk side and a flat side of the acrylic; the flat side goes down.

Enjoy, if you bought the bundle, follow these instructions for the cover
