Wick - Gel Set

These instructions are applicable to the following products:

• MM-WICK-GEL

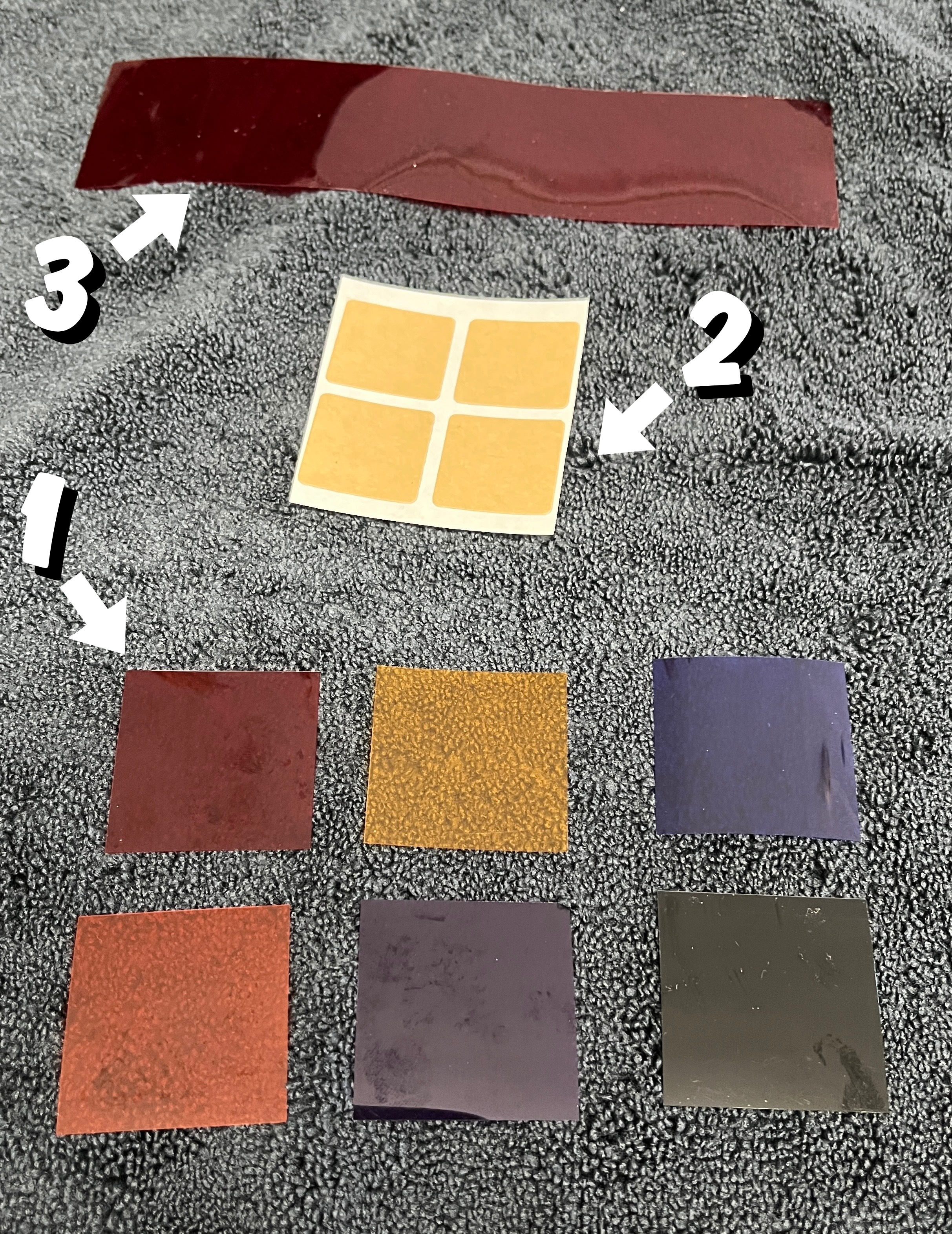

WHATS IN THE BOX

Colored Gel Set Tape Long Red Gel

DANGER ELECTRICAL SHOCK

Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Please note that this page is still under construction and will be completed soon.

Install difficulty: Easy

Tools needed: Scissors, 1/4 nutdriver/wrench.

1. Turn off game. Remove glass from game and set in a safe and secure location.

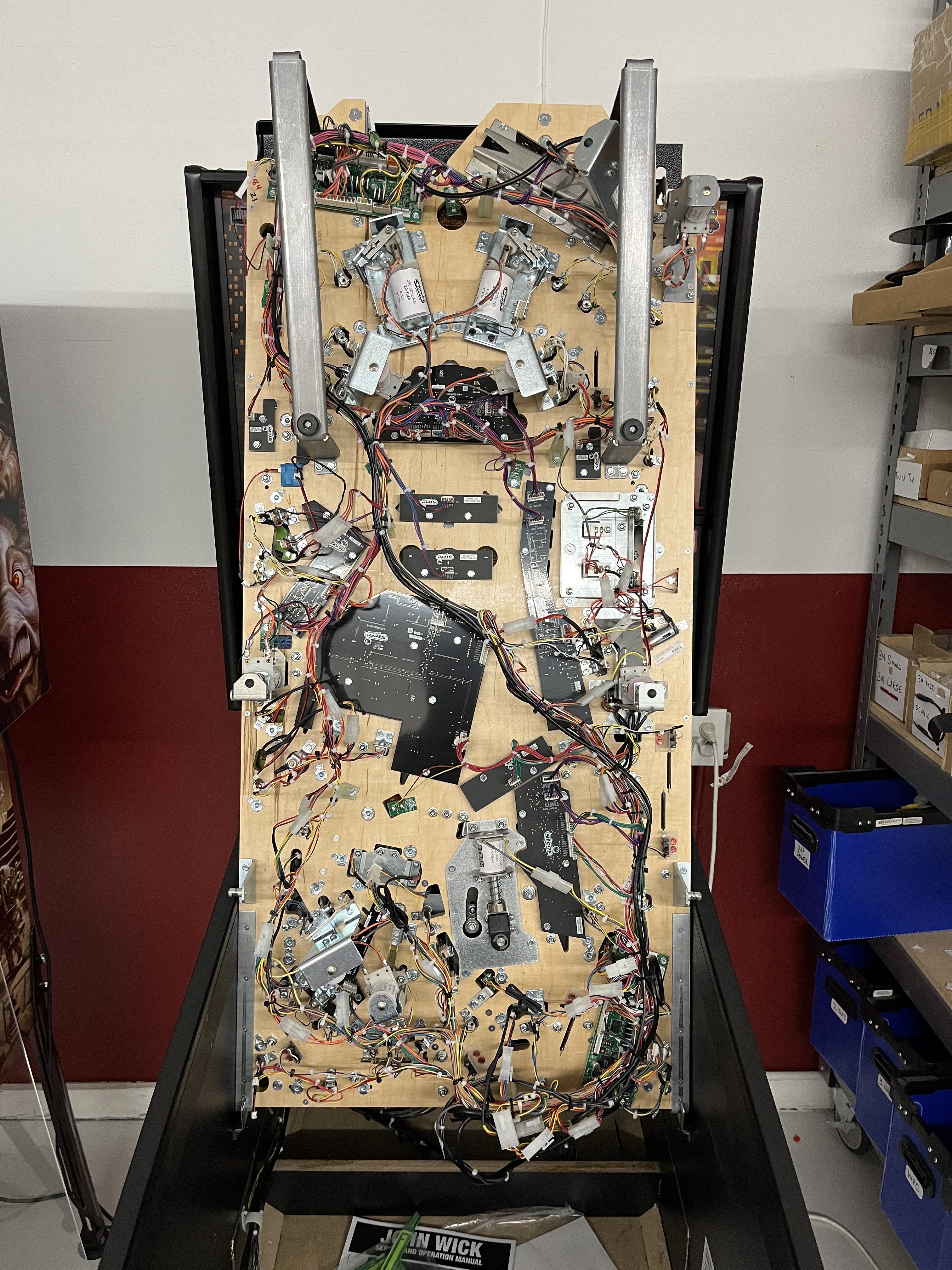

2. If you have gameblades/ art blades, Place the Pinball Cabinet Assembly Protectors on each side of the machine. Next remove the pinballs from the trough. Then lift the playfield into the upright position.

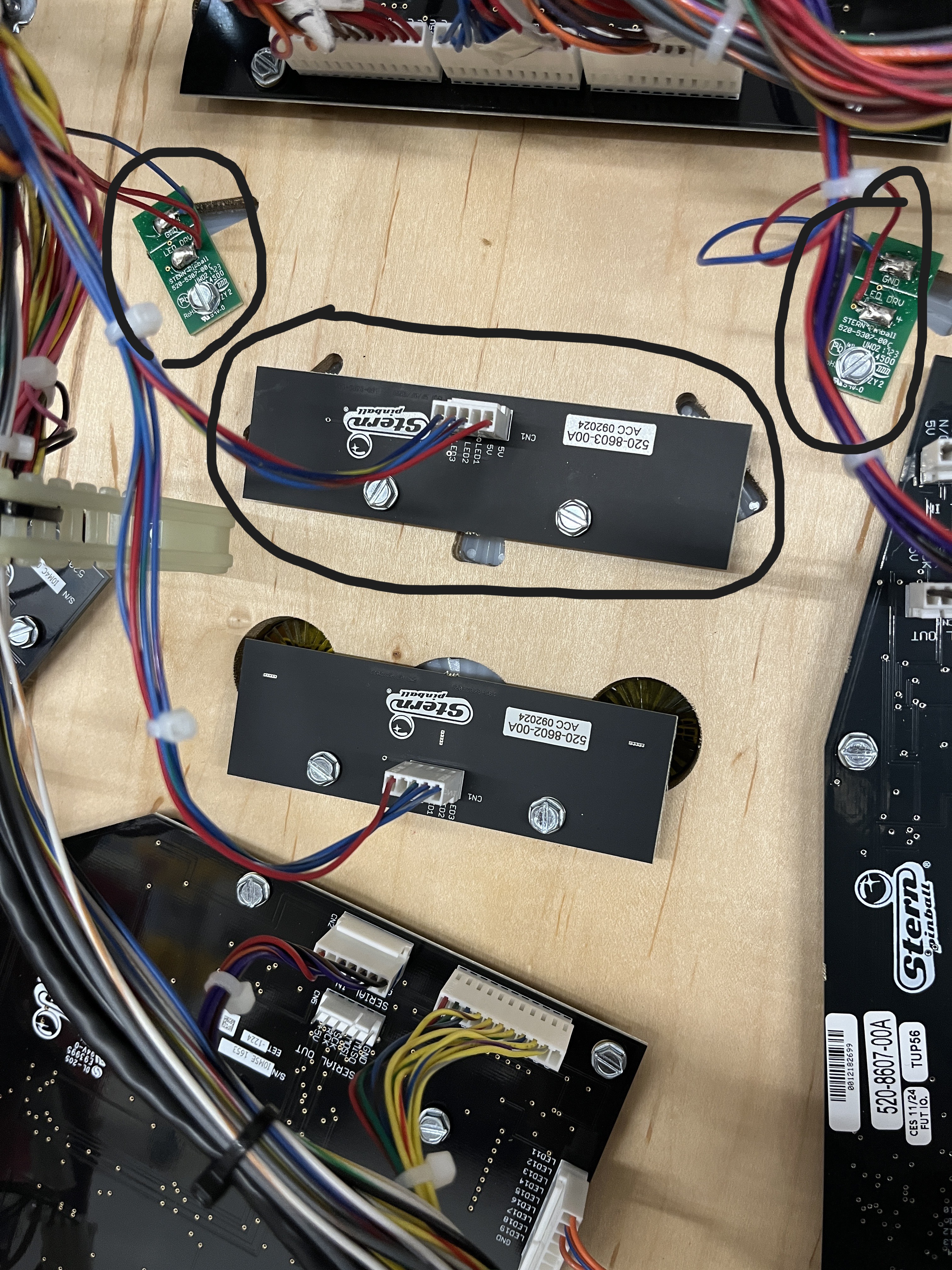

3. Once the game is in the service position, locate the middle LED board. An image has been provided with the area circled.
4. Disconnect the 5-pin connect from the board and then unscrew the two flat head screws that hold the board in place. For the two single LED boards, remove the flat head screw that holds those in place. Put the screws in a secure location.

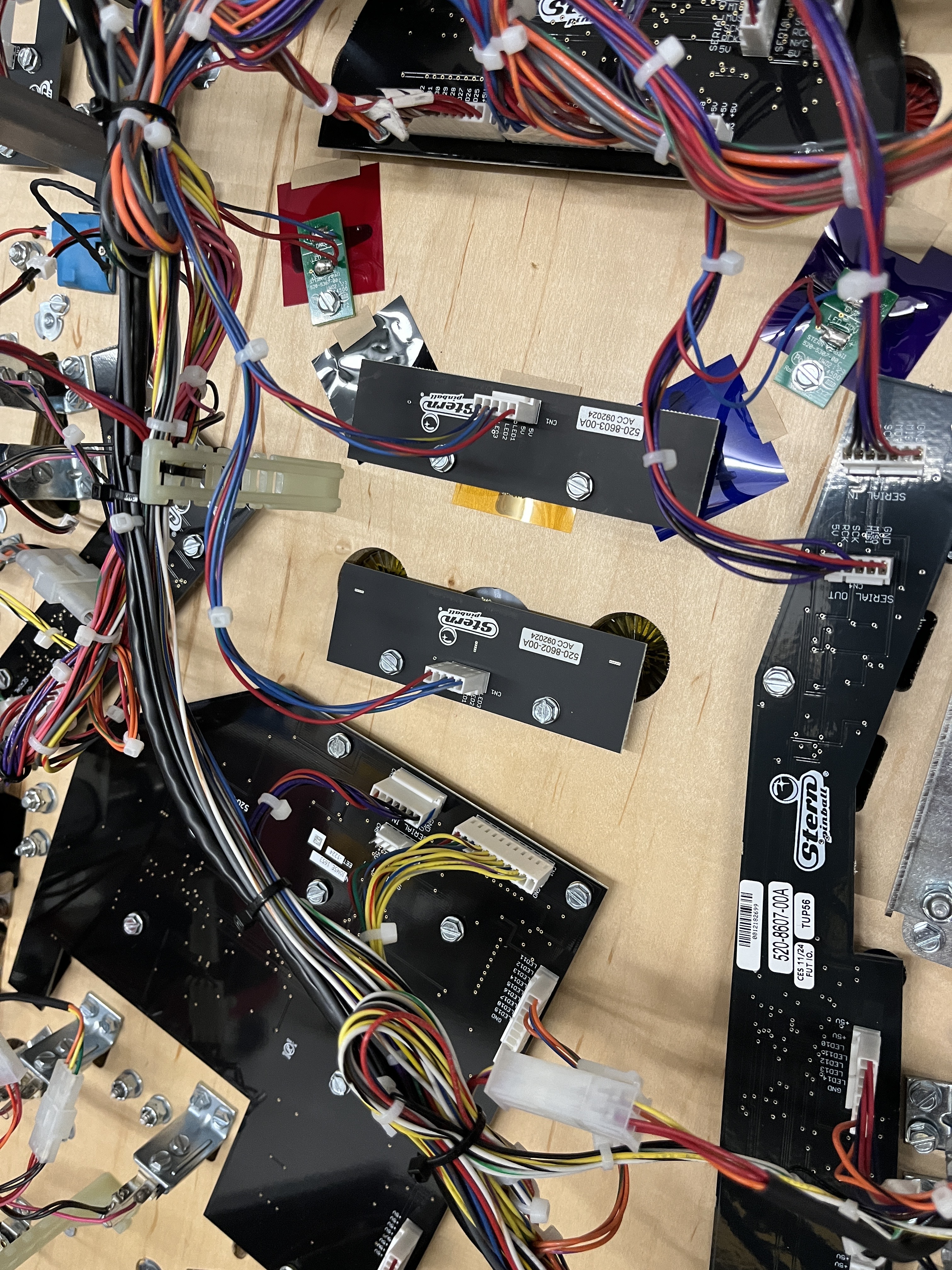

5. Once this is done, place the gels in the following locations.

• Red gel - far left insert
• Green gel - middle left insert
• Yellow gel - middle insert
• Blue gel - middle right insert
• Purple gel - far right insert

4. For the orange insert, place it over the Shoot Again insert. A set of images has been provided showing how this is done.
5. Reattach the two single LED boards and the middle LED board to the game by re-securing the flat head screws back into their original positions. Once this is done, reattach the 5-pin connector to the middle LED board.
6. As for the long red gel, you will need to cut it into four pieces. We recommend cutting them longways.

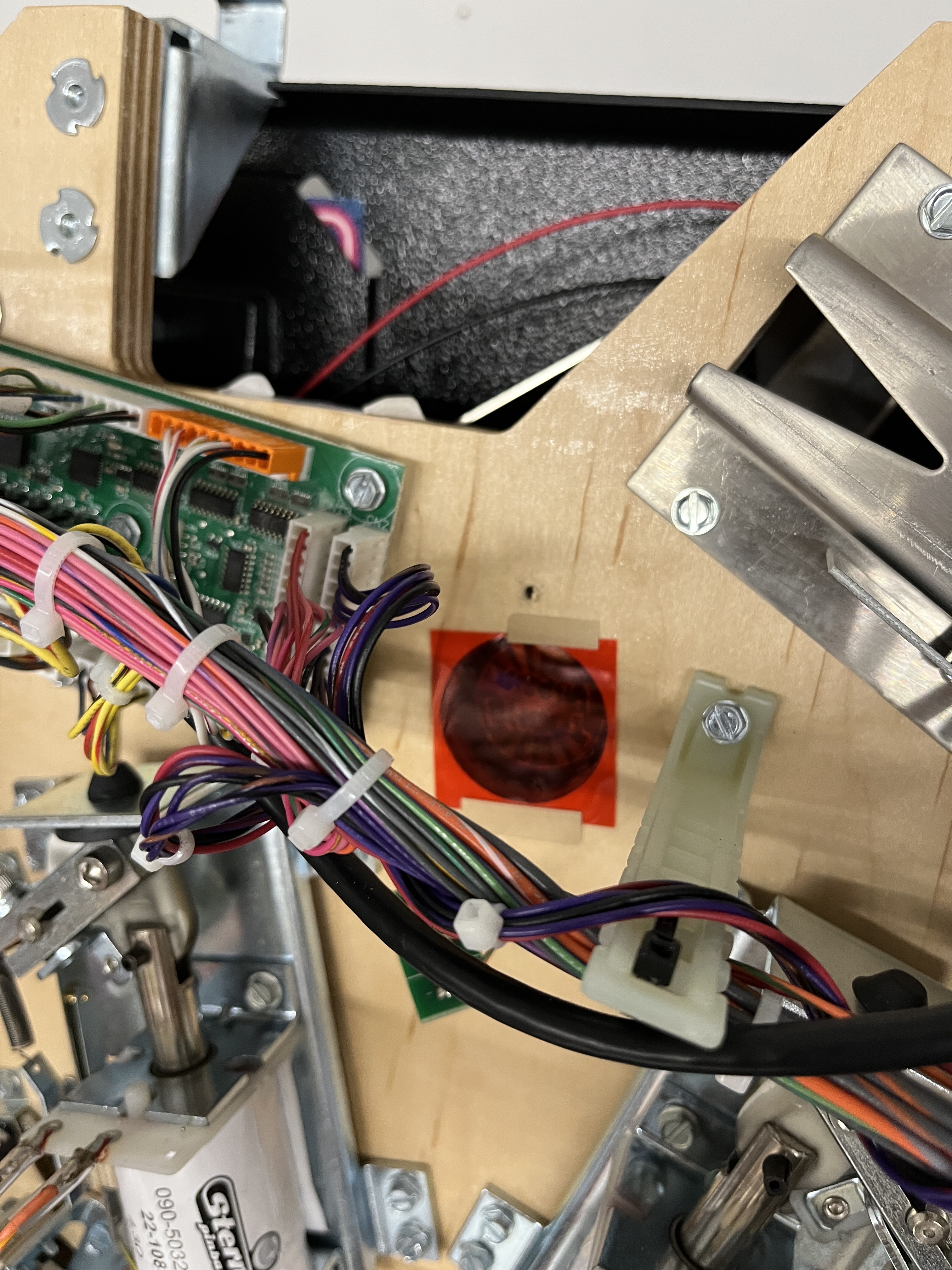

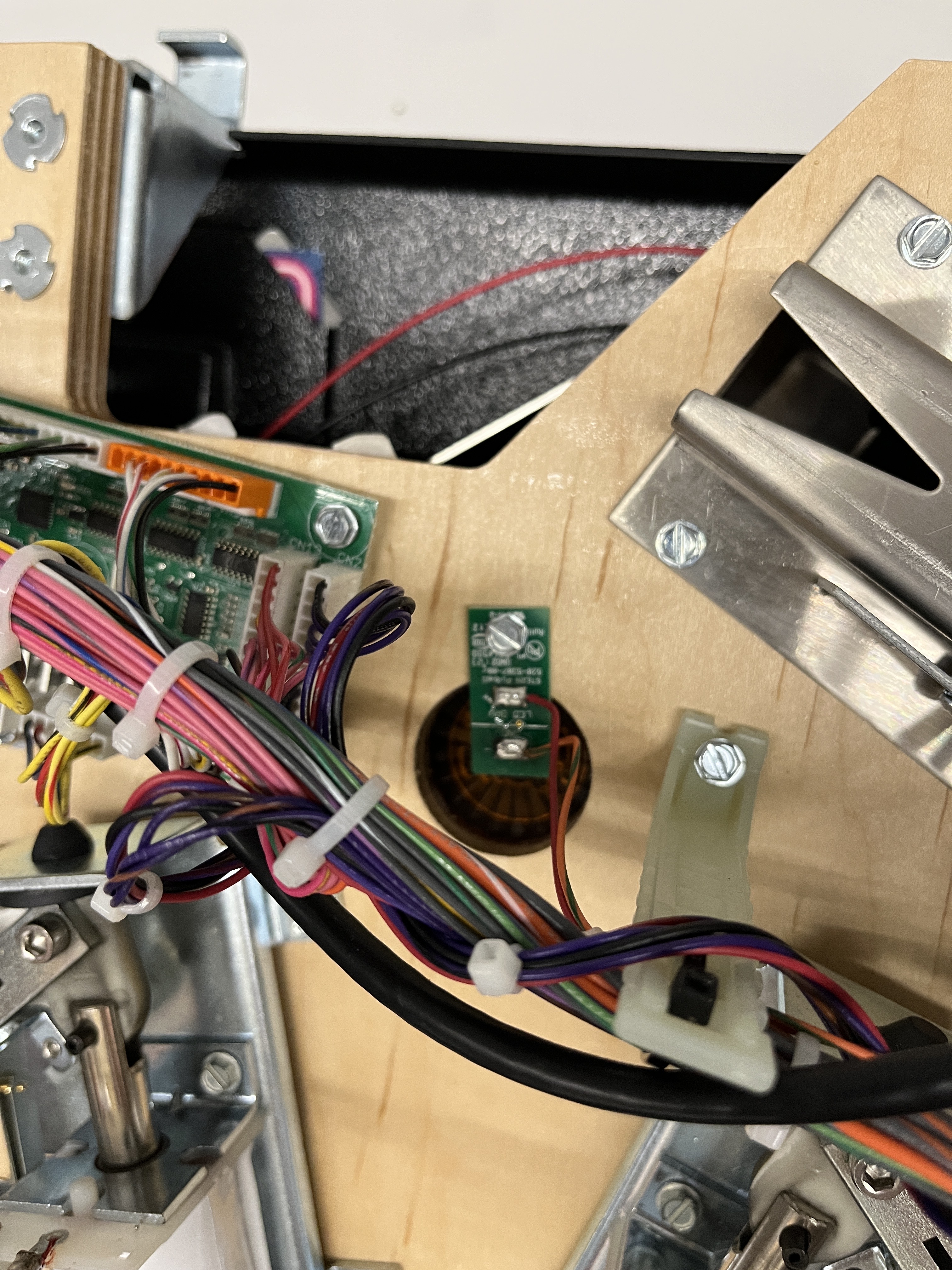

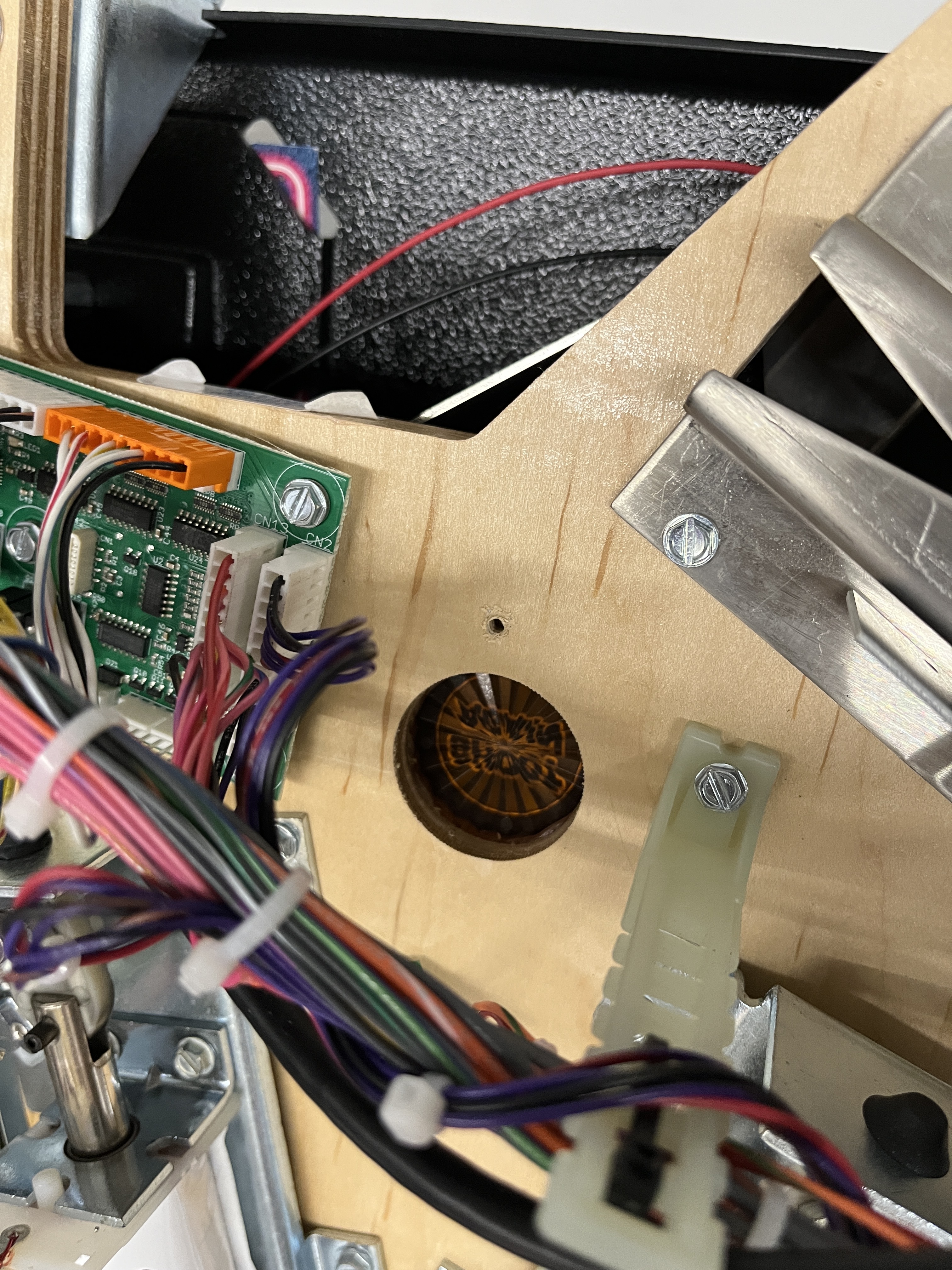

7. There are tiny 2 LED boards for the BABA YAGA inserts. You will need to unscrew them out of position and then place the red gel over the inserts. Some images have been provided showing how this can be done.
8. Once you are done with the setting of the gels, reattach the LED boards using the flat head screws removed.
9. Done!
