These instructions are applicable to the following products:
- MM-007-SCAFFPREM
- MM-007-SCAFFPRO
DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.
Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.
Images included in these instructions are of an installed prototype and may vary from your product slightly.
If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.
When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.
INSTALLATION FOR SCAFFOLDING PREM/LE
1. Turn off machine and remove glass from cabinet. Pull out playfield several inches.

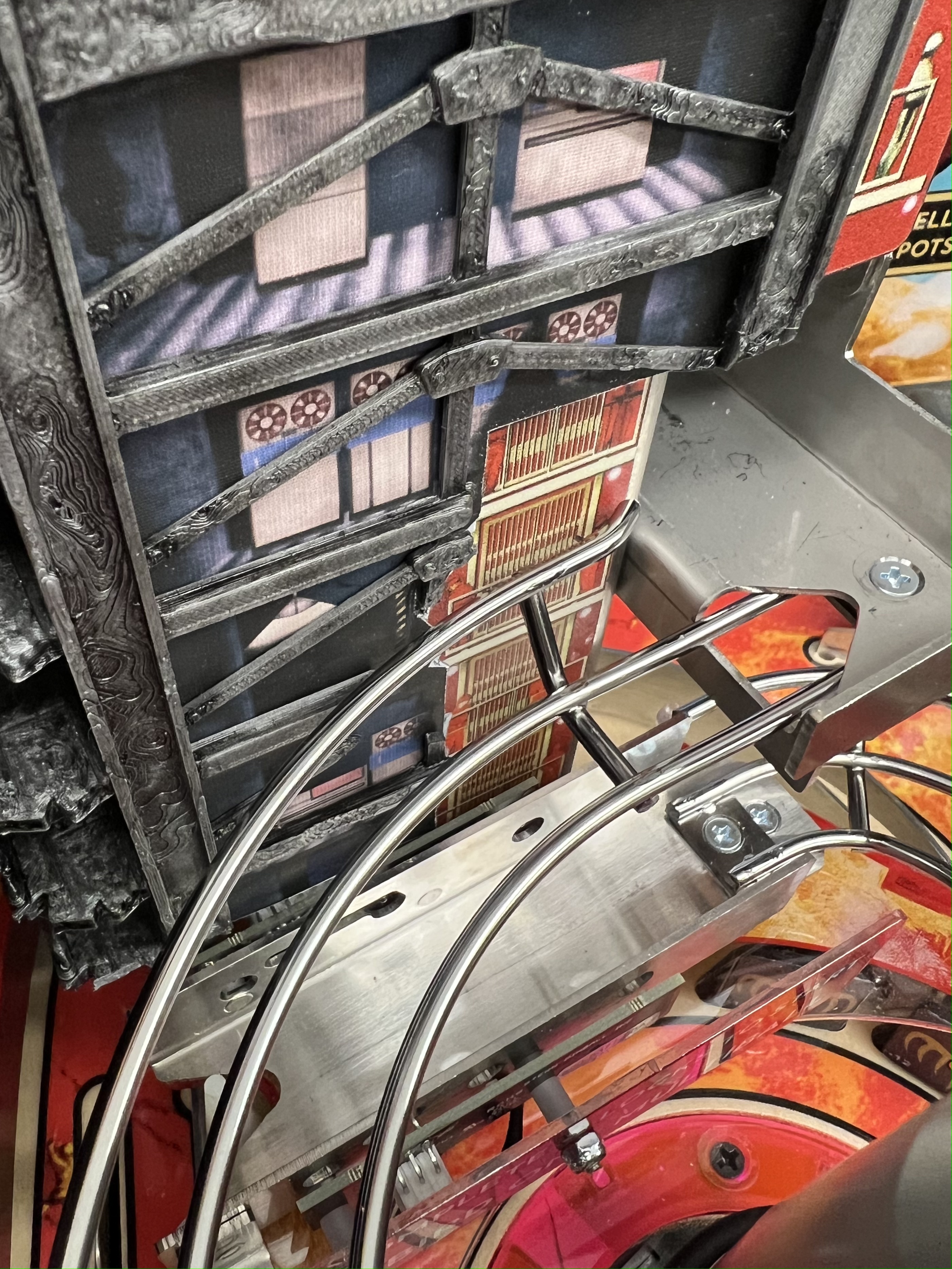

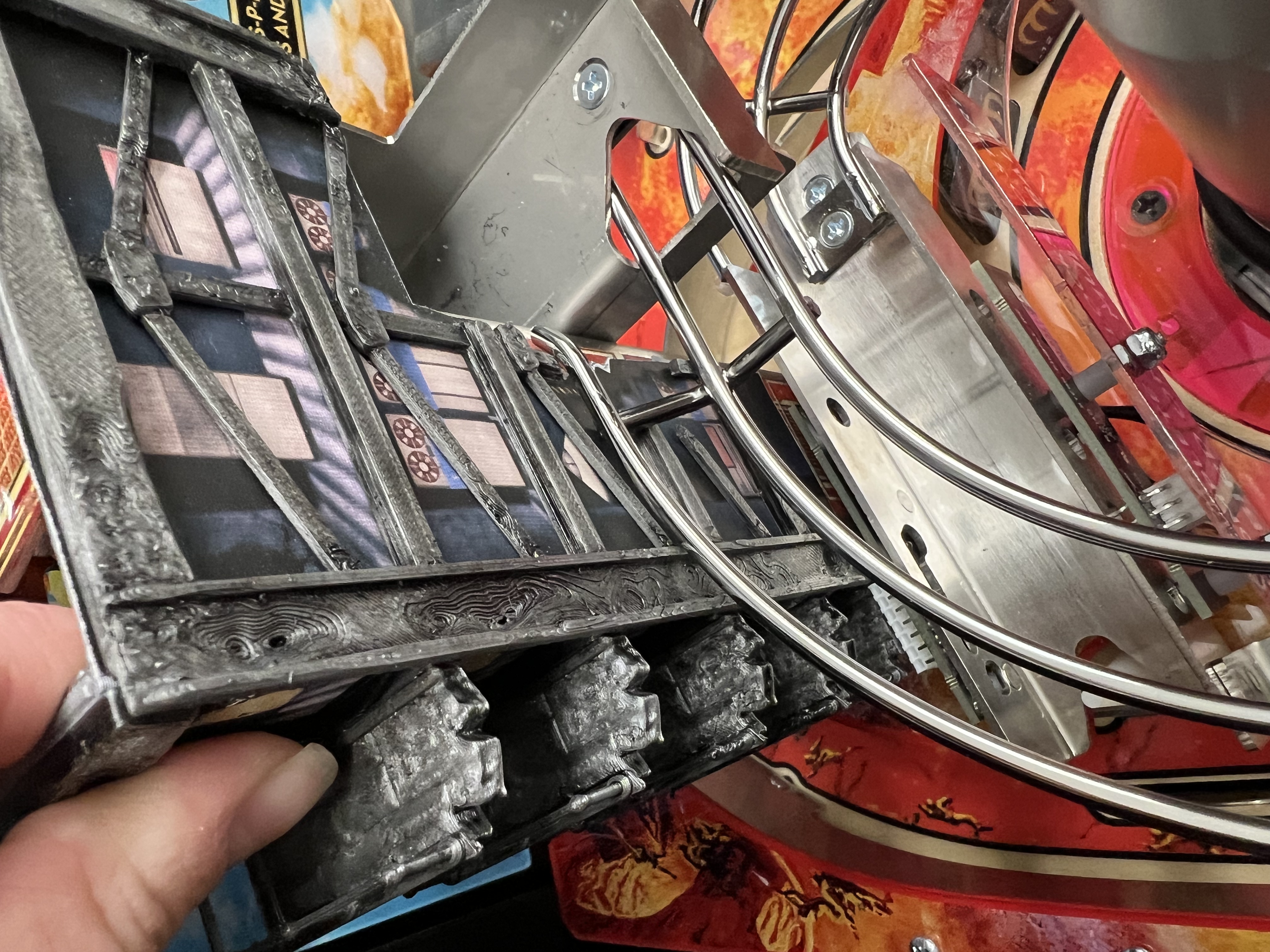

2. Take left/front side of building and slide onto factory building. Nestle into place as it will be a tight fit.
3. Fit top/right side of building onto front. Roof should snap both pieces into place.
4. Return playfield to correct position. SLOWLY put glass back into cabinet as to not break mod.

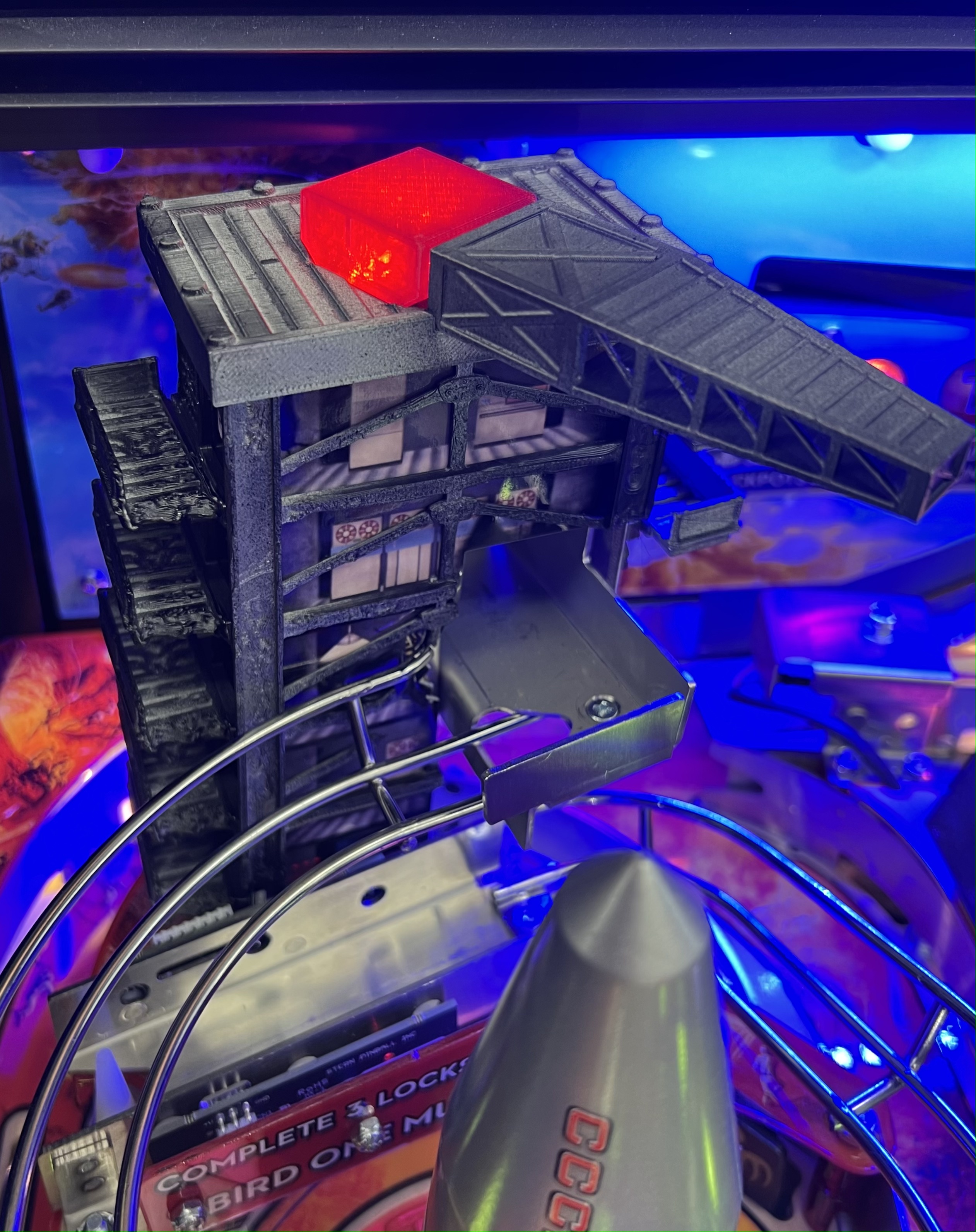

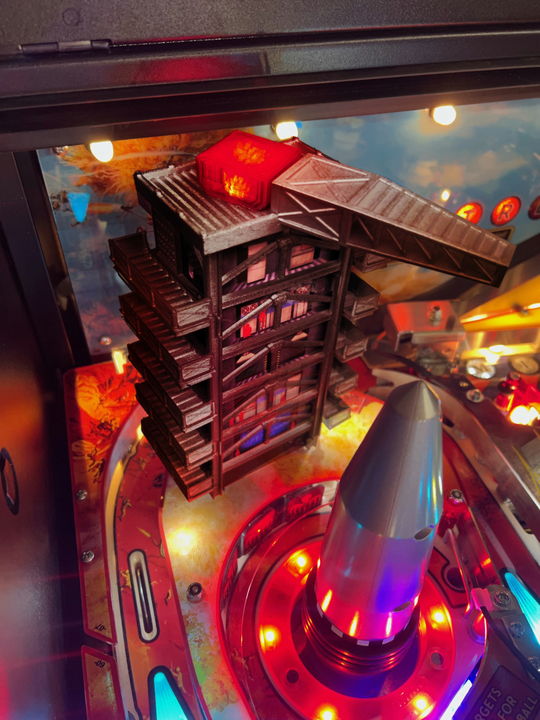

4. Finished!
INSTALLATION FOR SCAFFOLDING PRO (NOTE - Install photos for Pro show an earlier prototype, current product has closed railings.)
1. Turn off machine and remove glass from cabinet. Pull out playfield several inches.

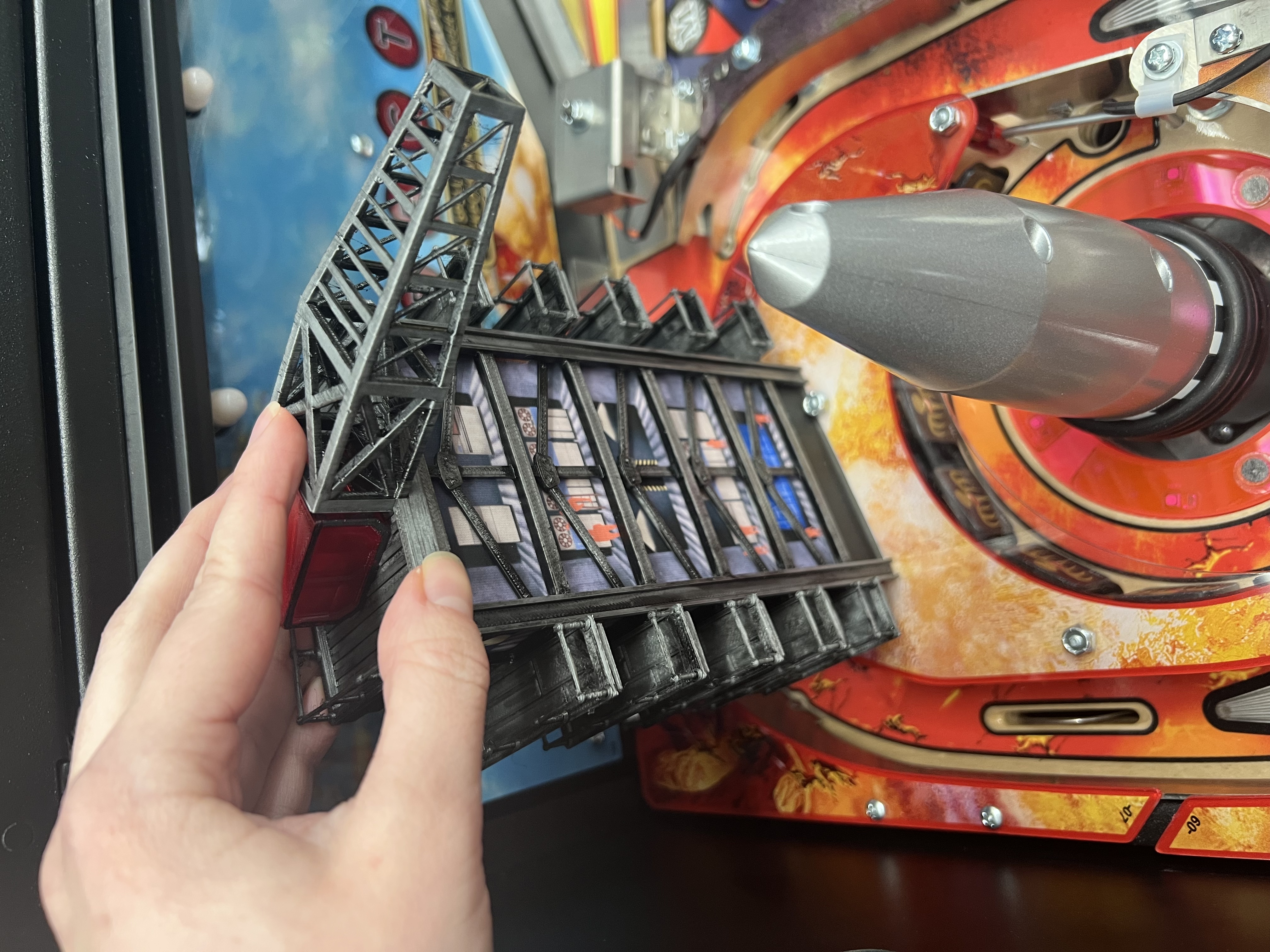

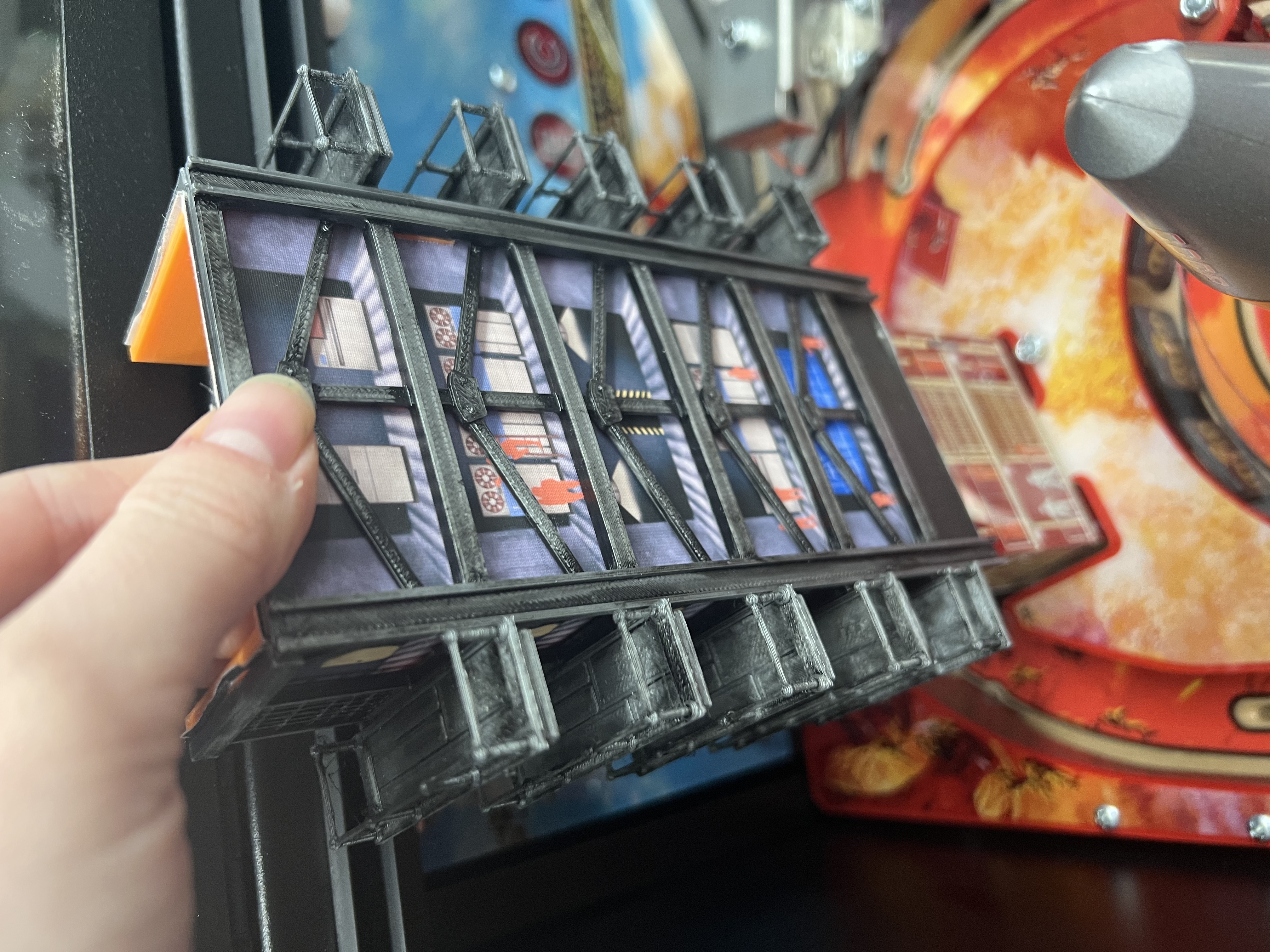

2. Slide Base over factory acrylics.
3. Snap roof into place.
4. Return playfield to correct position. SLOWLY put glass back into cabinet as to not break mod.

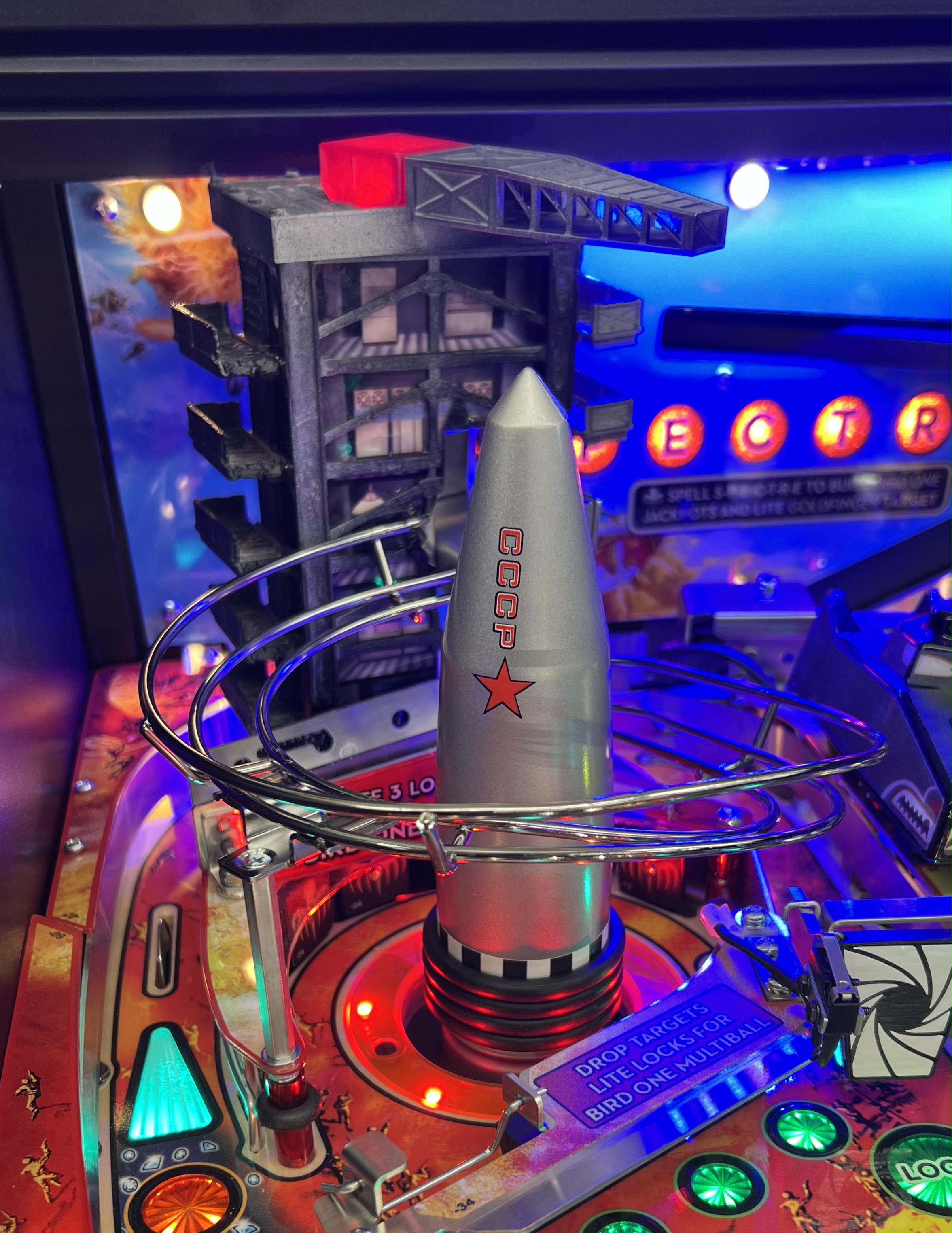

5. Finished!
