007 - Roulette Wheel

These instructions are applicable to the following products:

• MM-007-ROULETTEWHEEL

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

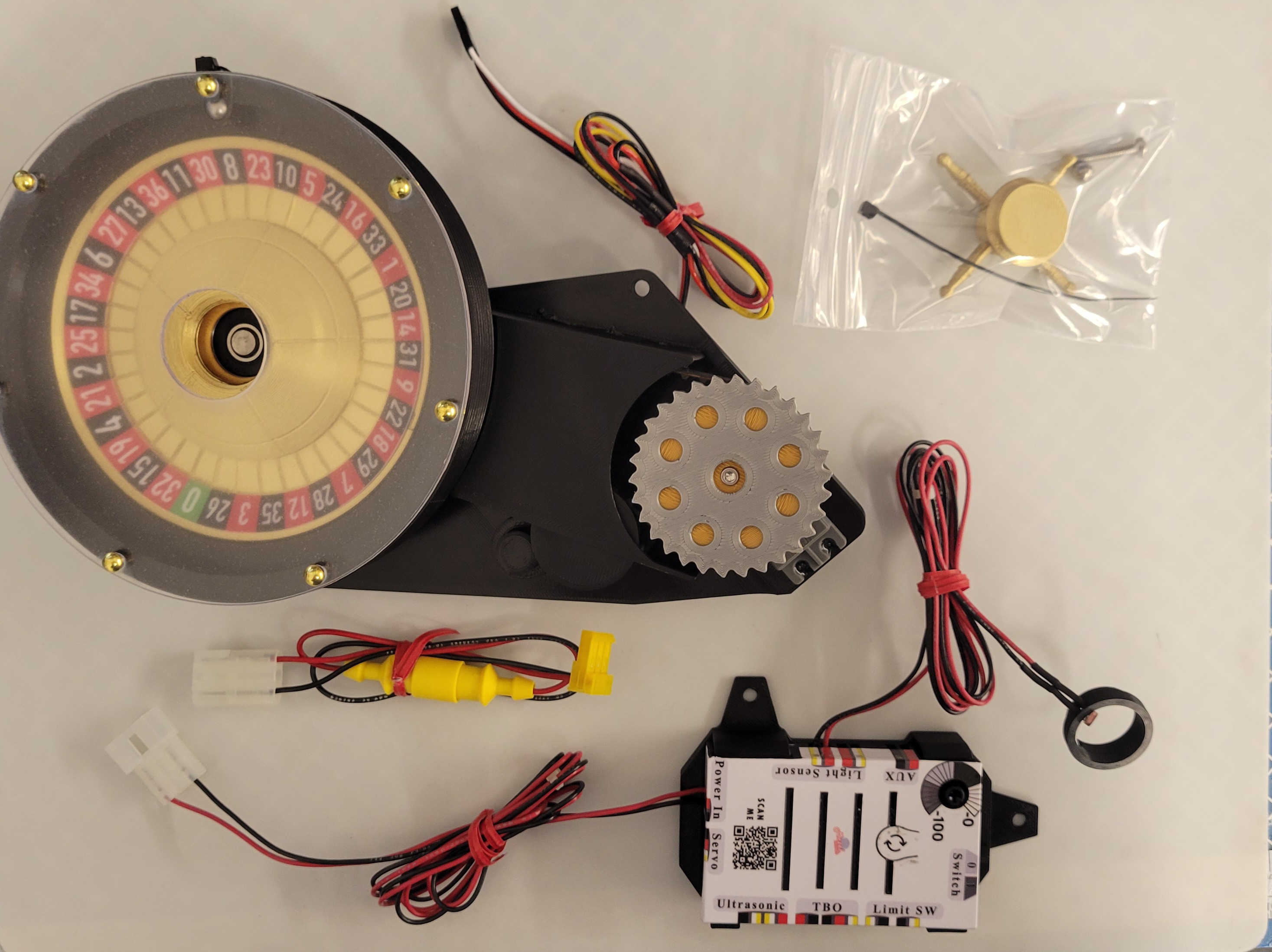

What's Included: Roulette wheel attached to mount 3x - 6-32 x 1/2" Phillips Pan Head (not shown) 12v Spike Power Adapter Zip-ties (not shown) Mod Board with power wiring (3-pin Molex) and signal wiring (light sensor) 1 x Tension Holder (not shown) Roulette ball and Turret
What's Needed: #1 Bit Phillips Head Screwdriver #2 flat head bit or Hex nut driver Pinball Cabinet assembly protector (Optional)

TURN OFF GAME

Please turn off the game prior to installation. Do not install product with game powered on.

Playfield Roulette Installation -- Click to Expand

1. Remove the lockdown bar and slide the glass off; set it in a safe place.

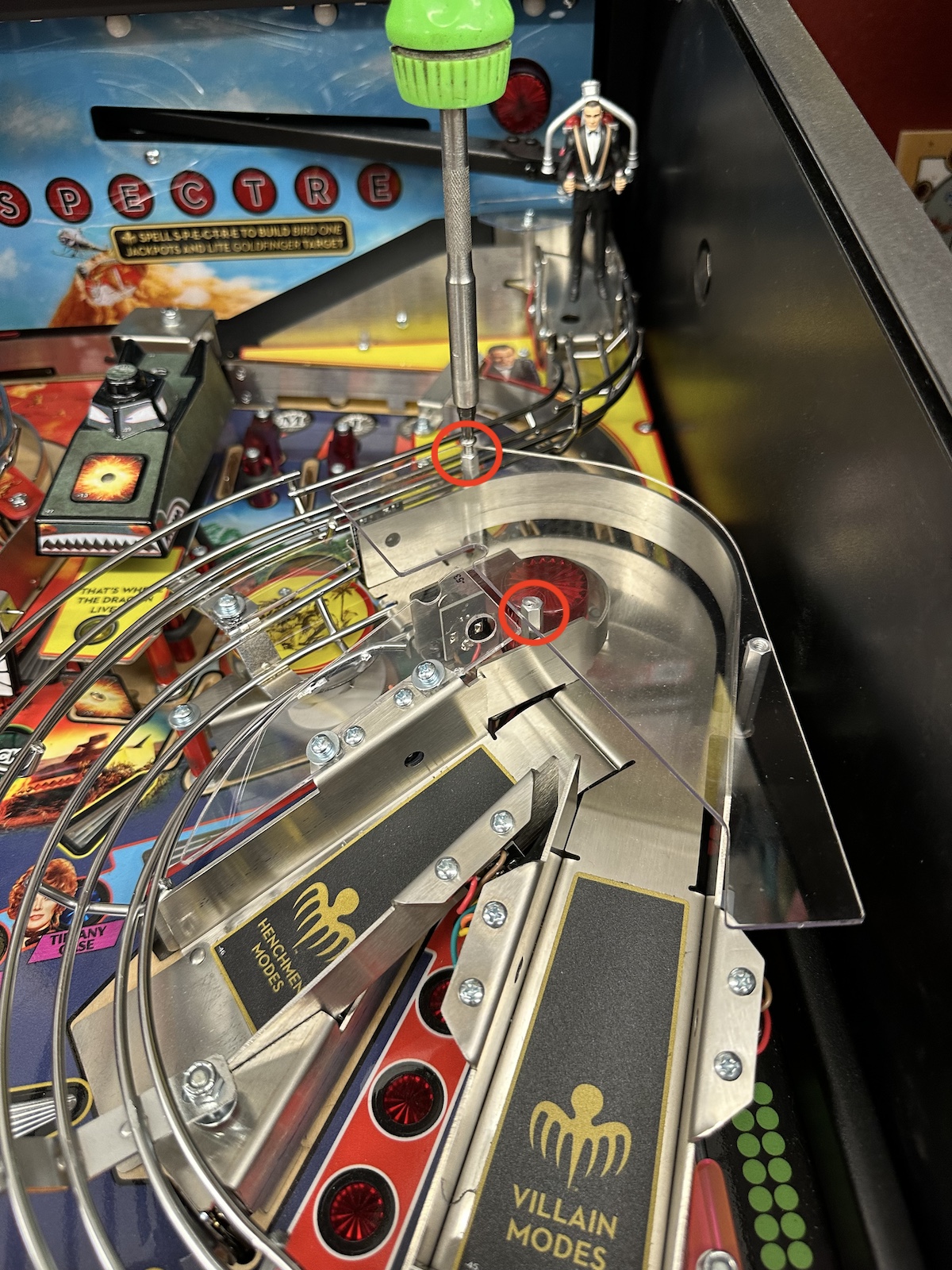

2. Remove x2 of the factory screw, on the factory acrylic on the Villan Mode ramp area. Remove acrylic and set aside as it is not used in the final installation.

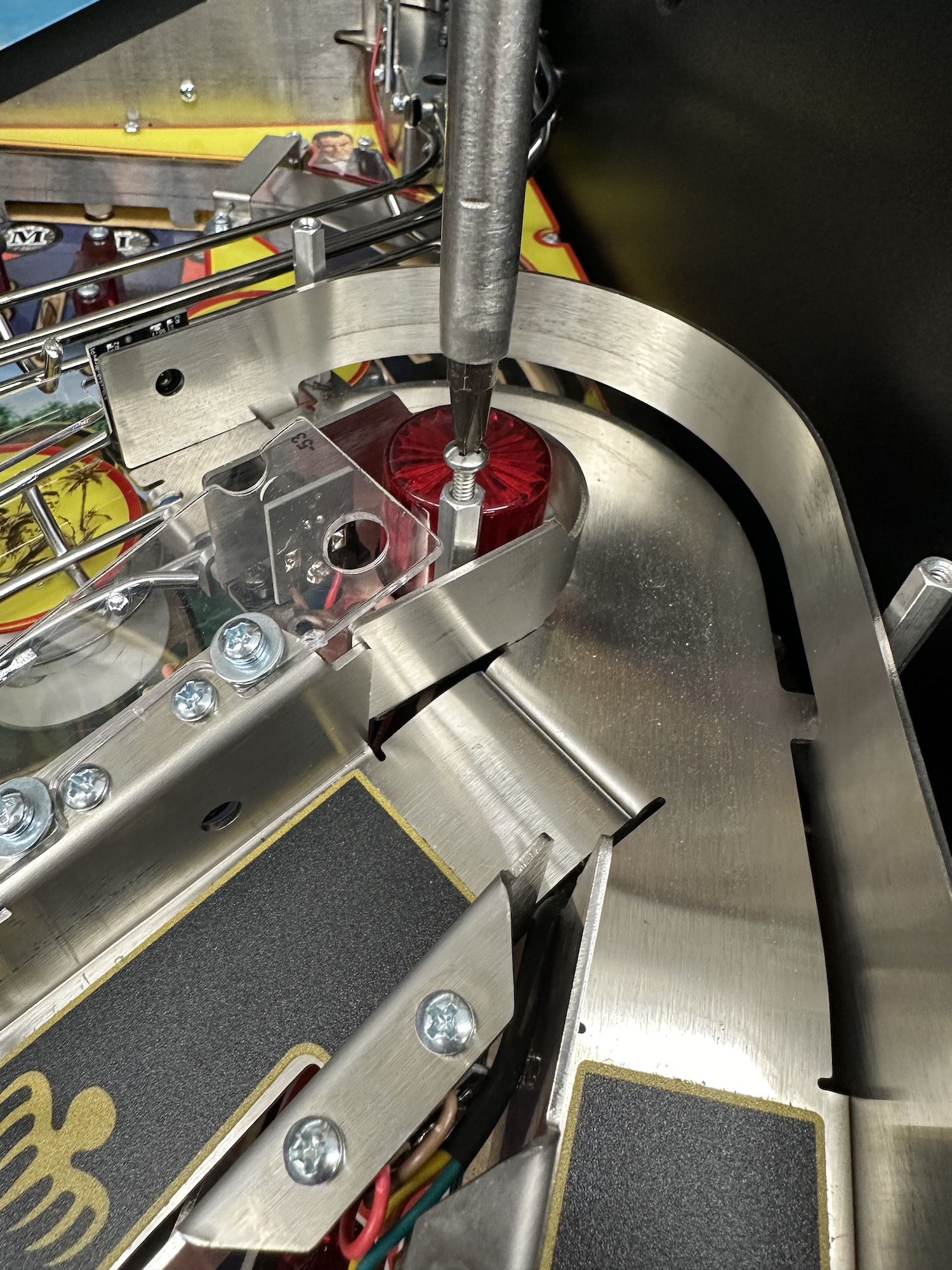

3. Screw one of the 1/2" screws provided in the kit, into the front most post leaving approximately 1/4 of it unscrewed.

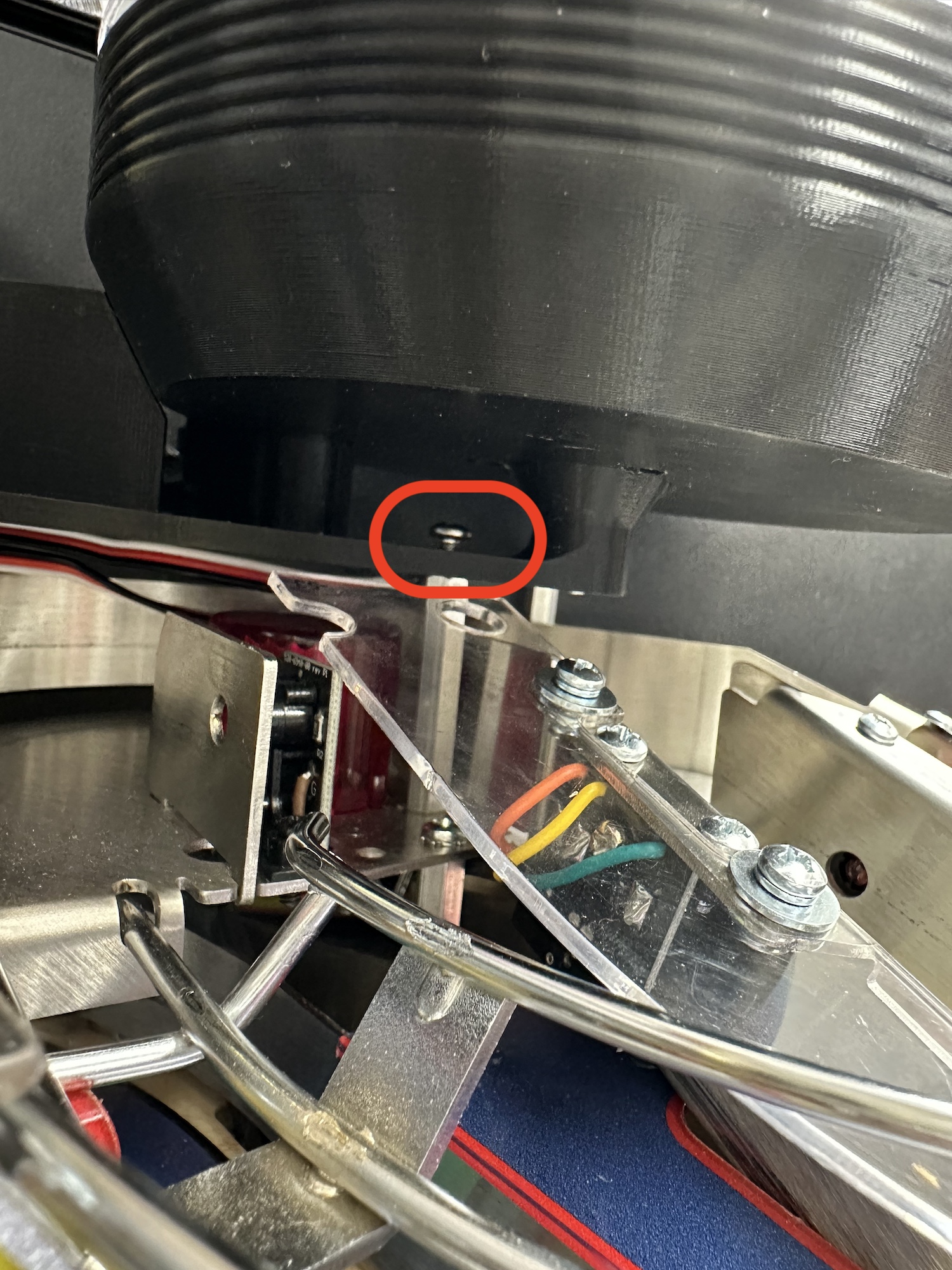

4. Align the opening on the underside of the roulette with the screw top and slide backward into place. You may need to adjust the screw to be slightly tighter or looser while completing this step. The mount is fully seated when screw holes in Step 6 align with playfield posts.

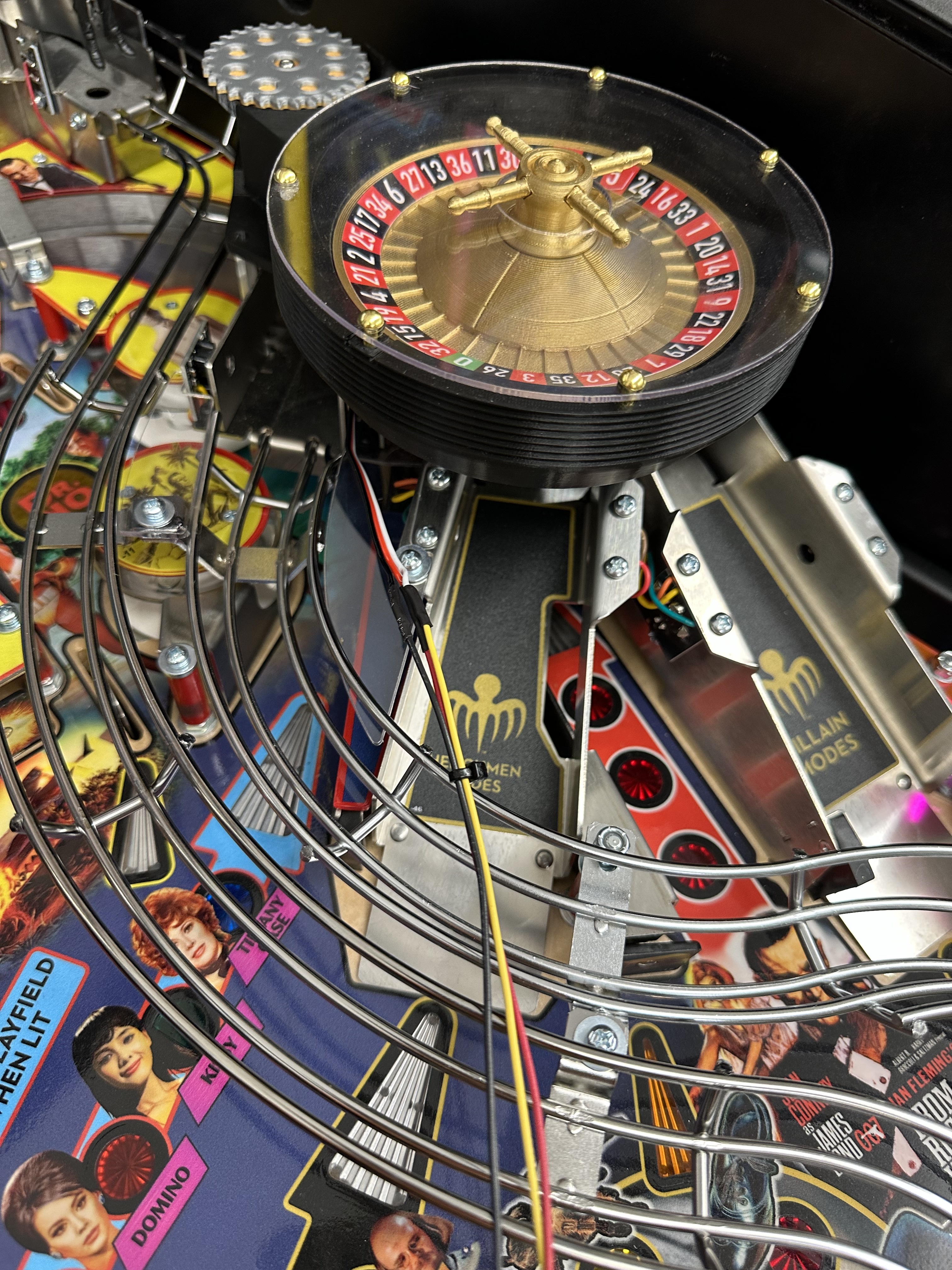

5. Pull the wiring from the roulette forward toward the front of the machine as shown (ensure the wiring is not wrapped around posts or ramp parts).

6. Drop the ball into the roulette wheel between the turret and the acrylic.
7. Next align the screw openings on the roulette mount to the ramp posts. Attach using the remaining two screws provided in the kit.

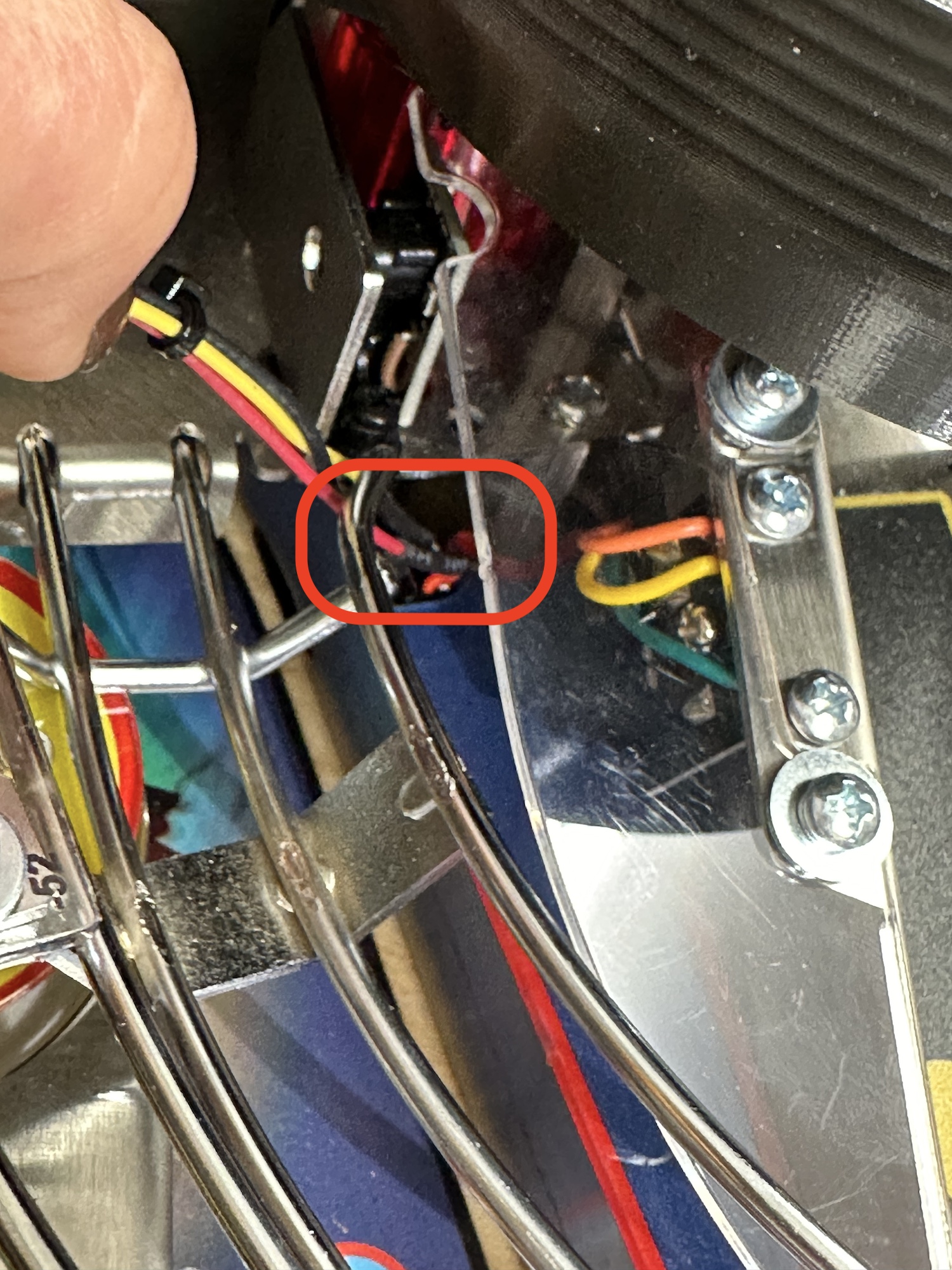

8. Once the roulette is mounted to the top of the playfield, run the wiring down into the opening shown in the following photos. The opening is between the wire ramp and the Villian Mode ramp, near the post mount from Step 4. Push wiring through as far as possible.


Wiring Installation -- Click to Expand

1. Remove playfield balls and lift the playfield into an upright position.

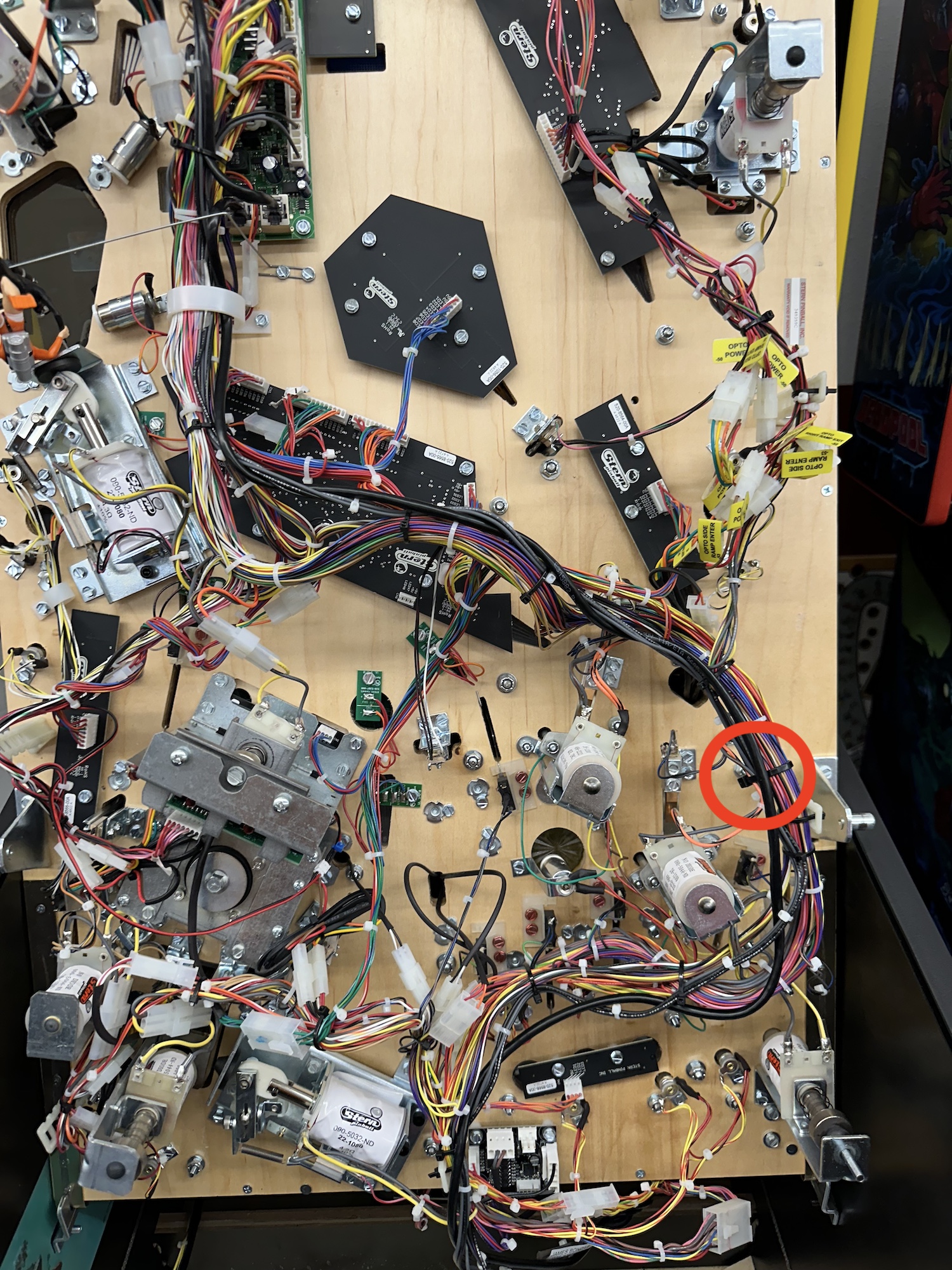

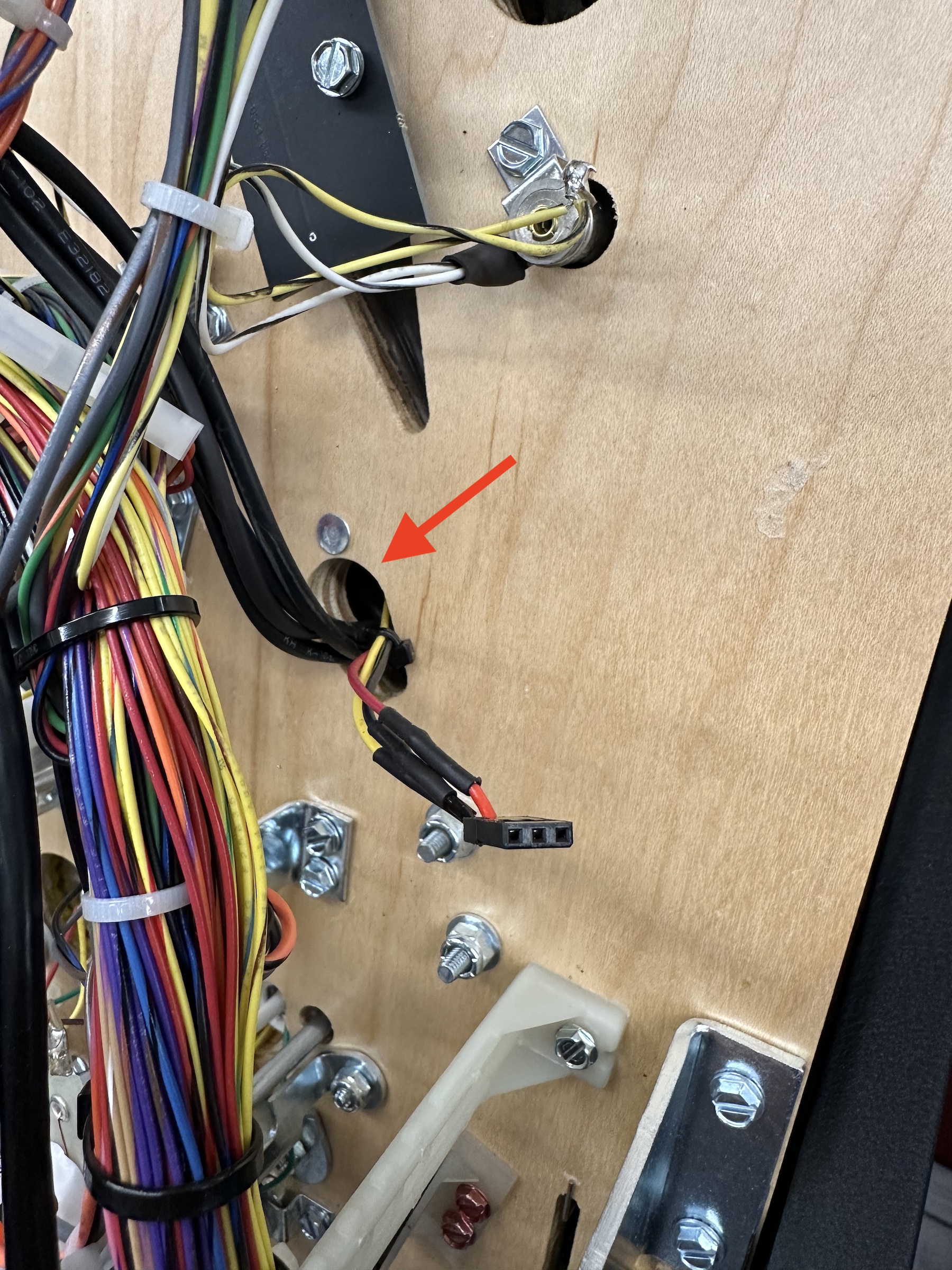

2. Locate the opening where the servo wiring was fed. The wiring should be visible. If not reach around to the wiring above the playfield and attempt to push through. Next, pull the wiring until the slack is removed from the above playfield.

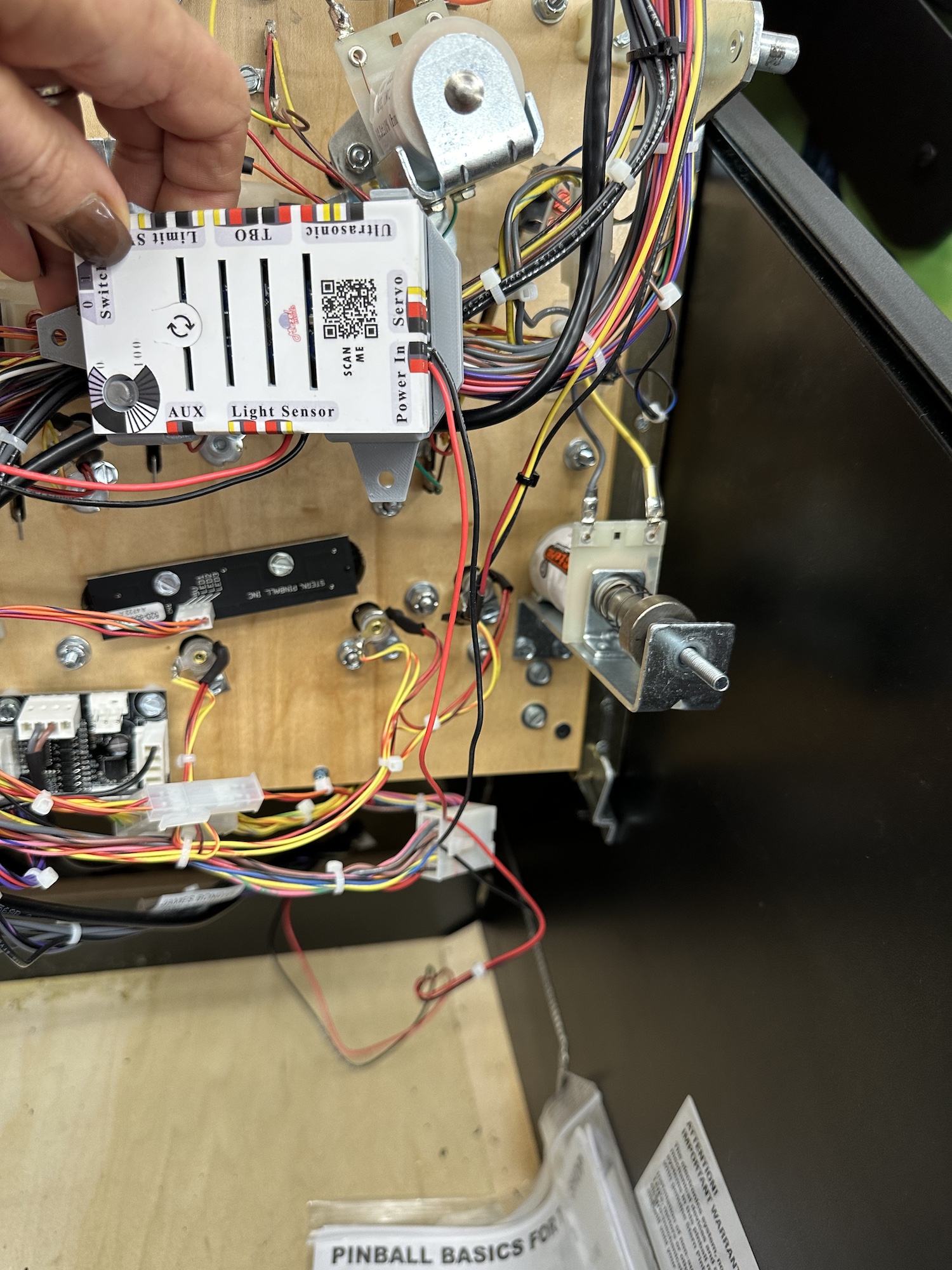

3. Take the Control Board and use zip ties (included) to mount it along the game's wiring bundle as shown. Ensure the Power and Servo connection points marked on the outside of the board are on the right side.

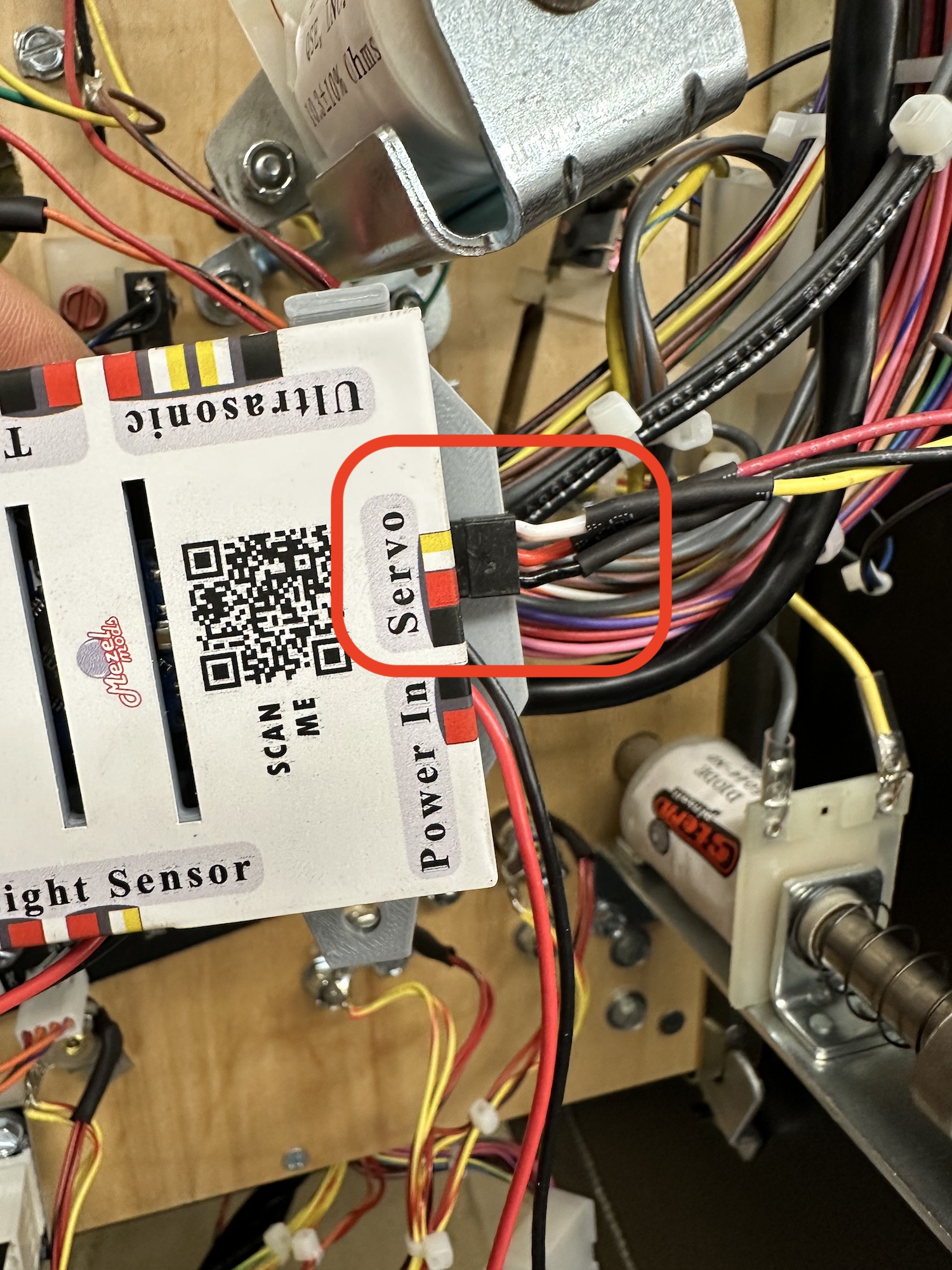

4. Connect the servo wires to the board, ensuring the wiring matches the guide on the box (white/yellow, red, black).

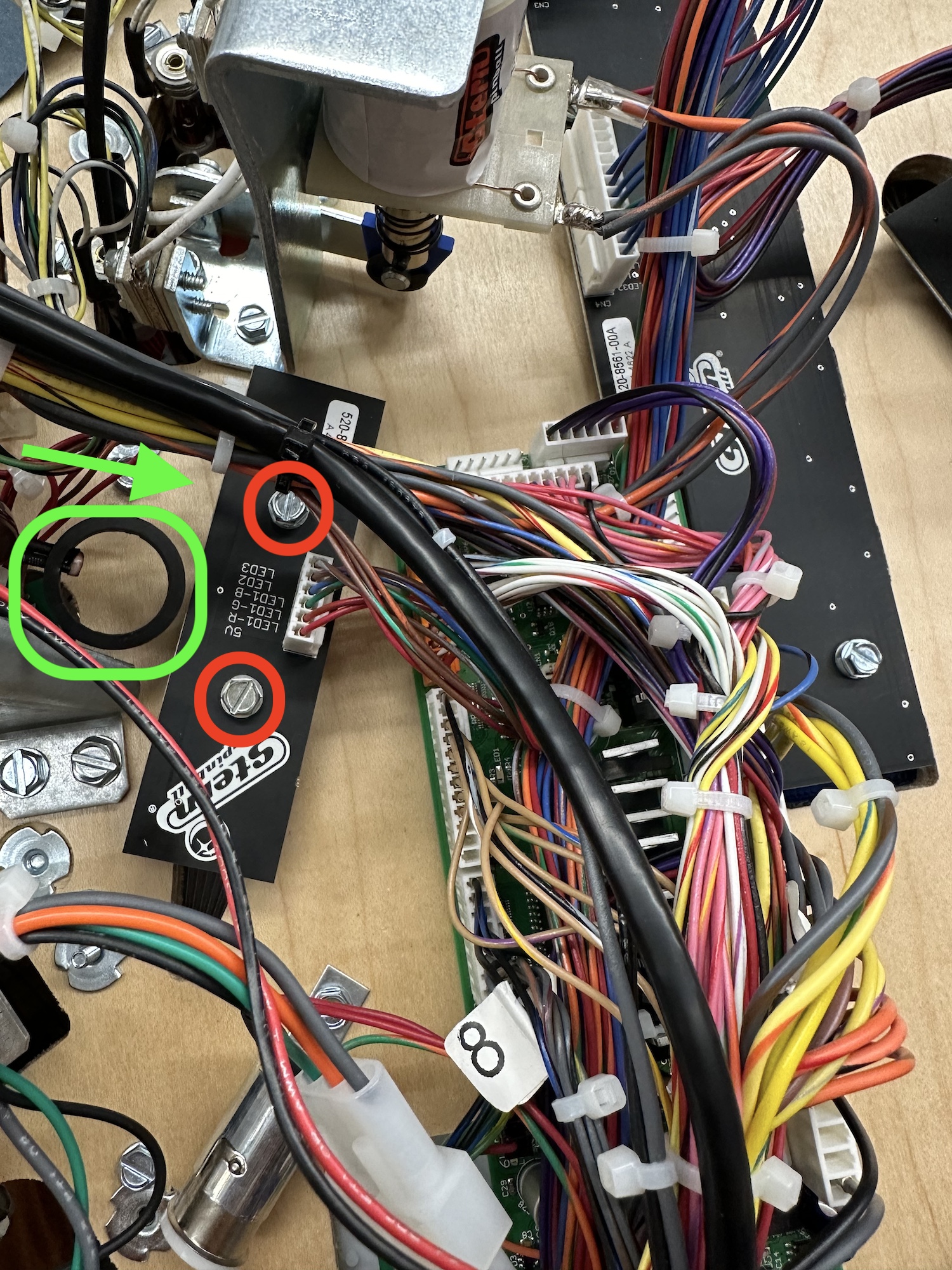

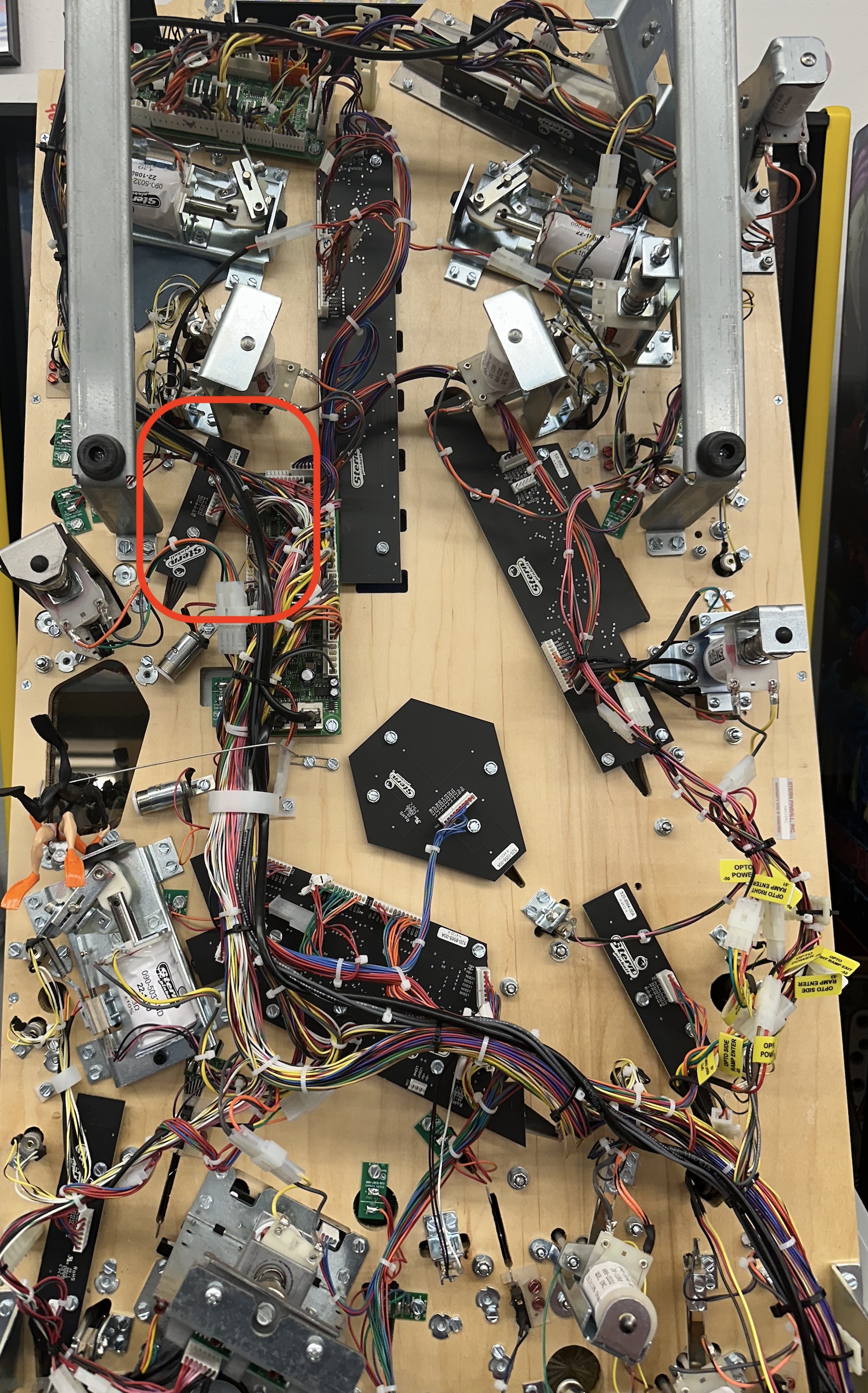

5. Next locate the board under which the High Stakes Insert is located (top 1/3 of the playfield, left side). Loosen the board slightly to gain access to the insert.

6. Run the signal (light sensor) wiring up to the node board and while lifting the node board, carefully slide it into the High Stakes insert. While the mount will not snap into place, it should sit into the insert fully and will be held in place by the tightened board. Once fully seated, tighten the node board.

7. Remove the twist tie from the 'Power In' wiring from the servo box. Run it down under the bottom of the playfield, leaving it for connection in the Power Wiring Installation section.

Roulette Wheel Board Set Up-- Click to Expand

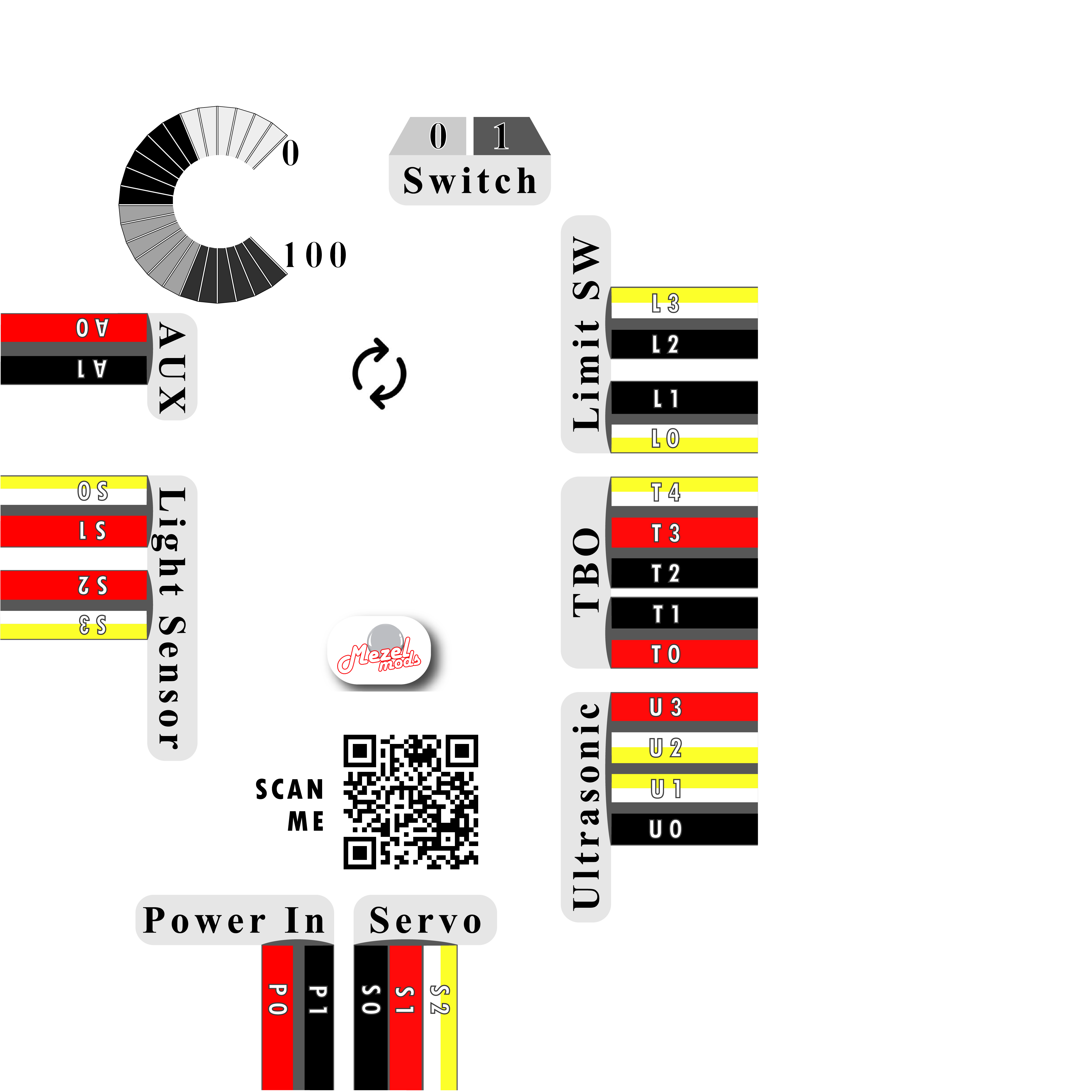

The Roulette Wheel uses the Mezel Mods Mod Board. The pertinent adjustment functions are described below.

Game Modes:

The roulette wheel has two activation settings which can be adjusted on the Board using the switch positions. The Switch is located in the top right

Position	Mode
0 (left)	Game (player activated via activating High Stakes). The wheel spins when B-O-N-D on the inner/out lanes have been lit twice, lighting High Stakes.  Consecutive activation of the wheel will only occur after three minutes between spins.
1 (right)	Timer/Random  The wheel will spin on a timed program irregardless of player actions.

Reset / Change Game Modes:

Move the Switch into the desired mode then press the reset button or power down the pinball machine and power it back on.

Resets are a good troubleshooting step as well if the wheel is not functioning properly a quick reset is a great first step.

The reset button is located at the center close to the top, identified with this symbol:

Power Wiring Installation -- Click to Expand

1. Install the Spike 2 Power Adapter (visit this link).
   Once installed, run the wiring down through the backbox opening.

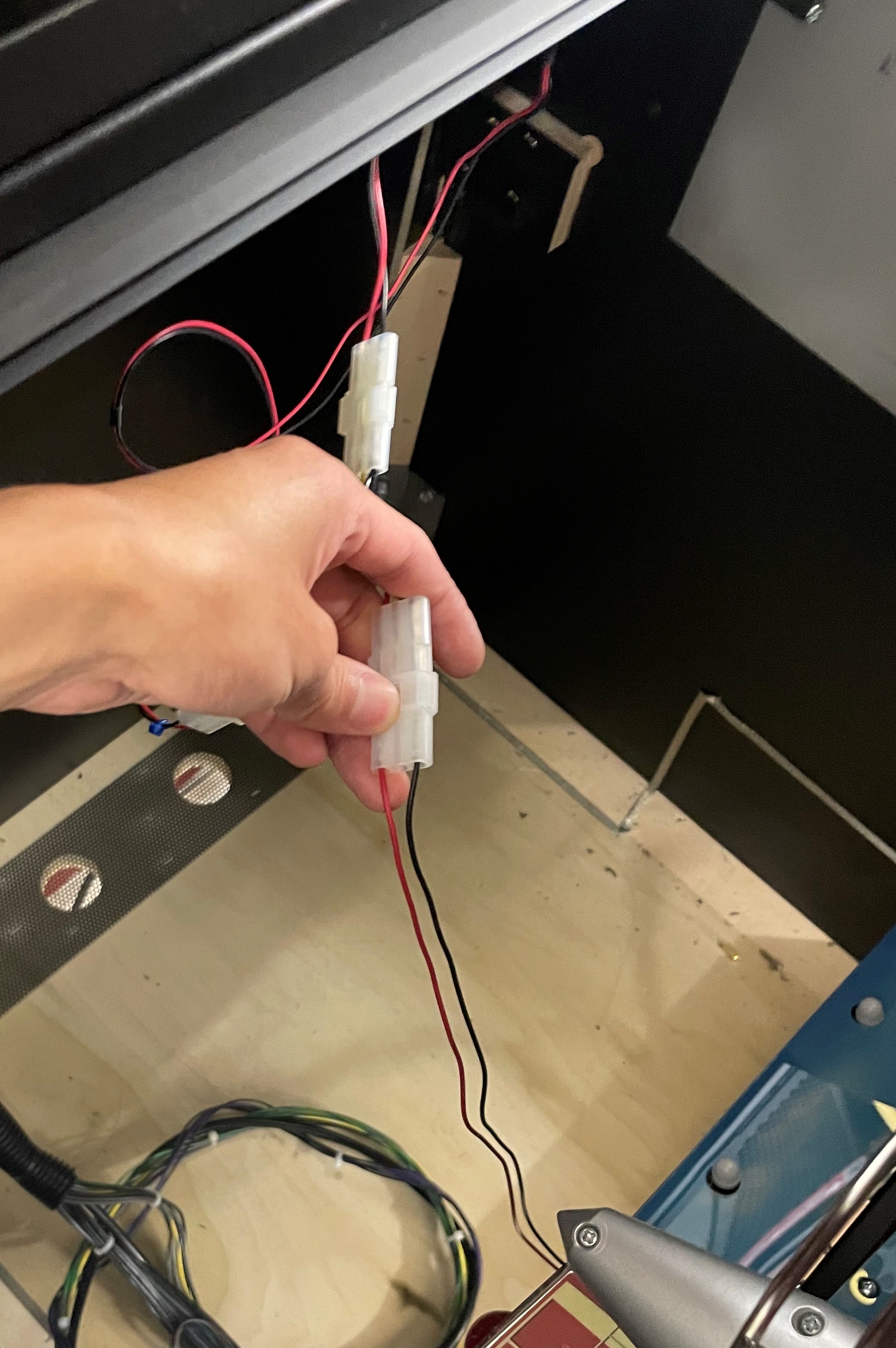

2. Connect the Molex plug to the previously installed SPIKE 2 Power Adapter.


Final Roulette Prep -- Click to Expand

1. Continue installation of Roulette by lowering the playfield and replacing balls.
2. Test the belt tension by manually rotating the Saw Gear. Continuous Rotation should occur and no slippage in the belt. If there is slippage, please see Belt Tensioning Steps.
3. Turn on the game and roulette will initialize by spinning for approximately two seconds. If no spin occurs, check the wiring from the back box and the servo to the board. Validate that servo wiring is correct.

After a successful installation enjoy the thrill of the spin :)

Troubleshooting -- Click to Expand

Belt Tensioning [THIS SECTION UNDER DEVELOPMENT]

1. Included are 2 tension holders indicated with a "1" and "2". "1" is preinstalled and "2" is intended for use after the belt requires more tension
2. *If tensioning is necessary rotate the belt tensioner COUNTERCLOCKWISE about its post. Retest the belt tension again by rotating the Saw Gear. Secure tension by repositioning the pin on the underside of the mount.
