007 - Target Kit & Illumination

These instructions are applicable to the following products:

• MM-007-TARG-ILLUM
• MM-007-TARGKIT
• MM-STERN-TARG-3



DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Target Installation

Please utilize our YouTube video and our target assembly instructions found here. While these instructions feature AIQ, you'll find the installation process is the same and only differs slightly.

Target Illumination

1. Turn off your games power, remove the glass and pinballs. Lift the playfield into standing position.

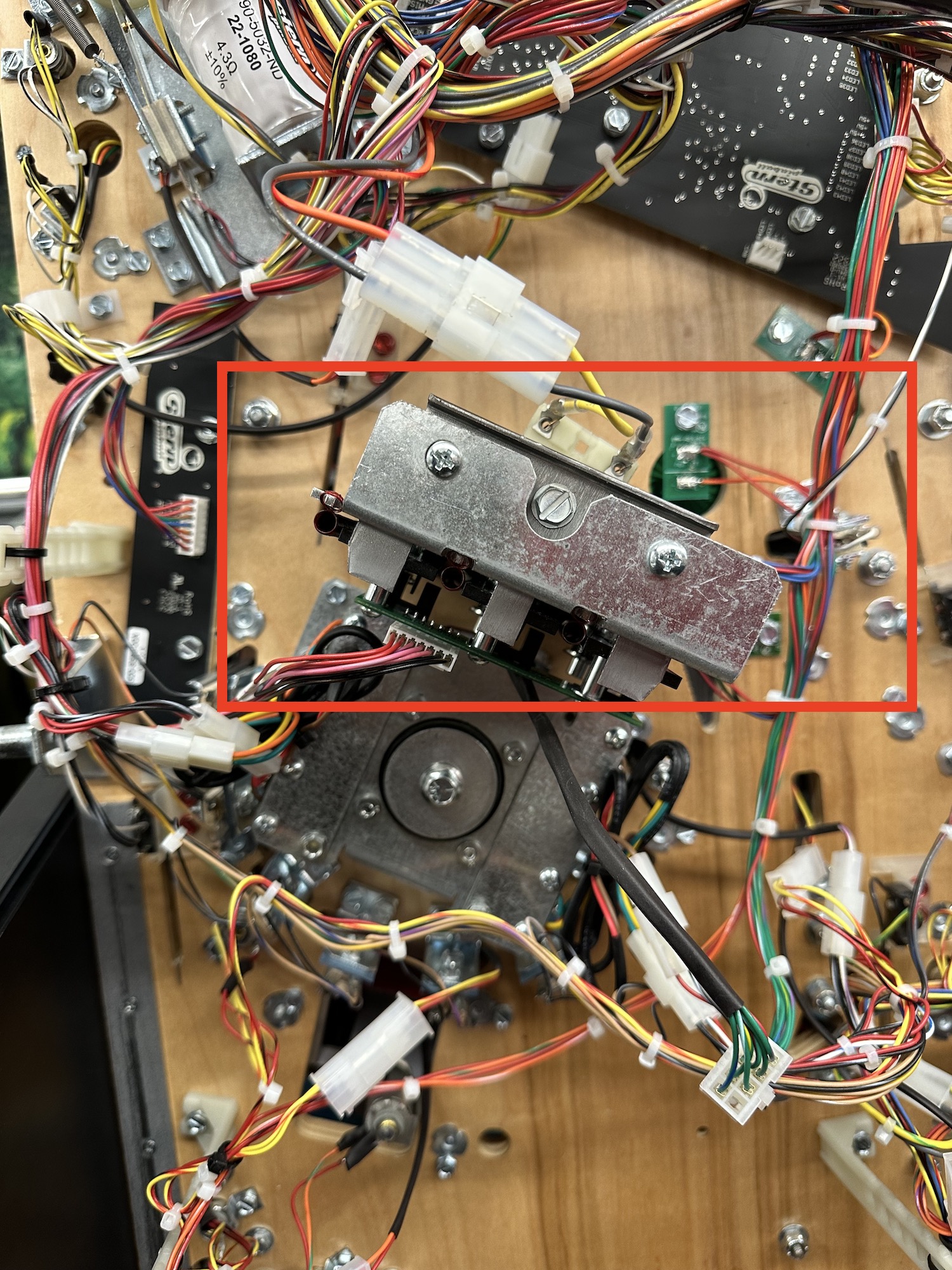

2. Locate the target bank on the lower left side of the playfield.

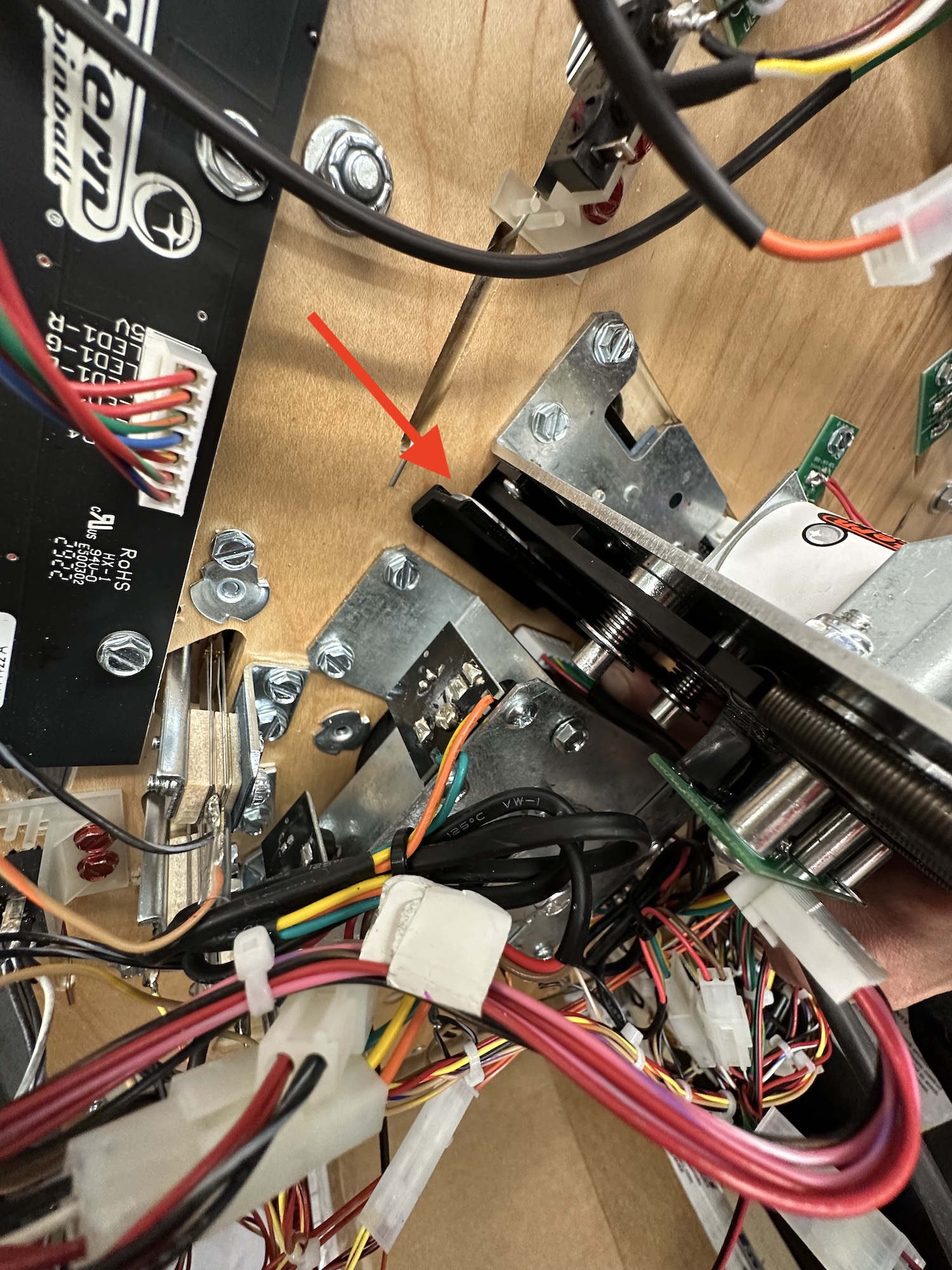

3. Remove the backing from the adhesive on the drop target bracket and slide in between the target bank and the Bird One mechanism. Be sure sufficient clearance exists between target and bracket. Firmly press on the target to activate the adhesive, ensuring that the lighting does not touch the targets and the right end of the bracket is up against the bolt on the far right.

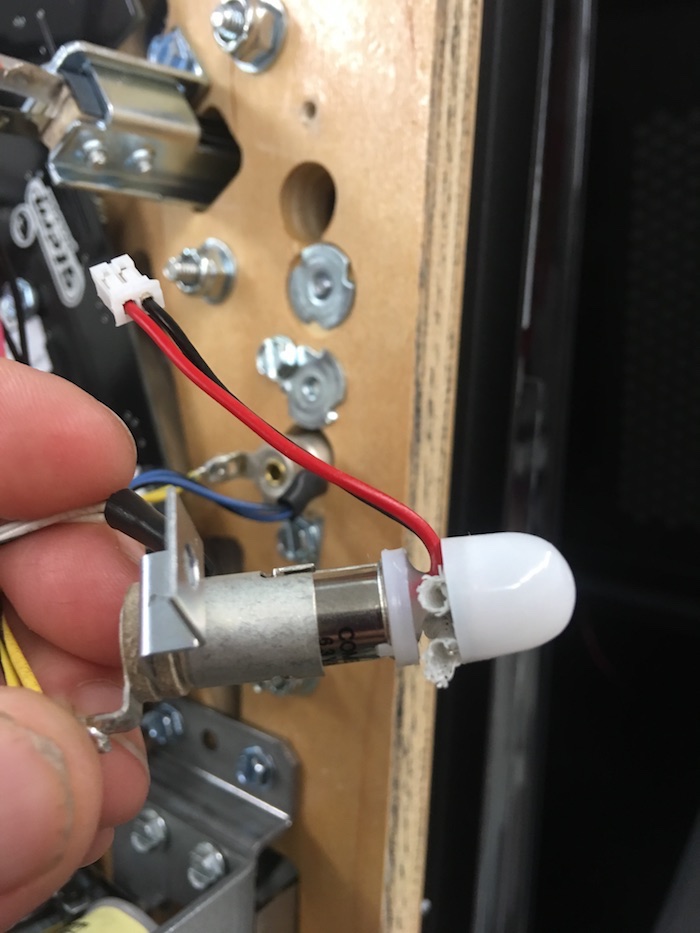

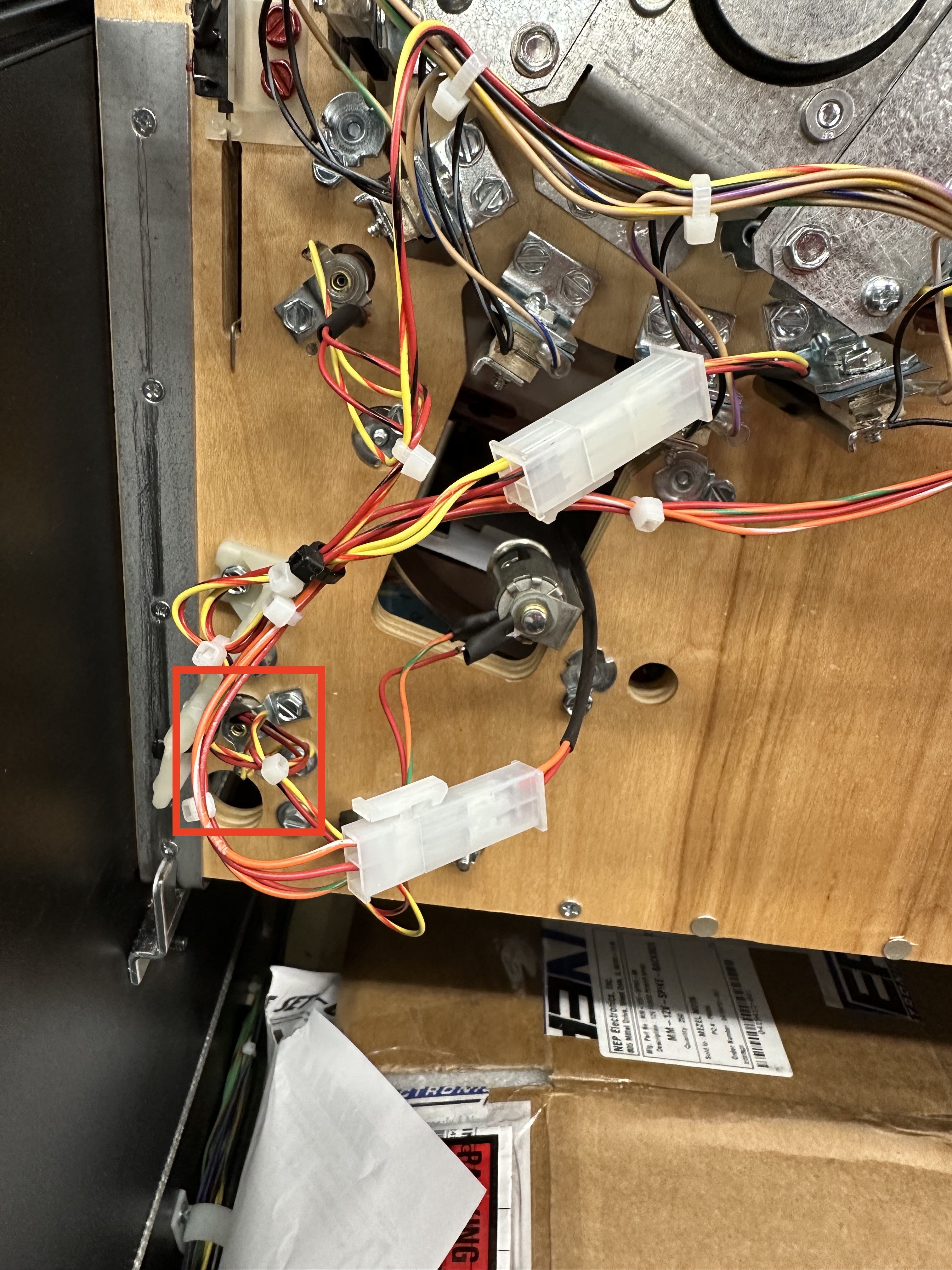

4. Utilize a 1/4" hex nut driver to remove the GI bulb assembly shown in photo. Remove the factory bulb by pushing down and twisting. Install the replacement bulb, adjusting dome so that it is close to bayonet. Reattach GI bulb assembly to playfield.



5. Lower playfield, turn on game power and test target bank either via game play or using your games diagnostics menu.
