GF - Switchblade

These instructions are applicable to the following products:

• MM-GF-SWITCHBLADE-TOY

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Remove the glass and then we recommend lifting the playfield up and out about 5 to 8 inches. Don't forget to secure the pinballs with something or remove them and use cabinet protectors (sold separately) to prevent any damage. (Please ignore the fact that this is Alien it's just an example)

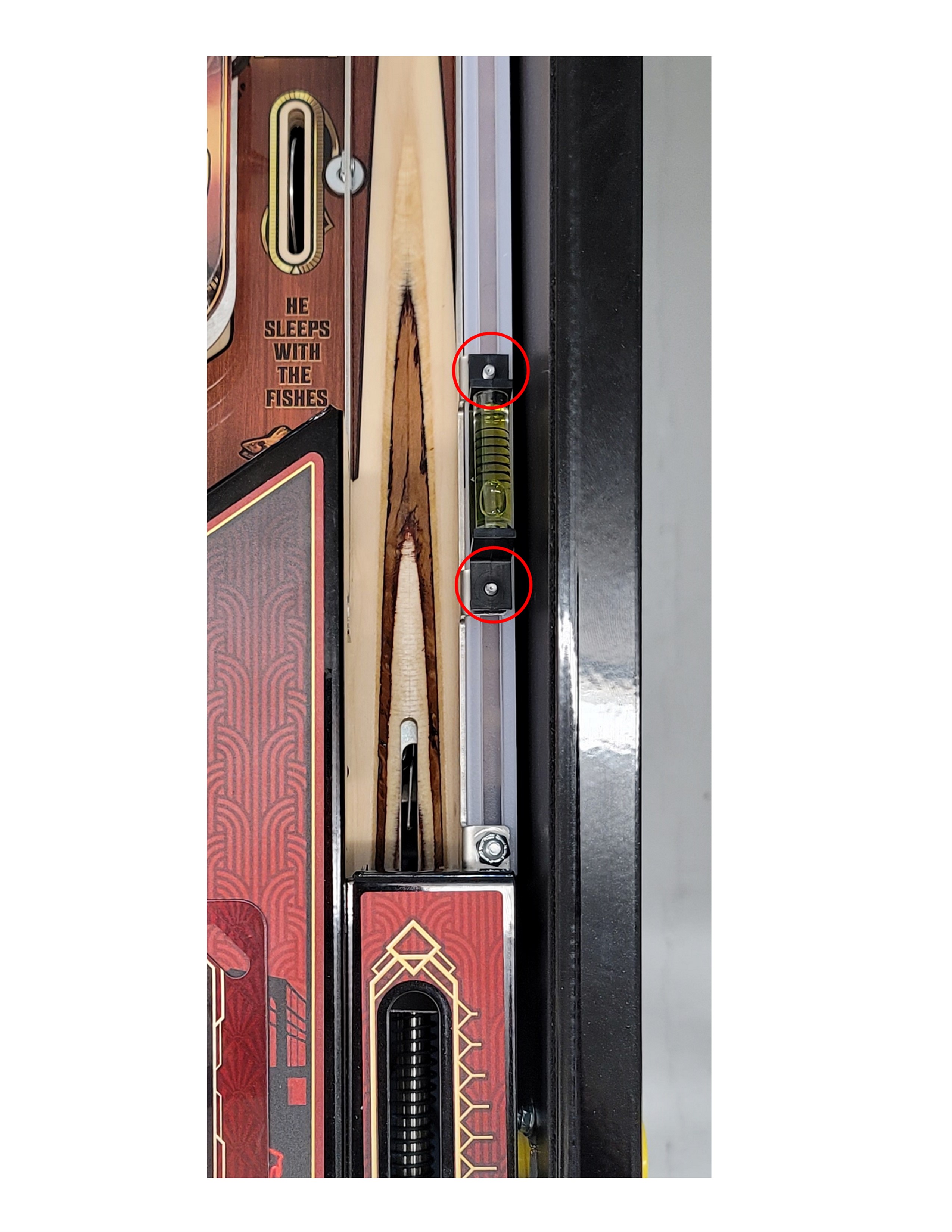

Locate the bubble level next to the shooter lane, remove the two nuts securing the level

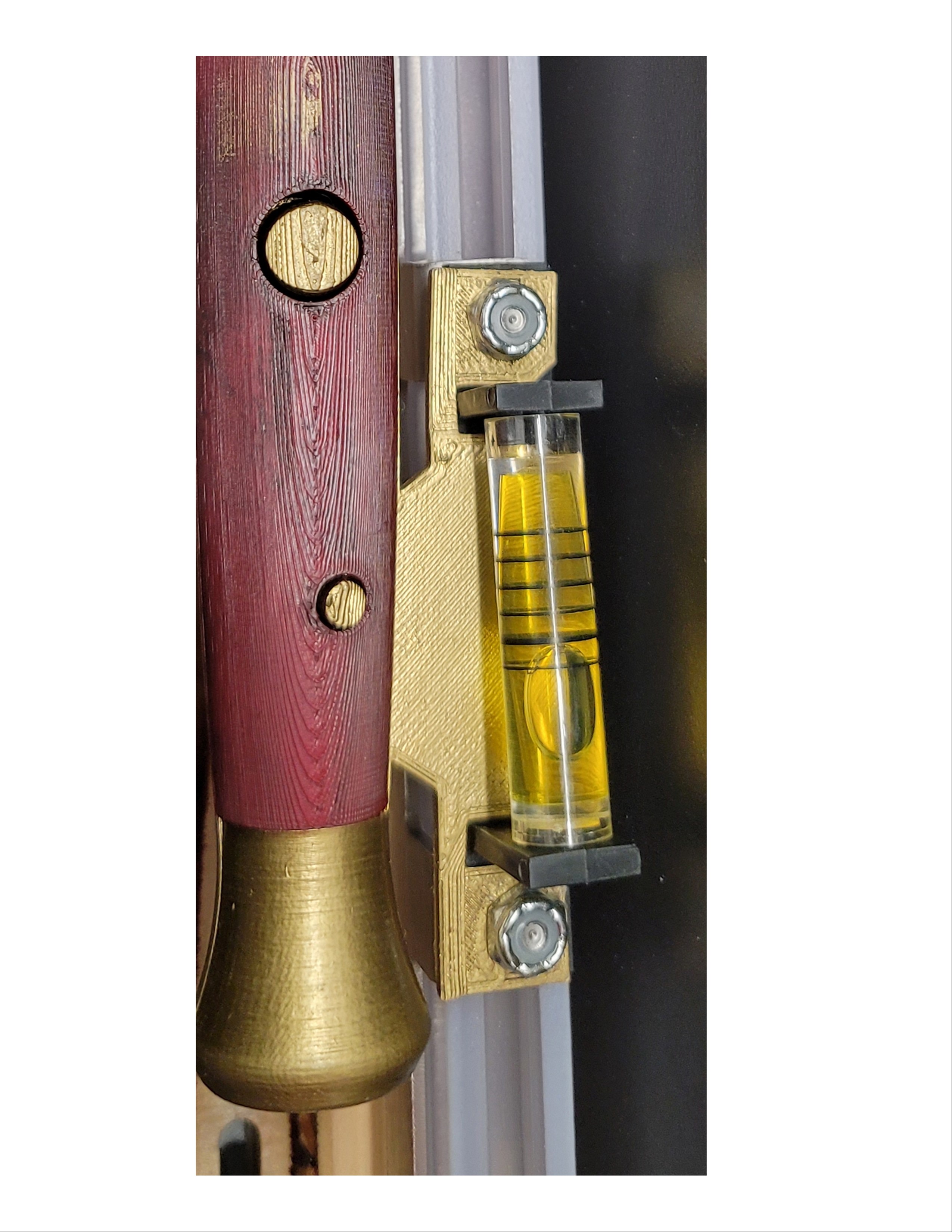

Lift up the level to the end of the bolts or take it all the way off, and slide the blade mount in between the bubble level (yellow) and the bubble level mount (black). Now simply place the bubble level and the switchblade back onto the bolts and screw the nuts back on and you're all done.
