These instructions are applicable to the following products:

MM-GF-CARCHASE

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Whats needed:

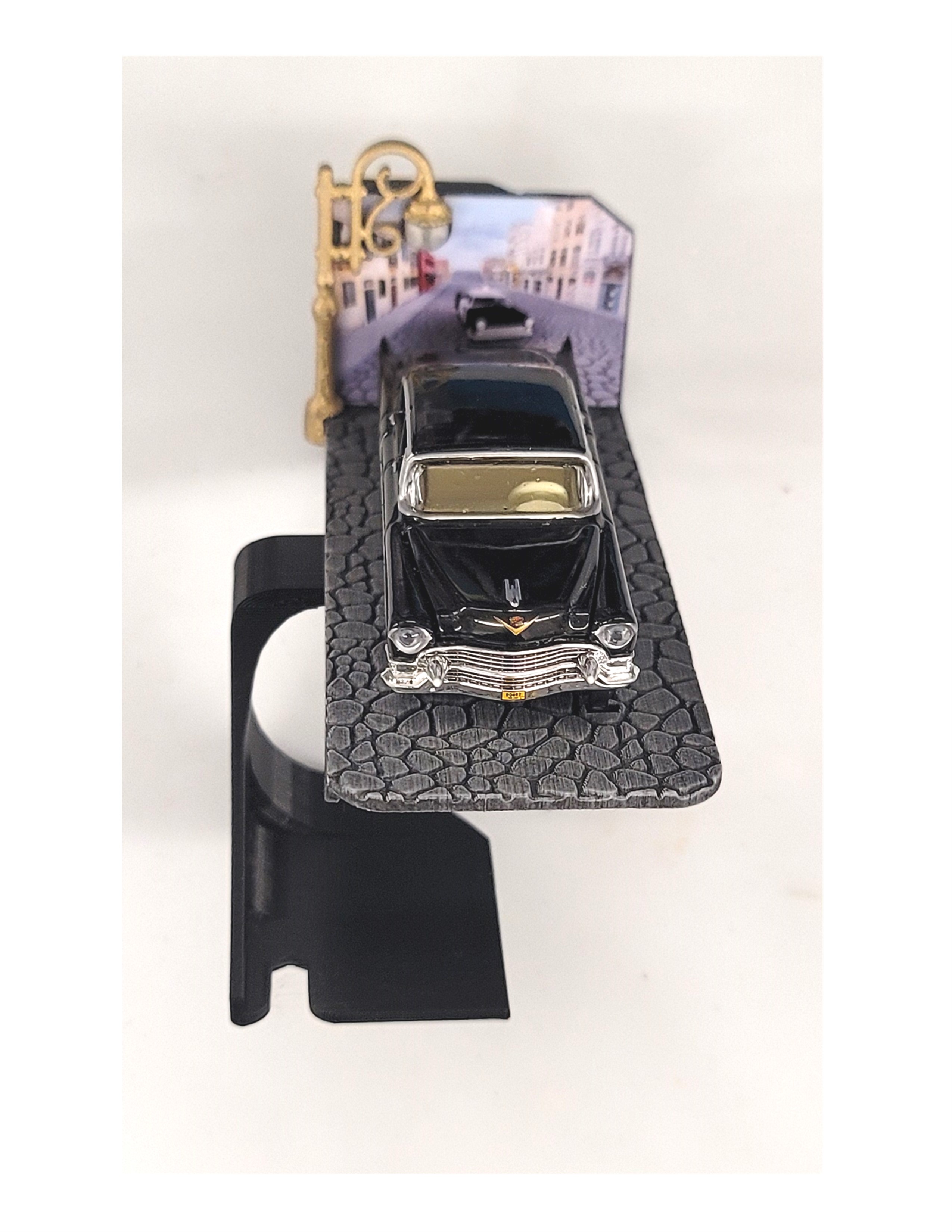

Mezel Mods Car Chase Mod (MM-CARCHASE)
An 11/32 nut driver/socket (not included)

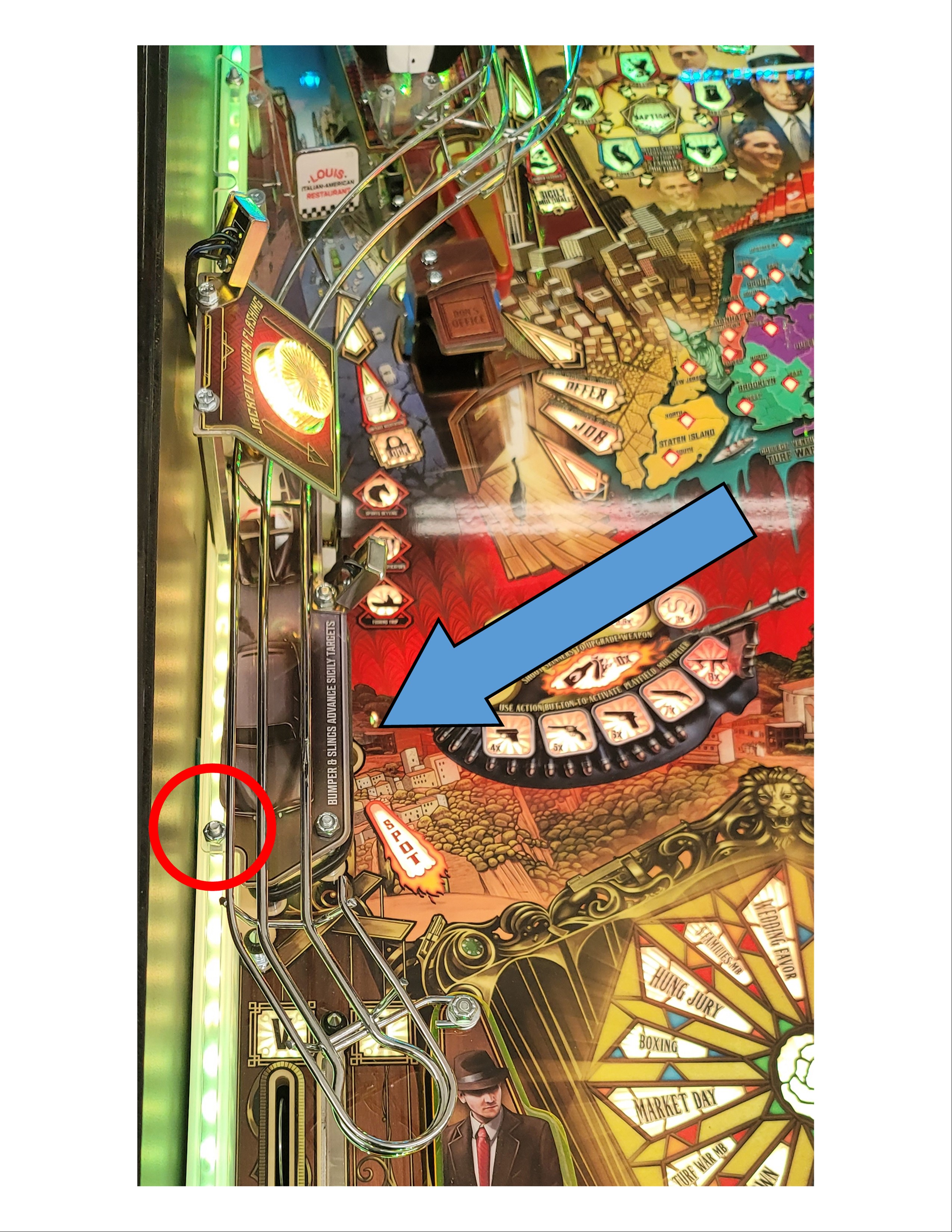

Locate the car chase acrylic on the left side of the playfield and look for this nut

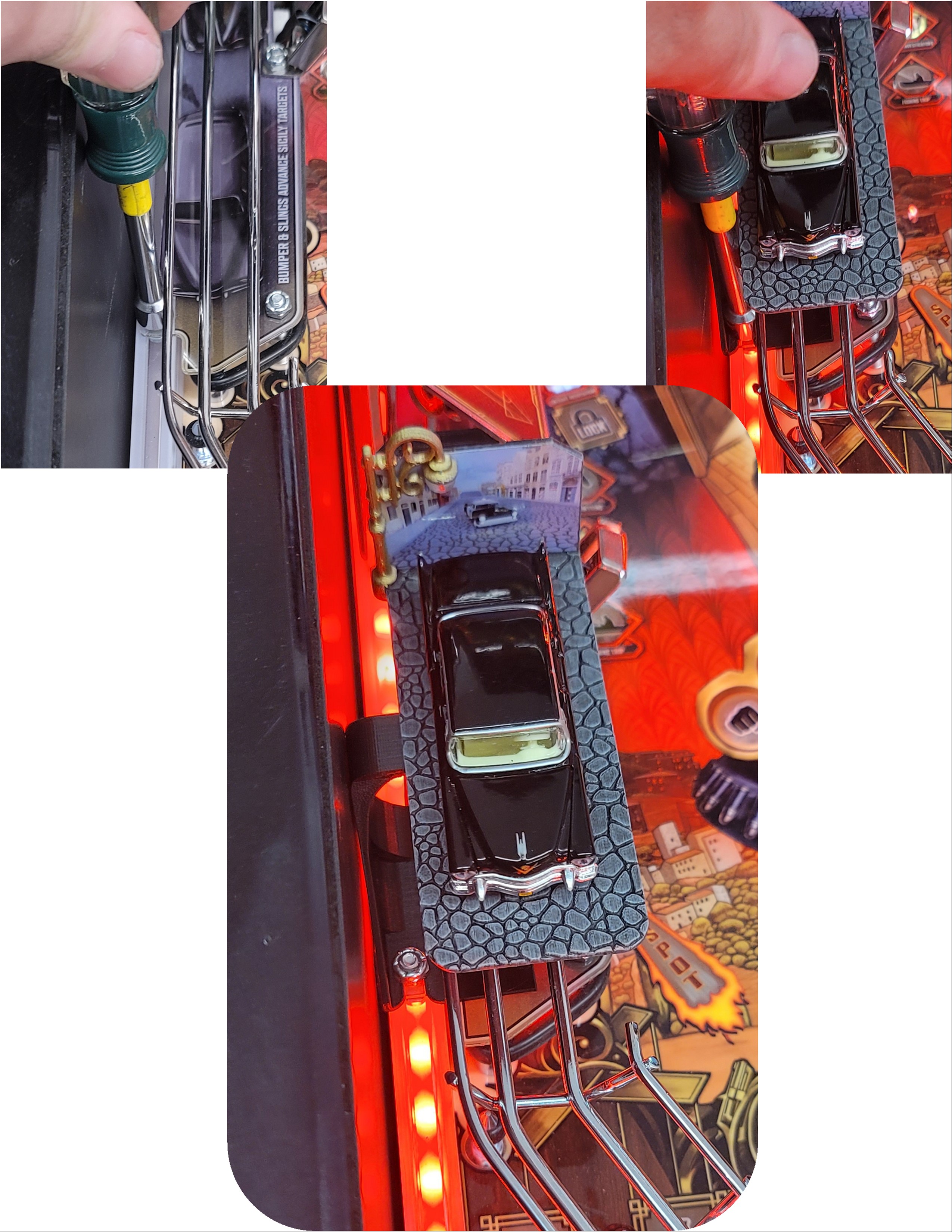

Unscrew the nut but not all the way, then slide the MM-CARCHASE mod under the rail and past the nut.

Now lift the nut up and slide the MM-CARCHASE mod under the nut and tighten the nut back into place

These next steps are optional:

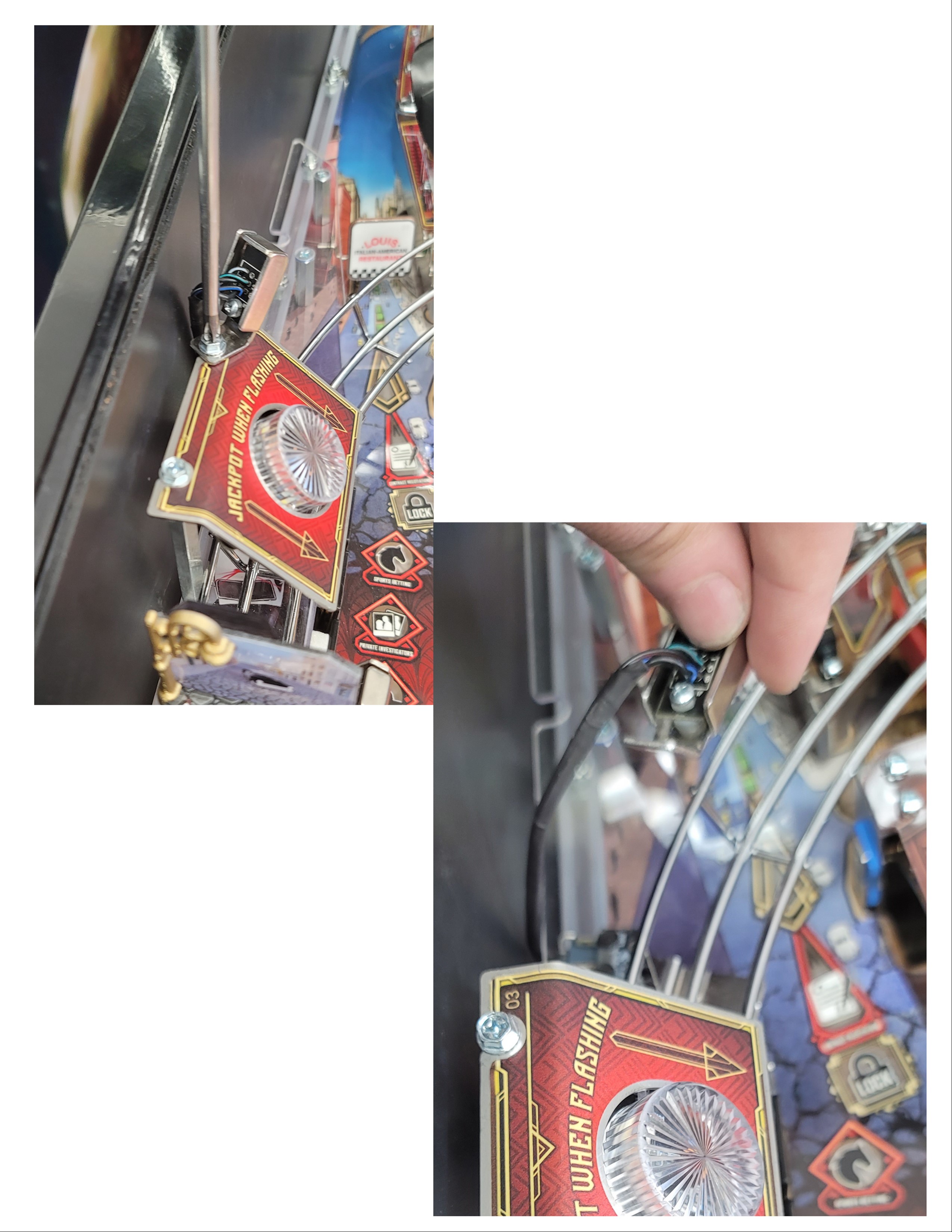

Unscrew the spotlight above the jackpot sign, cut the 1 or 2 zip-ties that are holding the wire to the post

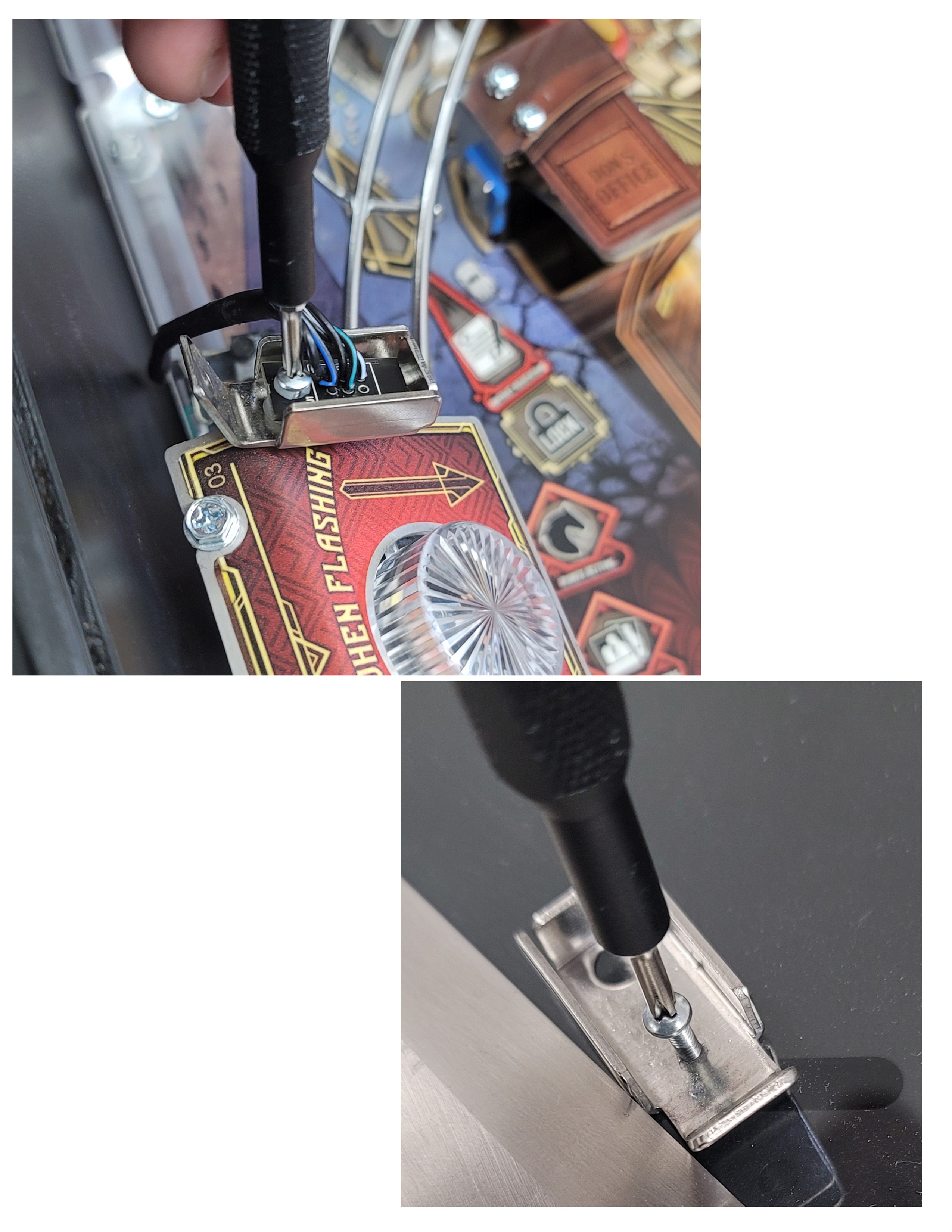

Unscrew the light from the housing, recommend placing the screw back into the housing for safekeeping

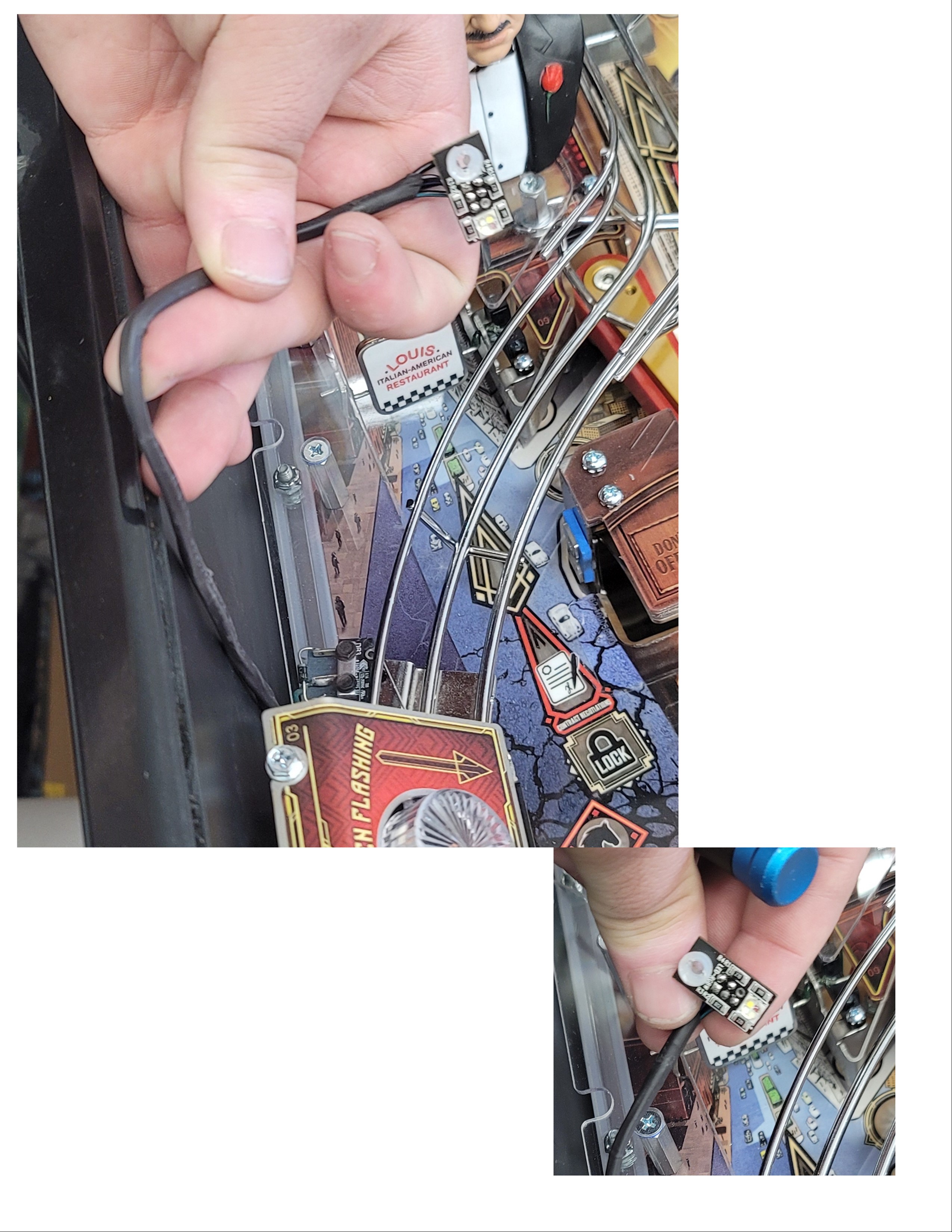

The spotlight's cable has some slack under the playfield (its possible that it's zip-tied under the playfield as well) gently pull up on the cable.

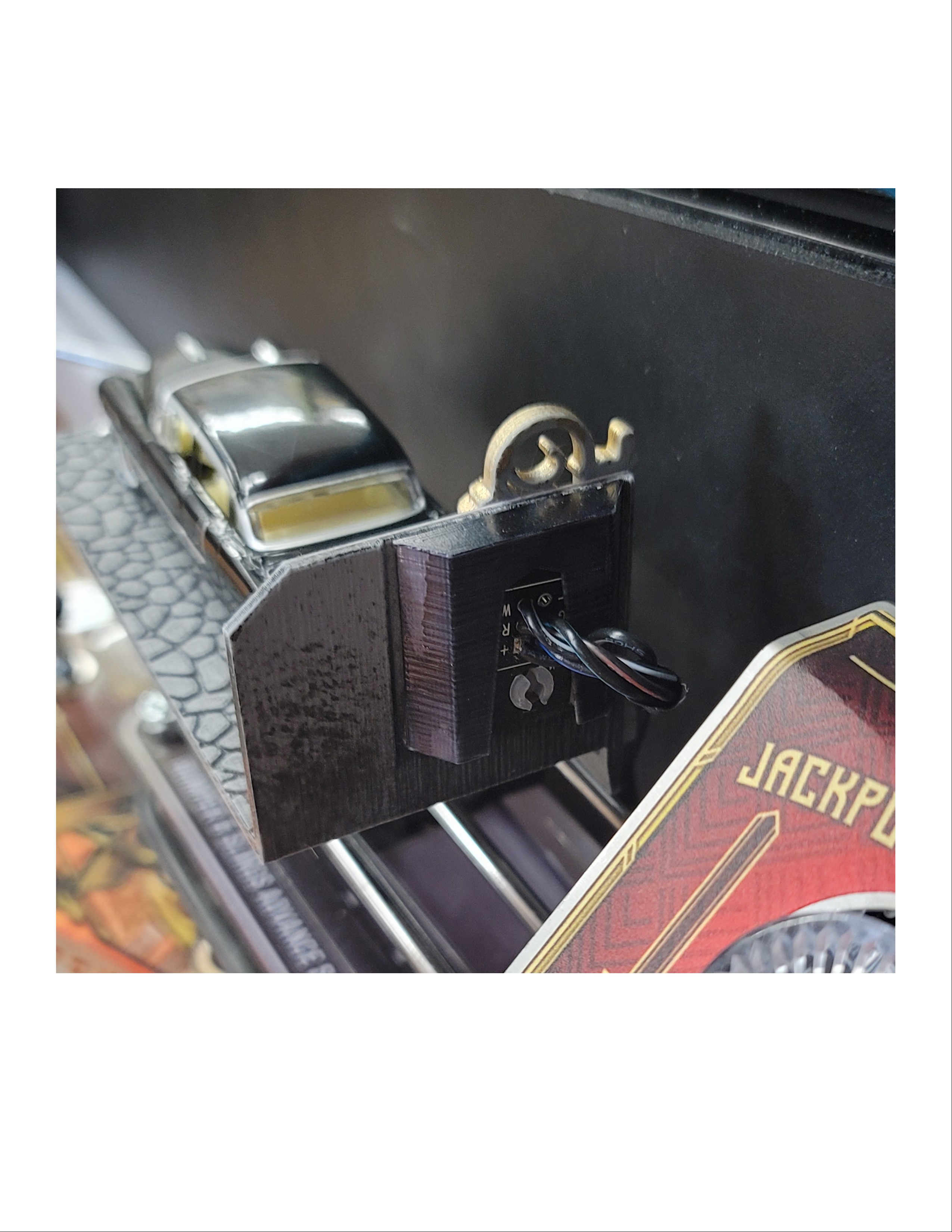

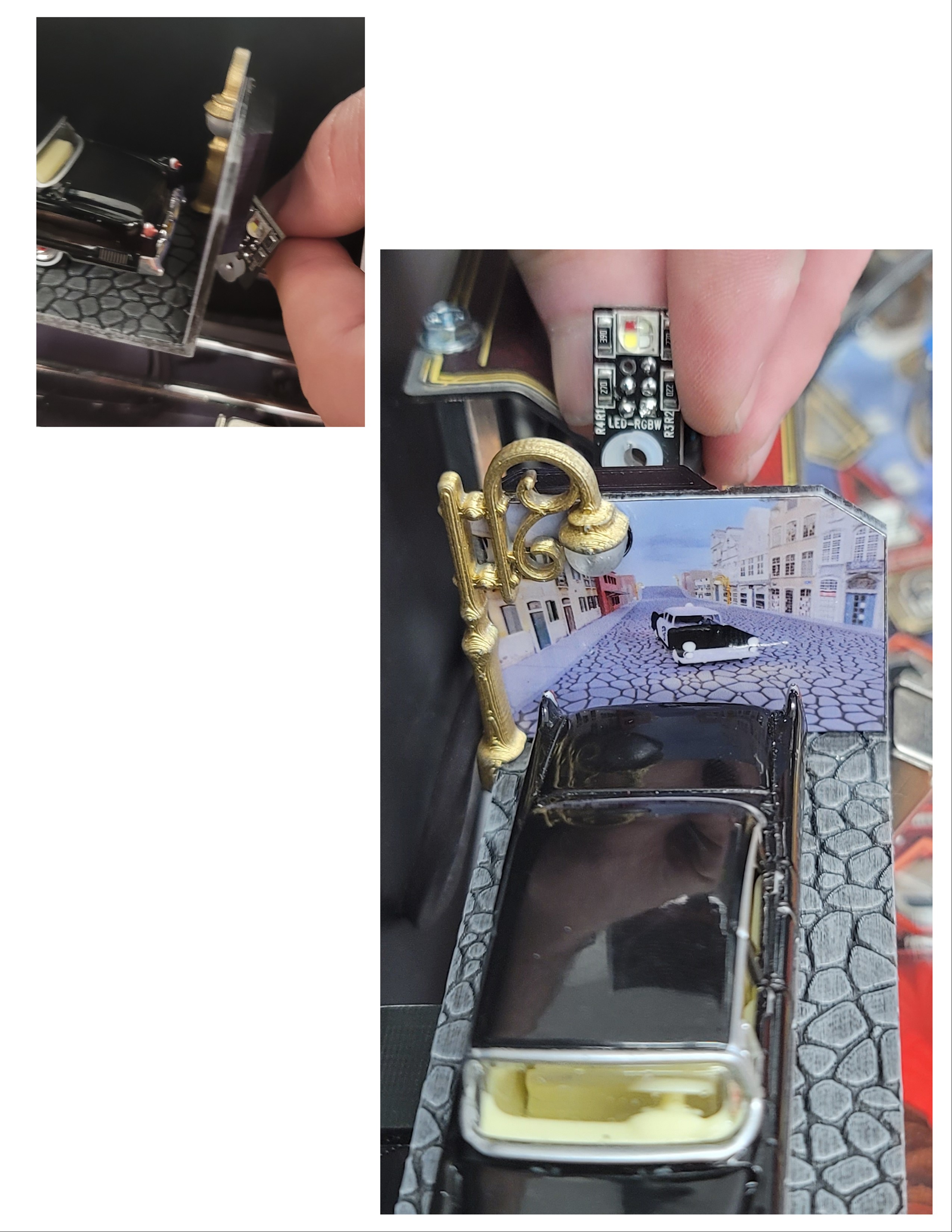

Slide the spotlight into the housing on the back of the MM-CARCHASE mod, it is designed to use pressure to hold the light in place but there's a small piece of double-sided tape included just in case
