GF - Super Jackpot

These instructions are applicable to the following products:

• MM-GF-JACKPOT

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Turn off Game and remove glass. Place in a safe location to avoid damage.

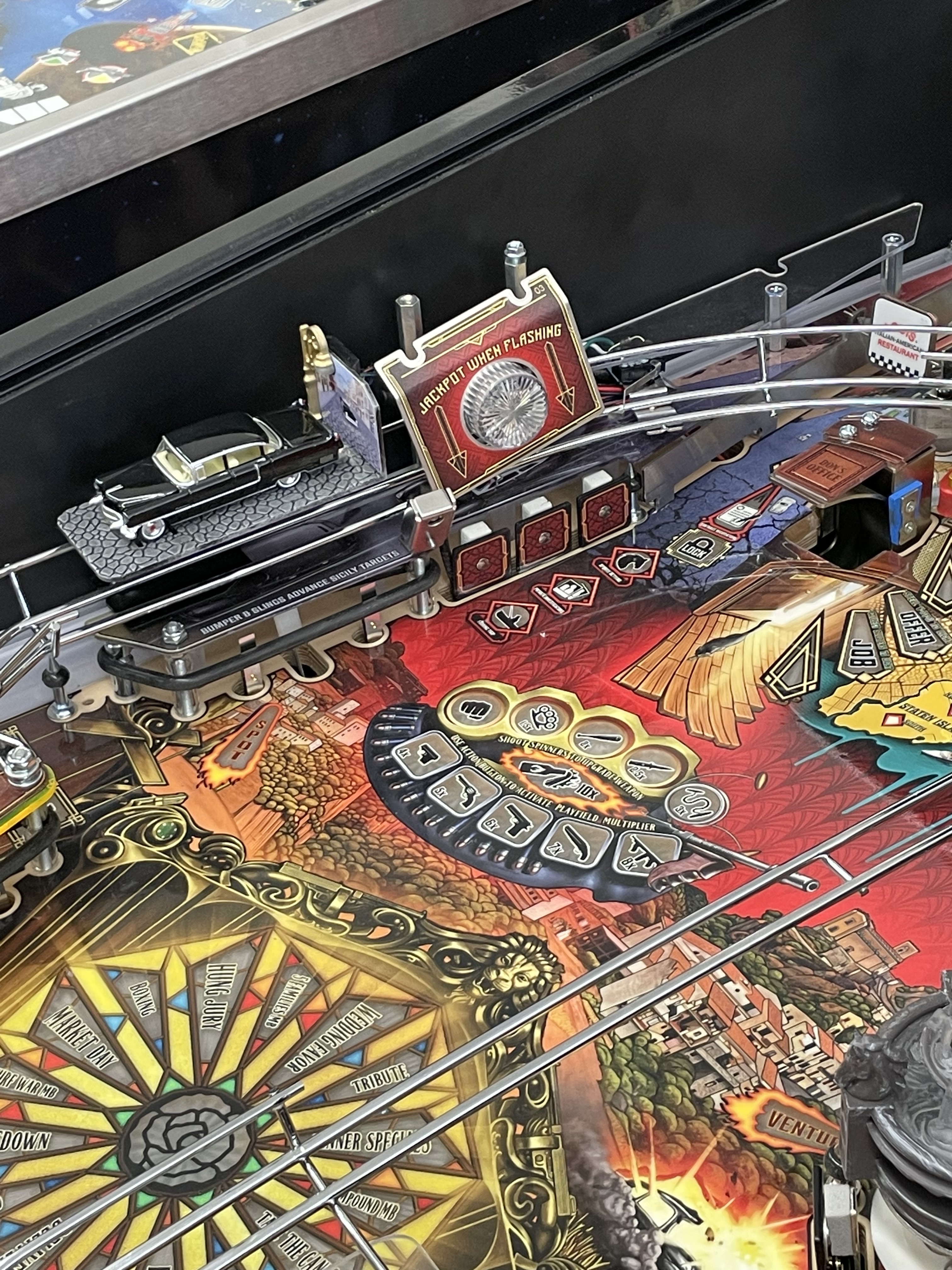

Locate the Super Jackpot Sign and proceed to remove the 2 screws.

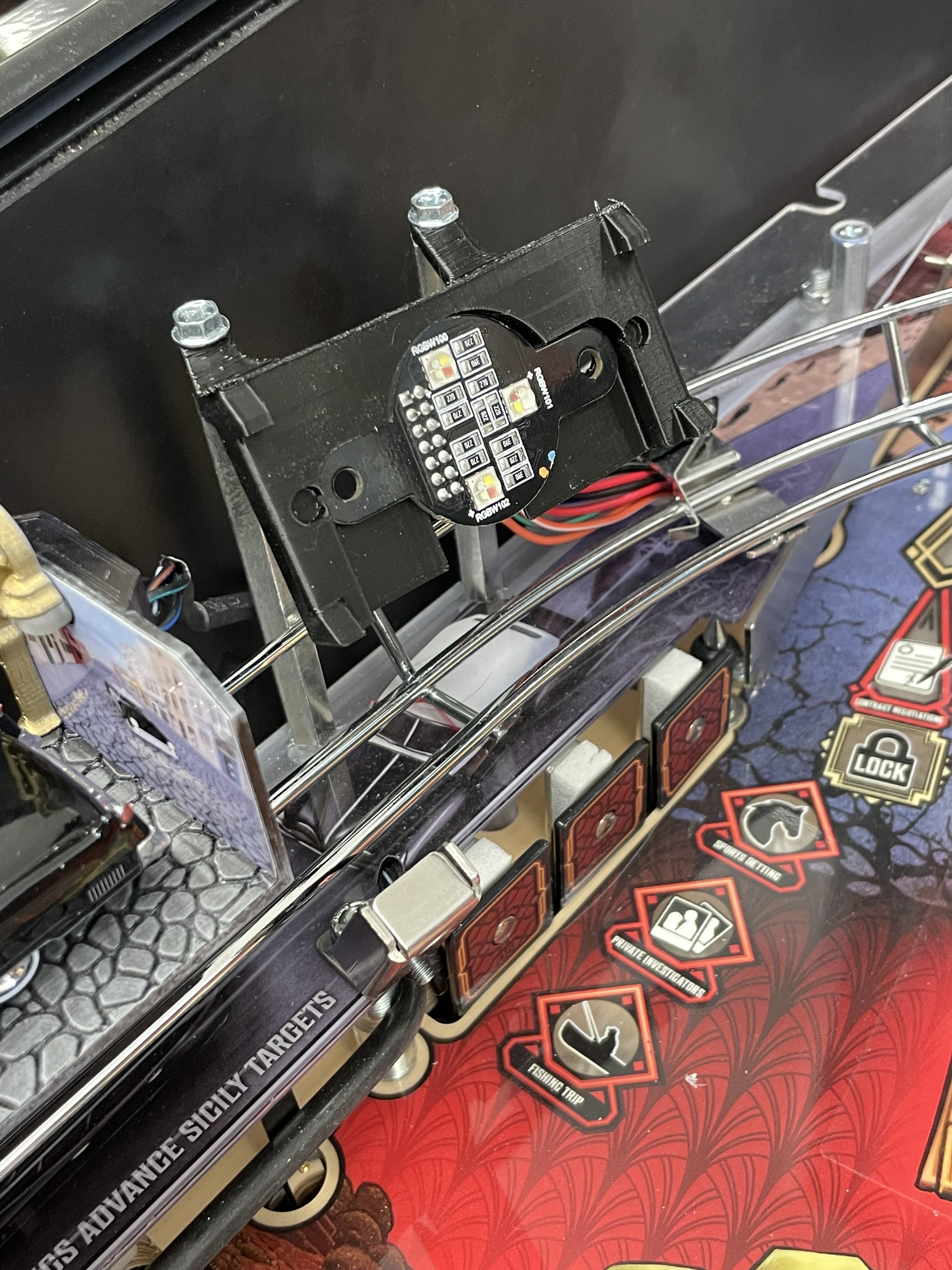

Grab the Black Bracket (shown below) and utilize the 2 screws previously removed to secure bracket in place.

Once Bracket is secured, begin routing cables of the RGB flasher in the shown orientation.

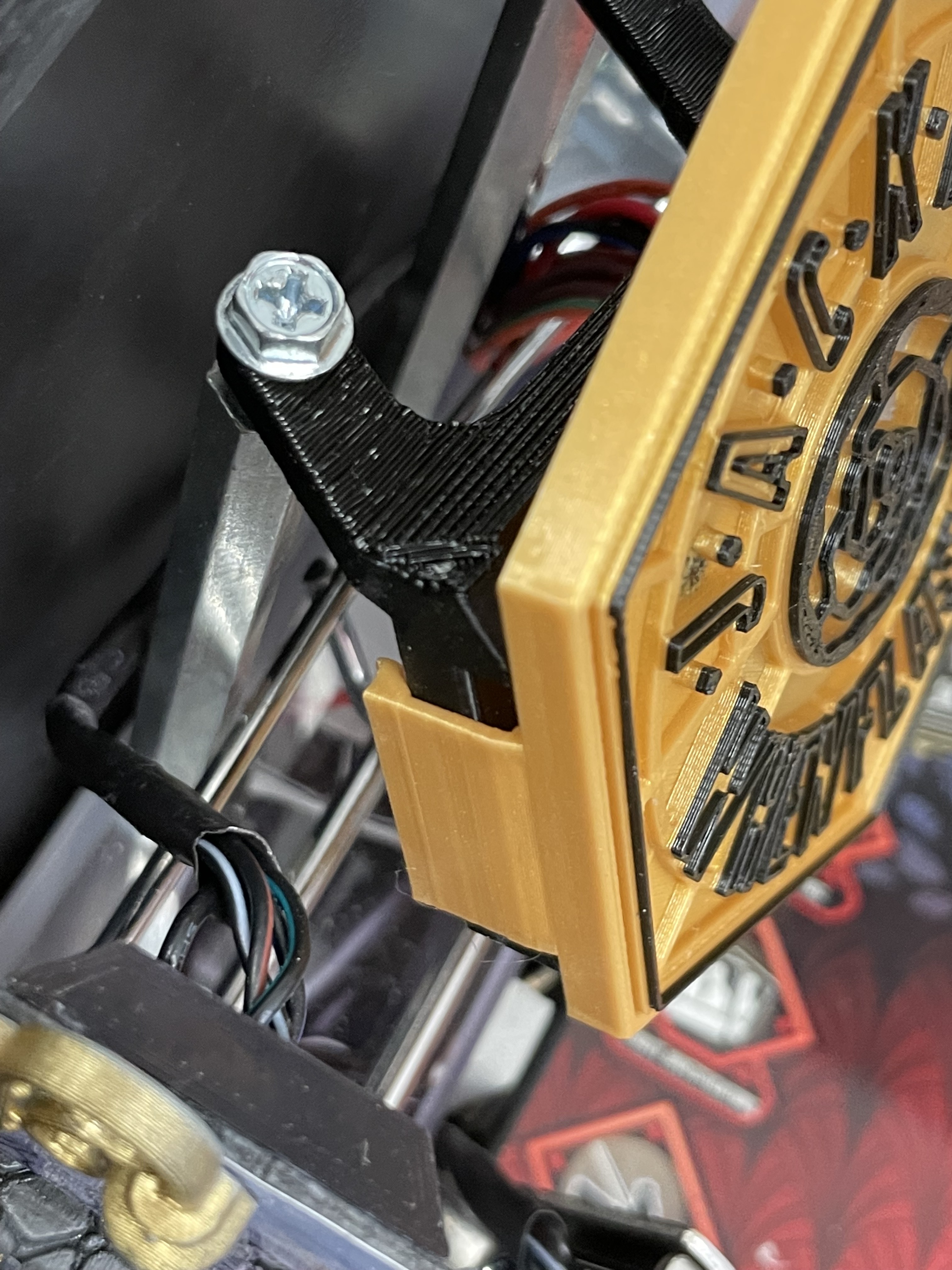

Finally grab the Framed Diffuser aligning the cylindrical pegs to the corresponding registration marks in the Black Bracket. Expanding the exterior walls of the Framed Diffuser until they are clipped securely around the Black Bracket.

Note:

If MM-GF-CARCHASE is purchased as well there is no need to replace spotlight bracket.
