These instructions are applicable to the following products:
- MM-GF-COMPOUND
DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.
Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.
Images included in these instructions are of an installed prototype and may vary from your product slightly.
If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.
When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.
- Turn off machine. Remove glass from cabinet.
- Remove front screw. Store in a safe space.
- Remove spotlight screw. Set aside for Step #7.

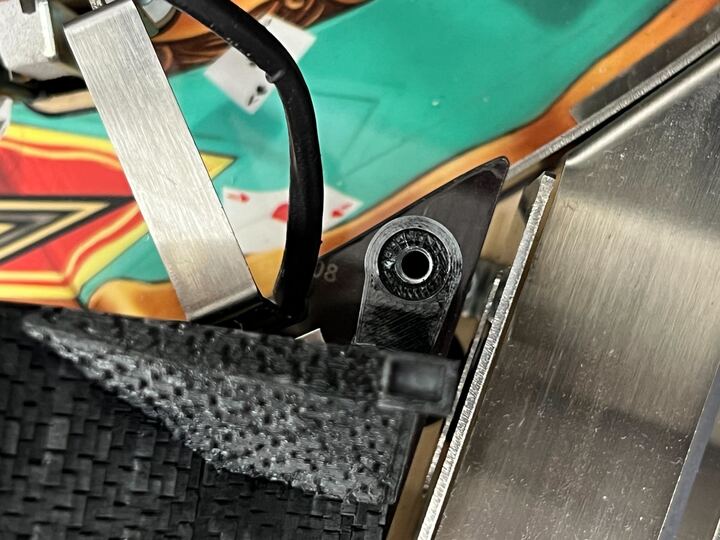

- Using pliers, gently push stopper out from spotlight holder. Store in a safe space.

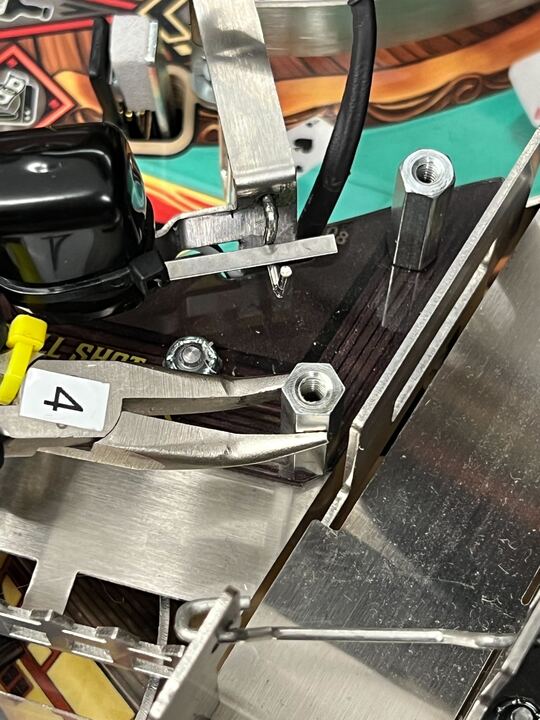

- Using pliers, loosen and unscrew front post. Store in a safe place. Do not remove spotlight post.

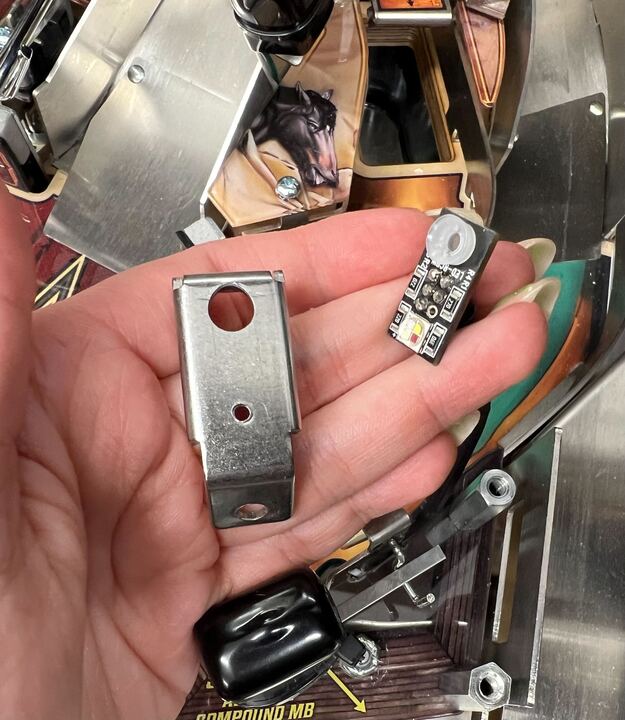

- Align Compound tab with spotlight post.

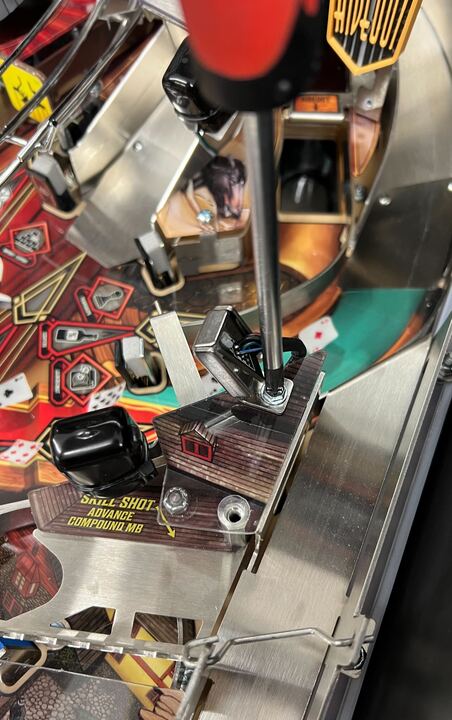

- Using screw from Step #3, screw mod into place. Front of Compound should align with edge of acrylic.

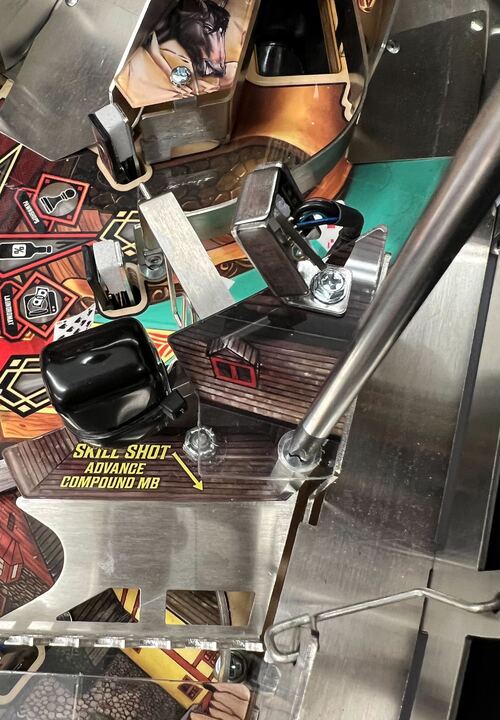

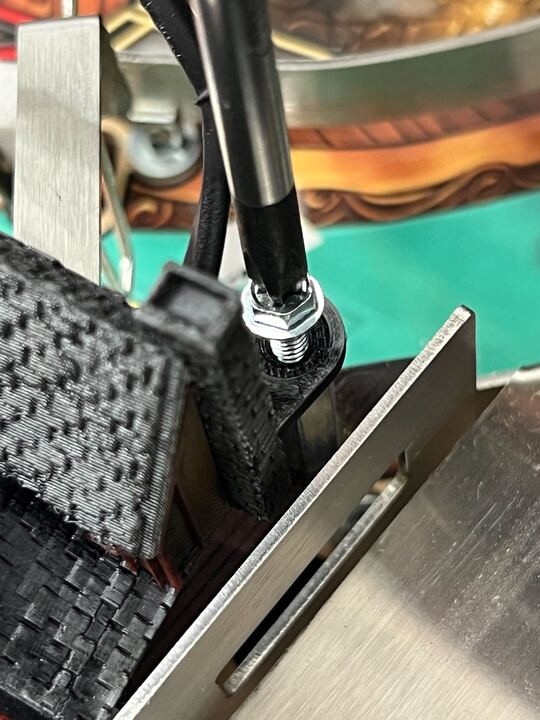

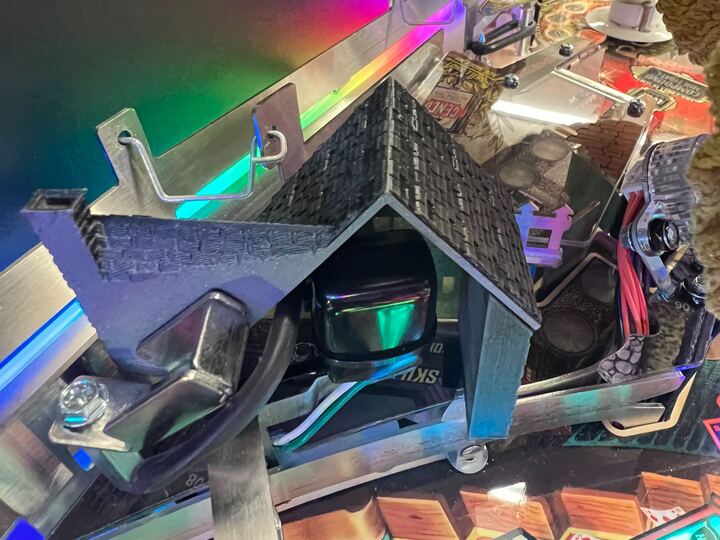

- Nestle spotlight wire into clip on back. Adjust light for preferred visibility. NOTE: Make sure spotlight is fully removed, picture is old.

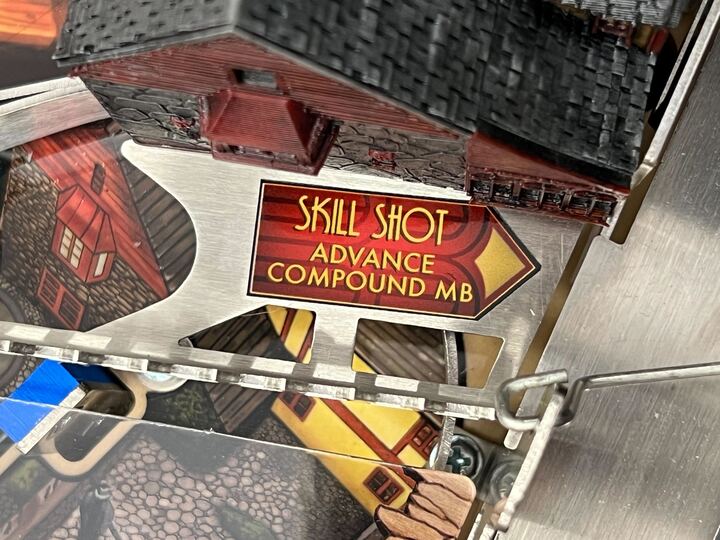

- OPTIONAL: Apply Skill Shot decal to ramp.
- Finished!
