GF - Statue Of Liberty

These instructions are applicable to the following products:

• MM-GF-SOL

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory, or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Whats needed: Mezel Mods Statue of Liberty (MM-SOL) 12V FUSED POWER TAP- JJP   An 11/32 nut driver/socket (not included)

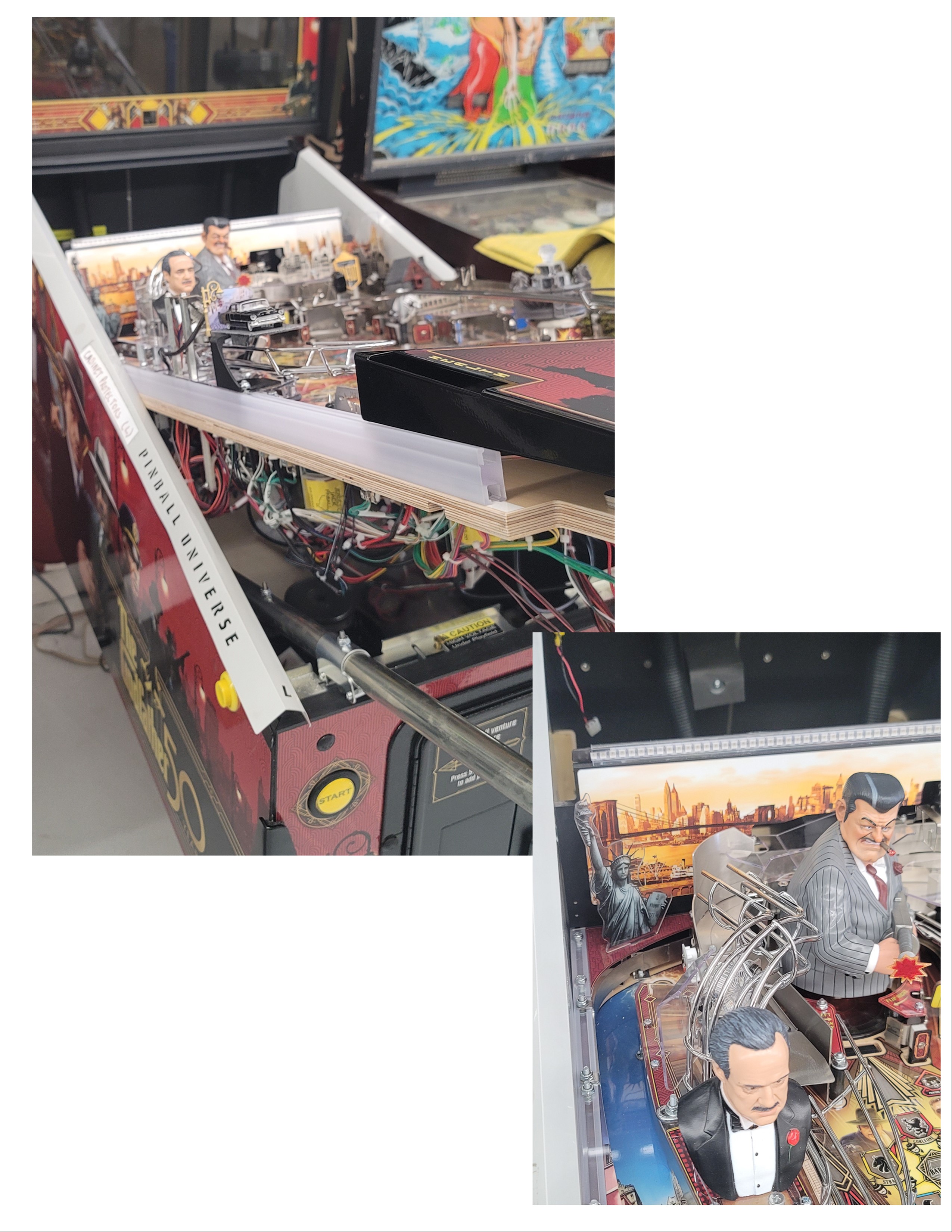

Lift the playfield up and out and locate the original Statue of Liberty in the back left corner

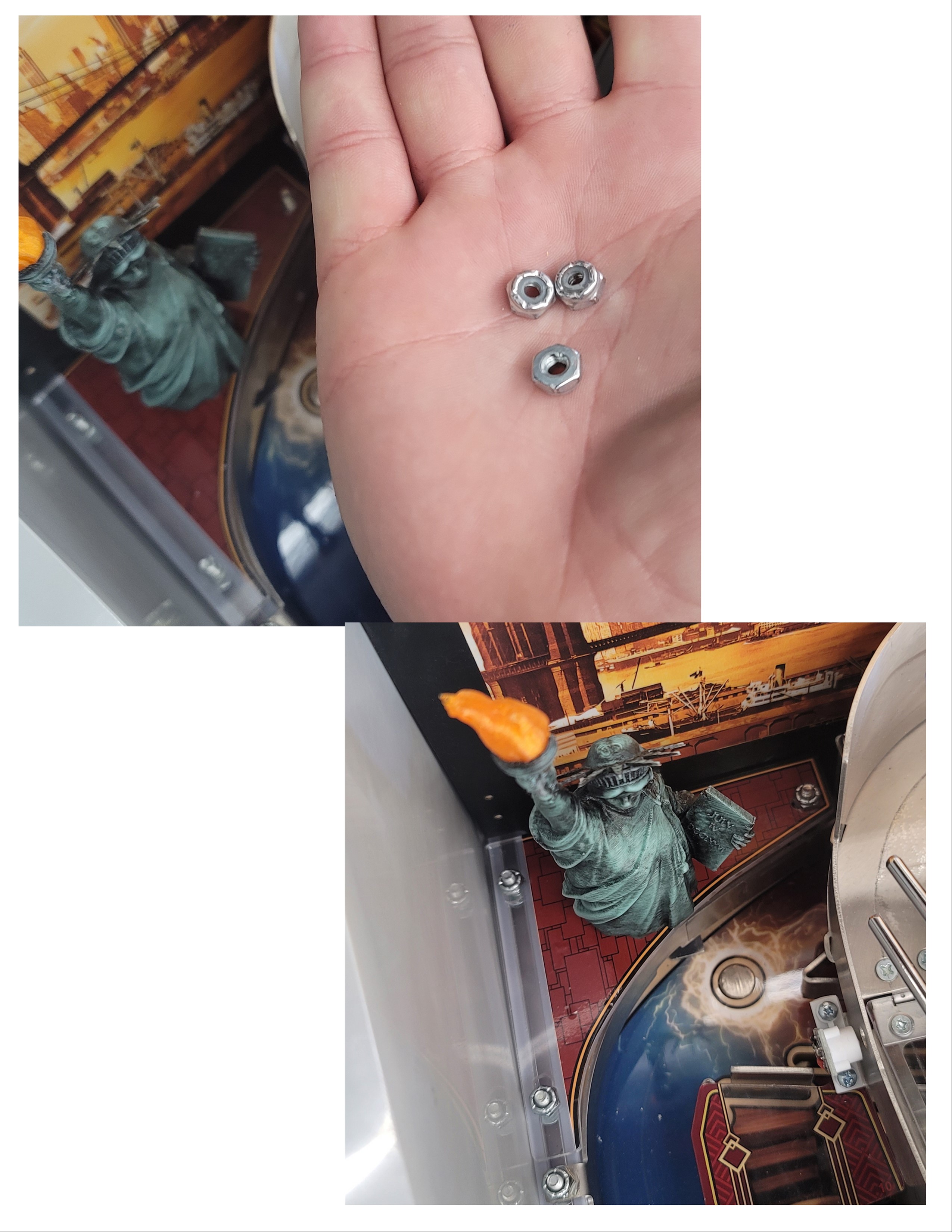

Unscrew the 3 nuts holding the acrylic to the playfield, save the nuts in a safe place (needed for a later step)

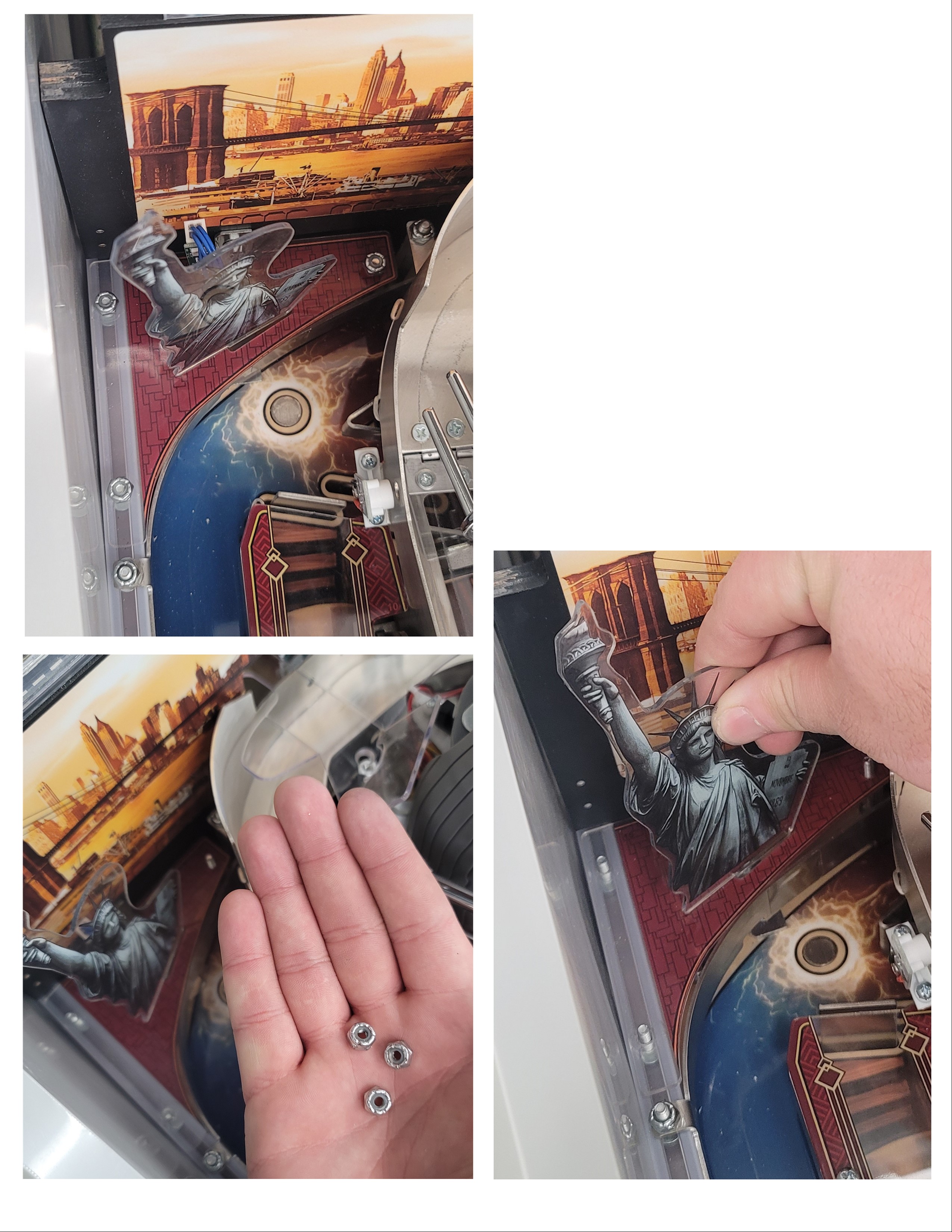

Rock/lift the front of the acrylic up first then lift the acrylic up and out

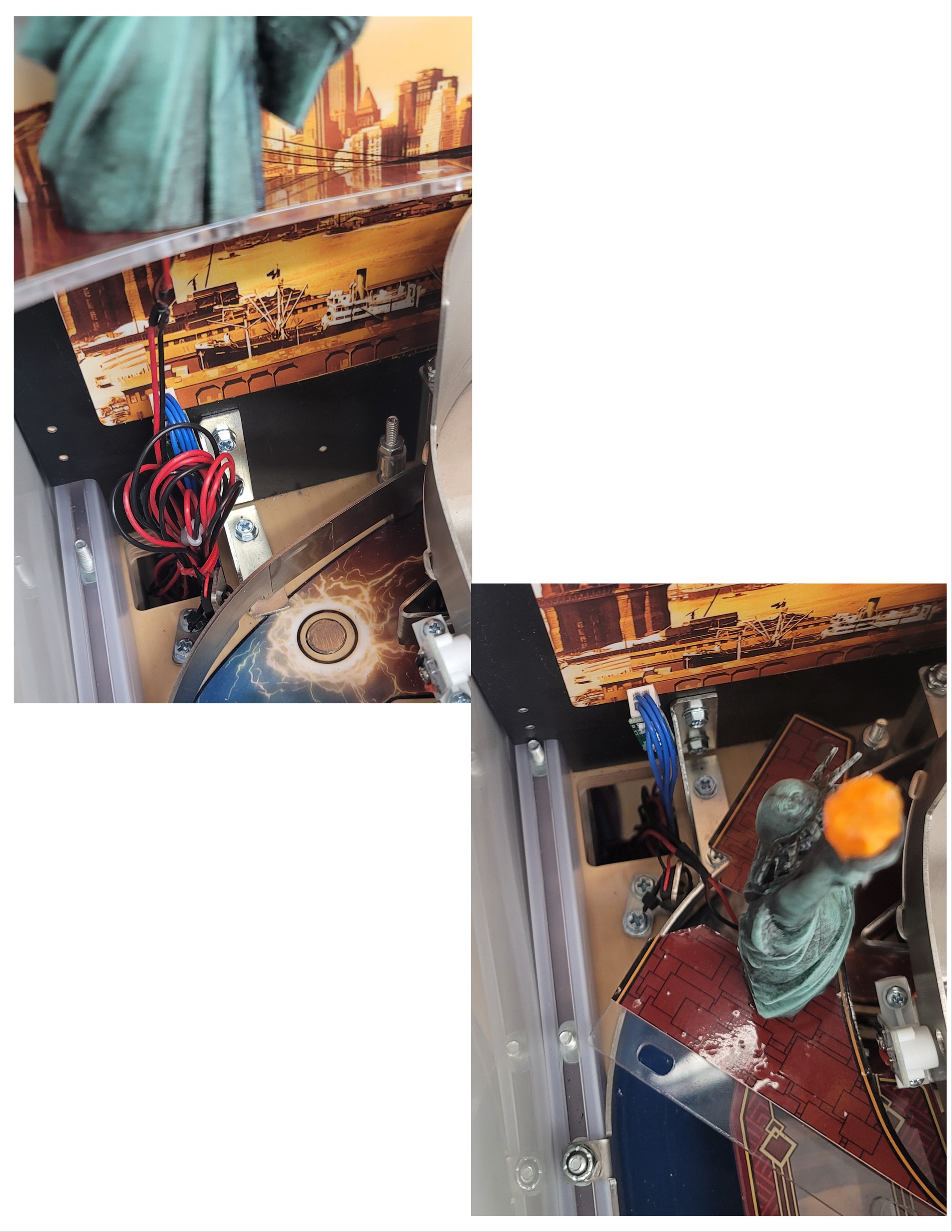

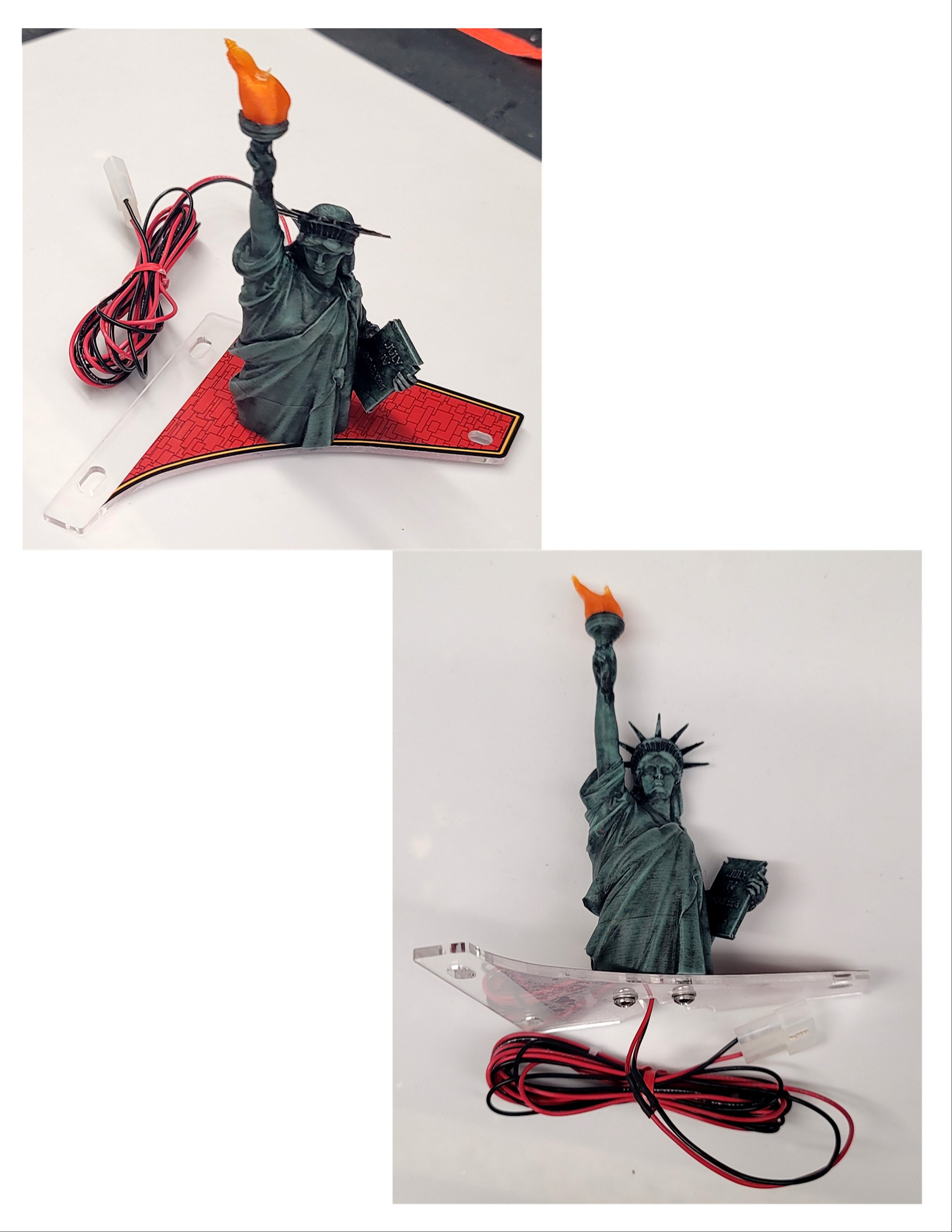

Grab the new MM-SOL and feed the wire in the hole that was under the original Statue

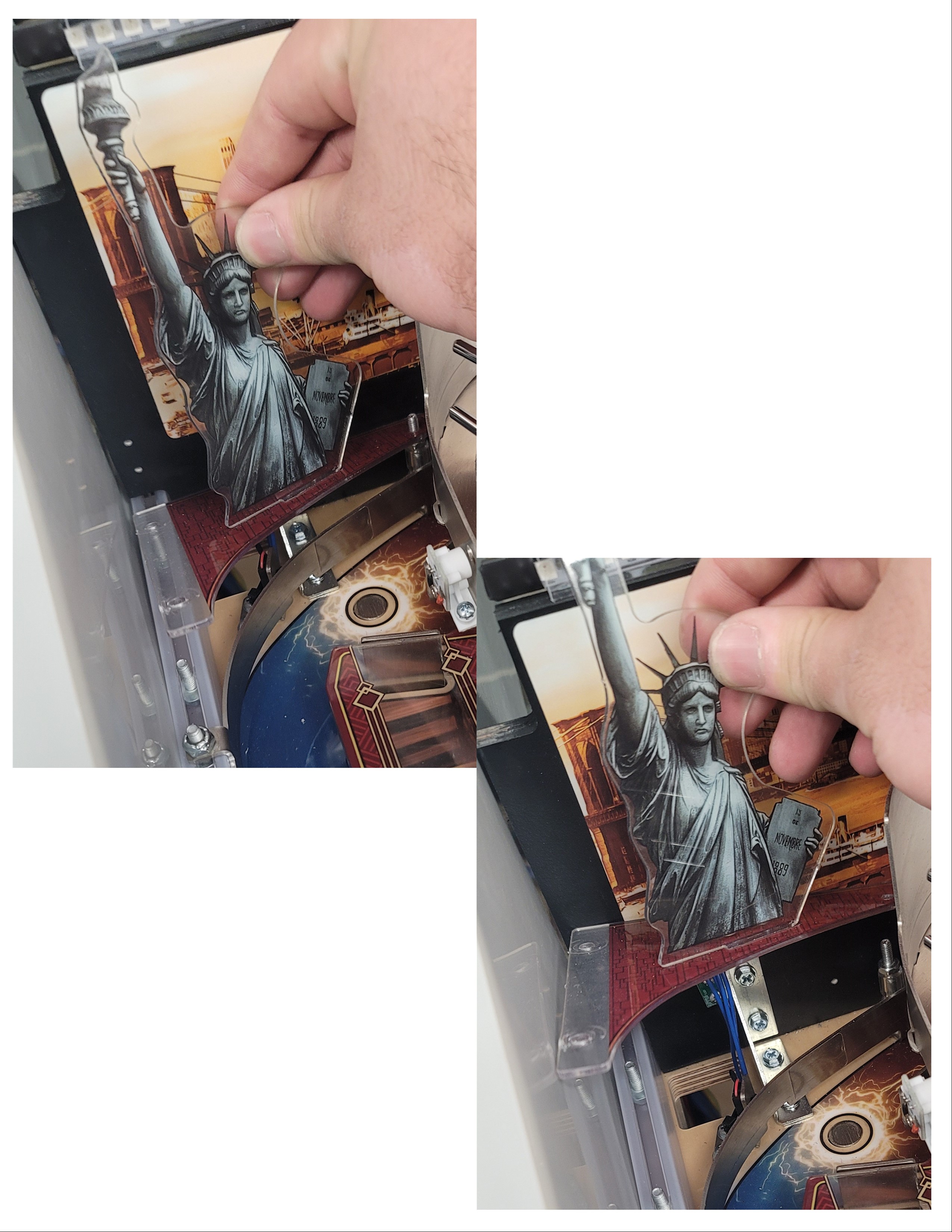

Almost the same step to remove the original Statue but now in reverse;

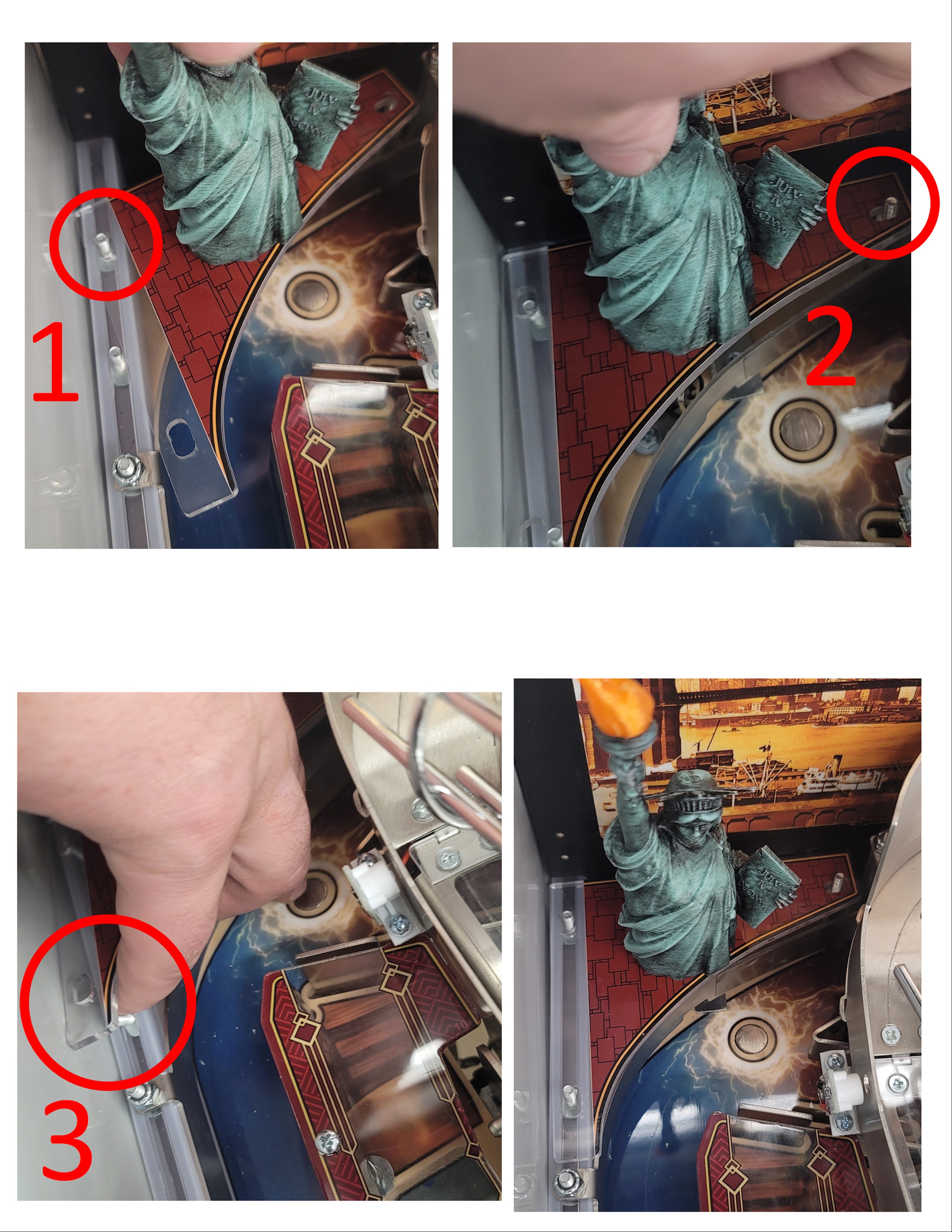

• line up the back left bolt first, its the hardest to reach (1 in the image below)
• place the right bolt through the acrylic (2 in the image below)
• line up the front left bolt before laying the acrylic down (3 in the image below)

Grab the nuts from before and screw them back on, the right nut should only be tightened down enough to be just above or just on the acrylic for two reasons. To prevent damaging the decal on the acrylic and over-tightening the nut will cause the bolt the nut is on to screw into the playfield potentially damaging it

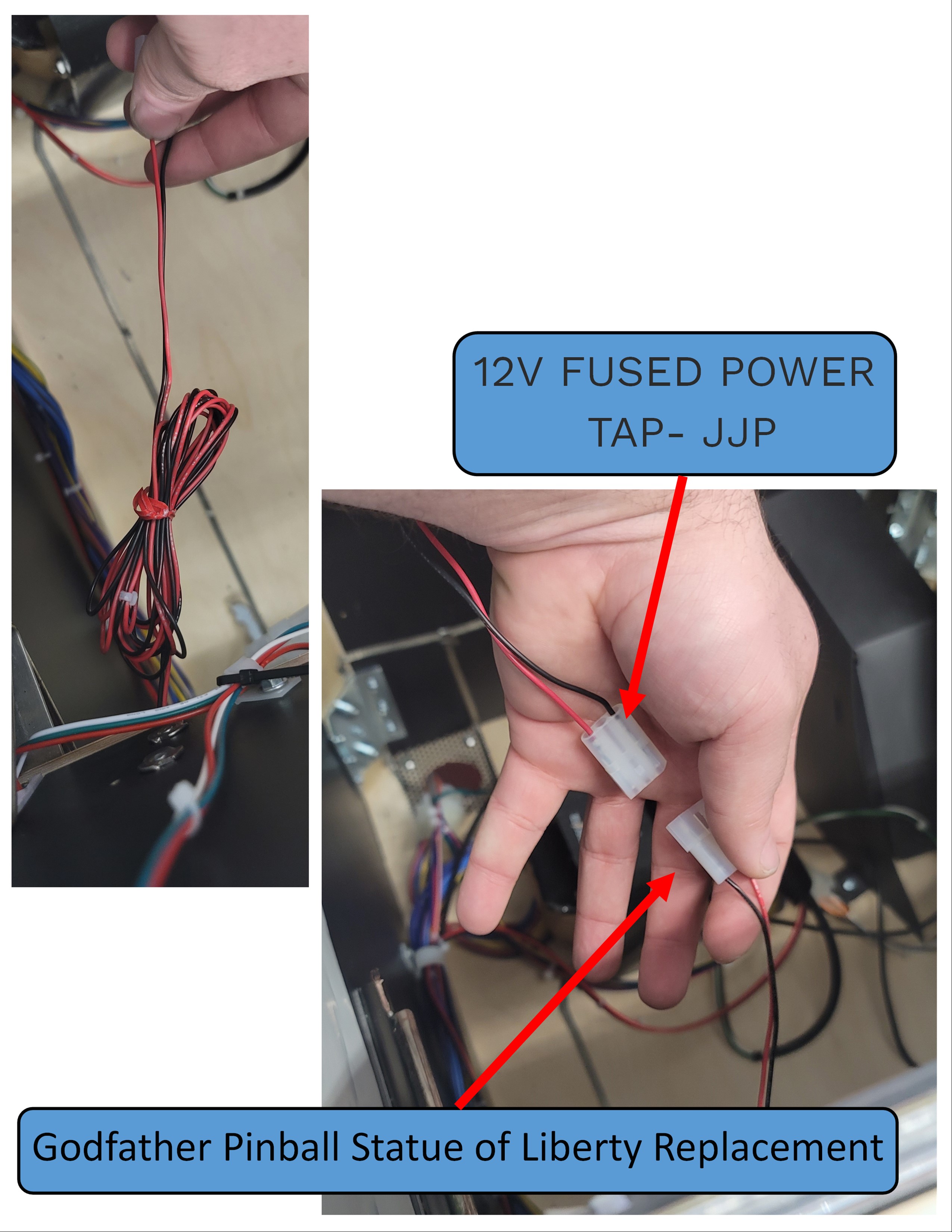

Plug the SOL into the JJP Power Tap (Click here for Power Tap Install Steps)
