CC - Train Station

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

The Cactus Canyon Train Station product is compatible with both original and remake versions of the game. Both versions run on the General Illumination (GI) however the wiring harness differs.

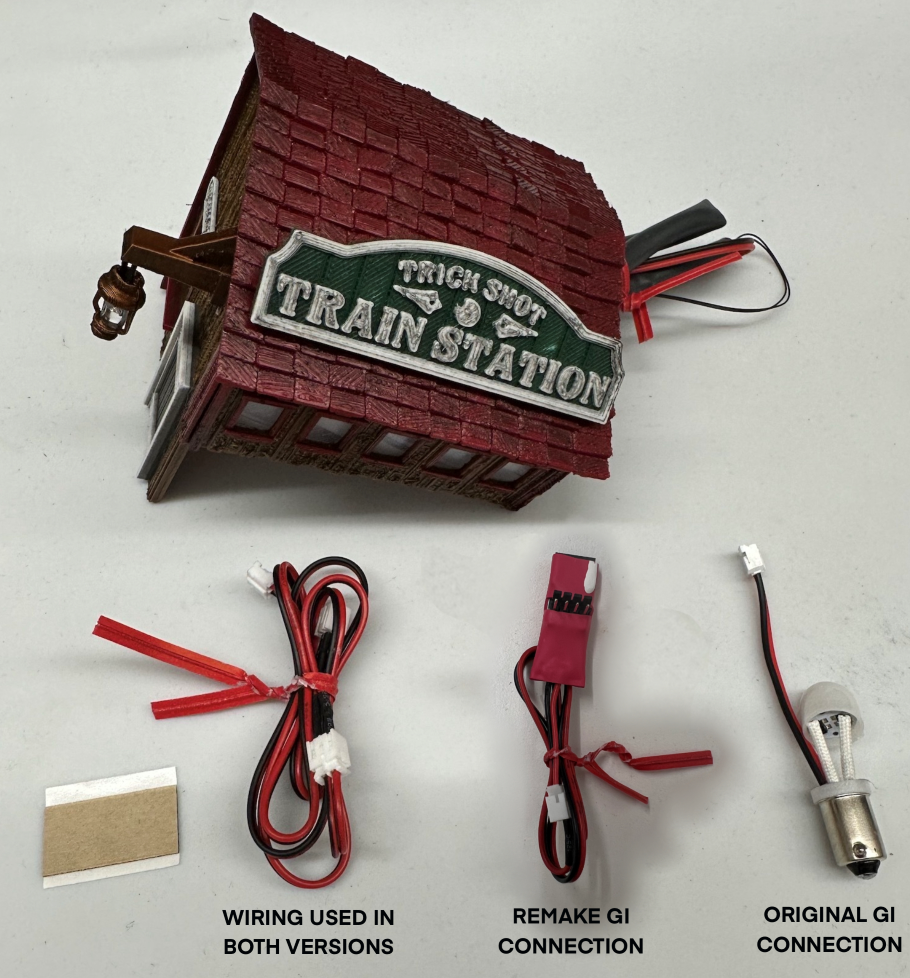

CACTUS CANYON REMAKE- Please utilize the 4-pin IDC assembly included in the Train Station assembly; you will not use the GI replacement bulb.

CACTUS CANYON ORIGINAL- Please utilize replacement GI bulb included in the Train Station assembly; you will not use the 4-pin IDC assembly. Please utilize the basic instructions outlined in the these AFM installation instructions for the GI bulb replacement beginning at Step 5.

1. Turn off machine. Remove glass and balls from cabinet.

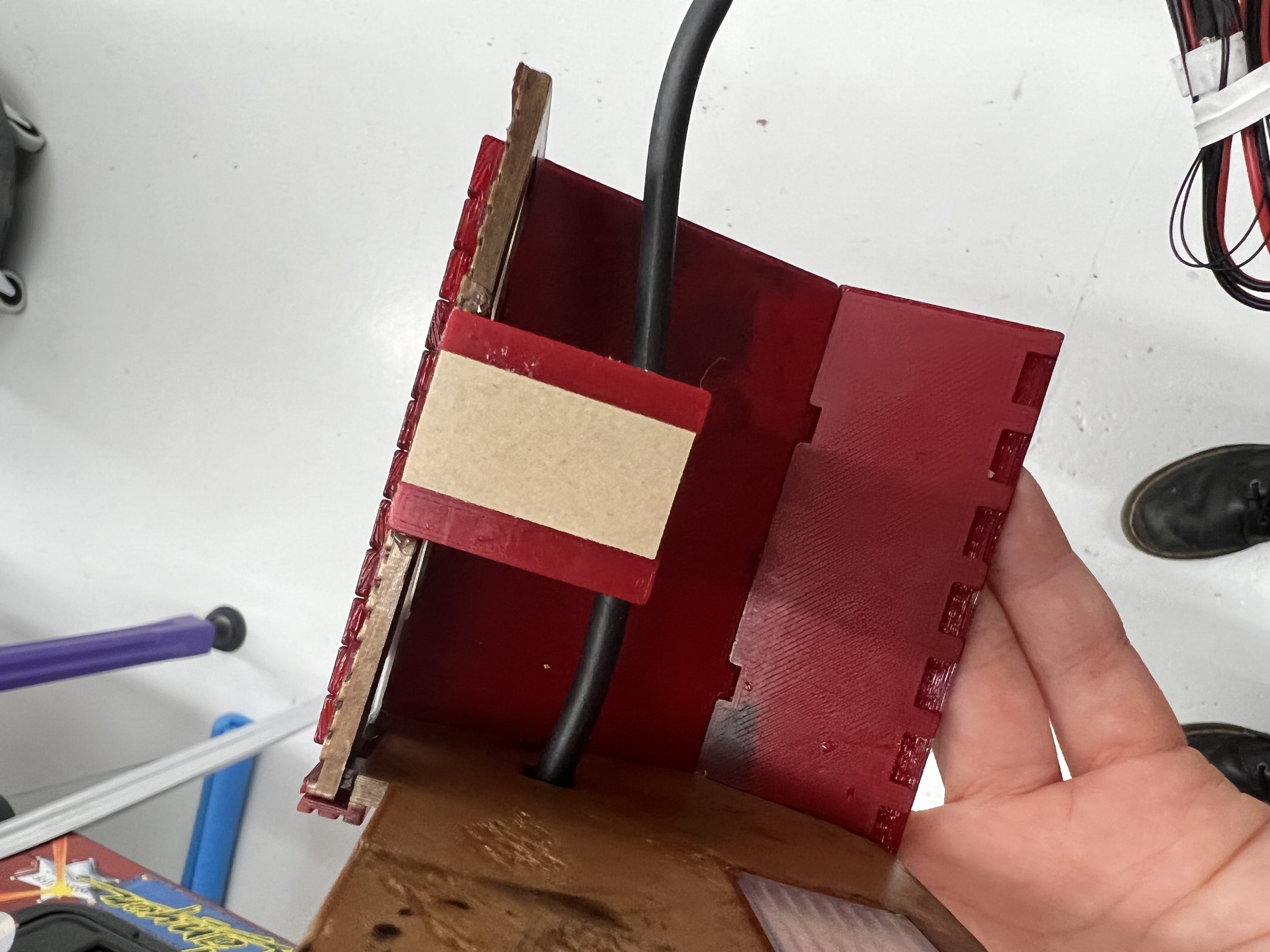

2. Dry fit the Train Station ensuring placement is accurate. Then remove backing from tape and place on underside of tab.

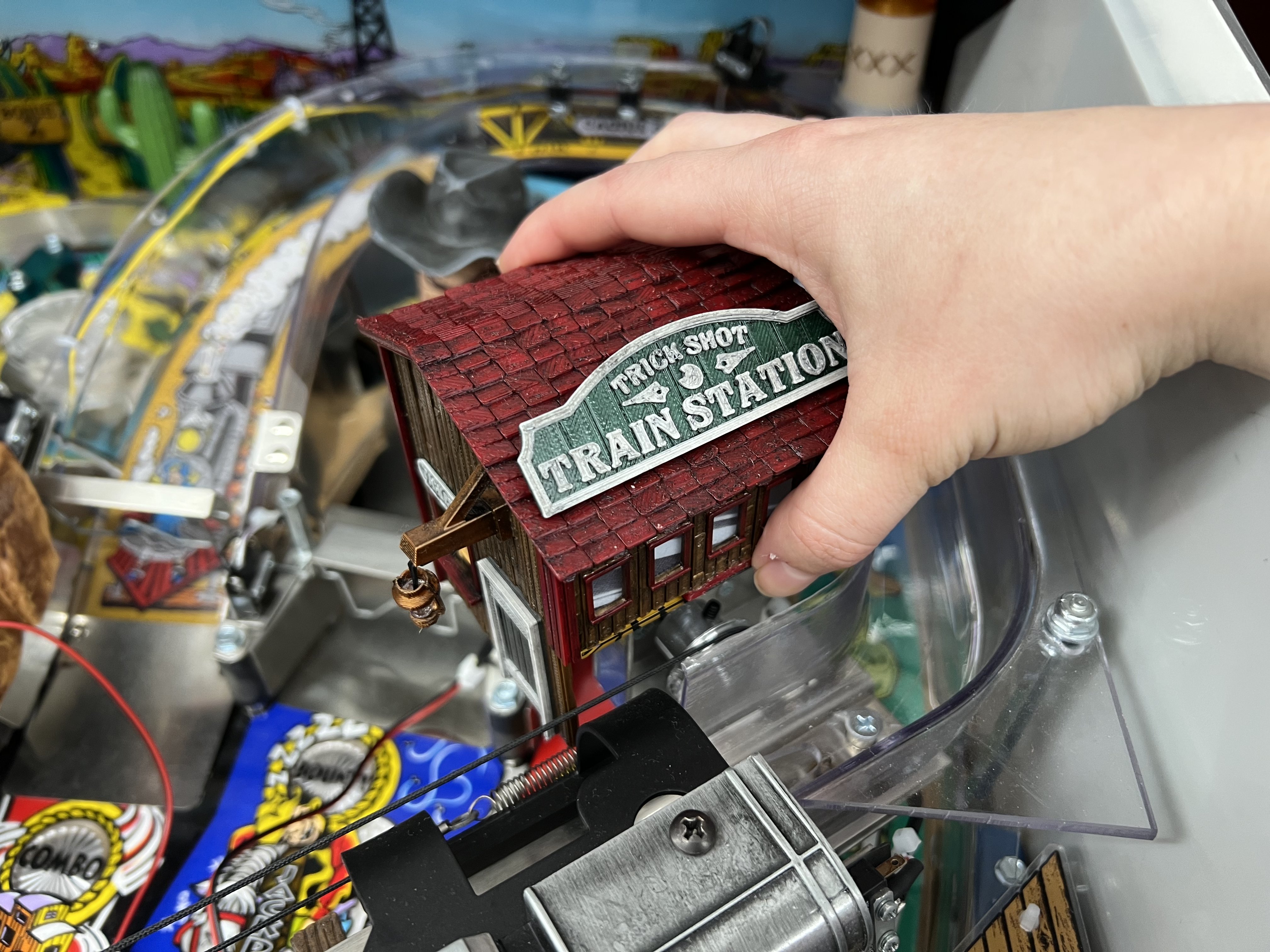

3. Take Station and attach to factory acrylic. Use thumb to press down on tab to ensure adhesion.  NOTE: If Station needs to be moved after placing tape, wiggle side to side rather than pulling straight up.

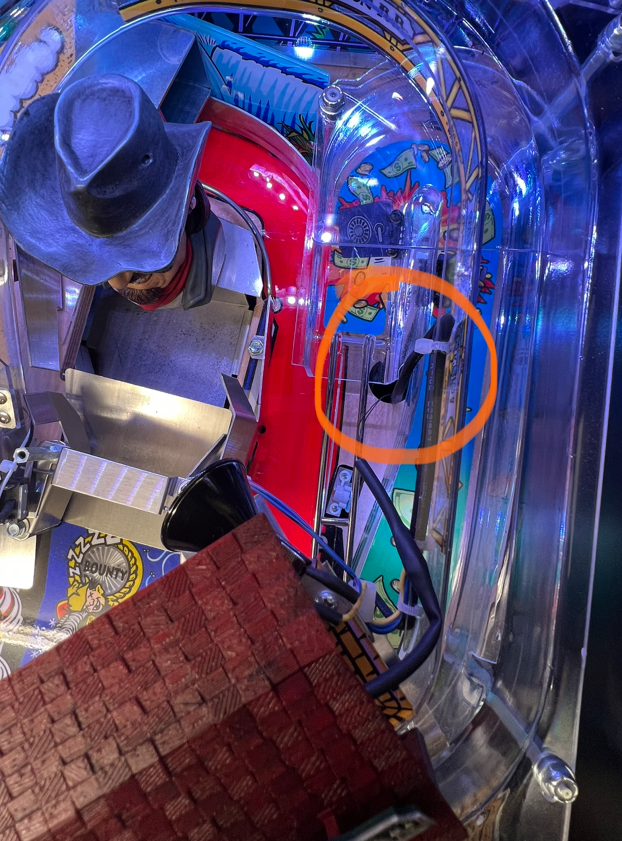

4. Feed wiring harness through back right ramp.

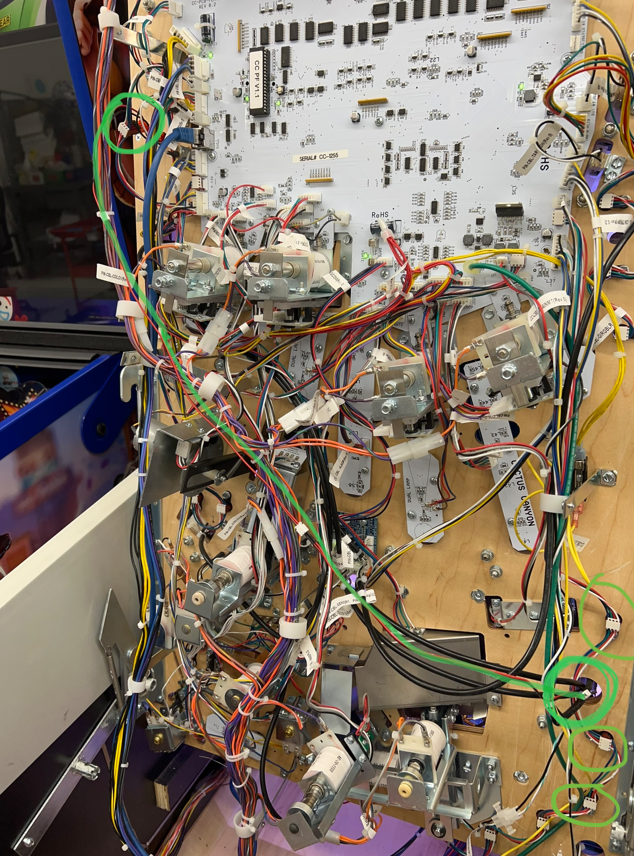

5. Run wire from the opening to an available GI Bulb. Shown here are some possible GI locations on the remake game. Any GI bulb can be utilized.

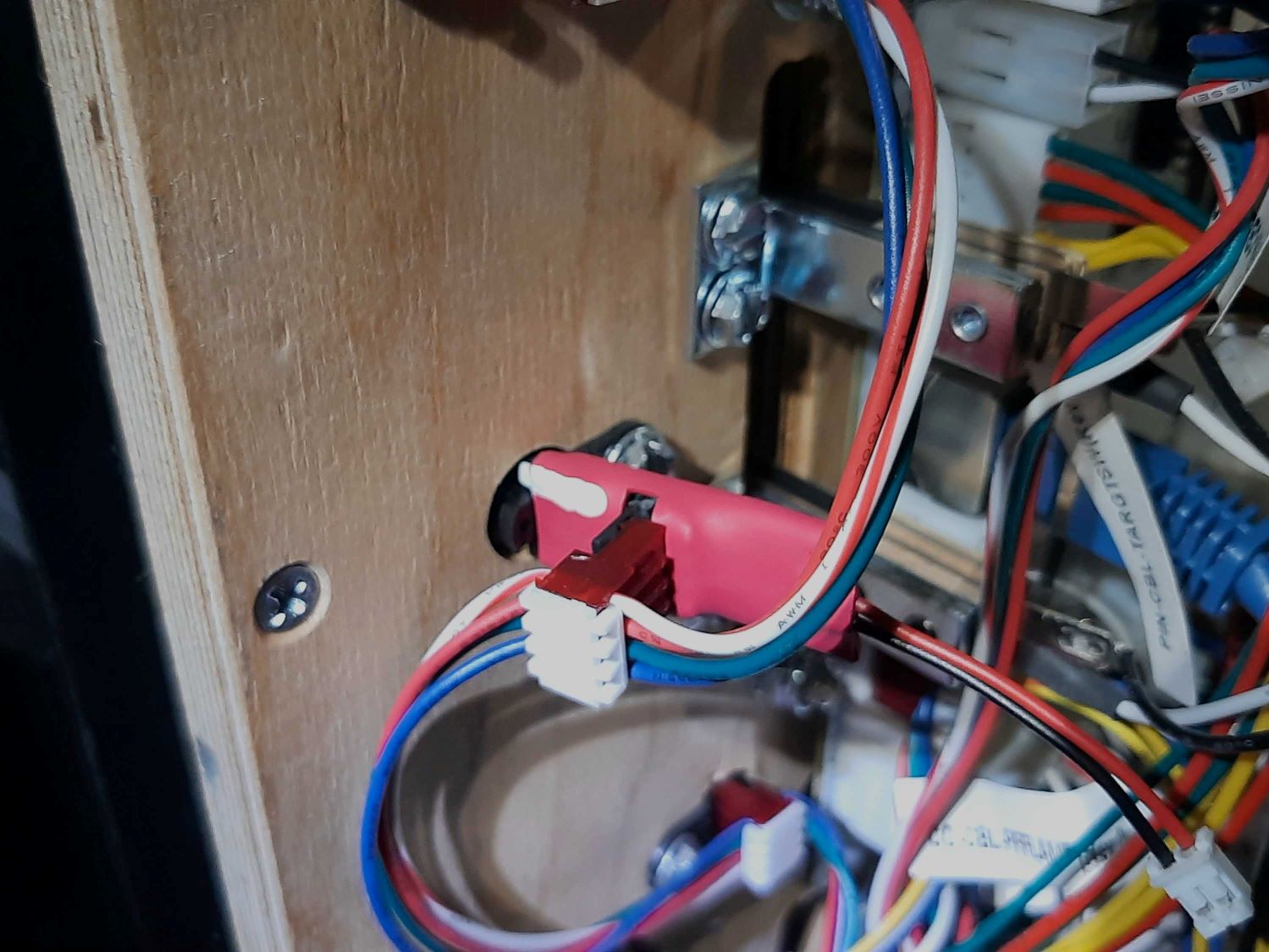

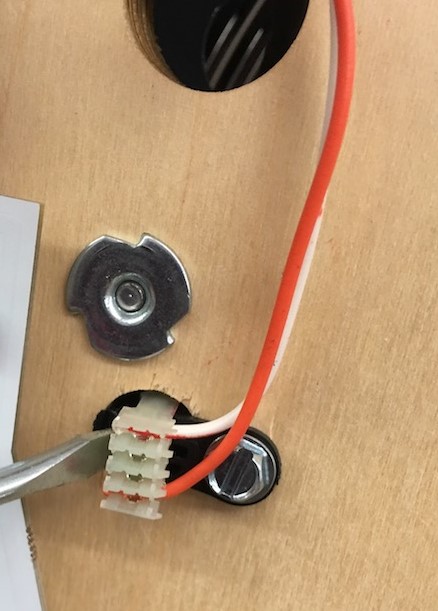

6. Choose the General illumination (GI) connection Utilize a small flat head screw driver to pop the 4-pin connector out (there is a black tab that holds the connector in place). Insert GI connector with white stripe facing upwards.

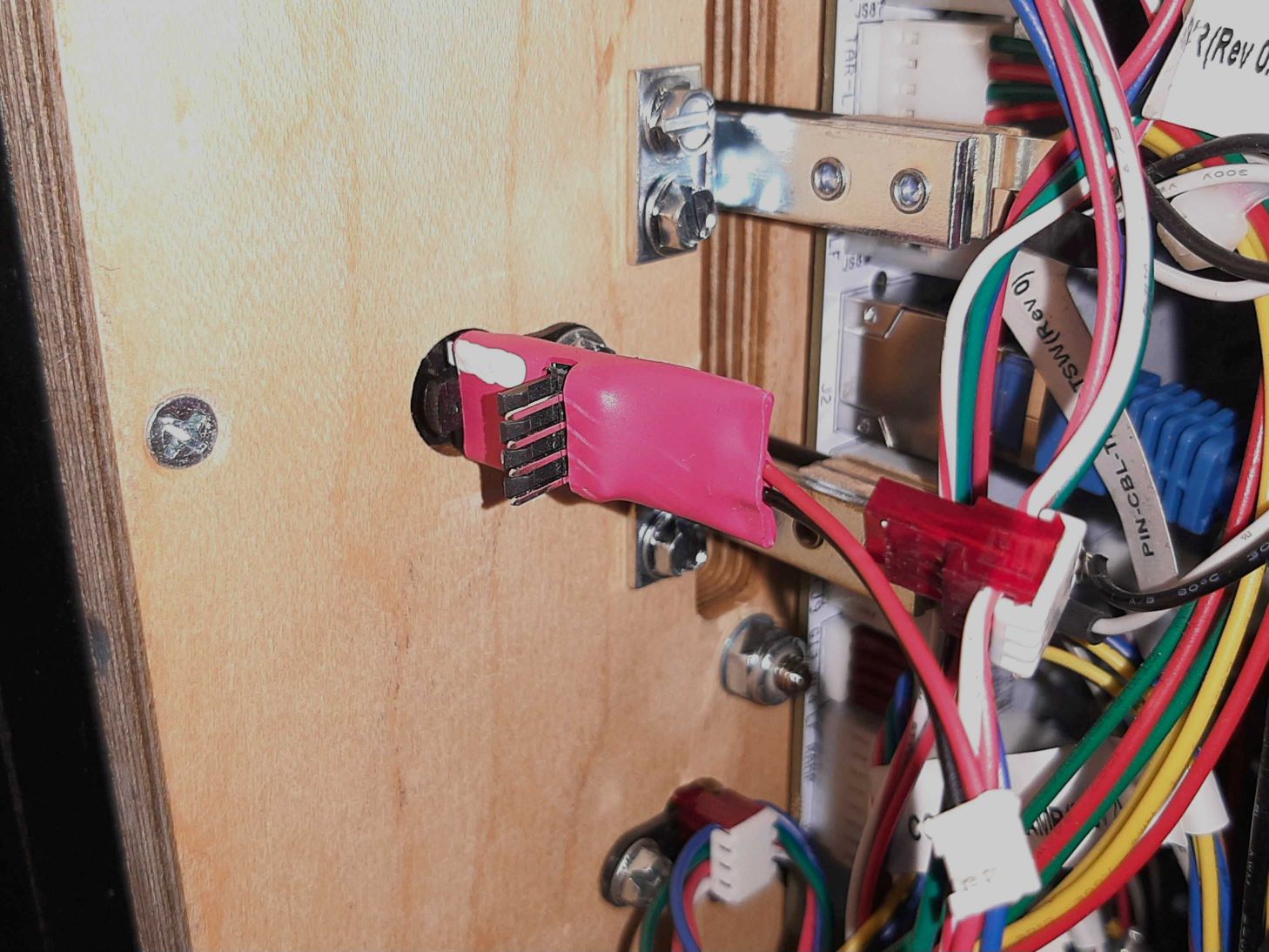

7. Plug the jumper connectors into GI Connector. Make sure white factory wire is on the same side as the white stripe.
8. Installation is complete!
