Gate Assembly Covers- All Versions

These instructions are applicable to the following products:

• MM-007-GATE-BULLET
• MM-BM66-RIDDLER-GATE
• MM-GATE-FLAME
• MM-GATE-PLAIN

_______________________________________

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

Remove Crash Bar, proceed to take off glass, and set aside in a safe space.

VERSION 2 (1 Piece):

Installation Steps:

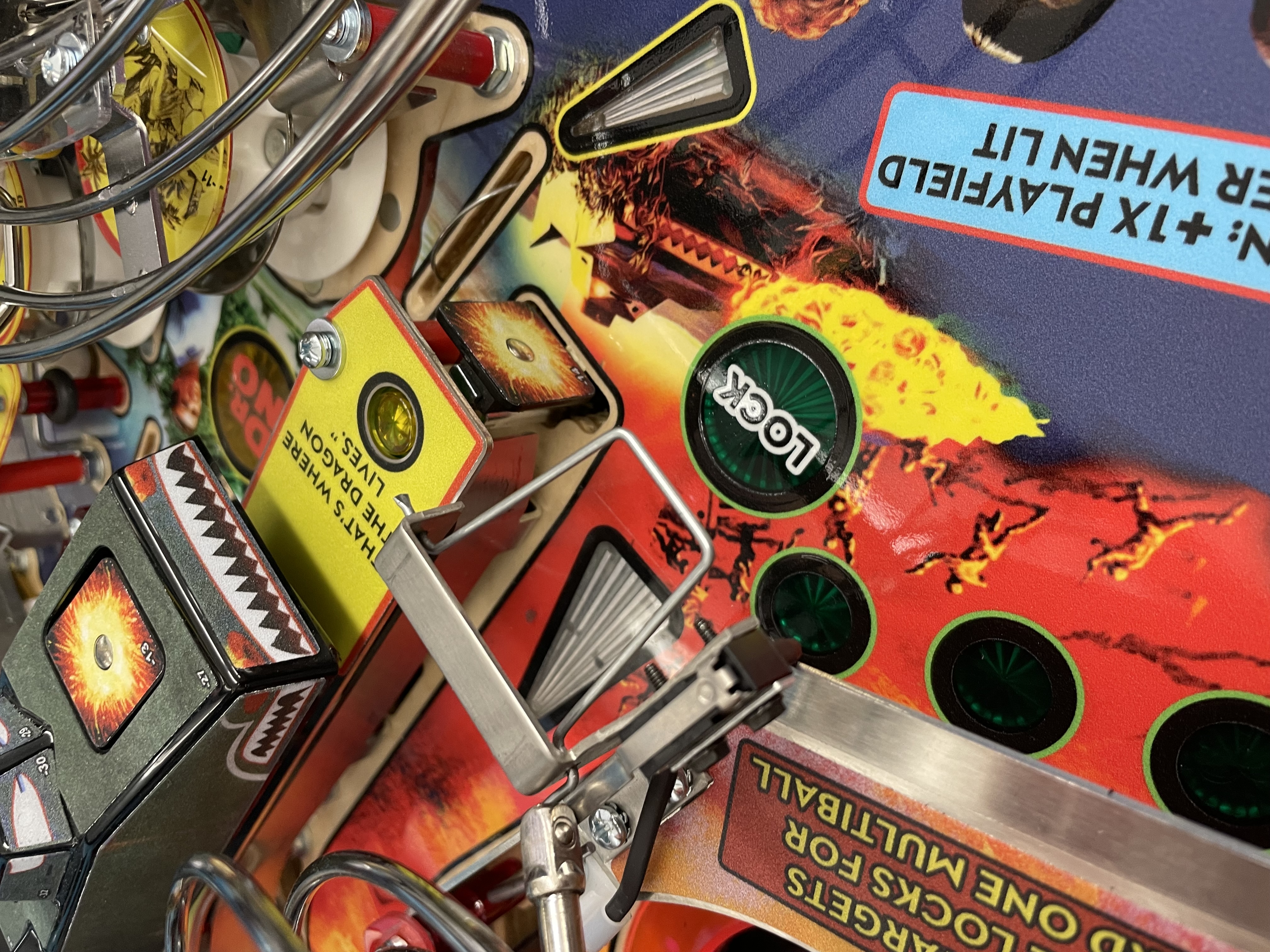

1. Locate gate assembly and pivot gate in the following direction.

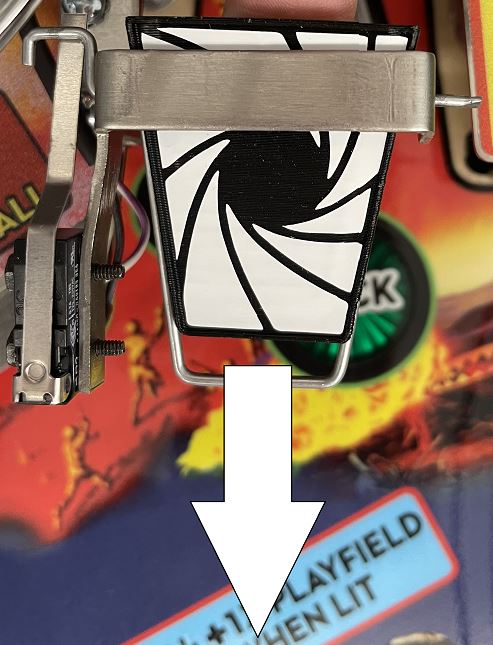

2.  Slide Gate Cover over Gate assembly wire (matching with existing overall shape). Proceed to apply pressure in the following direction until an audible snap is heard.

NOTE: Picture shown are from 007 but will work on other Stern Gate assemblies with the same wire gauge and shape.

VERSION 1 (2 Piece):

Installation Steps:

1. Gate assembly covers are simple to install. Open covers and place a dab of super glue in round opening on back of one of the two pieces. Ensure the wire portion of the gate is in between the bottom lip and the two raised circle pieces shown in the photo below.

2. Snap two pieces together over the top of existing wire gate assemblies.

Note:  Our gate assembly covers fit Stern games such as Metallica, Tron, AC/DC and Star Wars. Please contact us if you have a design idea for your Stern gate assembly covers.
