4-pin IDC Wiring Harness

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Photos for the installation show the Attack from Mars Remake pinball machine. Some variations may be observed with other Chicago Gaming Remakes.

The 4-pin IDC Wiring Harness creates a power source using the games general illumination (GI).

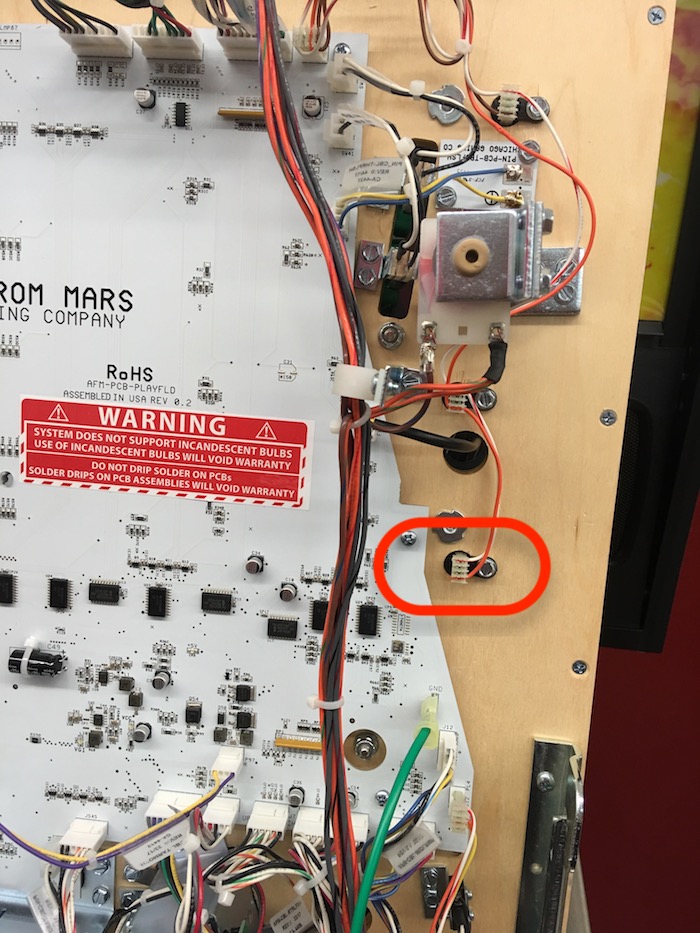

1. Lift playfield fully and locate a GI bulb connection like the one shown circled in the photo below.

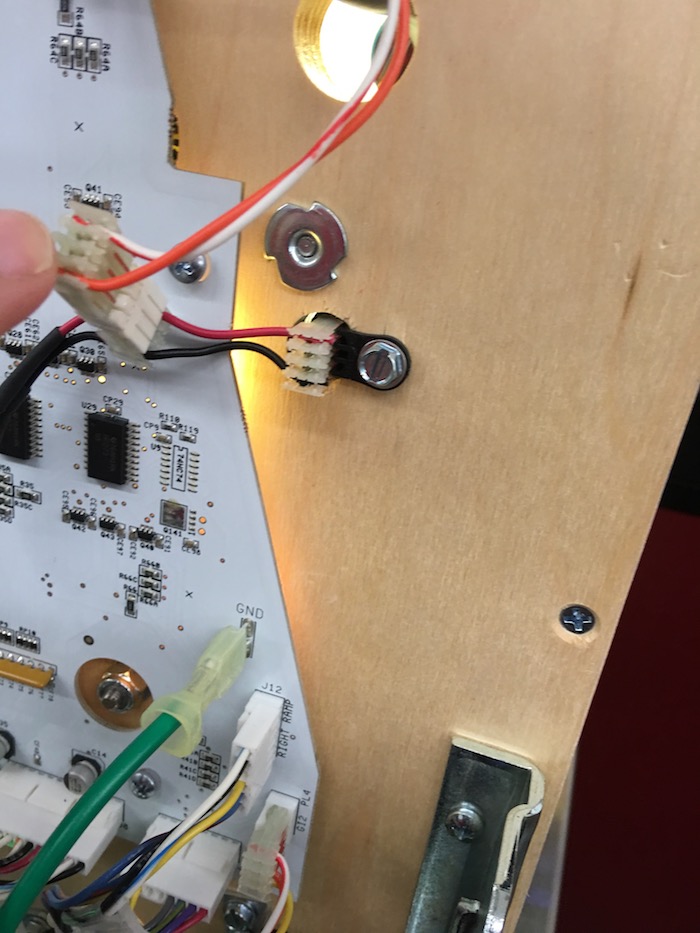

2. Utilize a small screw driver to press on the black tab to the left of the connector and remove the connector by pulling straight out.

3. Plug one of wiring harness connectors into this connection (as shown) and connect the unplugged GI wiring from the game into the second connector.

4. Attach the product you intend to power (male JST connection is required).
5. Turn on the game to test LED. Installation is complete!
