These instructions are applicable to the following products:
DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.
Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.
Images included in these instructions are of an installed prototype and may vary from your product slightly.
If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.
When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

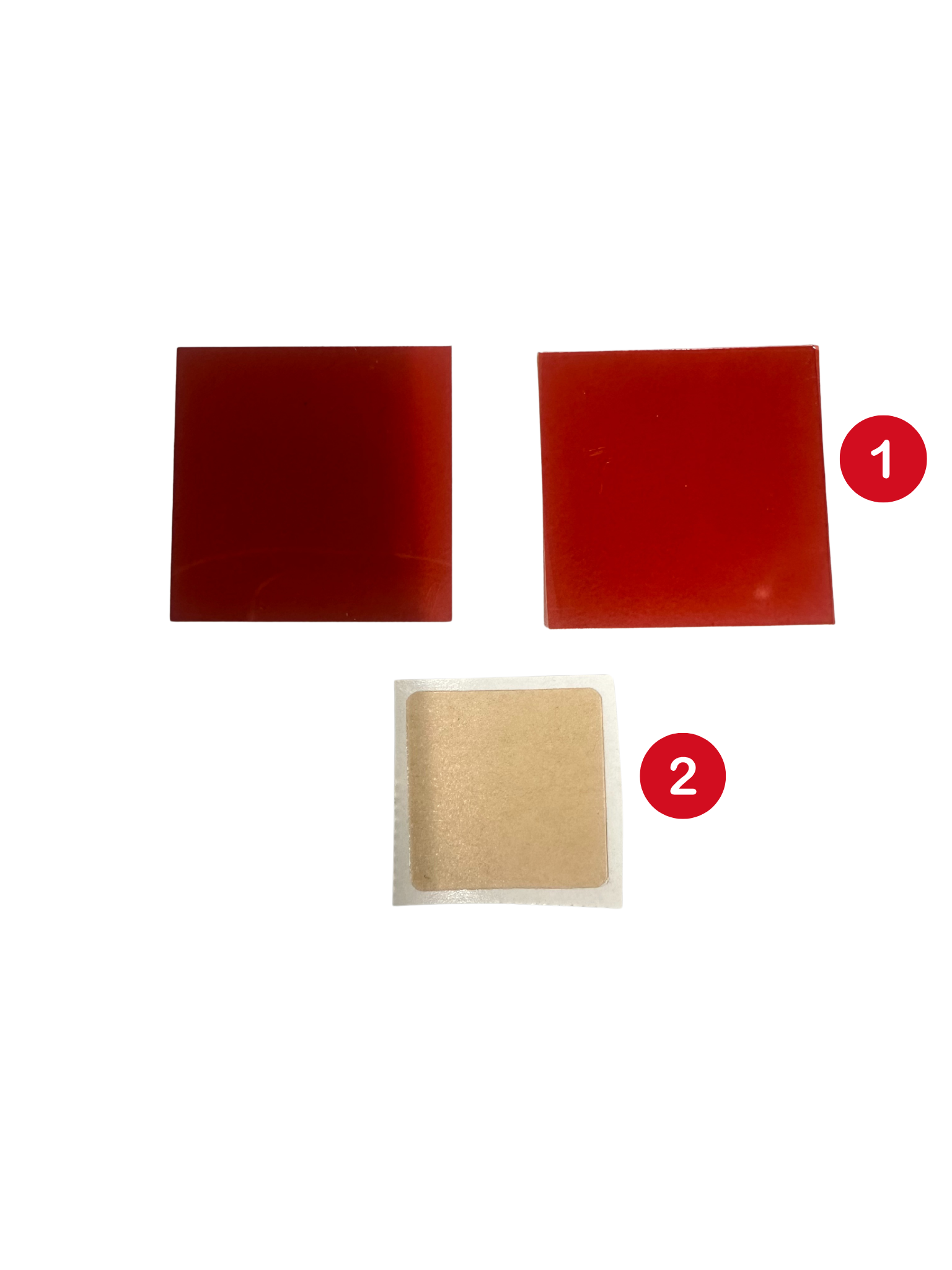

- Stand the playfield on the service rails.

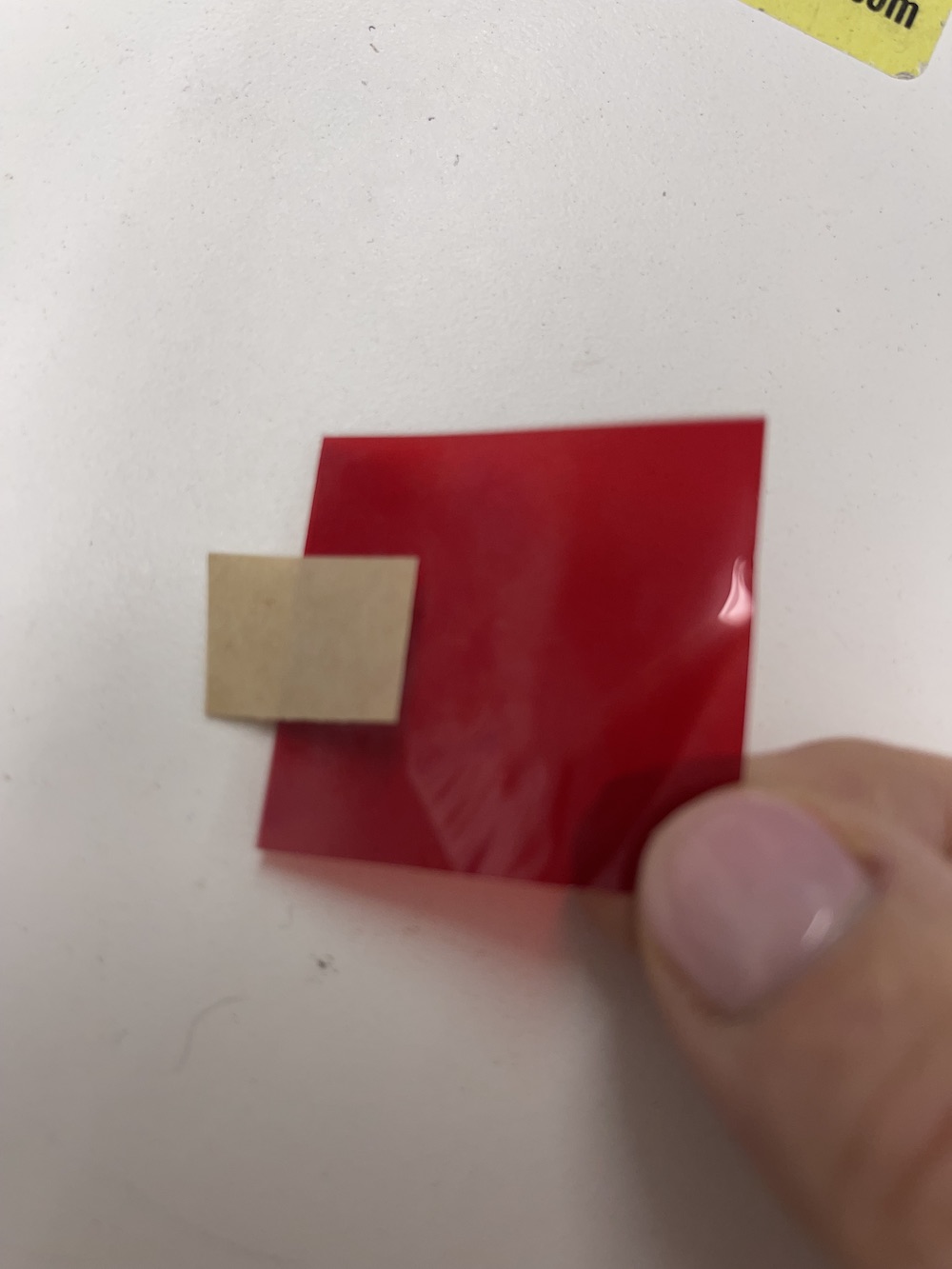

- Attach the tape to the gel with 1/2 of the adhesive exposed.

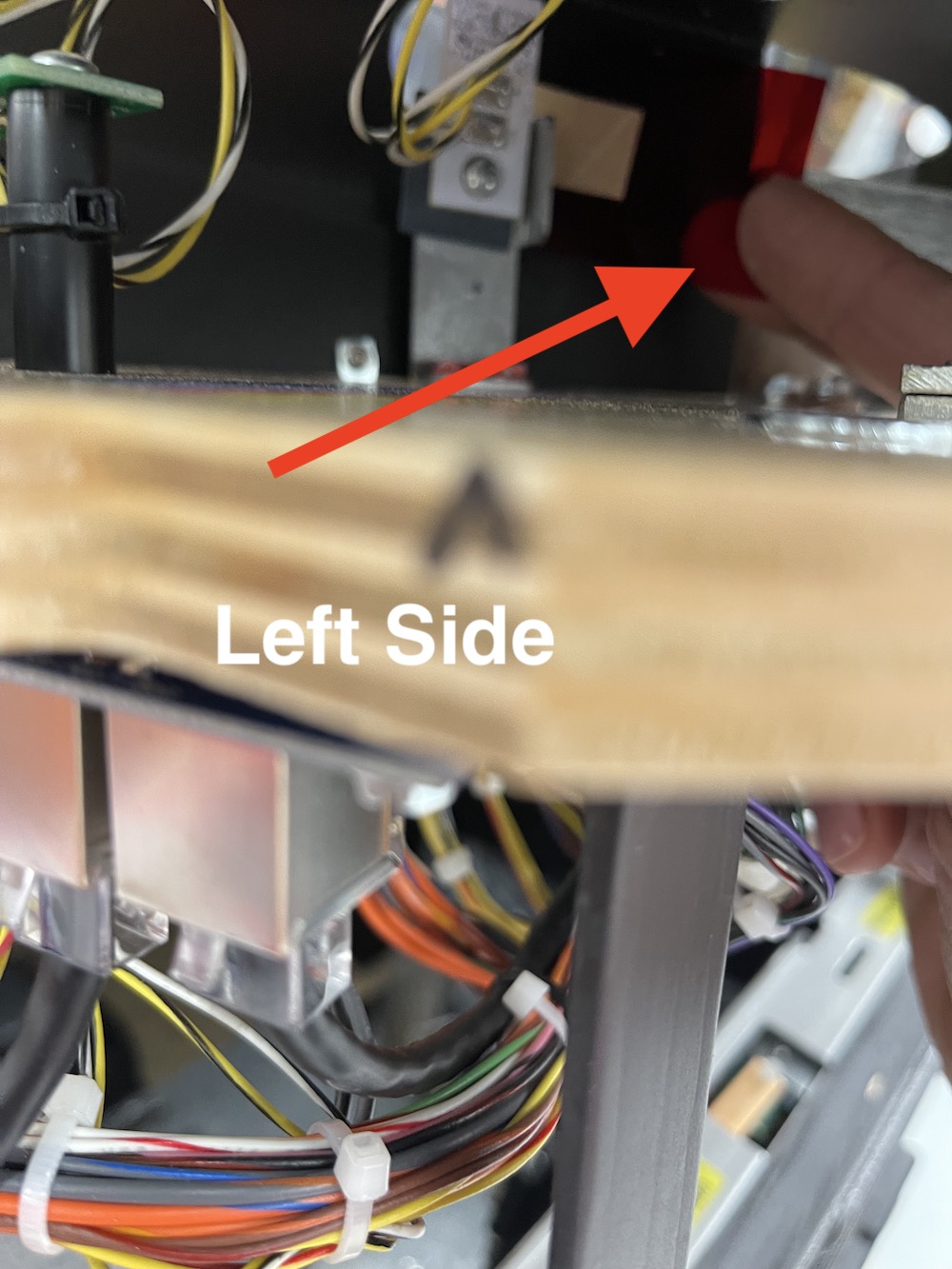

- For the left side, reach through from the ball drain and slide the gel in front of the LED and press on adhesive to attach.

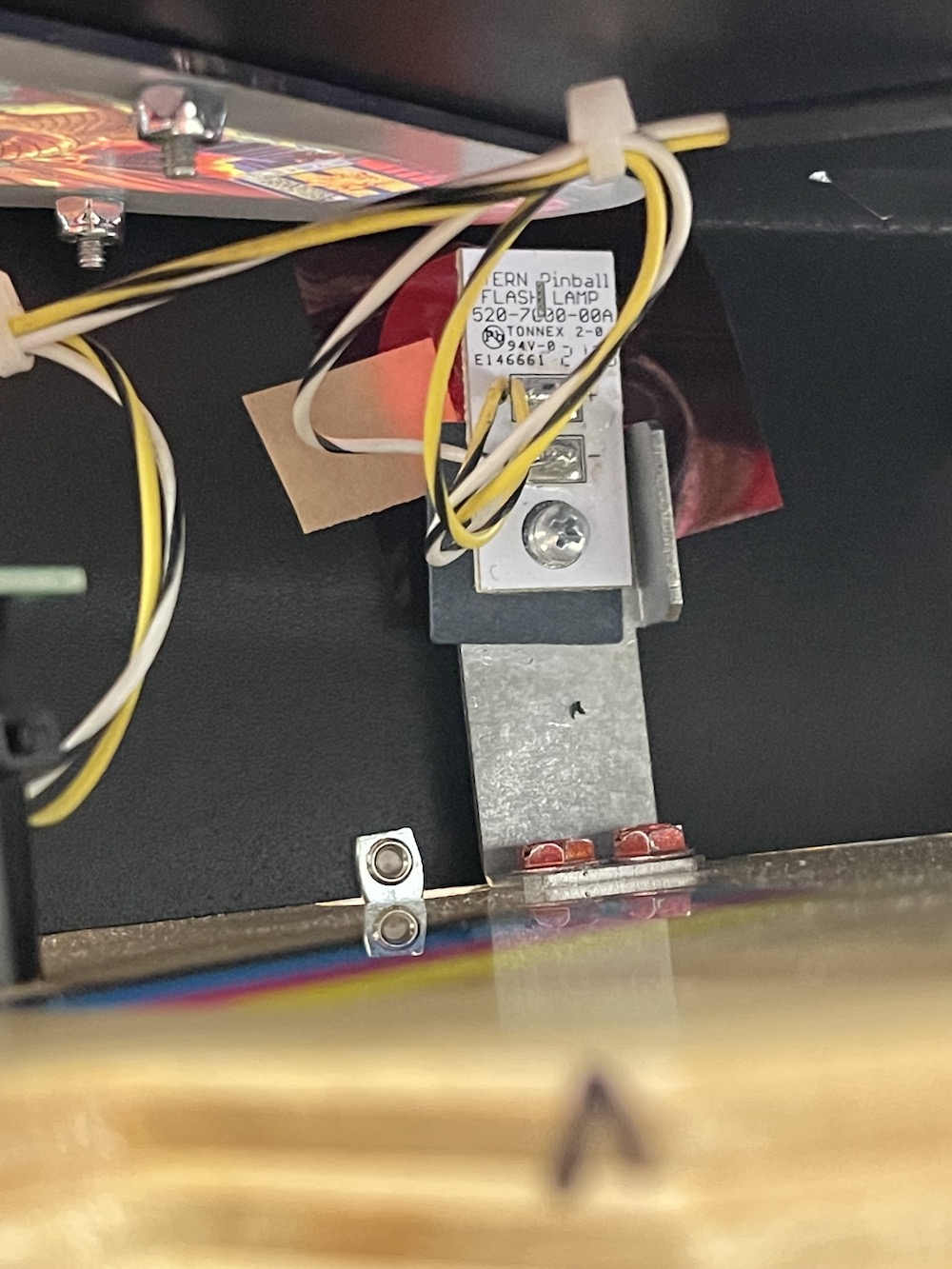

- For the right side, use a pair of tweezers to reach the gel in from under the apron. Use your other hand from the front of the hole in the playfield to help guide the gel into place. The right side is a bit tricky and sometimes takes a couple of tries!
