FF- UFO All Versions

These instructions are applicable to the following products:

• MM-FF-UFO-PRO
• MM-FF-UFO-PREM/LE

WHAT'S IN THE BOX

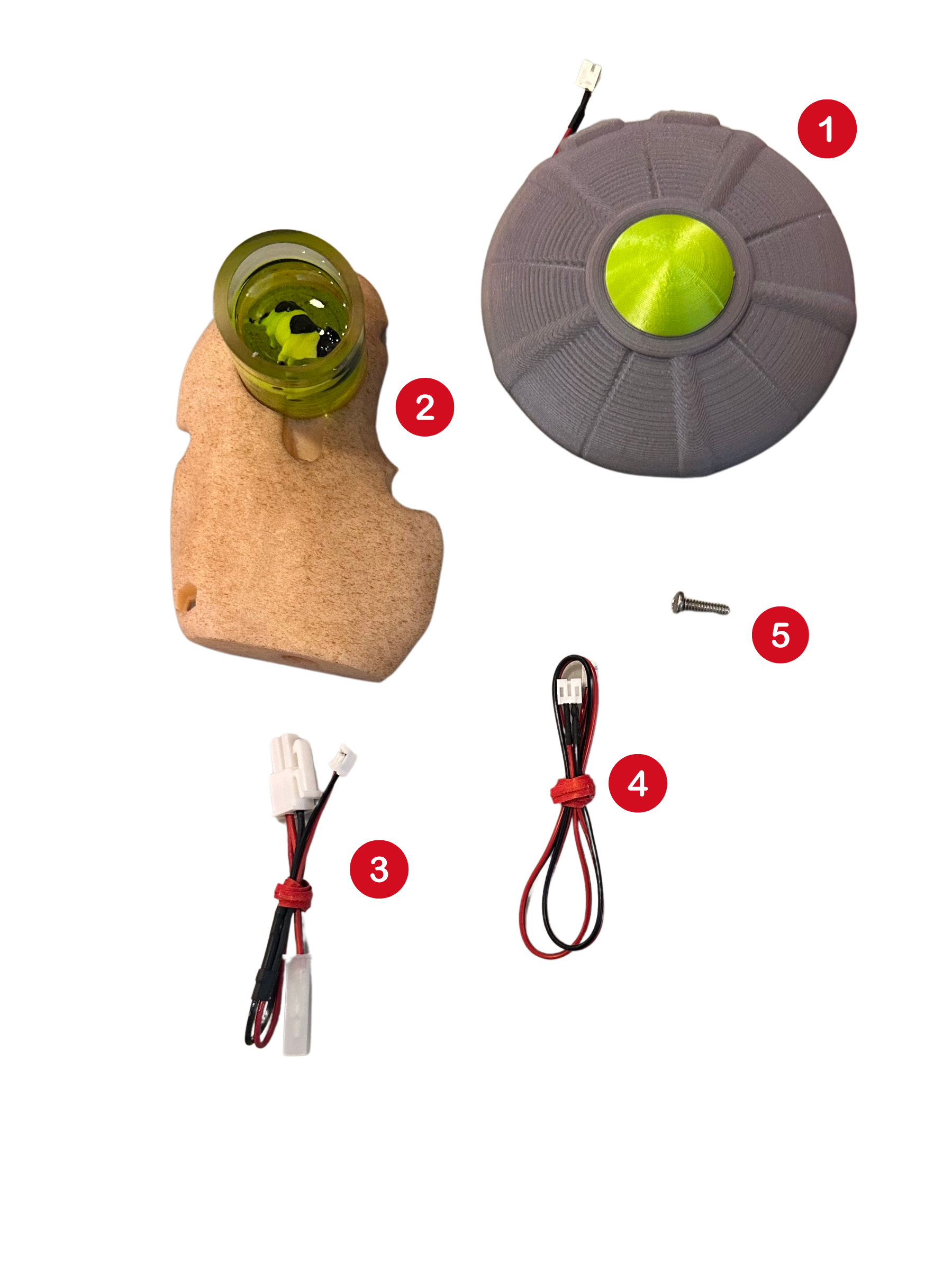

	Premium Saucer with wiring  Base with acrylic cow tube 2 pin Mini-fit jumper harness 12" wire extender 6-32 1/8" screw

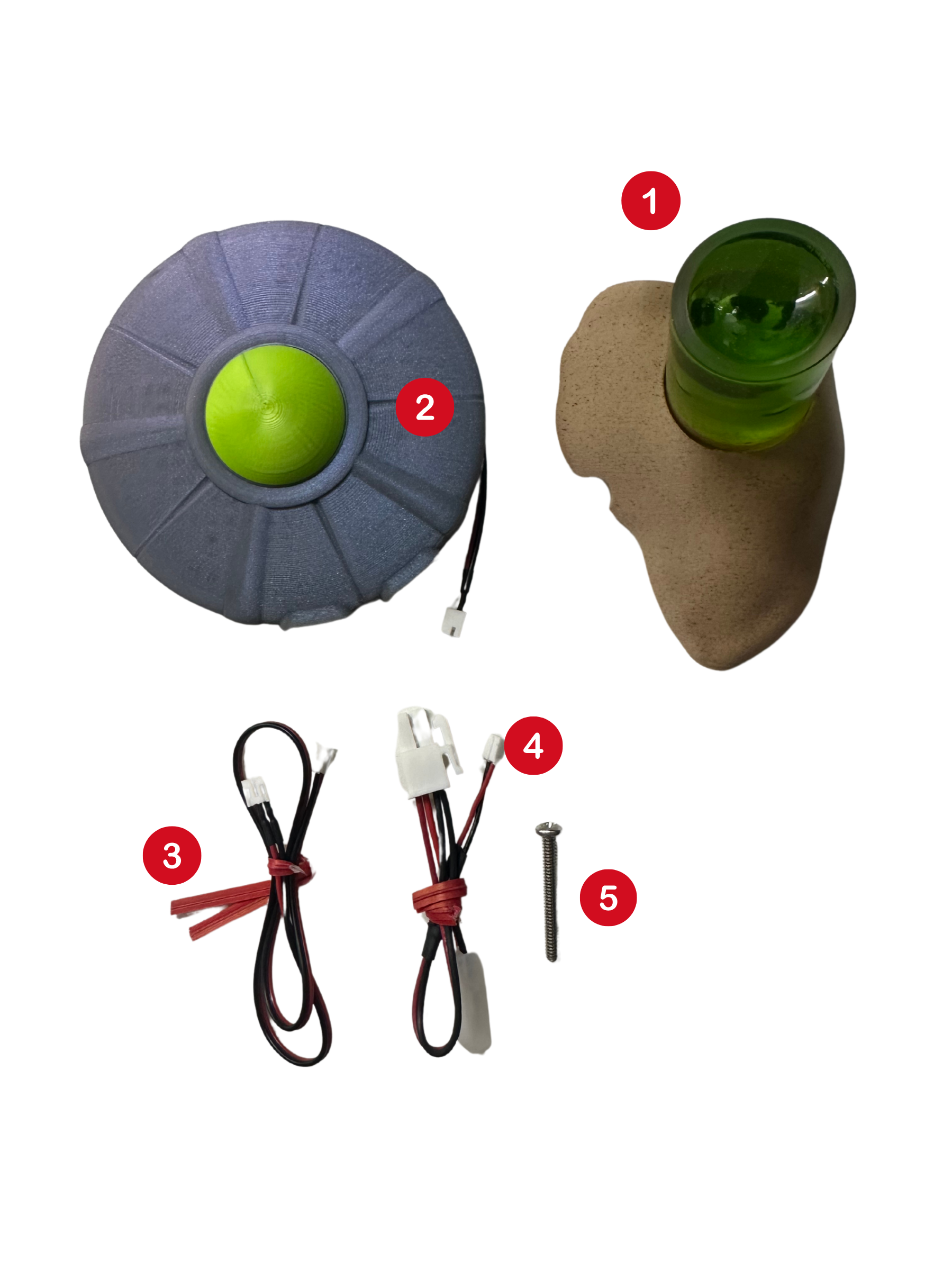

	Pro Saucer with wiring  Base with acrylic cow tube 2 pin Mini-fit jumper harness 12" wire extender 6-32 1/2" screw

DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

UNDER PLAYFIELD

It is recommended that Cabinet Protectors are used to ensure that the interior of the cabinet is protected.

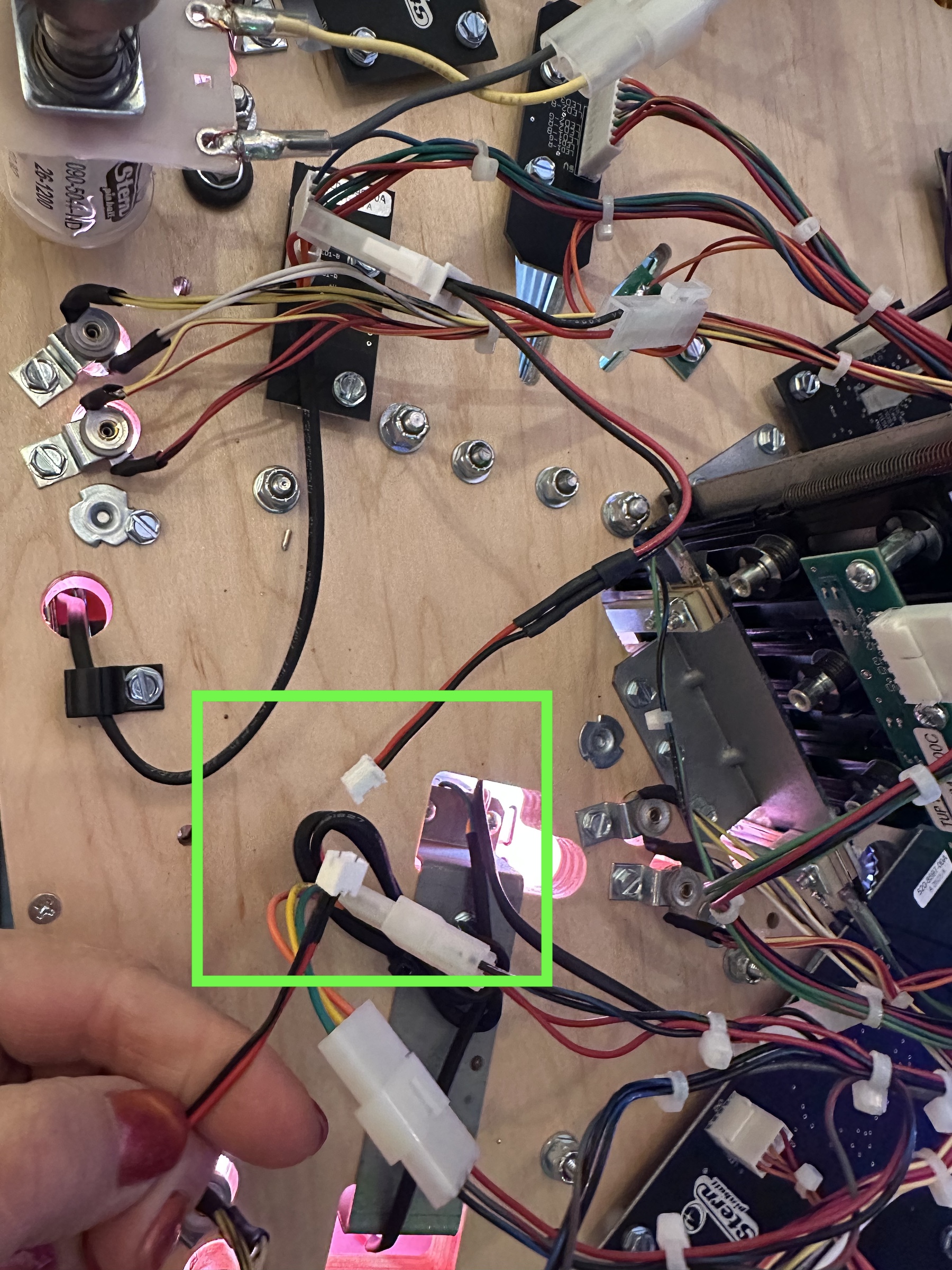

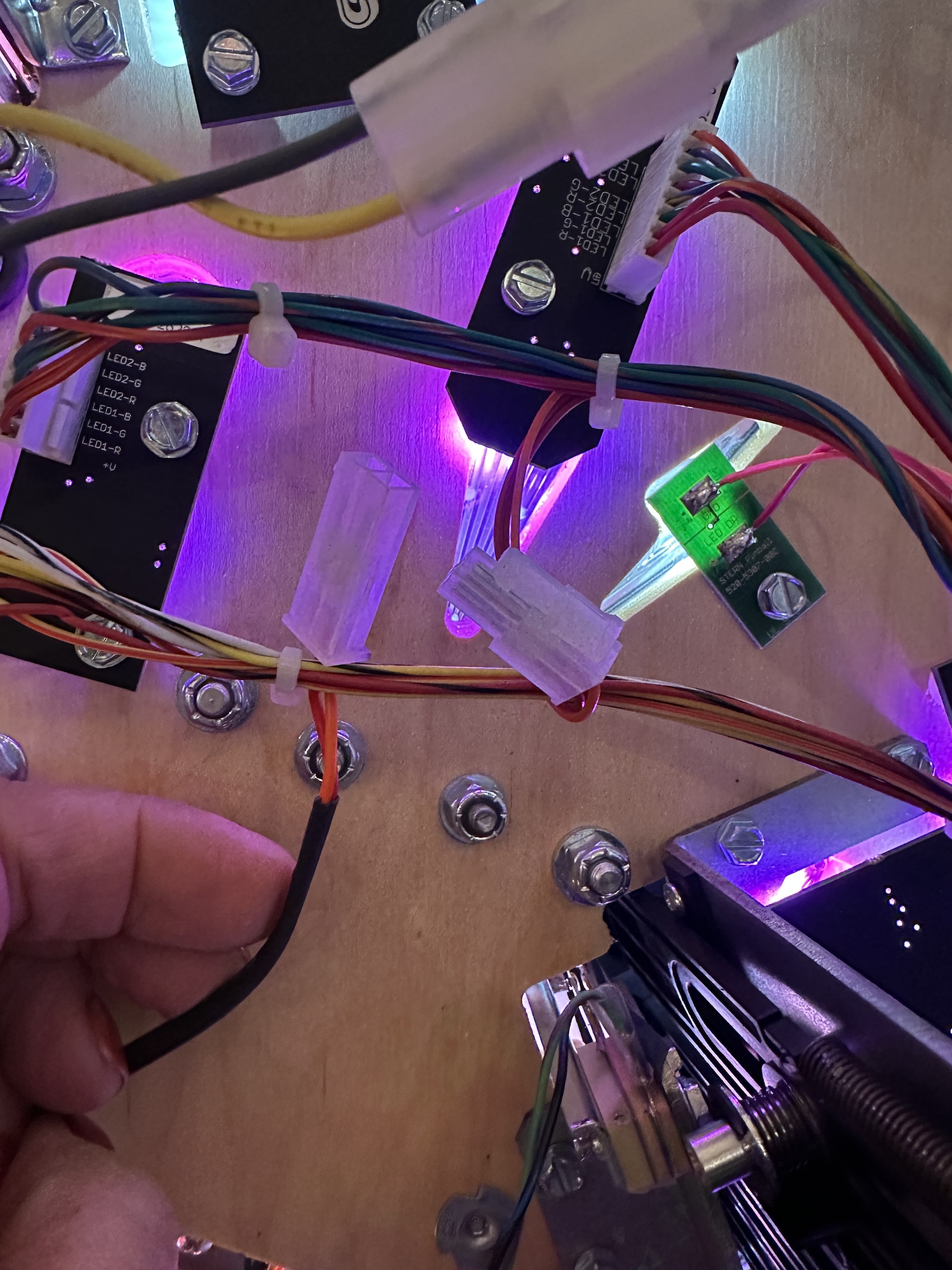

1. Carefully lift the playfield in the upper position and locate the Van Flasher mini fit connector (SHOWN IN PHOTO)and disconnect.

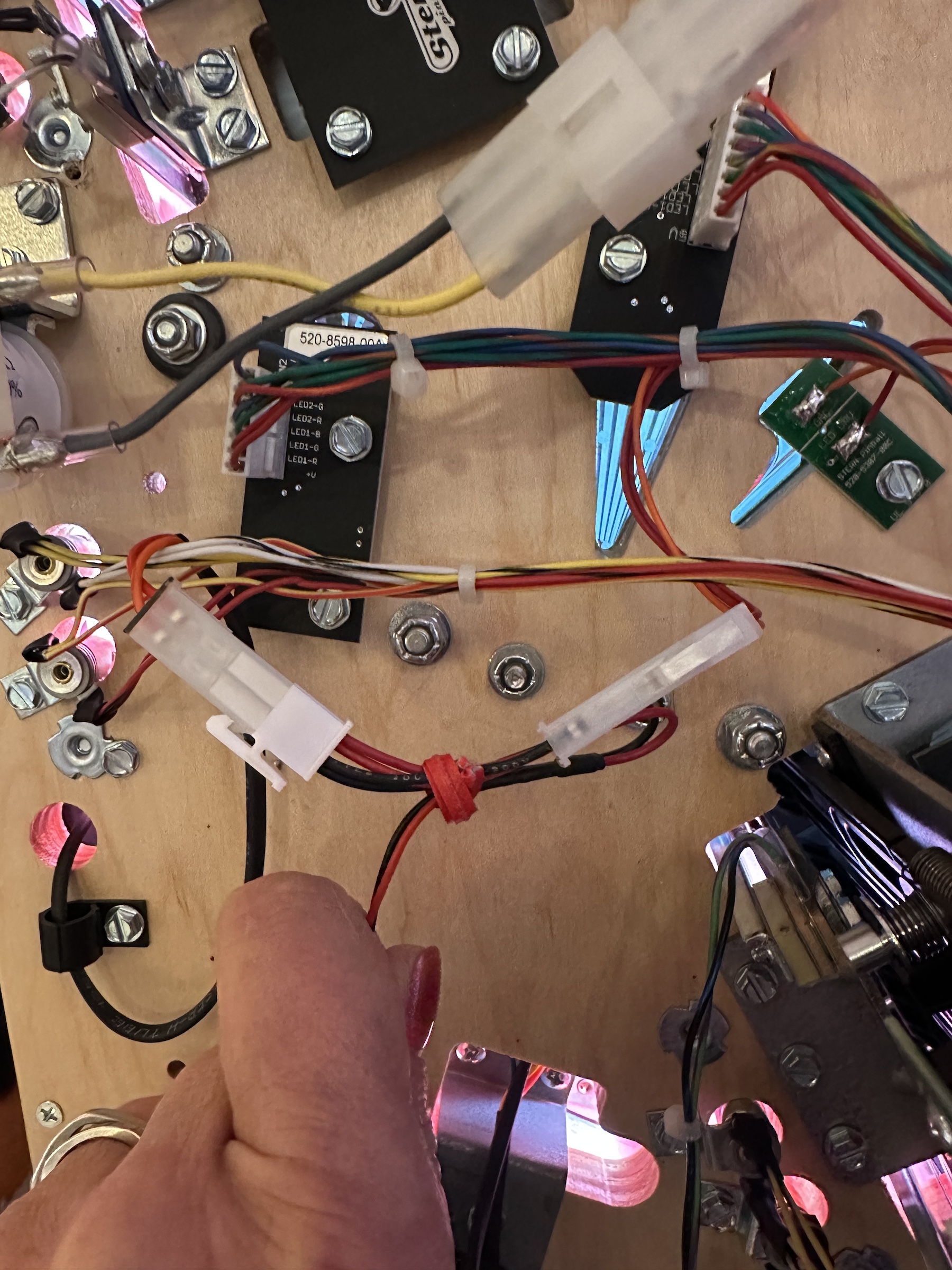

2. Gather the provided Mini Fit Assembly Jumper (part #3) and install it to the disconnected FACTORY Van Flasher mini fit connector, as shown.

3. Attach the Matrix extension wire (part #4) to the Mini Fit assembly.

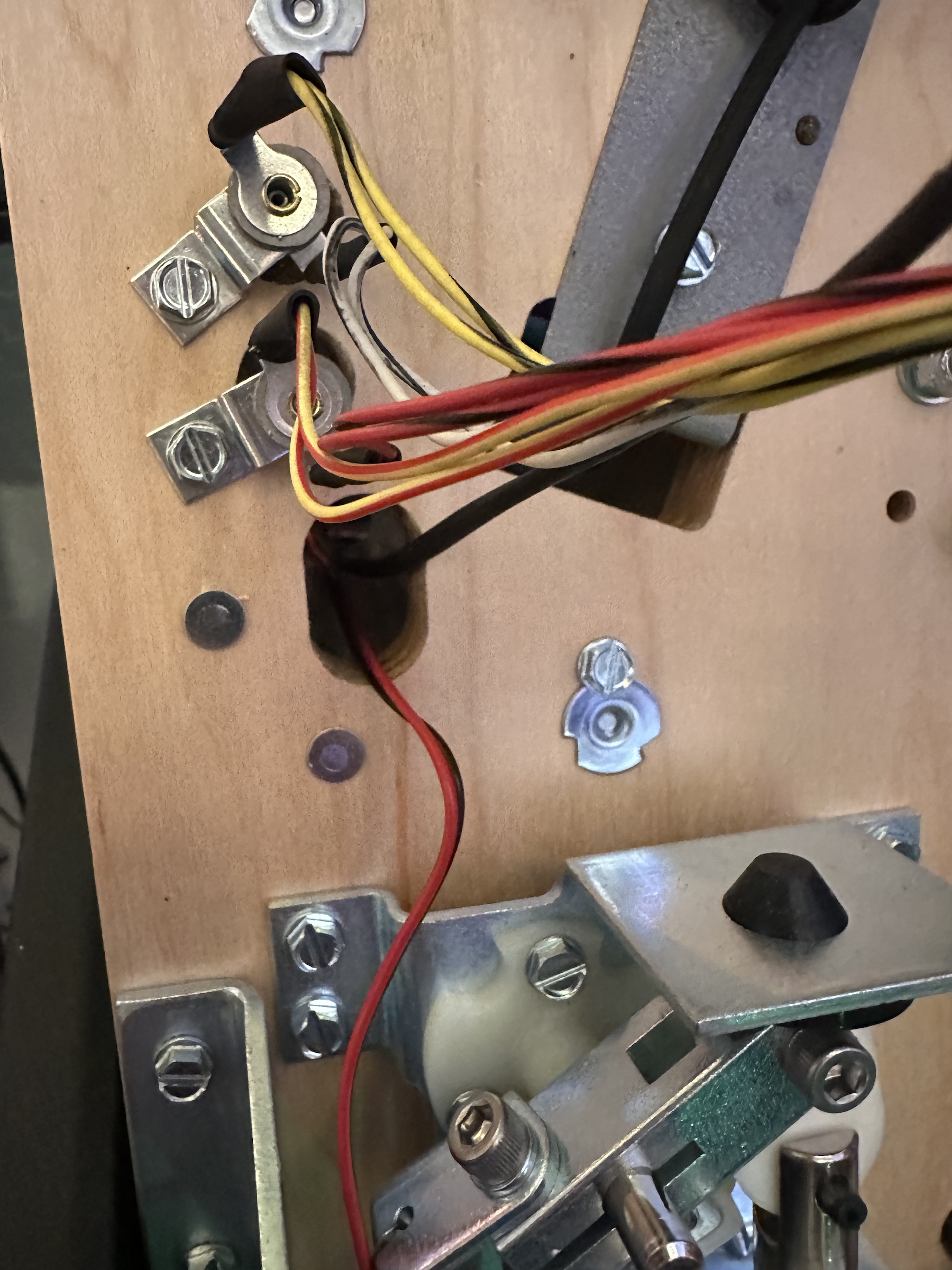

4. Feed the end of it through the flasher wiring hole up through to the playfield (shown in GREEN). Proceed to follow the cable routing in YELLOW.

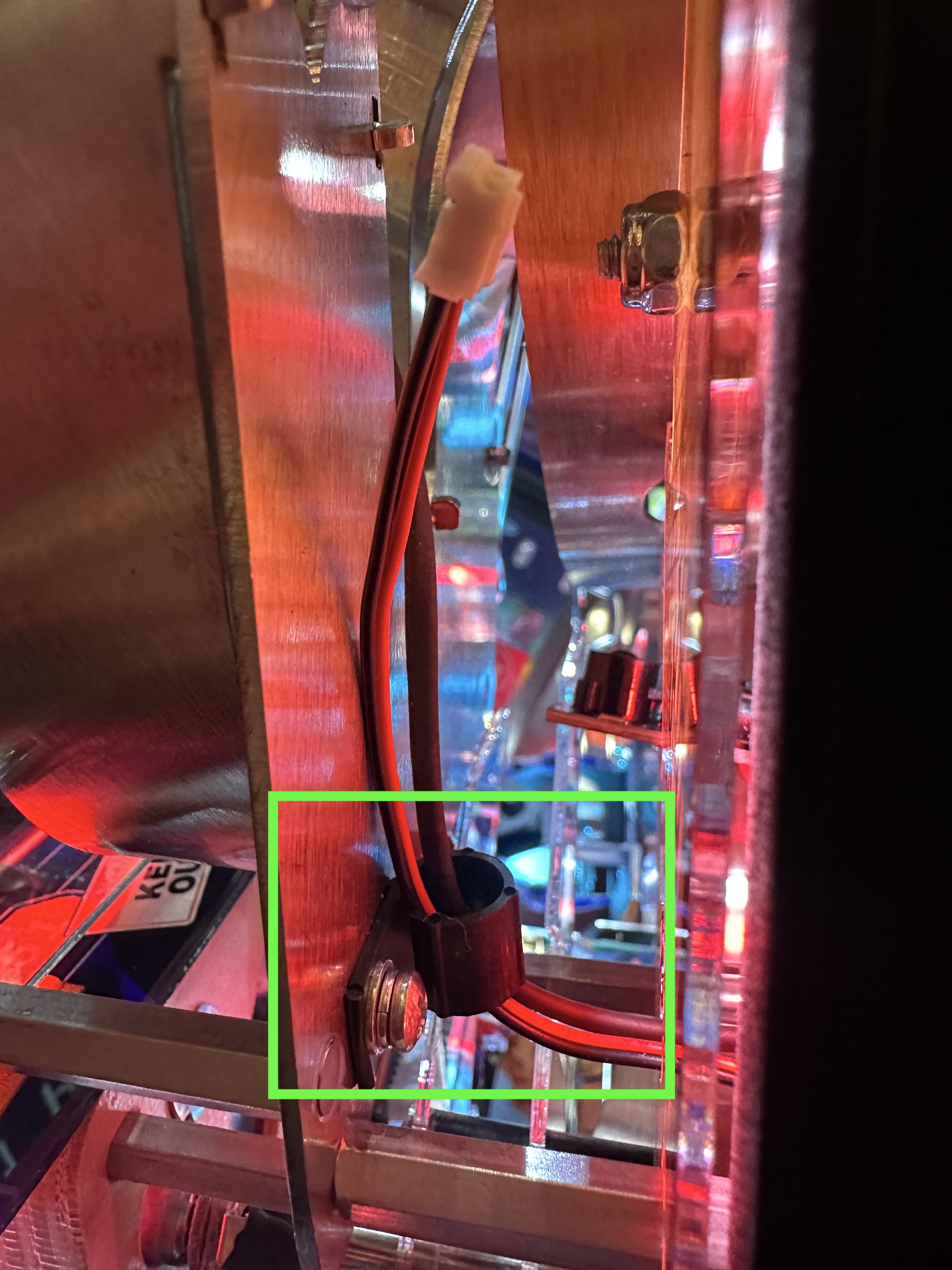

5. Utilize the factory wire clip found in the green box in the last photo for a neat cable installation.

6. Carefully lower the playfield.

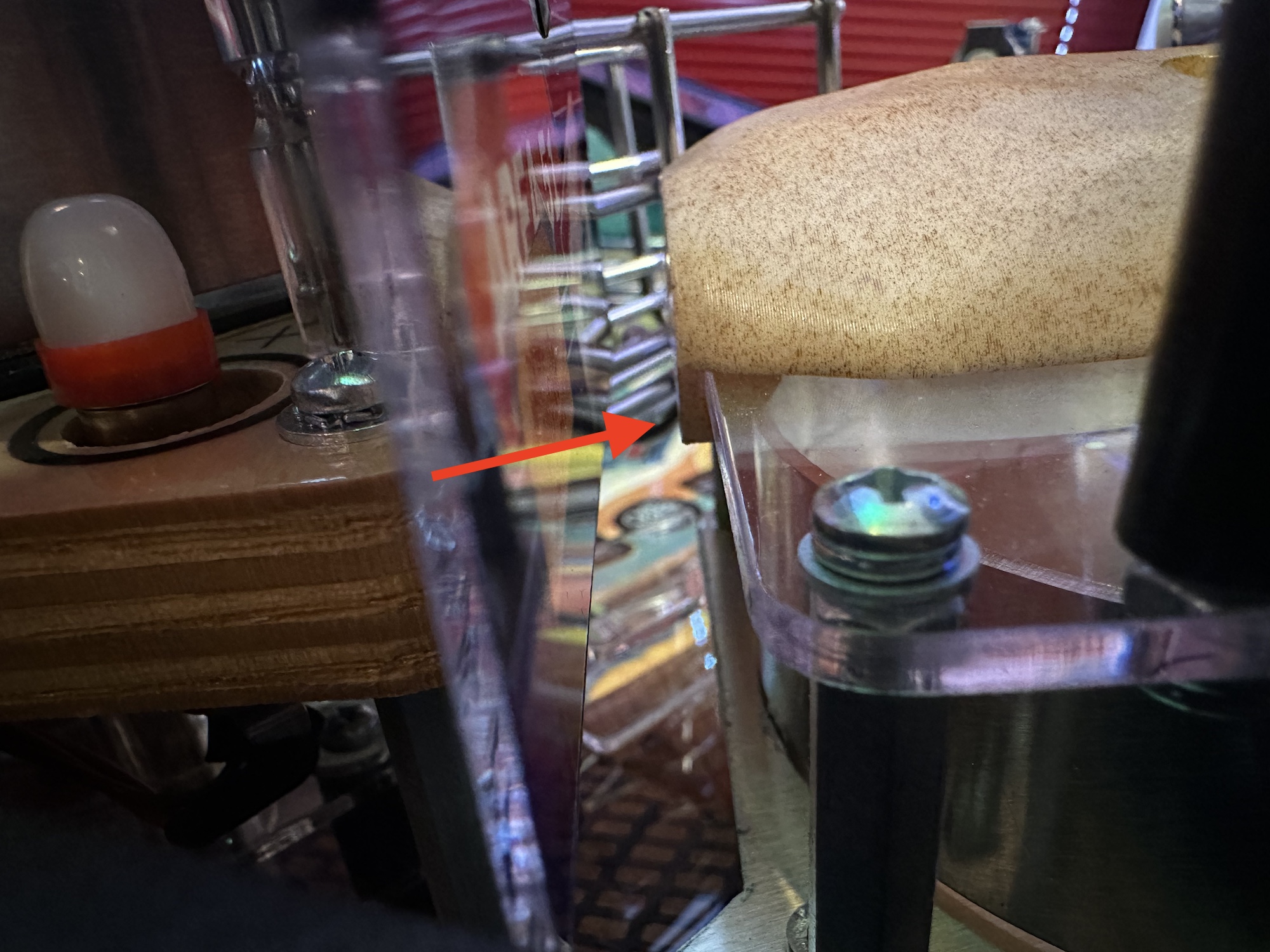

7. Remove the indicated screw from the Left Ramp's acrylic. Store with game parts as it is not used in final installation.

8. Slide on the UFO base by placing the lip around the back of the plastic.


   Base will fit around existing screws and be aligned to the attachment screw hole. Utilize screw provided in your kit to attach the base to the acrylic.

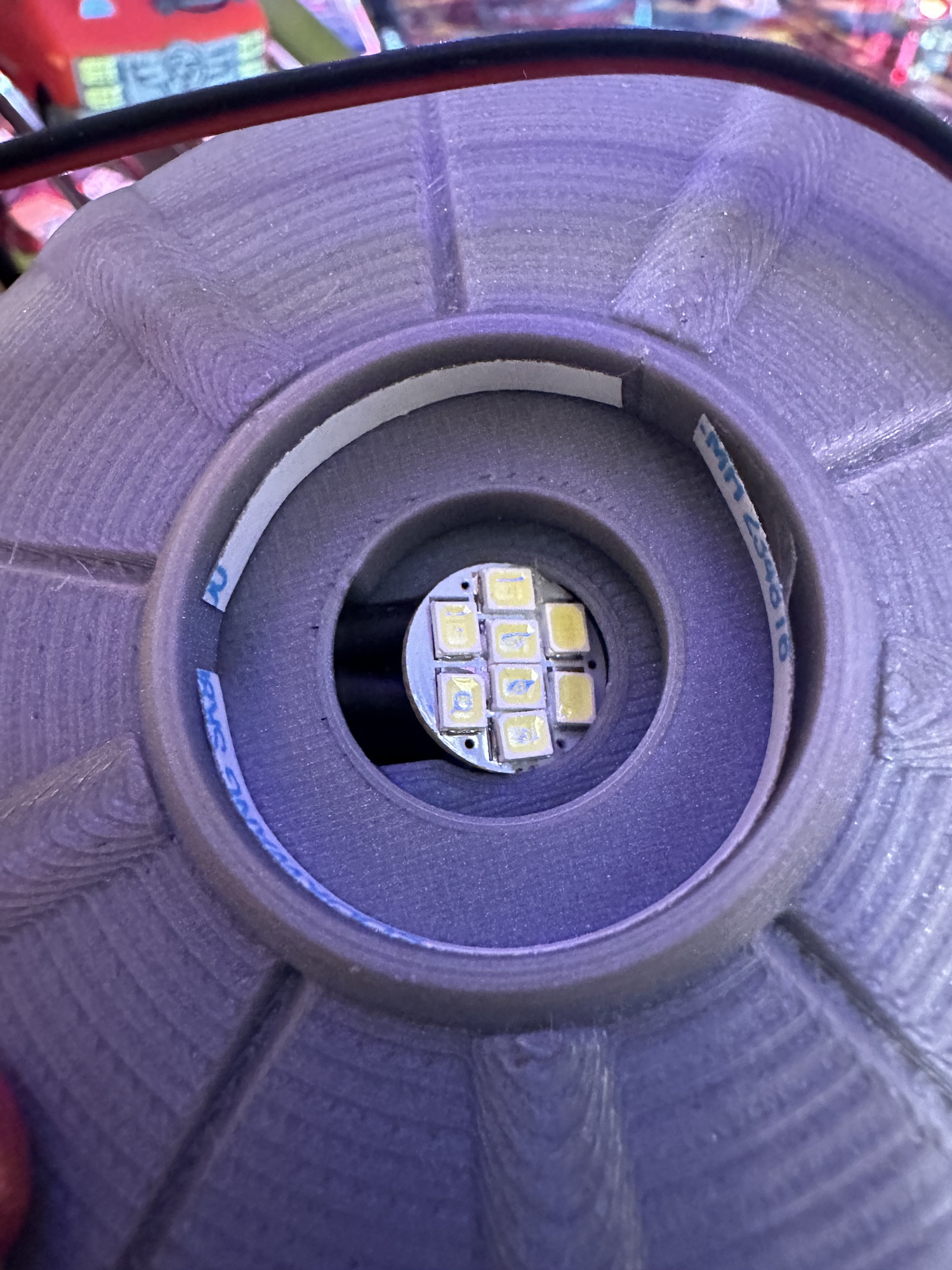

9. Remove the adhesive backing from the inside of the saucer and mount on top of the UFO base, running the wiring toward the back.

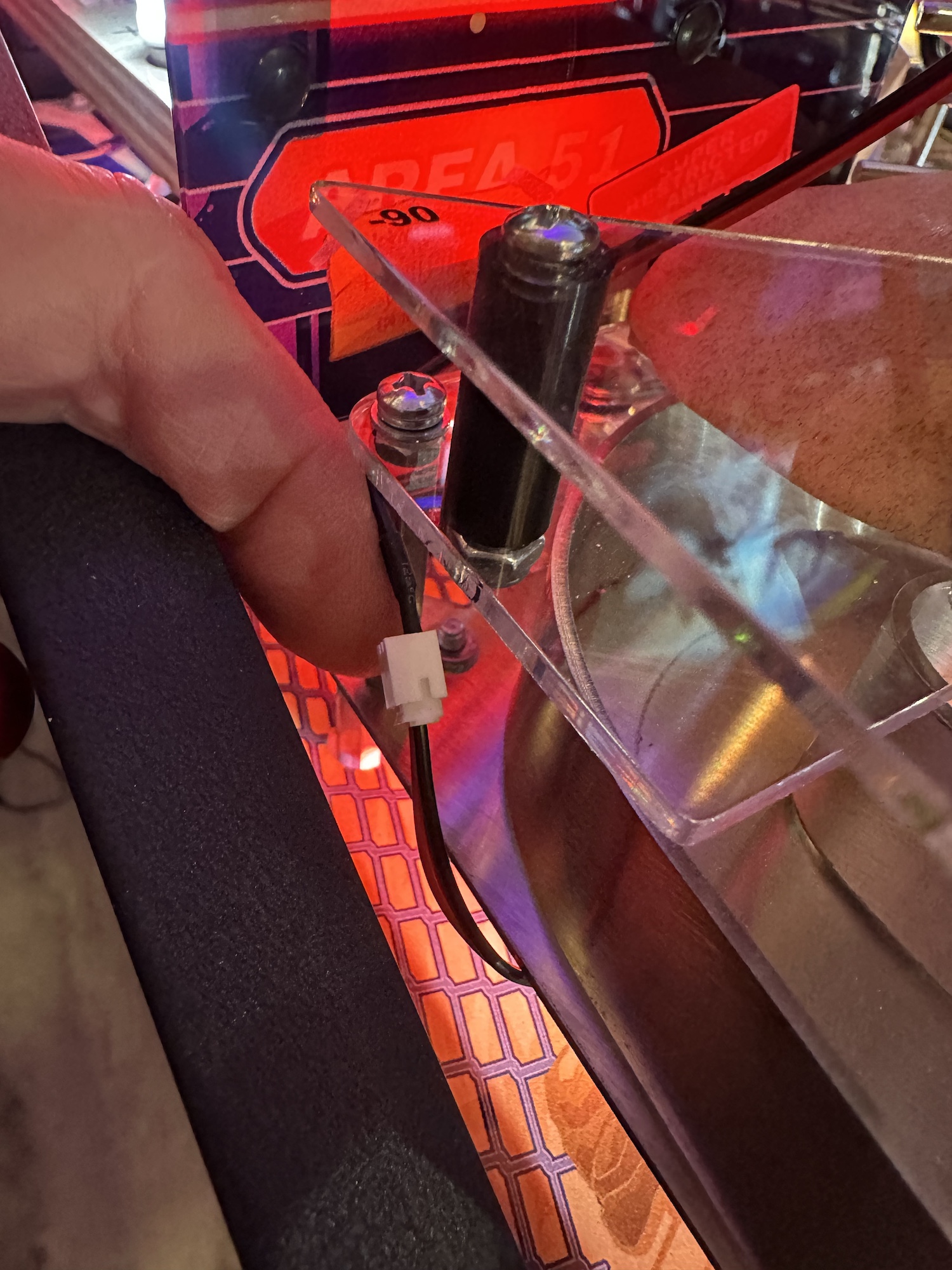

10. Attach the saucer wiring to the wiring from under the playfield.

11. Installation is complete and you can now enjoy this Interactive UFO :)
