These instructions are applicable to the following products:
DANGER ELECTRICAL SHOCK
Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.
Please follow these safety instructions as well as all installation instructions. Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.
Images included in these instructions are of an installed prototype and may vary from your product slightly.
If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.
When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

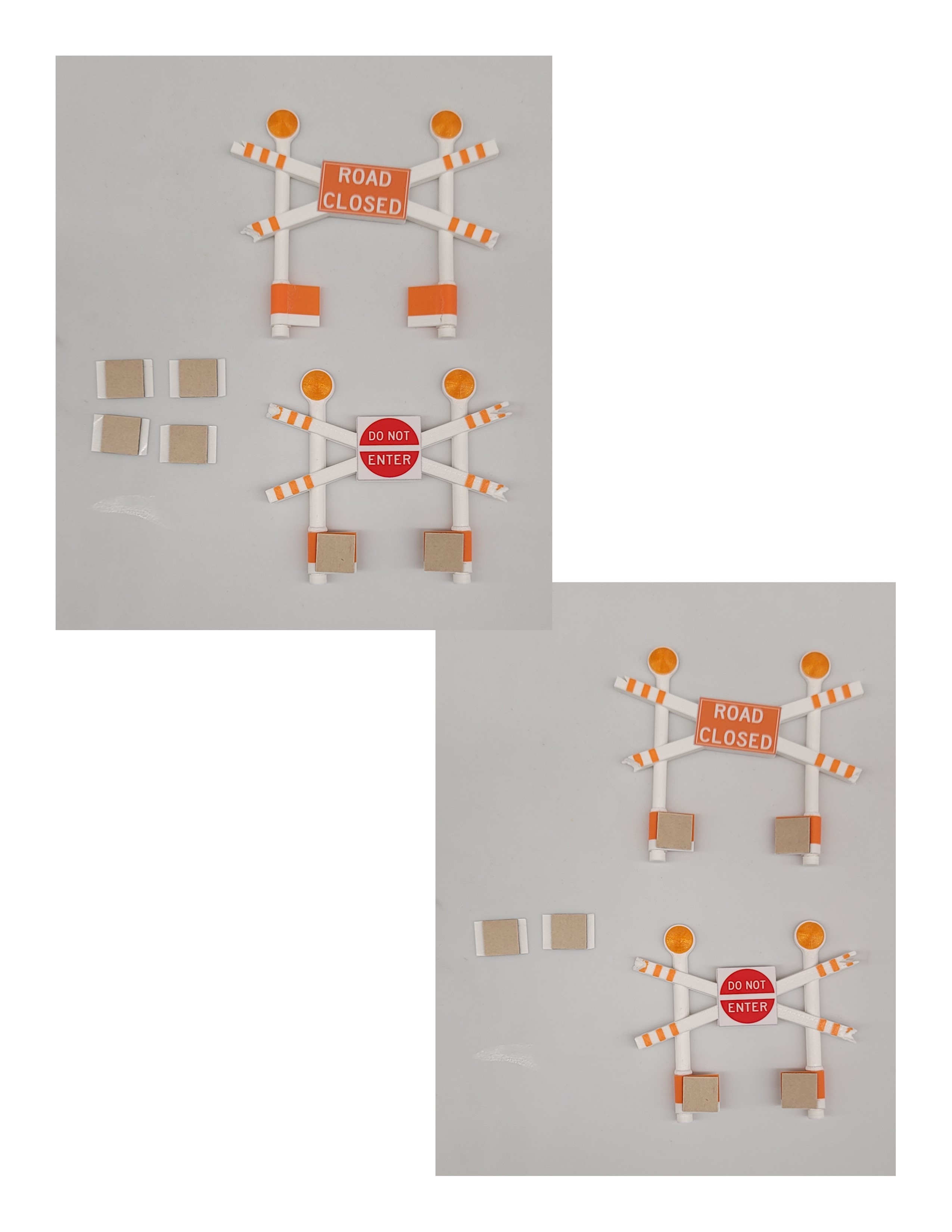

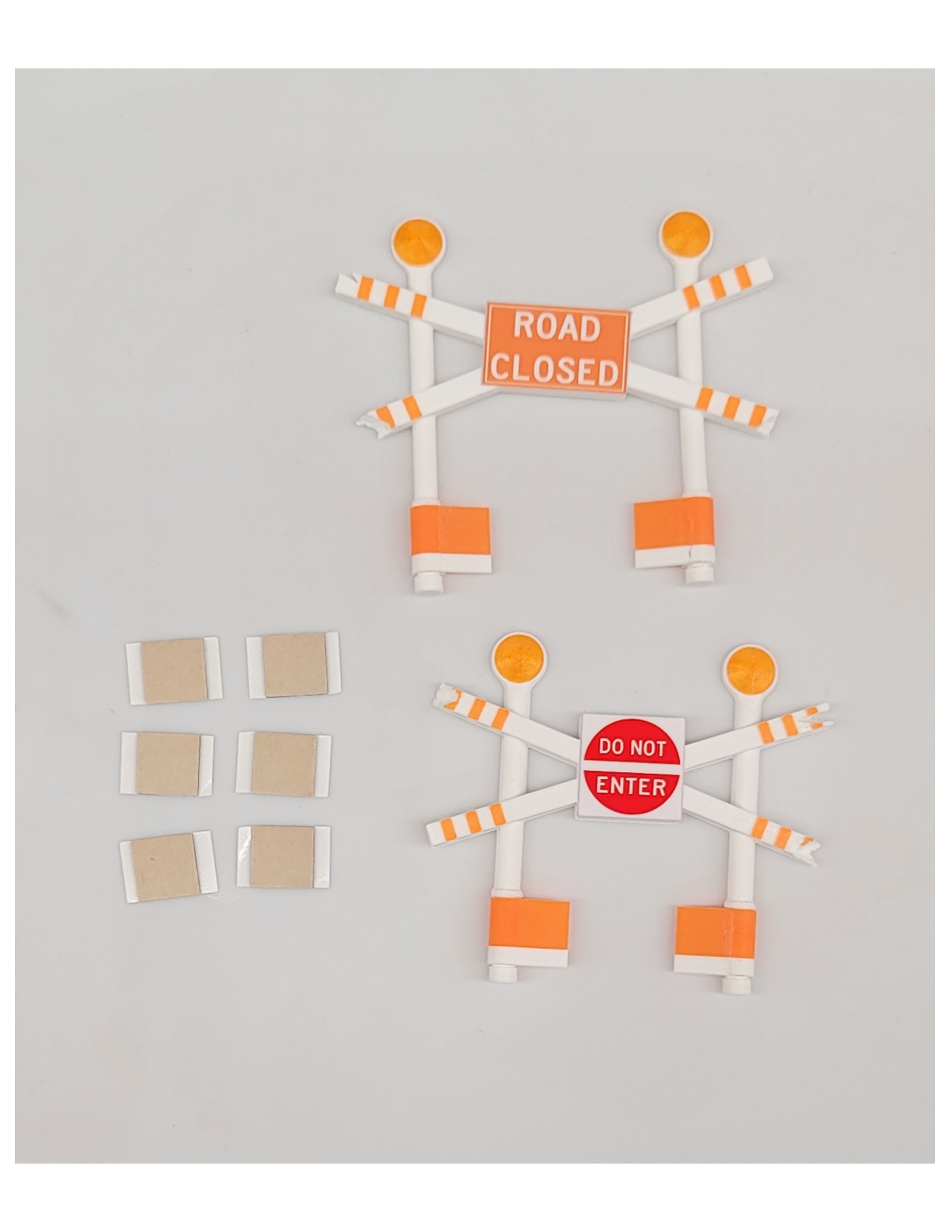

What comes in the MM-FF-RAMPSIGNS
|
Two Signs
Six Double-Sided-Tape (Two Extras) |
Apply the tape to the signs on the Hinge Flap

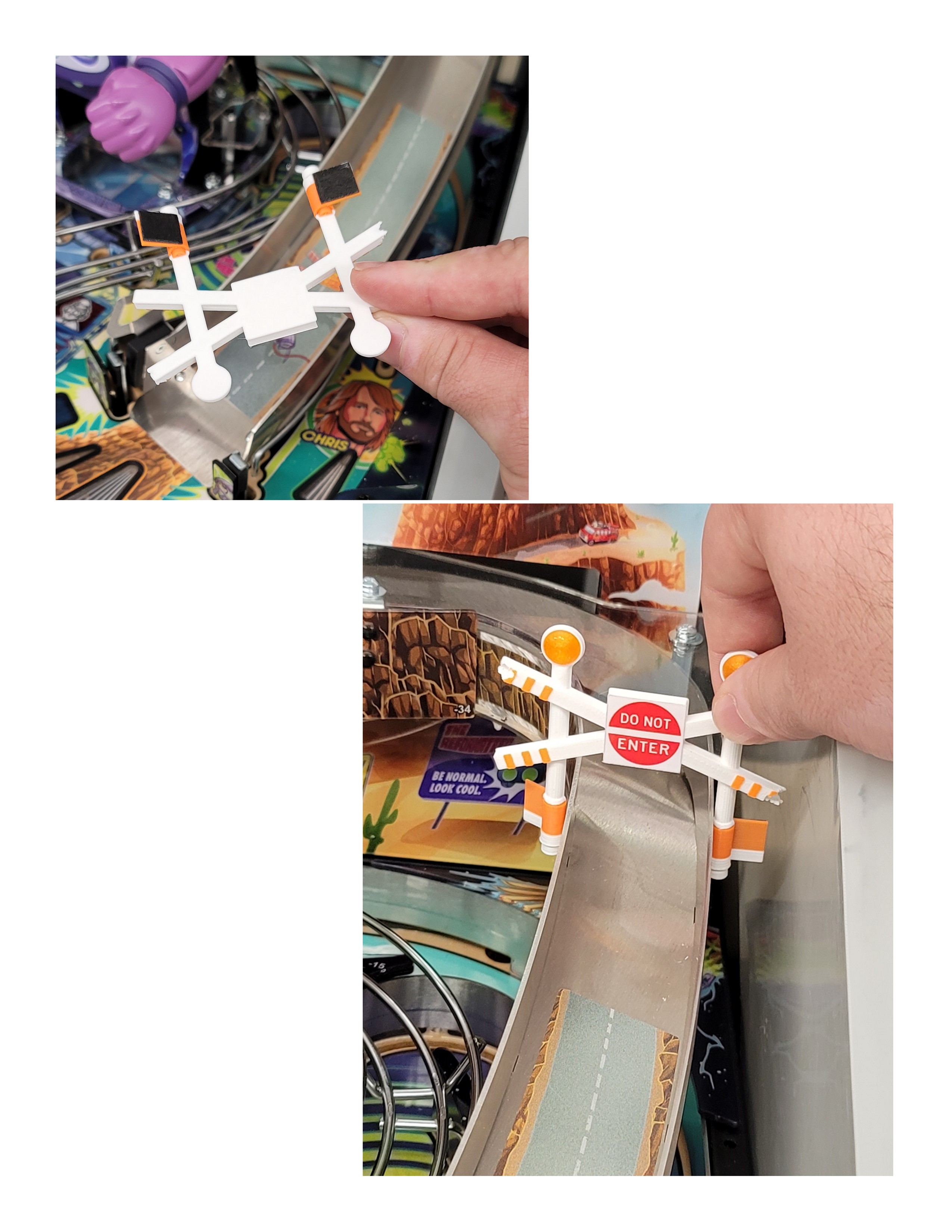

Test your placement with the tape cover still on

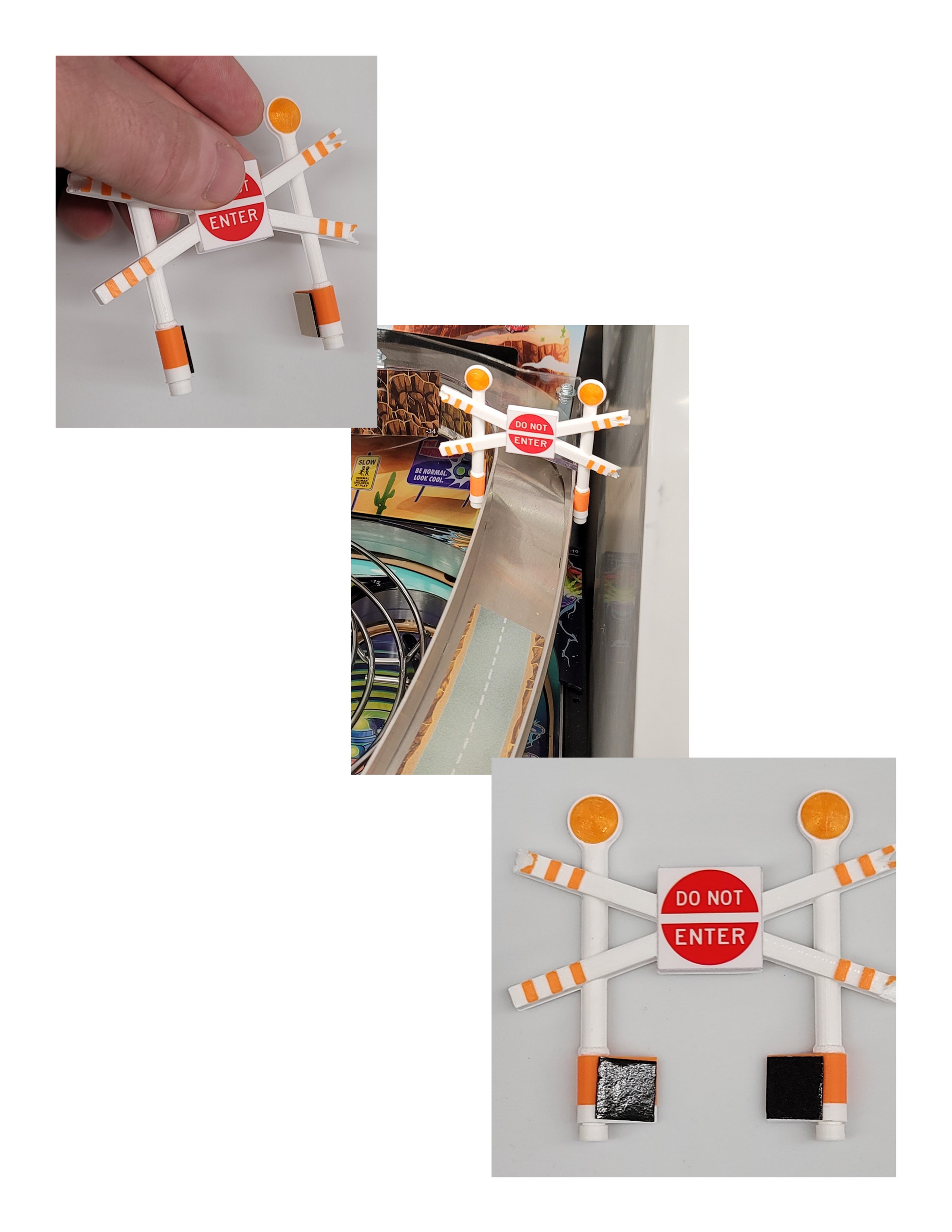

Remove the tape covers and then fan/push the hinge tabs out. Place the sign to your liking on the ramp

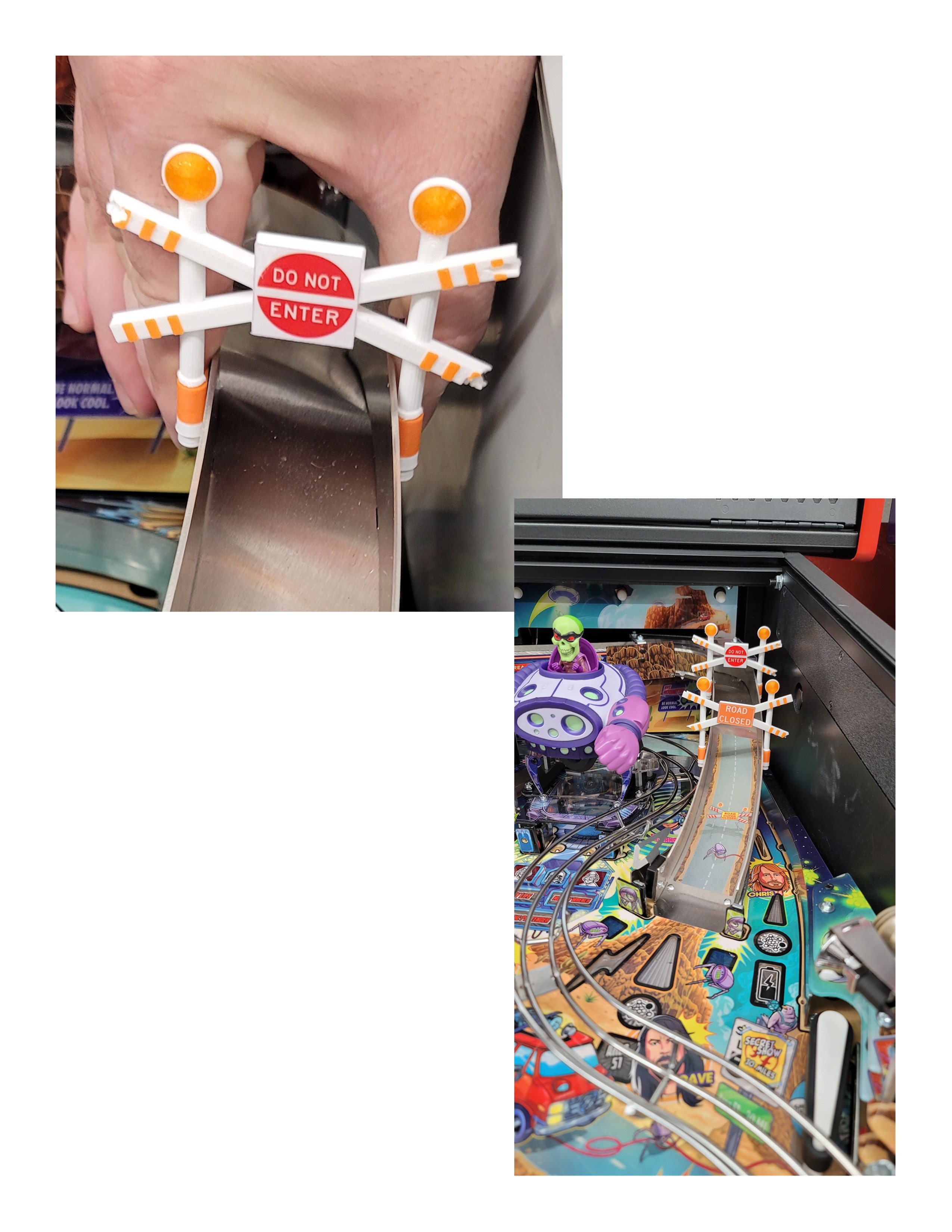

Pinch the tabs onto the ramp and repeat with the other sign
