Kong - Cave Scoop

These instructions are applicable to the following products:

• MM-SCOOP-[COLOR]
• MM-INSCOOP-[COLOR]
• WHATS IN THE BOX

Image Coming Soon

LED board Wiring Harness Tape ILS Board (interactive scoop)

DANGER ELECTRICAL SHOCK

Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Please note that this page is still under construction and will be completed soon.

Install difficulty: Easy

Tools needed: 1/4 nutdriver/wrench or flat head screwdriver.

1. Turn off game. Remove glass from game and set in a safe and secure location.

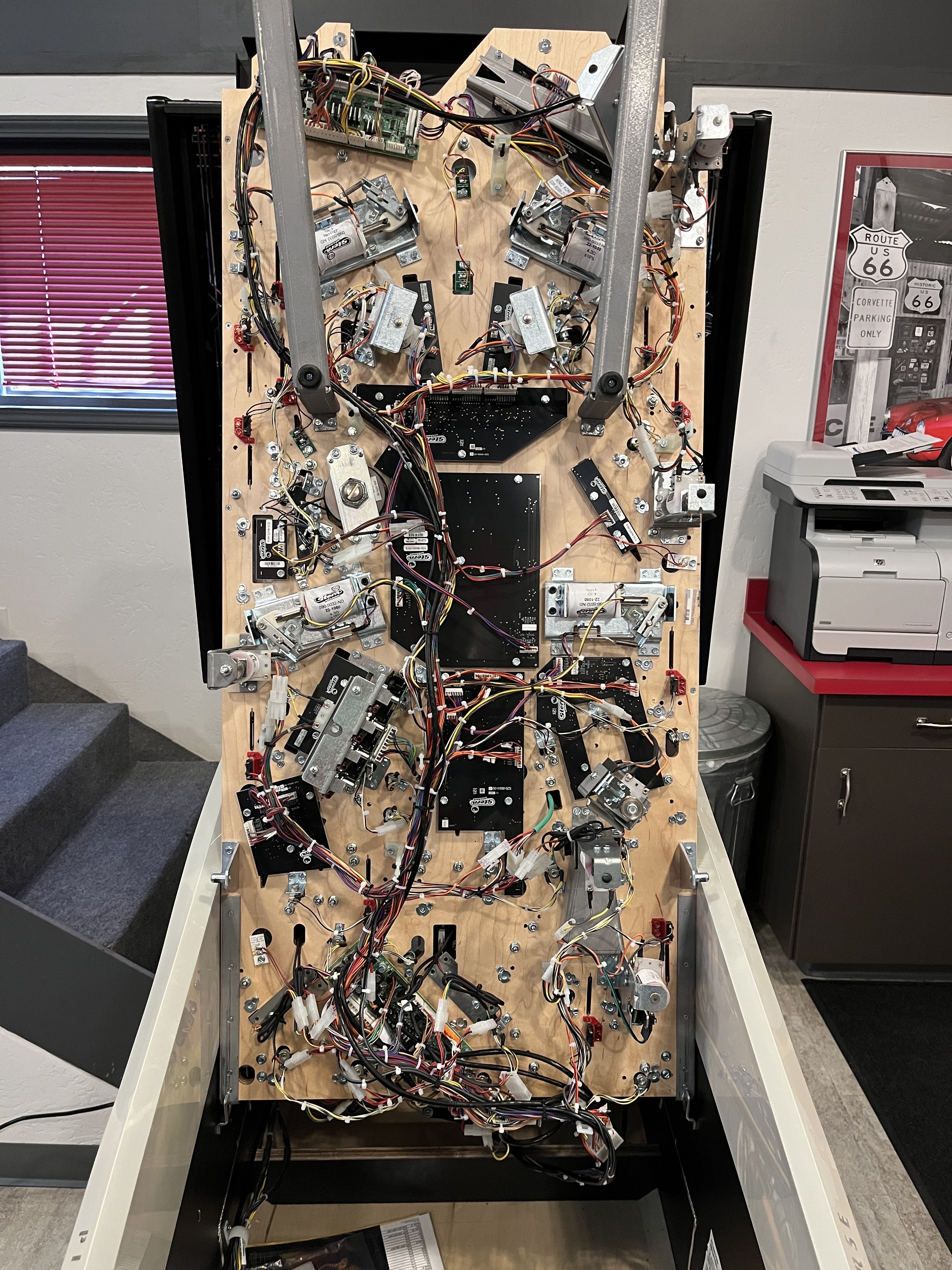

2. If you have gameblades/ art blades, Place the Pinball Cabinet Assembly Protectors on each side of the machine. Next remove the pinballs from the trough. Then lift the playfield into the upright position.

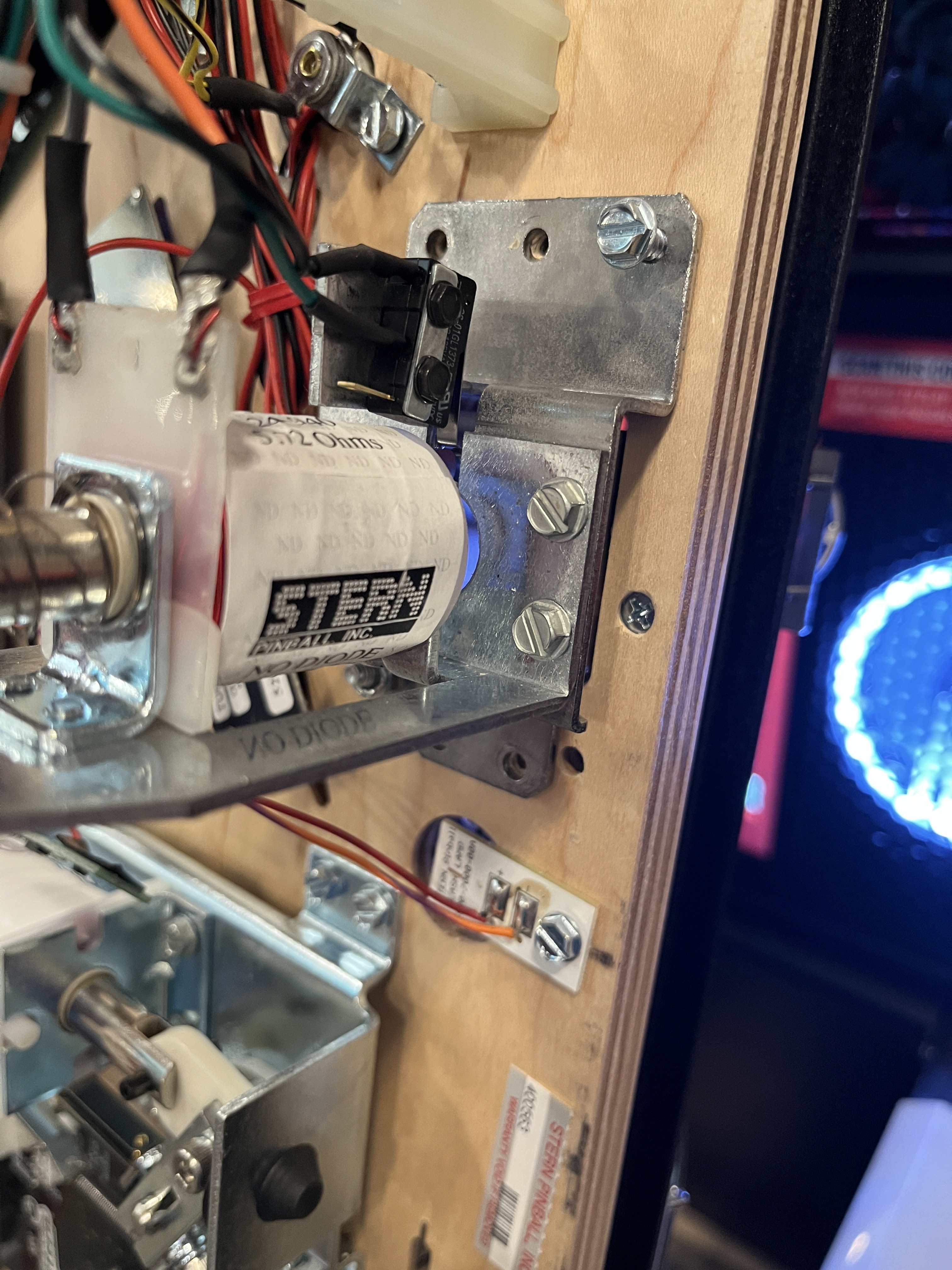

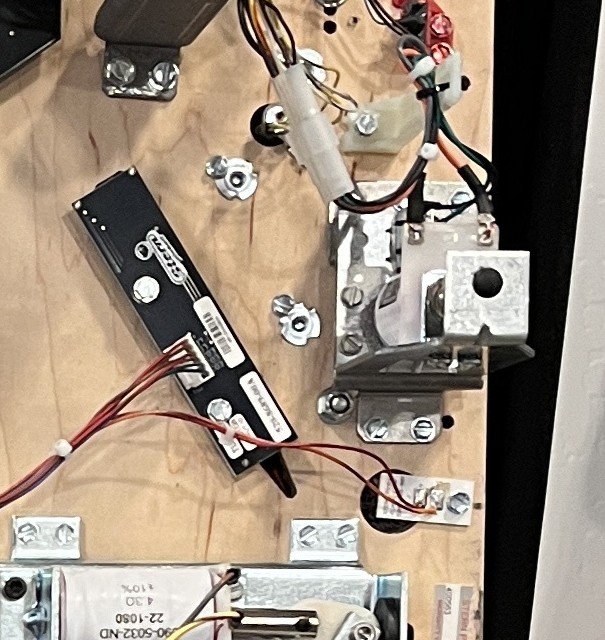

3. Once the game is in the service position, locate the cave scoop. It is on the right side of the playfield. An image has been provided showing where the scoop is located.
4. There are 5 flat head screws that hold the scoop in place. Using a flat head screwdriver, remove the screws and set them in a secure location.

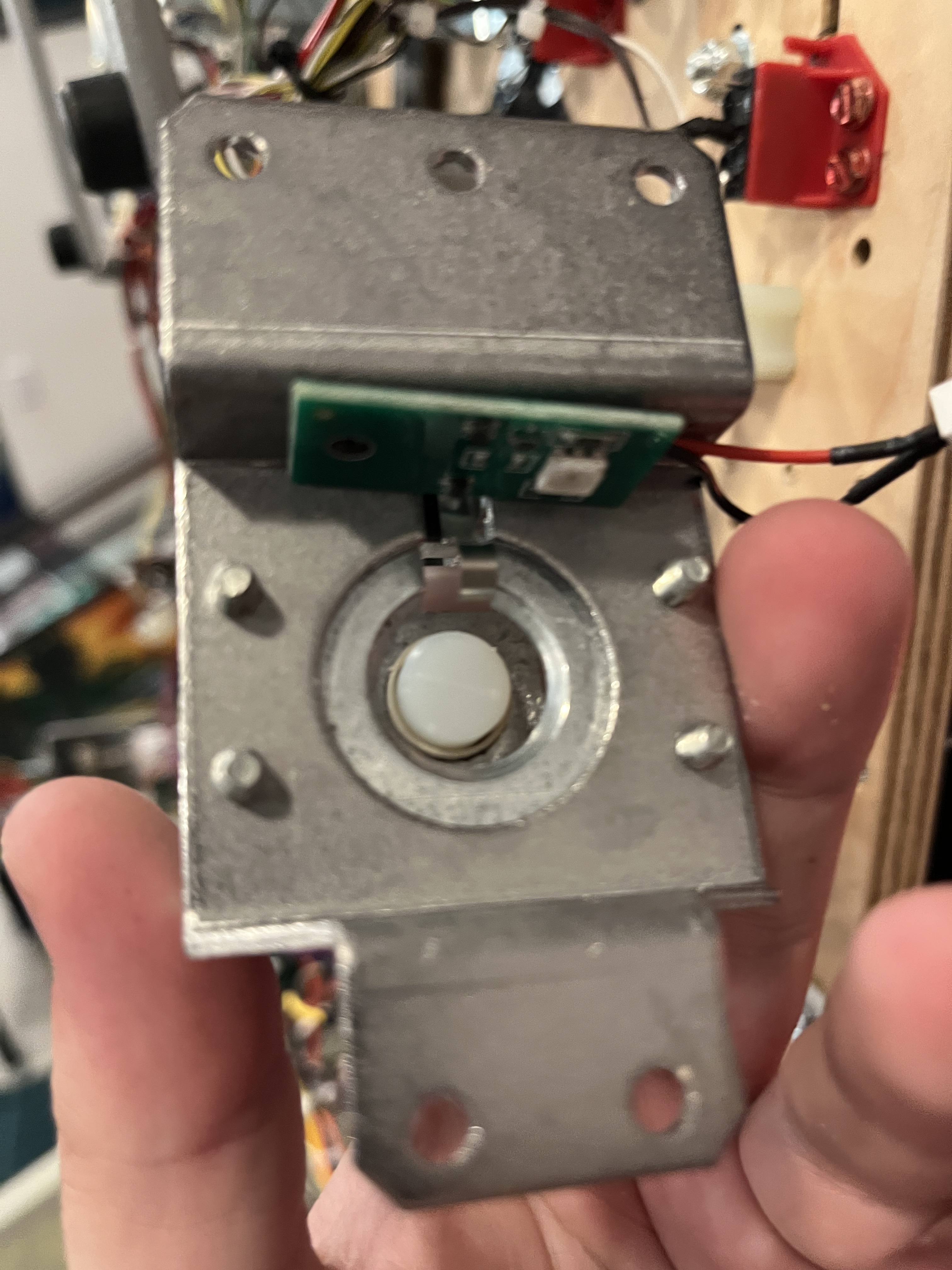

5. Once the scoop has been removed, use the tape to secure the LED board to the backside of the inner part of the scoop. An image has been provided showing how the LED board should look when done correctly.
6. Place the scoop back into position. Once this is done, re-secure the five flat head screws from step two back into the screw holes. Make sure the scoop is not loose in the game.

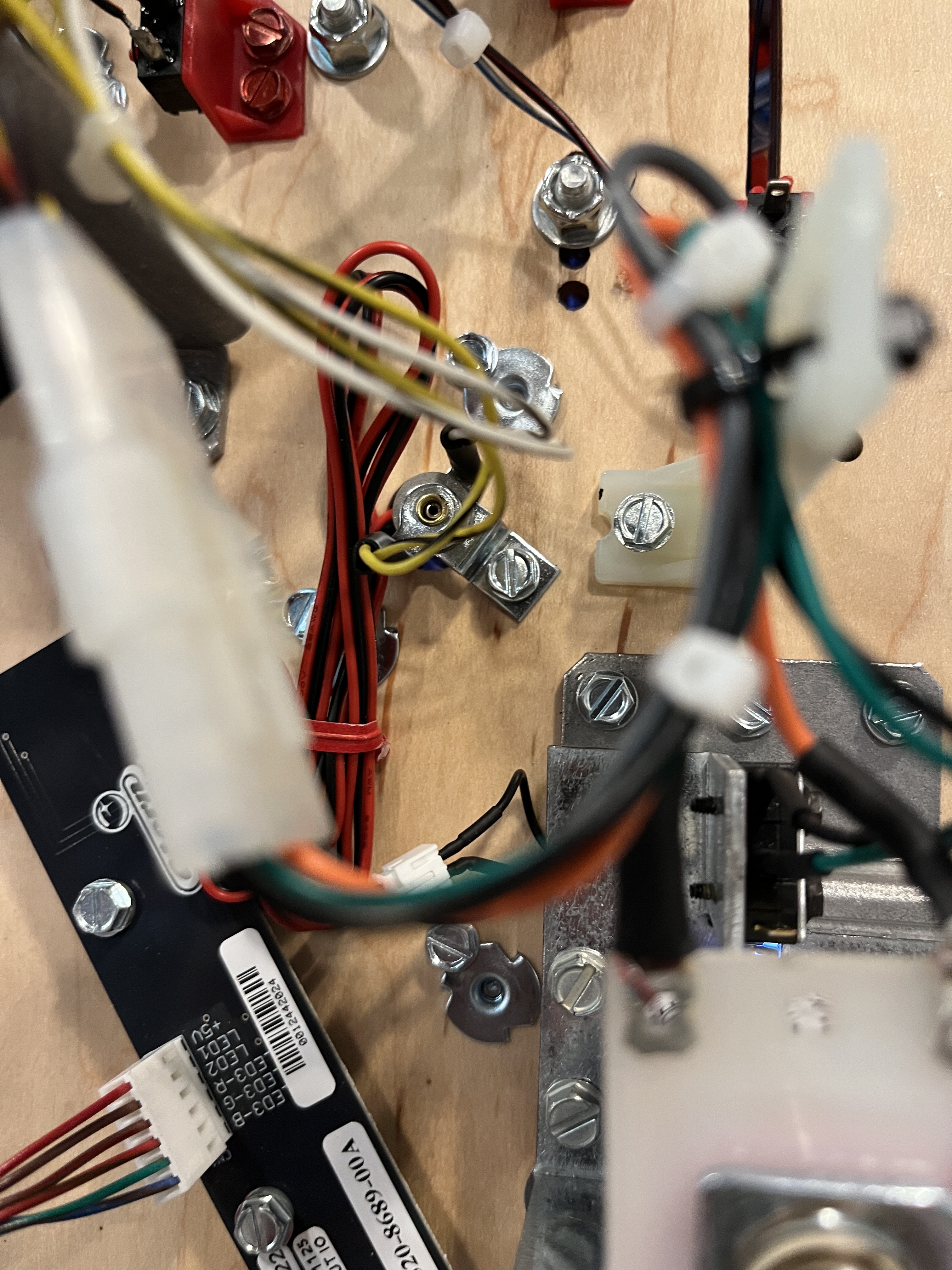

7. There is a #44 bulb next to the scoop. Unscrew the screw that holds that bulb holder in place and then remove the factory bulb. Then place the provided matrix bulb into the socket and re-secure the screw and bulb holder back into place. An image has been provided showing where the bulb is located.
8. For those using an ILS board, we recommend placing it next to the Kong Cave insert and placing the light sensor in that insert. You can also use the Extra Ball or Mystery inserts as well. (image coming soon)
9. Done! If you have any questions, please email [e-mail].
