Kong - Gel Set

These instructions are applicable to the following products:

• MM-KONG-GEL

WHATS IN THE BOX

Image Coming Soon!

Colored Gel Set Tape 2x long green gel's

DANGER ELECTRICAL SHOCK

Pinball machines have high voltages which can cause DANGER TO LIFE AND LIMB. TURN POWER OFF and UNPLUG PINBALL MACHINE prior to installation. Pinball machines are high voltage and can cause electrical shock.
SAFETY GLASSES are also recommended while working with or installing pinball parts.

Please follow these safety instructions as well as all installation instructions.  Failure to follow these instructions may result in damage to the pinball machine, accessory or other parts. Please see our Disclaimer for associated risks and responsibilities (Section 13 in our Terms of Service) prior to installation.

Images included in these instructions are of an installed prototype and may vary from your product slightly.

If you have questions or concerns regarding the proper installation of this part, please contact us for assistance.

When removing screws from the playfield, reinstall by first turning them counter-clockwise to match the original groove in order to respect the integrity of the playfield wood.

Please note that this page is still under construction and will be completed soon.

Install difficulty: Easy

Tools needed: Scissors, 1/4 nutdriver/wrench.

1. Turn off game. Remove glass from game and set in a safe and secure location.

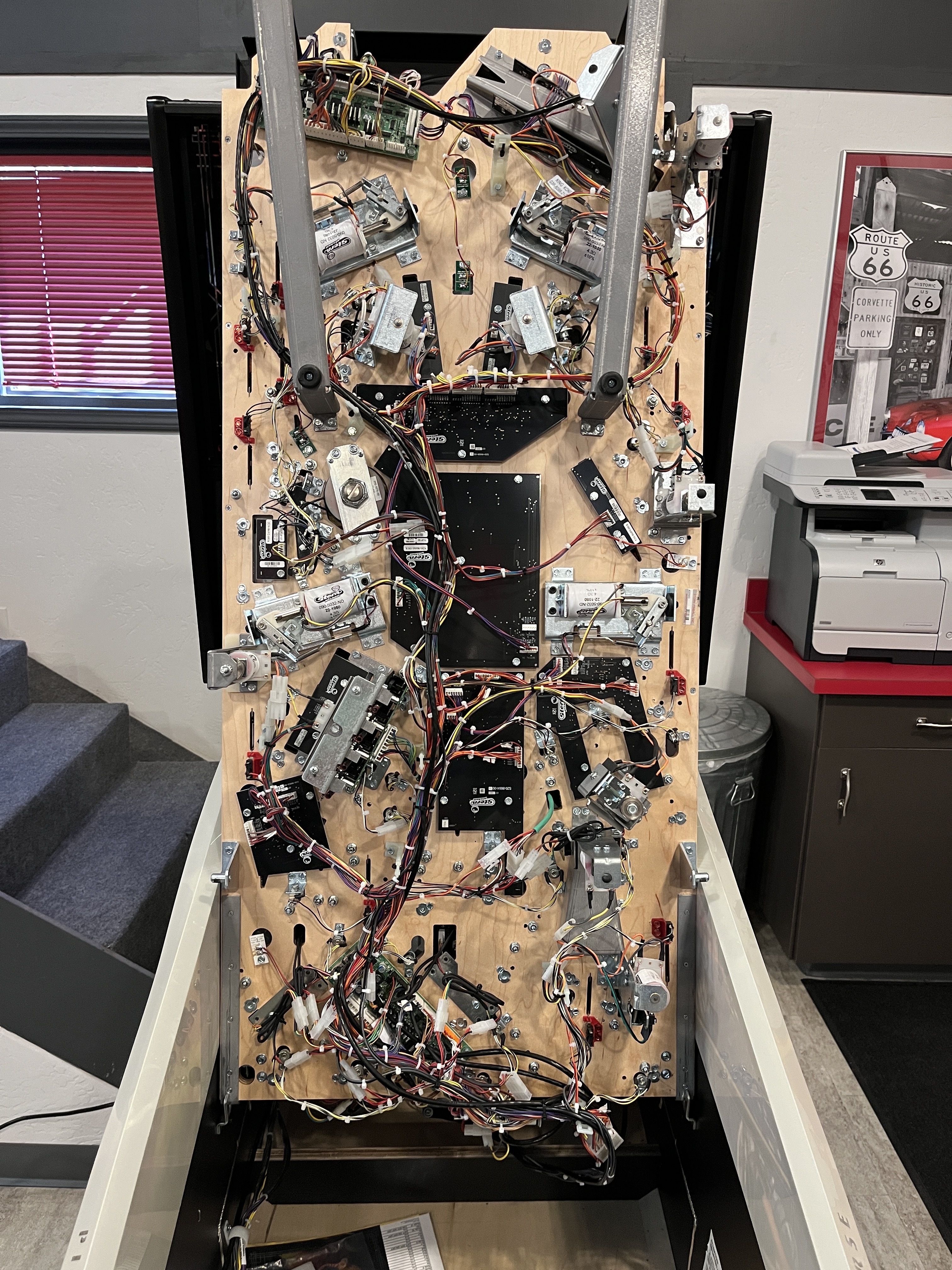

2. If you have gameblades/ art blades, Place the Pinball Cabinet Assembly Protectors on each side of the machine. Next remove the pinballs from the trough. Then lift the playfield into the upright position.

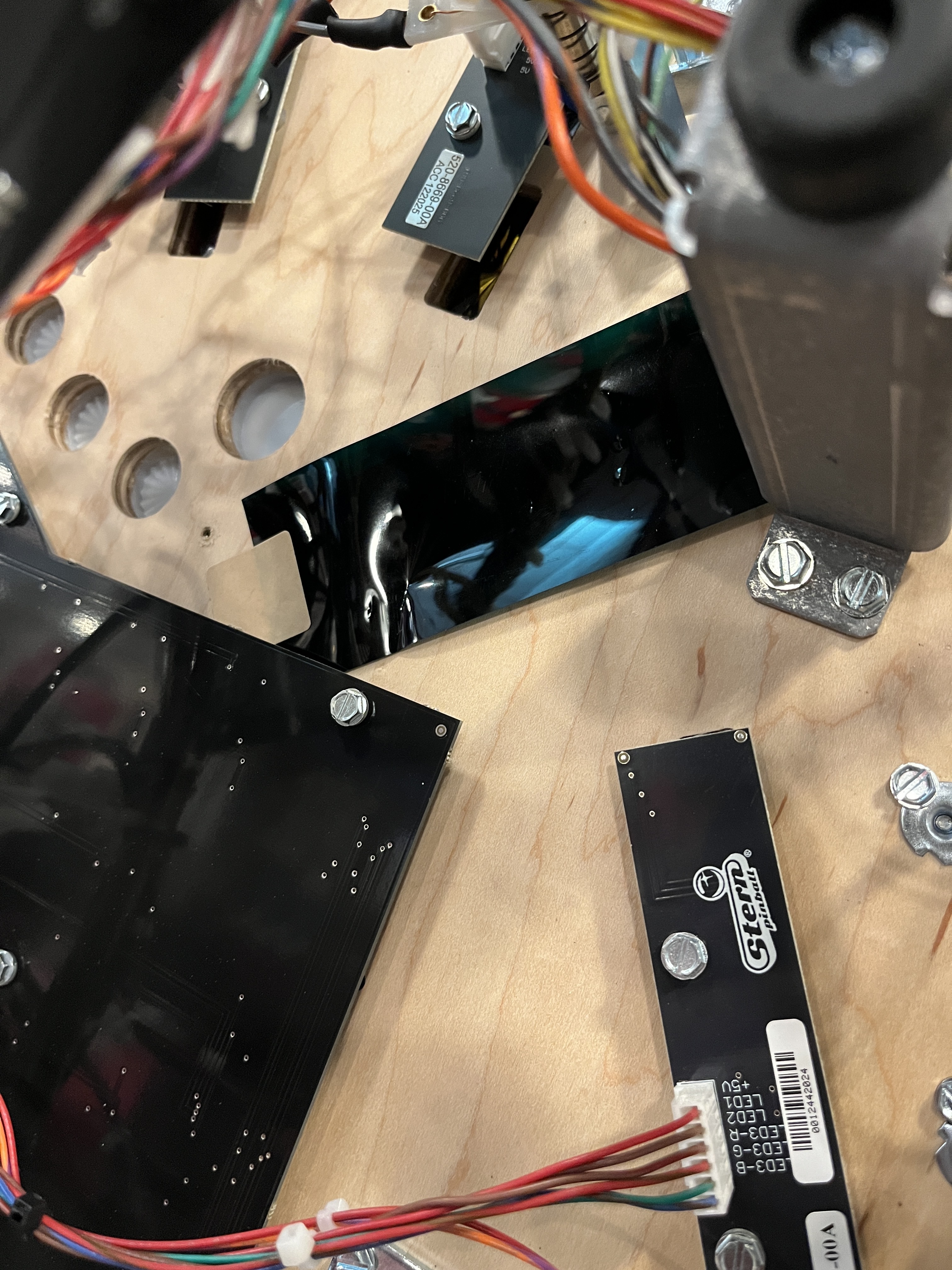

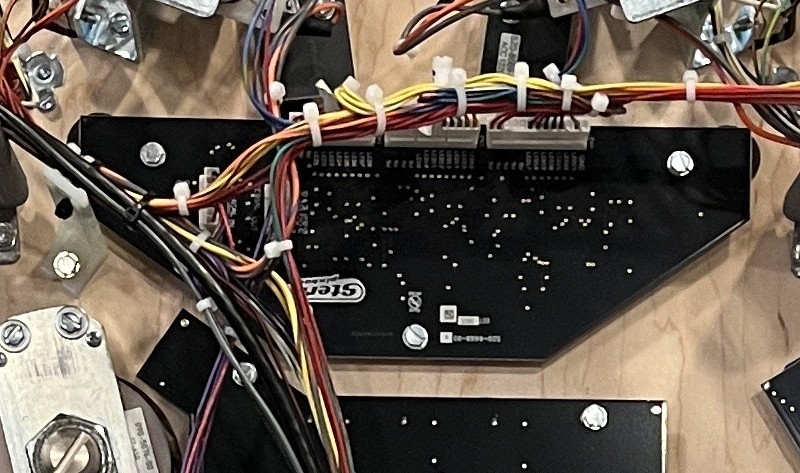

3. Once the game is in the service position, locate the lower LED board. An image has been provided showing what board to locate.
4. Remove the three flat head screws that secure the board in place.
5. Take the large green gel and set it over the four inserts. We recommend cutting the provided tape into multiple pieces to secure the gel so that it doesn’t wiggle around. Do this to both sides. When placing the gels into place, leave the middle screw hole open, otherwise it will be a lot harder to get the LED board back into position.
6. Then re-secure the three screws back into place.
7. Currently, we don’t have images for the additional gel pieces. The beauty of this kit is you can place them where you want, but here are a few recommendations.

• Red/ Orange gel - We recommend placing either one of these gels in the Go Ape Again insert or the Lost Temple insert.
• Yellow gel - We recommend  placing this gel in the Power up insert.
• Green gel - We recommend placing this gel in the Kong Cave insert.
• Blue gel - We recommend placing this gel in the NYC event insert.
• An additional option for all of the gels is to place them in the Biplane inserts. Color code them in any way you desire, though we recommend putting the red at the top.

6. Done!
